Key Features
- 3-Band Audio Equalization
- Custom Tailored Audio Bandwidth
- Adjust to Pass Voice-Band Audio
- Adjust to Produce Smile-Curve for Music
- Low Noise & Low Distortion Equalization
Description

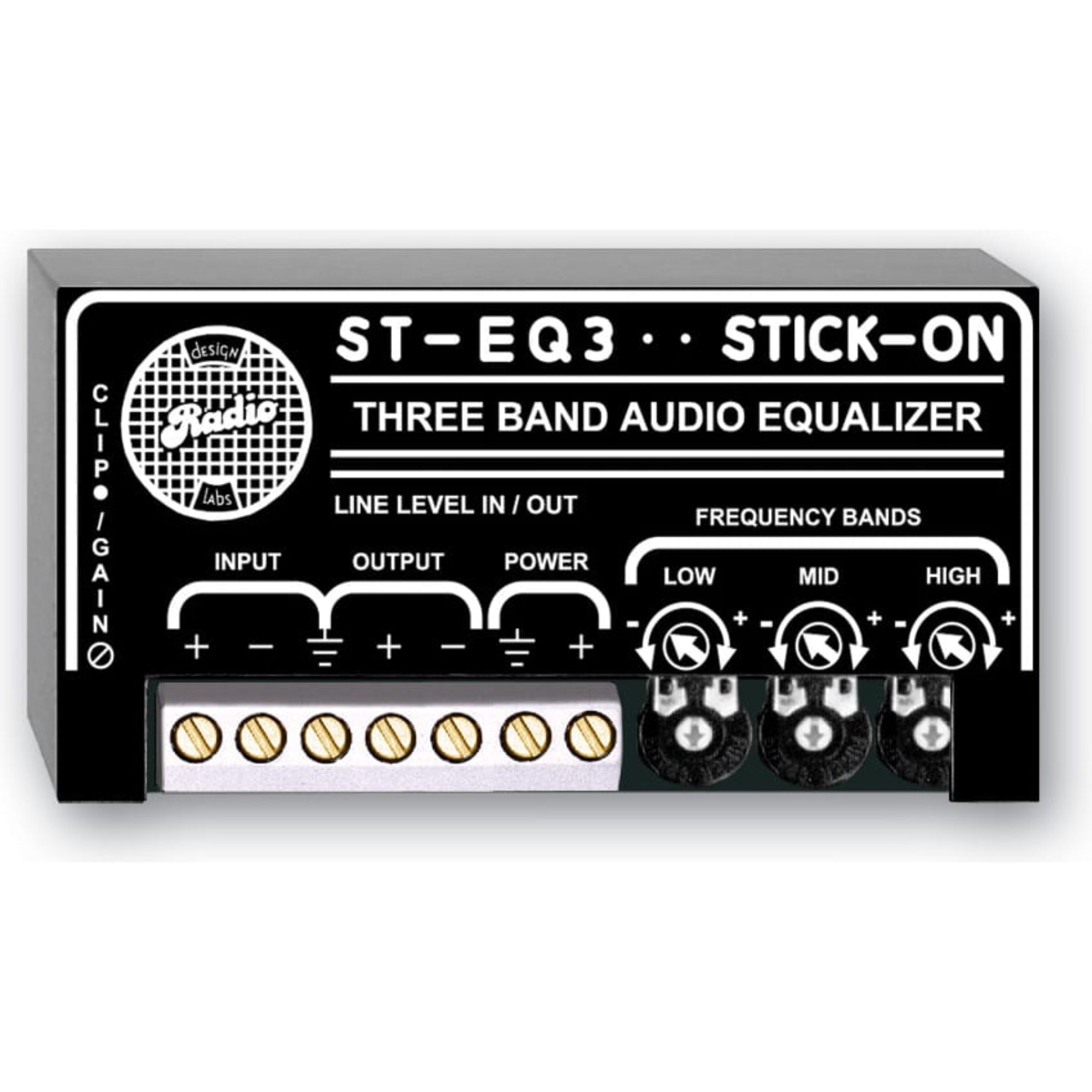

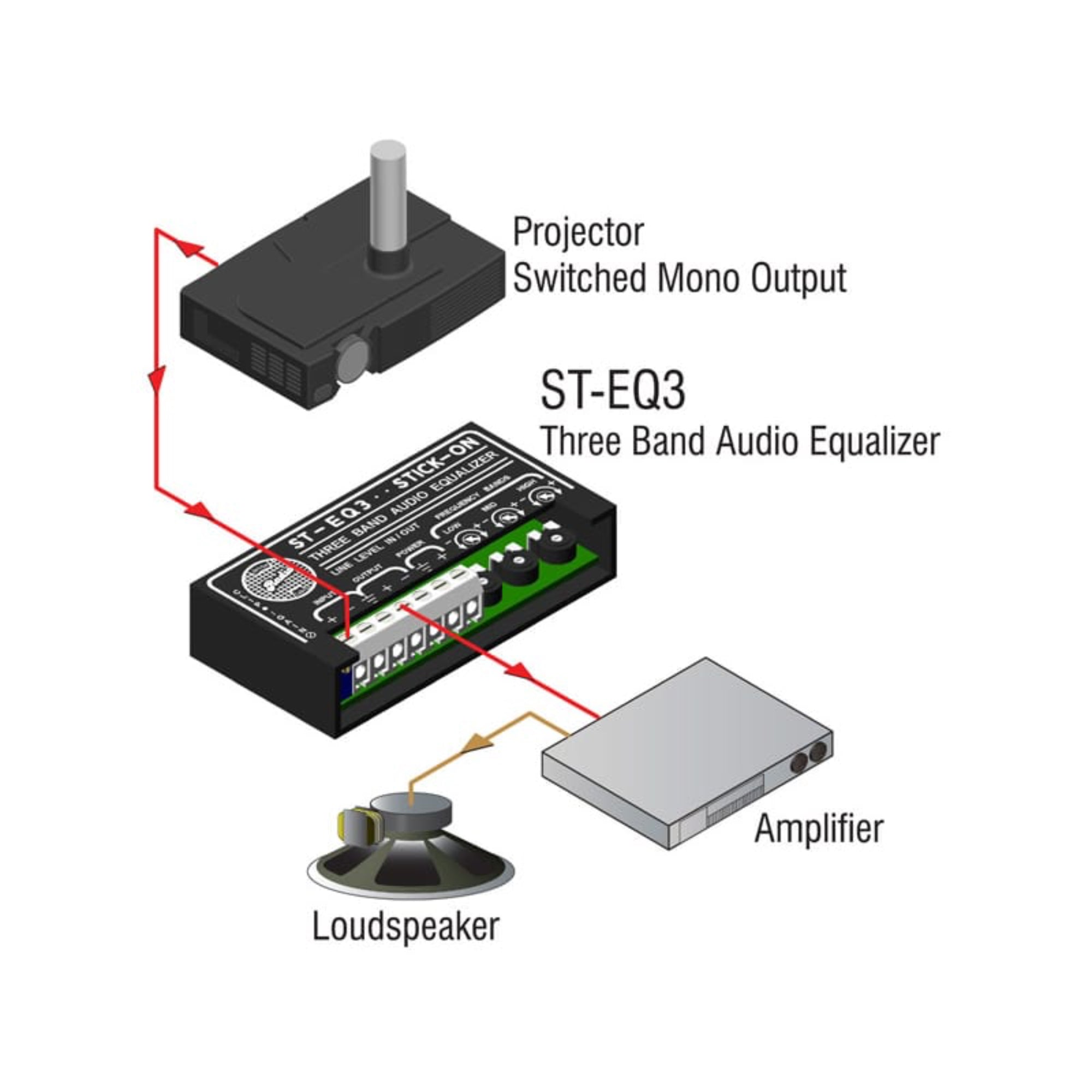

3 Band Equalizer - Line Level
The ST-EQ3 features a balanced bridging input, which may be connected unbalanced if desired. The output driver is 150 Ω balanced, and is intended to drive unbalanced or balanced lines of 150 Ω or higher impedance. Equalization is accomplished by three active circuits, each controlling a separate audio band. These bands were carefully selected to yield a module that works effectively in a wide variety of systems. Setup of the ST-EQ3 is assisted by a peak overload LED which indicates excessive pre or post EQ levels.
Features:
- 3-Band Audio Equalization
- Custom Tailored Audio Bandwidth
- Adjust To Pass Voice-Band Audio
- Adjust To Produce Smile-Curve for Music
- Low Noise and Low Distortion Equalization
Specifications:
- Input:100 kΩ balanced or unbalanced bridging; line-level
- Gain:OFF to unity (adjustable, +/- EQ adjustment)
- THD+N:< 0.030%; 0.010% typical (1 kHz flat response)
- CMRR:> 60 dB (100 Hz)
- Frequency Response:
- Into 600 Ω:20 Hz to 22 kHz (EQ set flat; +/- 0.5 dB)
- Into bridging load:10 Hz to 22 kHz (EQ set flat; +/- 0.5 dB)
- Noise:< -80 dB (below +4 dBu)
- Center Frequencies:LOW Band: 80 Hz
- MID Band: 1 kHz
- HIGH Band: 30 kHz
- Bandwidth at 3dB EQ:LOW Band: 20 Hz to 300 Hz
- MID Band: 200 Hz to 7 kHz
- HIGH Band: 3 kHz to 30 kHz
- Power Requirement:GROUND-REFERENCED, 24 Vdc @ 25 mA
- Ambient Operating Environment:0 C to 55 C
