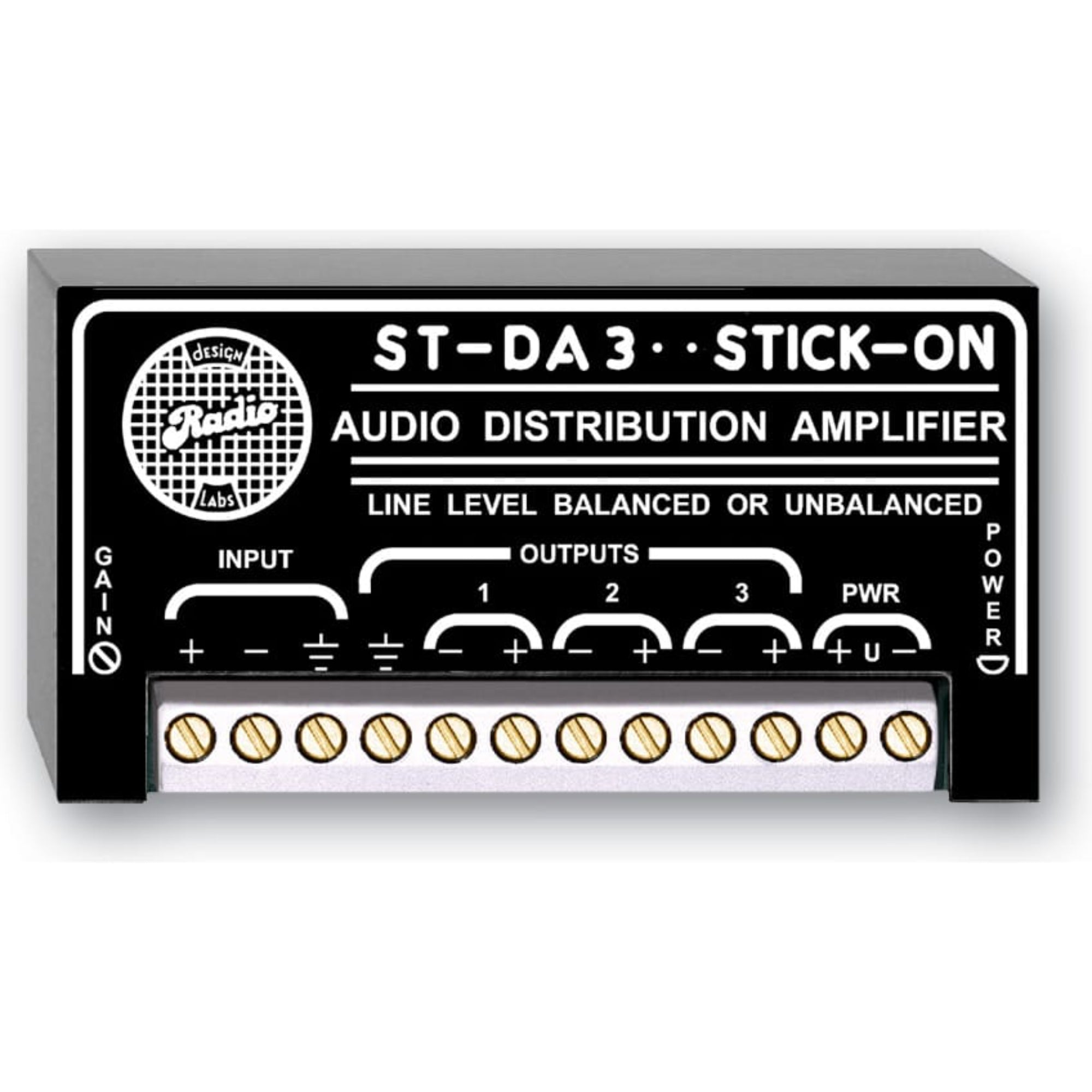

RDL ST-DA3 Line Level Distribution Amplifier 1x3

Line Level Distribution Amplifier - 1x3

The ST-DA3 gives you the advantages of an audio distribution amplifier PLUS you can put it where you need it. The ST-DA3 allows bridging of any audio line, adjusting the gain, and driving up to three high or low impedance, balanced or unbalanced loads. The ST-DA3's wideband circuitry produces the unsurpassed pure clarity, low-distortion and low-noise for which RDL products are known.

The ST-DA3 features RDL's SupplyFlex power input configuration. The module will operate directly from floating 24 Vdc or bipolar dc power. If a jumper is connected between the PWR minus terminal and any module ground, the module power becomes ground-referenced.

Features:

• Audio Distribution with up to 3 Outputs
• Balanced or Unbalanced Input and Outputs

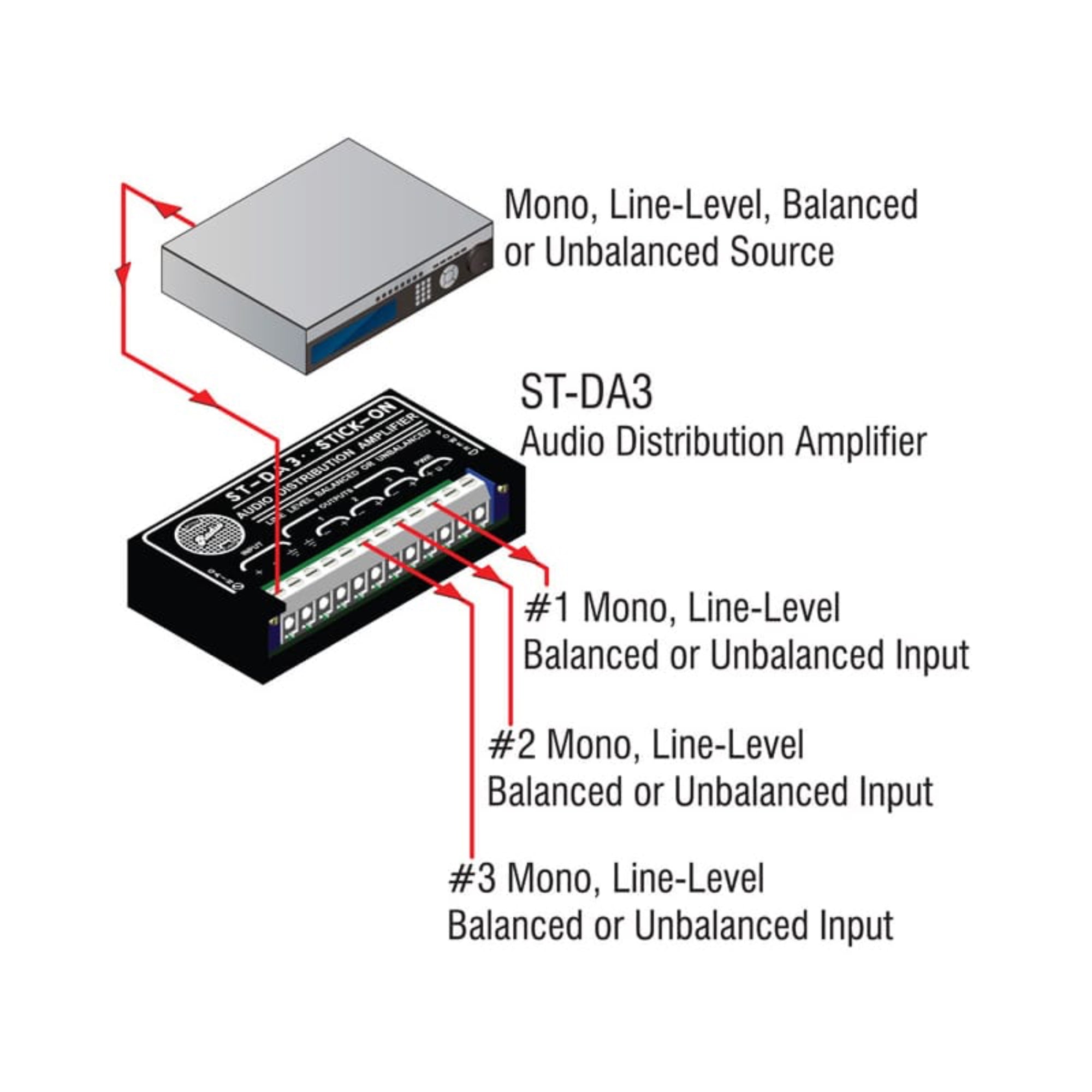

• Bridge an Audio Line for Local Distribution
• Distribution with Impedance Conversion
• Distribution with Gain or Loss
• Inputs and Outputs RF-Protected
• 1x3 Mono or Use Two Units for Stereo
• RDL SupplyFlex Power Input Configuration

Specifications:

• Input: 20 kΩ balanced or unbalanced
• Input Signal: -15 dBV to +21 dBu (for +4 dBu output)
• Maximum Input Level: +24 dBu
• Outputs (3): 150 Ω balanced or 75 Ω unbalanced
• Output Signal:
• Balanced: +4 dBu nominal balanced;
• Unbalanced: 6 dB below balanced line level
• Maximum Output Level: +25 dBu
• Frequency Response: 10 Hz to 100 kHz (+/- 0.05 dB)
• THD+N: < 0.002% (unity gain)
• IMD: < 0.003% (unity gain)
• Noise below +4 dBu: < -98 dB (unity gain)
• Headroom: > 20 dB (above +4 dBu)
• Gain: Unity +/- 17 dB (adjustable)
• CMRR: > 60 dB (50 Hz to 120 Hz)
• Power Requirement: GROUND-REFERENCED or FLOATING, 24 Vdc @ 70 mA
