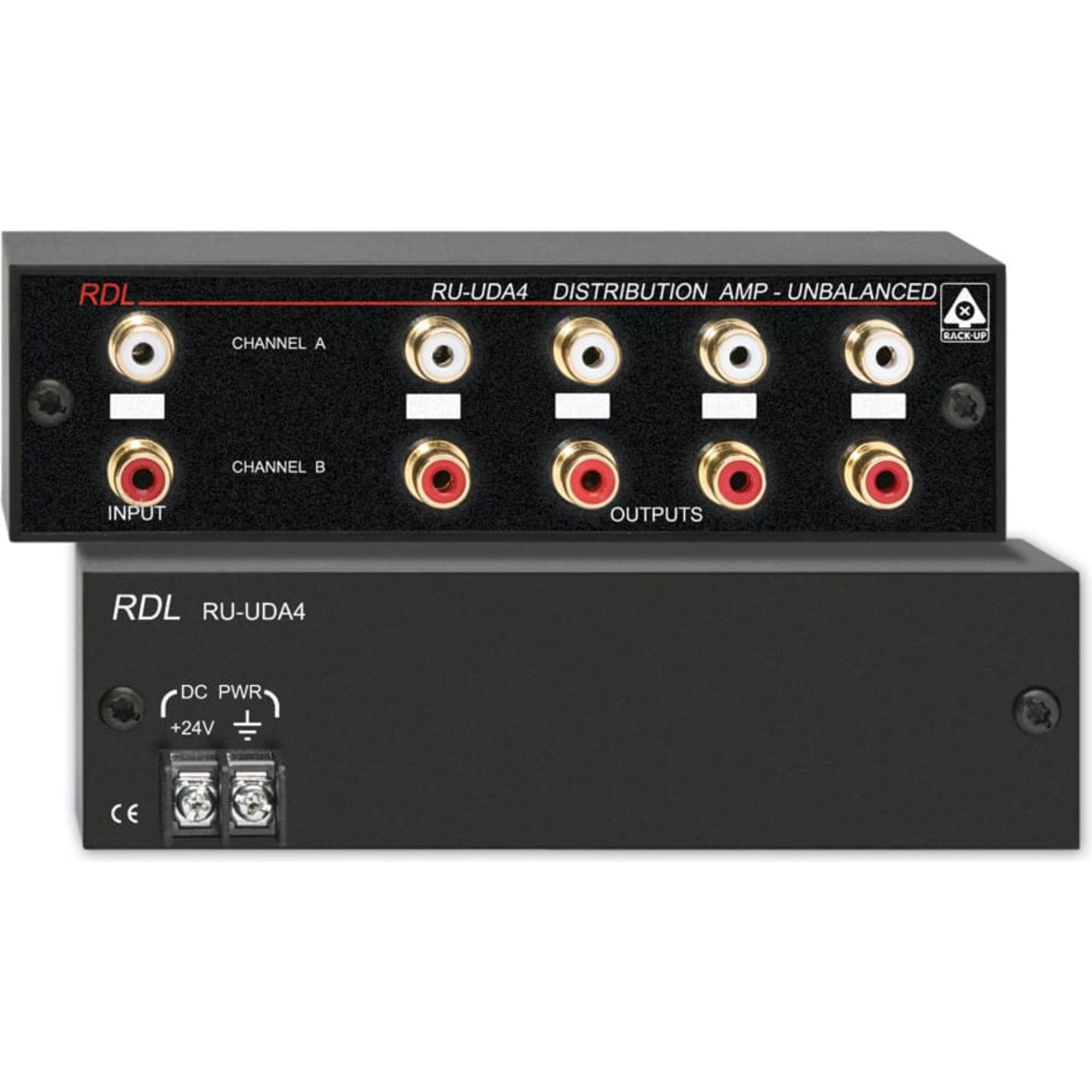

RDL RU-UDA4 Stereo Audio Distribution Amplifier 2x4 RCA Jacks

Stereo Audio Distribution Amplifier - 2x4 - RCA Jacks

The RU-UDA4 is the optimum choice where connectorized, unbalanced line-level distribution is needed. This unit features two separate, isolated channels. The RU-UDA4 may be used in stereo applications, or as two individual monaural distribution amplifiers. The input signals are buffered through output line drivers, providing four separate line-level unbalanced outputs for each of the two inputs.

The RU-UDA4 performance is tailored around industry standard -10 dBV input/output levels. Excellent frequency response, phase response, low-distortion and low-noise performance combine to produce the audio clarity and precision for which RDL products are well known.

Features:

• Stereo Unbalanced Audio Distribution
• Unity Gain on Both Channels
• Four Outputs per Channel
• Stand Alone or Rack-Mountable
• Exceptional Audio Performance
• 1/3 Rack, High-Density Rack Mounting

Specifications:

• Input Connectors (2): Phono
• Input Impedance: 10 kΩ unbalanced
• Output Connectors (8): 4 per channel, phono
• Output Impedance: 100 Ω unbalanced
• Channels: 2 (left & right; may be used independently as 2 separate mono amplifiers)
• Frequency Response: 5 Hz to 50 kHz (+/- 0.5 dB)
• THD+N: < 0.020%
• Noise: < -90 dB (below -10 dBV)
• Crosstalk: < -90 dB (1 kHz);
• < -80 dB (10 kHz)
• < -75 dB (20 kHz)
• Headroom: > 28 dB
• Power Requirement: GROUND-REFERENCED, 24 Vdc @ 25 mA
• Ambient Operating Environment:0 C to 55 C
