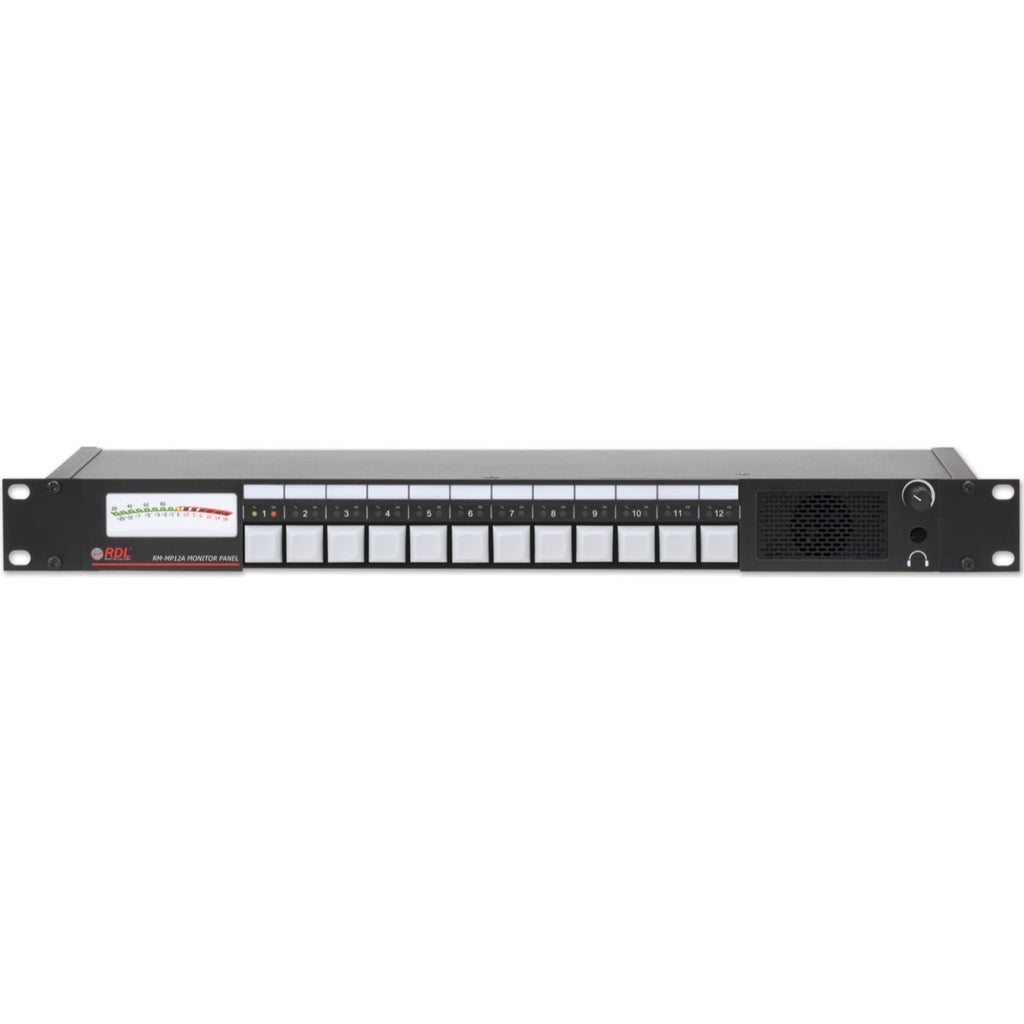

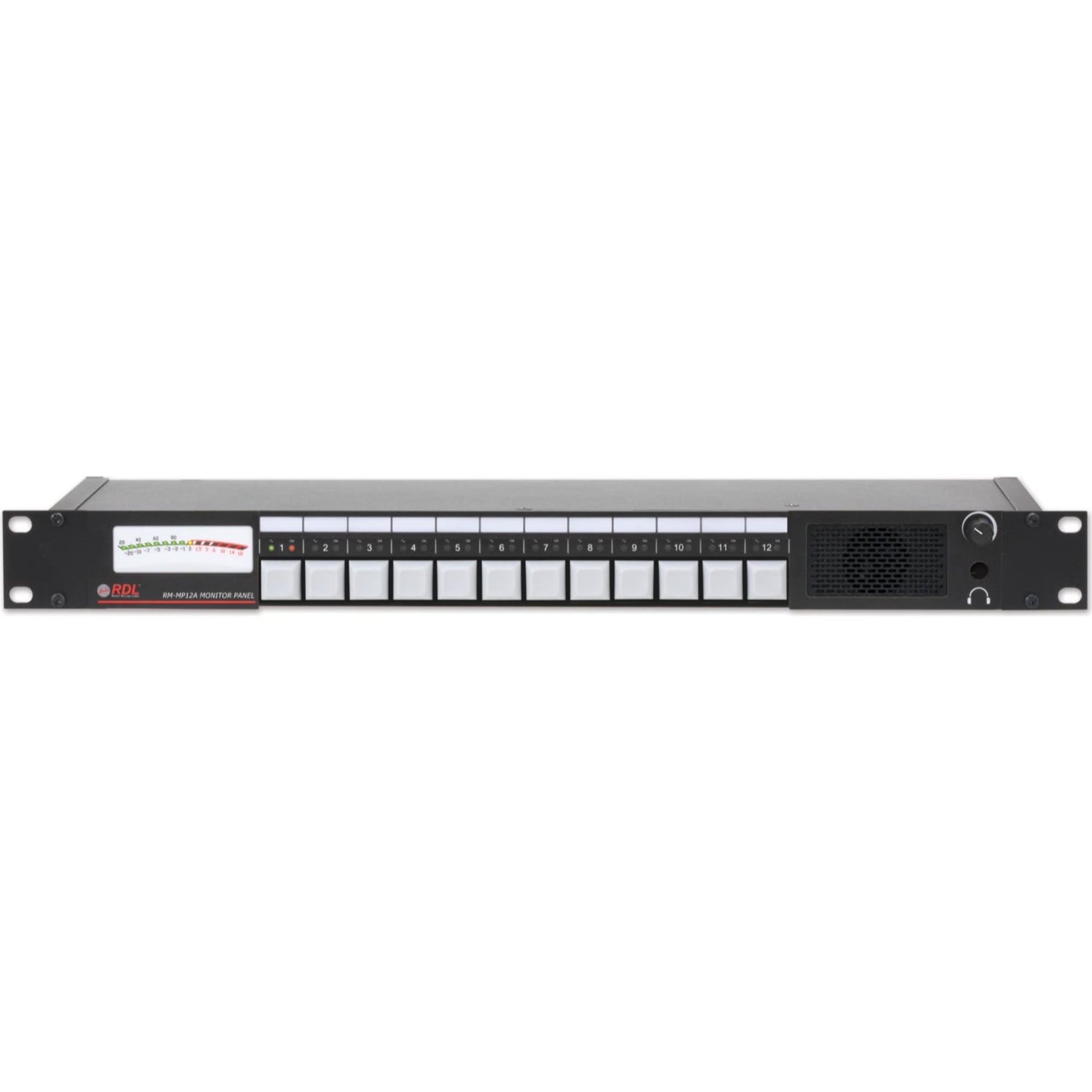

RDL RM-MP12A Audio Monitor Panel 12 Line or Speaker Inputs

Audio Monitor Panel - 12 Individually Selectable Audio Inputs

Each RM-MP12 input may be individually calibrated for unbalanced consumer, balanced professional, 8 Ohm speaker line or constant voltage speaker lines. There is a variable intensity LED on the front panel to show audio presence for each input. If the RM-MP12 is set to the interlocking operating mode, front-panel pushbuttons select one of the twelve inputs to feed the calibrated meter, front-panel speaker (or external speaker if connected) and headphone jack. In the mixing mode, the buttons allow the use to mix multiple sources. The front-panel volume knob controls the audio level of the front-panel headphone jack, front-panel speaker, external speaker output and variable line level (+4 dBu) rear-panel output. A separate fixed line-level output is provided.

Features:

• Twelve Individually Selectable Audio Inputs
• Selectable Operating MODE Provides Interlocking Source Selection or Mixing Multiple Sources
• LED Above Each Button to Show Selected Source
• VU Ballistic LED Above the Button for Each Input
• Calibrated Front-Panel Meter Display
• Front-Panel Speaker and Headphone Jack
• Front-Panel VCA Control for Headphone and Speaker Output Levels
• Internal 4.5 W RMS Power Amplifier and Speaker
• Audio Inputs and Outputs on Detachable Terminal Blocks

Specifications:

• Inputs (12): +4 dBu, 25 V, 70.7 V, 100 V (set by rear-panel switches)
• Input Level: -11 dBu to +9 dBu (+4 dBu input) 25 V, 70.7 V, 100 V (calibrated with gain trim set fully counter-clockwise)
• Headroom: > 18 dB (above calibrated input level)
• Gain: 0 dB to 20 dB (Adjustable for speaker-level input, 25-turn trim potentiometer)
• -5 dB to 15 dB (+4 dBu input)
• Frequency Response: 10 Hz to 20 kHz (+/-0.25 dB)
• THD+N: < 0.010% (20 Hz to 20 kHz)
• Intermodulation Distortion: < 0.025% (20 Hz to 20 kHz)
• Channel to Channel Crosstalk: < -80dB (10Hz to 20 kHz)
• Residual Noise: < -80 dB (Channel ON; referred to +4 dBu)
• OFF Attenuation: > 80 dB (10 Hz to 20 kHz)
• Indicators per Channel (2): Red channel active LED above button; Variable intensity audio level LED for each input (minimum intensity at -15 dB, maximum intensity at 0 dB)
• CMRR: > 75 dB (50 to 120 Hz)
• Outputs (4): 150 Ohms, +4 dBu fixed level (balanced or unbalanced via plug-in terminal block)
• 150 Ohms, +4 dBu variable level (balanced, controlled by front-panel volume knob)
• 4.5 W RMS external speaker connection (use of external speaker disconnects internal speaker) 100 mW 1/4-inch stereo headphone jack
• Power Requirement: GROUND-REFERENCED, 24 Vdc @ 700 mA
• Mounting: Standard 19" Rack-mount; 1 Rack Unit (RU)
• Dimensions:
• Height: 1.75 in 4.40 cm
• Depth: 5.35 in 13.60 cm
• Ambient Operating Environment: 0 C to 55 C
