Key Features
- High-Quality Solid-State Switching
- Sure-Lok Recovery Provides Stability
- Rear Remote Control Terminals
- Keyboard-Style Buttons with LEDs
- Made in the USA
Description

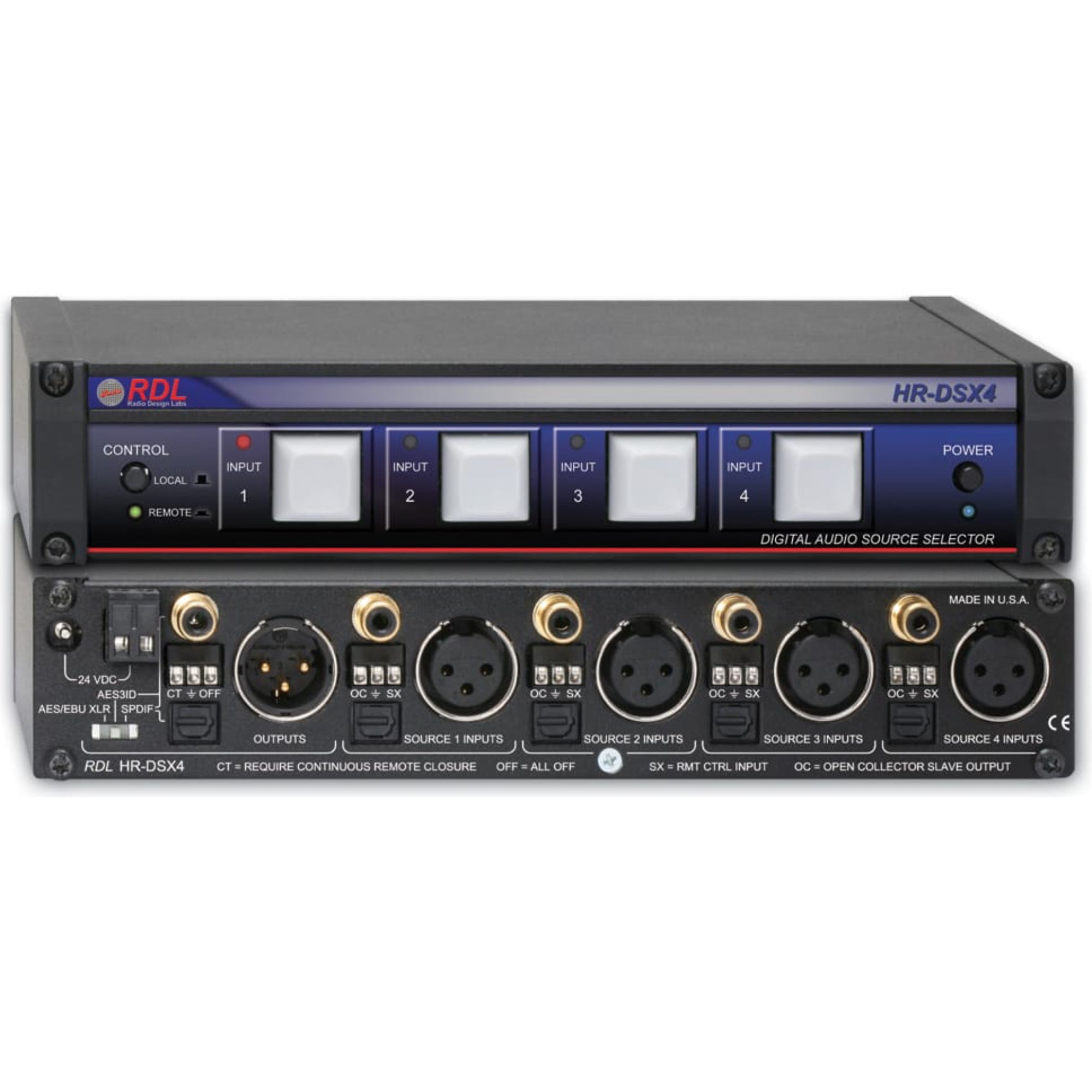

Digital Audio Selector - 4x1
The HR-DSX4 is the ideal choice in installations requiring high quality source selection between digital audio signals. Solid-state switching is used to select one of four inputs. Each input may be fed through one of three jacks: S/PDIF optical, S/PDIF (or AES-3ID) coaxial or AES/EBU. The output is switch-selectable to provide an AES/EBU, S/PDIF coaxial, S/PDIF optical or AES-3ID output. The switch enables the appropriate output jack and any required electrical and data format conversion. The AES/EBU inputs and output are 110 Ω terminated; the S/PDIF coaxial and AES-3ID signals connect through 75 Ω terminated phono jacks. RDL's proprietary Sure-Lok auto recovery supervision monitors possible causes of latch-up and reinitiates signal lock to provide highly stable operation in the variety of conditions encountered in professional environments.

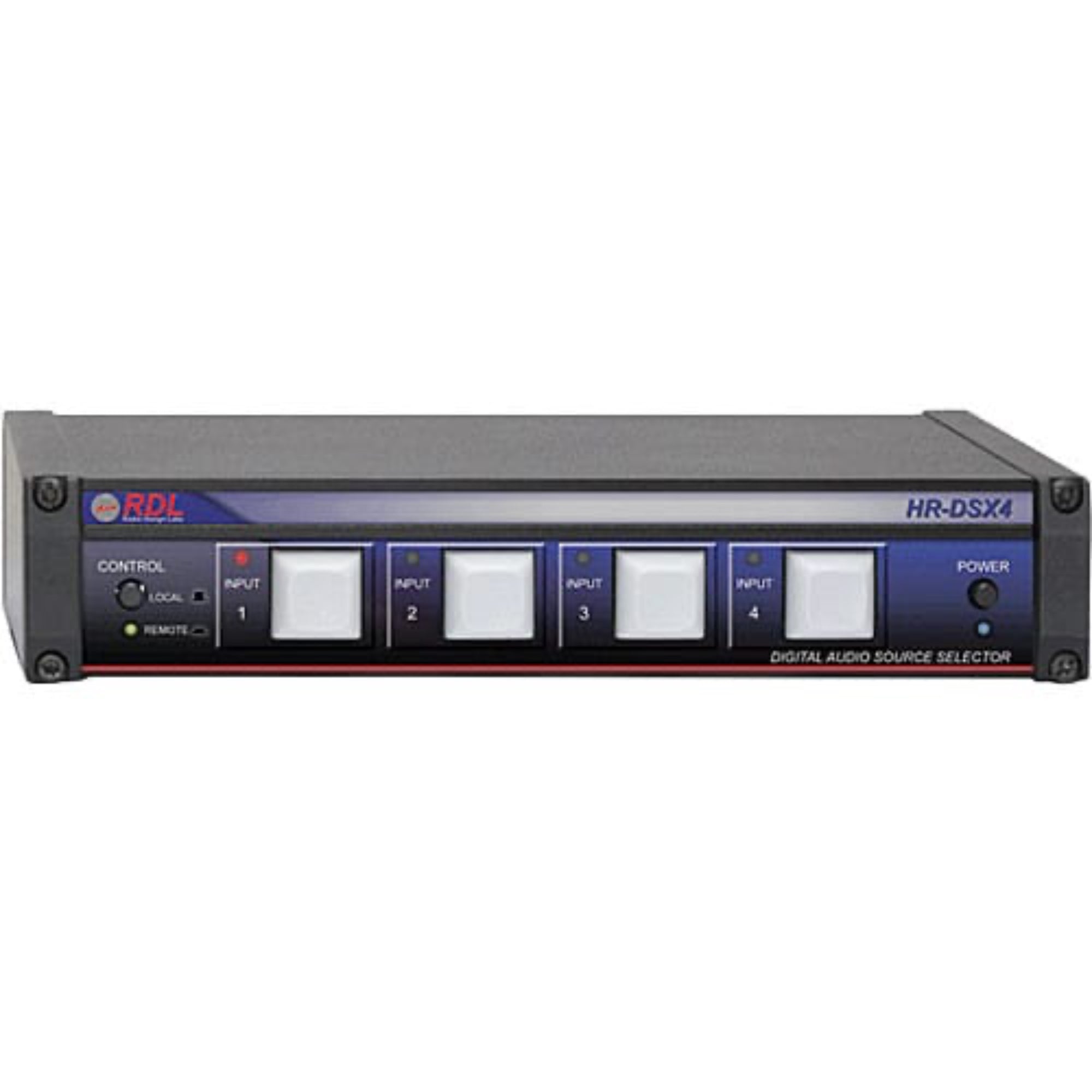

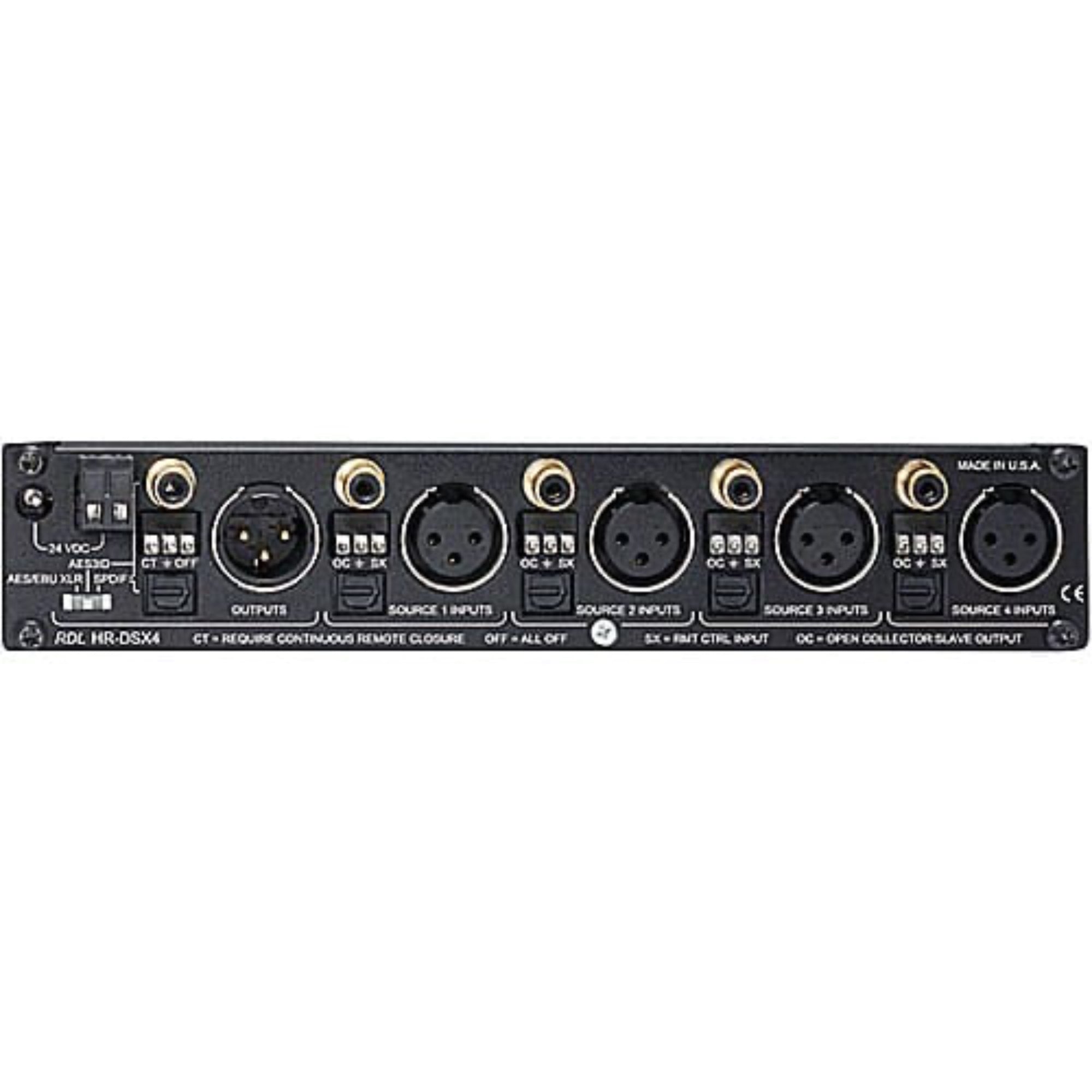

The front panel features four high-reliability, keyboard-style source selection pushbuttons with corresponding LEDs. Upon selecting a source, the LED lights if a valid input is present; otherwise it flashes. If the button for a selected source is pushed again, all inputs are turned off. A front-panel LOCAL/REMOTE switch enables either the front-panel buttons or the rear-panel remote control terminals provided on detachable terminal blocks. In the REMOTE mode, inputs are selected by an external switch or open-collector closure to ground, which may be momentary or continuous. When a source is selected, the HR-DSX4 provides a 50 mA open-collector output to control other equipment or modules.
The HR-DSX4 is powered from 24 Vdc, which may be connected through the detachable terminal block or through the dc power jack. A front-panel power switch is provided.
Features:
- 4 x 1 Digital Audio Selection with Signal Reclocking
- Each Input: AES/EBU, Coaxial or Optical S/PDIF
- Output: AES/EBU, Coaxial or Optical S/PDIF
- Format Conversion for Selected Output Format
- Operation Up to 24 bits, 192 kHz
- Exclusive Sure-Lok Auto-Recovery Sentinel
- Transformer Isolated AES/EBU Inputs and Output
- Local or Remote Controlled Switching
- Open-Collector Output for Selected Input
- Input LED Flashes if Valid Input is Not Connected
Specifications:
- Inputs (12):110 Ω AES/EBU XLR (4), transformer isolated; S/PDIF optical (4); 75 Ω S/PDIF or AES-3ID coaxial phono jack (4)
- Outputs (3):110 Ω AES/EBU XLR, transformer isolated;
- S/PDIF optical; 75 ΩS/PDIF or AES-3ID phono jack
- Selector:Rear-panel output format: AES/EBU, S/PDIF or AES-3ID
- Sample Rate:32 kHz to 192 kHz
- Resolution:16 to 24 bits
- Indicators (6):POWER LED; INPUT Source Selected LED (4); REMOTE Control Mode LED
- Standards:AES3-2003, IEC60958
- Power Requirement:GROUND-REFERENCED
- 2 to 33 Vdc @ 50 mA
- Ambient Operating Environment:0 C to 50 C
