Key Features
- Suited for Commercial Audio Installation
- Dual Zone Configuration
- Zone 1: 35 Watts, Zone 2: 4 Watts
- 4 Ohm & 8 Ohm Operation
- Four Audio Inputs
- Paging Input with Volume Control
- Audio Ducking During Paging
- Remote Volume Controls Supported
- Automatic Power Up and Shut Down
- Energy Efficient
Description

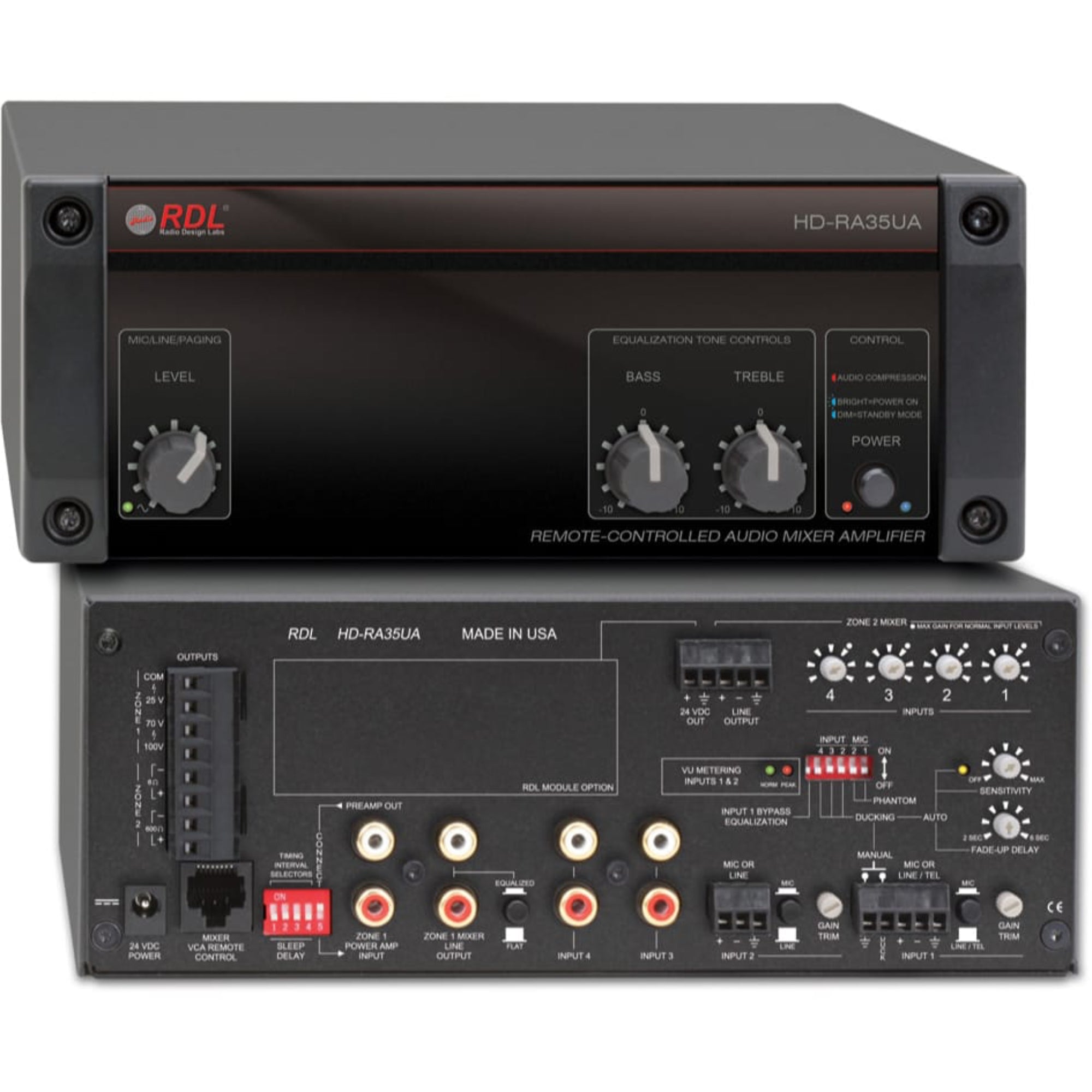

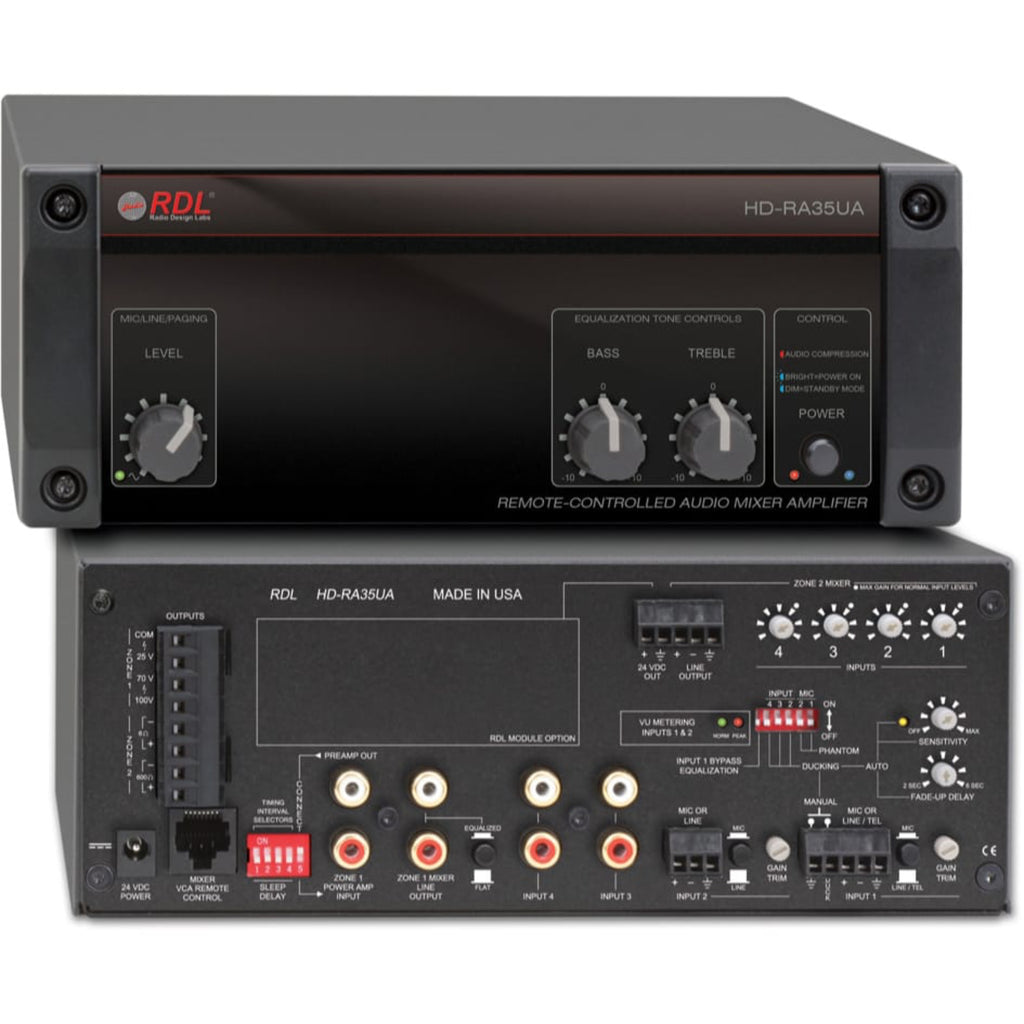

35 Watt Remote Mixer Amplifier - 25, 70, 100 V - Includes Worldwide Power Supply
The HD-RA35UA is a four input audio mixer amplifier for systems demanding the broadest range of features and the highest energy efficiency. Two output power amplifier zones, 35 watts (Zone 1) and 4 watts (Zone 2), are driven from high-efficiency Class D amplifier stages. The mixer and amplifier sections all normally shut down (standby "sleep" mode) when audio is absent and automatically turn on when needed. A paging source is normally connected to Input 1. The Zone 1 amplifier output level for inputs 2, 3 and 4 is VCA controlled using various optional RDL remote controls. This allows the user controls to be conveniently wall mounted without running audio to and from the remote control location. The Zone 1 output provides a constant voltage output (25 V, 70 V or 100 V). The Zone 2 amplifier output drives an 8 ohm speaker and/or 600 ohm telephone equipment.
The HD-RA35UA is engineered, tested and manufactured in the U.S.A. to strict energy conservation standards. The unit consumes less than 1W of mains power in standby mode, and meets power amplifier efficiency specifications with analog-filtered Class-D digital output stages for both power amplifier output zones and for the 600 ohm output.
The HD-RA35UA features two mixers. The Zone 1 mixer is split between the front-panel (Paging Input 1 and tone controls) and a remote control (Inputs 2, 3 and 4) providing user level controls for the 35 watt amplifier output. The tone controls adjust the equalization at the Zone 1 amplifier output and can be switch selected on the rear panel to also adjust the equalization at the line-level output. The Zone 2 mixer on the rear panel provides level trimmers normally set by the installer to provide music-on-hold and/or for background music in a small zone equipped with an 8 ohm speaker. The Zone 2 section includes a 4 watt amplifier, a 600 ohm transformer-balanced MOH output, and an active balanced line-level output that may be used to feed another audio power amplifier.
The HD-RA35UA has four inputs that are common to both mixers. Inputs 1 and 2 accept balanced mic or line level sources. Inputs 3 and 4 accept unbalanced mono or stereo line-level sources.
Input 1 is switch-selectable MIC or LINE. Phantom voltage (IEC standard 24 Vdc) is switch-selectable for the microphone input. The line input is transformer isolated and accepts balanced or unbalanced, high or low impedance audio sources. A gain trimmer is provided to set the input preamplifier to the optimum gain for the installation.
Input 2 is switch-selectable MIC or LINE. Phantom voltage (IEC standard 24 Vdc) is switch-selectable for the microphone input. The line input is active balanced and accepts balanced or unbalanced, high or low impedance sources. A gain trimmer is provided to set the input preamplifier to the optimum gain for the installation.
An RDL Dual-LED VU meter is provided on the rear panel to indicate proper gain adjustment for Inputs 1 and 2. Correct input gain adjustment insures adequate mixer stage headroom.
Inputs 3 and 4 each provide unbalanced stereo RCA input jacks, summed to mono.
The HD-RA35UA is equipped with an RJ45 jack for direct connection of an RDL triple remote level control (sold separately). Remote controls have three user volume controls and are available with pushbutton muting with LED indicators for each input. Remote control model examples: D-RC3 and D-RC3M. A rear-panel switch is provided to defeat the front-panel tone controls for Input 1, normally used when a paging source is connected to Input 1.
The Zone 1 amplifier includes an analog compressor/limiter for audio fidelity noticeably superior to conventional class D amplifiers with digital limiting. Increasing the input gain can substantially increase the average output power beyond that of a standard 35 watt amplifier. A red front-panel LED flashes when the compressor is preventing output clipping. Normal audio level signals remain unaffected by the compressor thereby preserving audio dynamics. The audio is compressed according to three dynamic time constants providing aural transparency while maintaining clean, unclipped amplified audio for input overloads of up to 20 dB. The HD-RA35UA, with compression, is capable of producing average audio output levels and clarity normally expected from amplifiers with a much higher output power rating.
Features:
- Four audio inputs
- Paging input with front-panel volume control
- Three inputs with VCA volume control adjusted using RDL remote control
- Bass and Treble tone controls
- Designed for background music with paging and music-on-hold
- Manual or automatic (VOX) priority ducking
- Balanced inputs and amplified outputs on detachable terminal blocks
- Unbalanced inputs and outputs on RCA jacks
- Includes power supply
- Automatic sleep mode meets strictest energy saving standards
