Key Features
- Constant Voltage Output 25, 70 or 100 V
- Suited for Commercial Audio Installation
- Dual Zone Configuration
- Zone 1: 35 Watts, Zone 2: 4 Watts
- Four Audio Inputs
- Paging Input with Volume Control
- Audio Ducking During Paging
- Energy Efficient
- USA Power Supply
Description

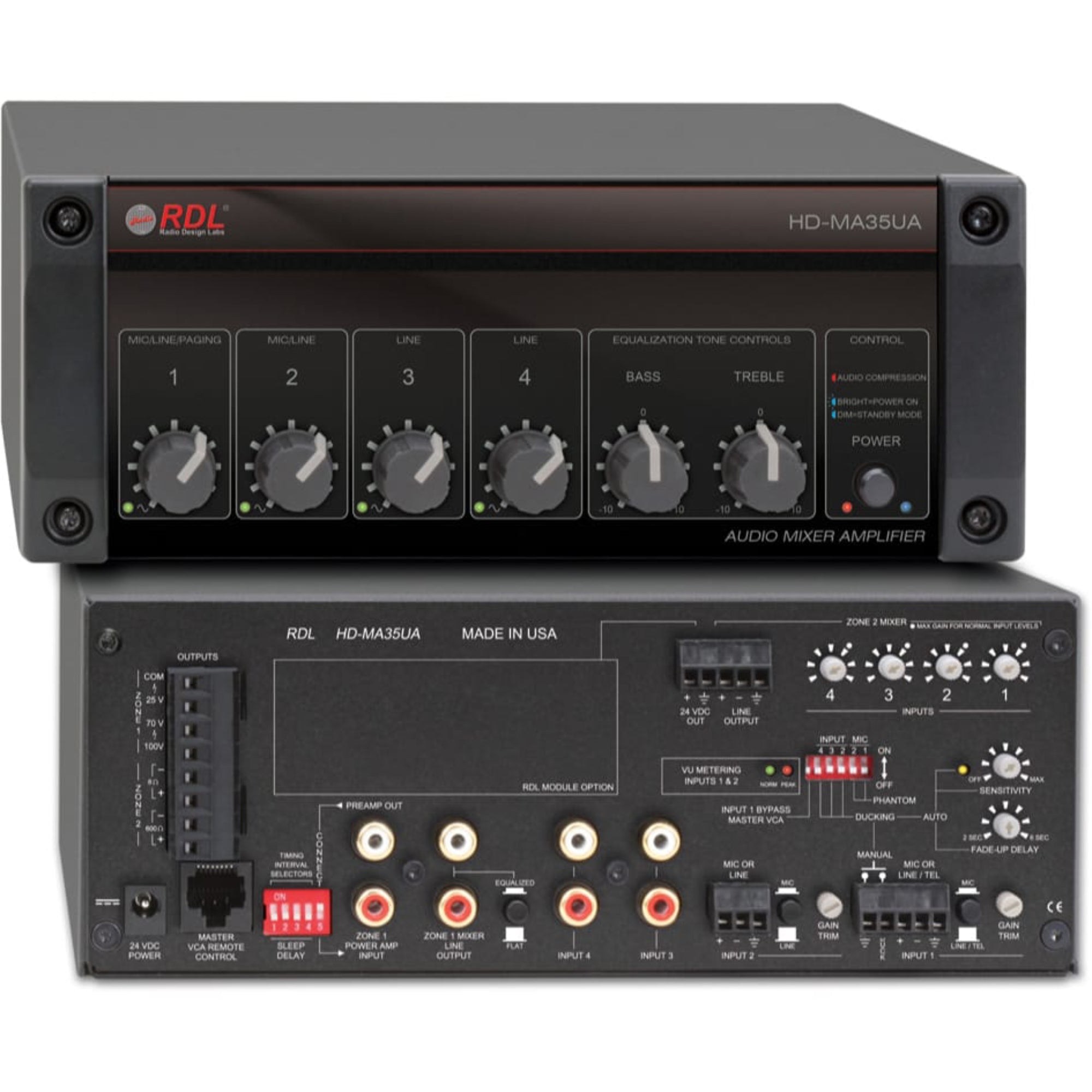

35 Watt Mixer Amplifier - 25, 70, 100 V - Includes Power Supply with North American Plug
The HD-MA35UA is a four input audio mixer amplifier for systems demanding the broadest range of features and the highest energy efficiency. Two output power amplifier zones, 35 watts (Zone 1) and 4 watts (Zone 2), are driven from high-efficiency Class D amplifier stages. The mixer and amplifier sections all normally shut down (standby "sleep" mode) when audio is absent and automatically turn on when needed. The Zone 1 amplifier output level may be VCA controlled using various optional RDL remote controls, or by industry standard 0 to 10 Vdc or 0 to 10k ohm controls. This output provides a constant voltage output (25 V, 70 V or 100 V). The Zone 2 amplifier output drives an 8 ohm speaker and/or 600 ohm telephone equipment.
The HD-MA35UA is engineered, tested and manufactured in the U.S.A. to strict energy conservation standards. The unit consumes less than 1 watt of mains power in standby mode, and meets power amplifier efficiency specifications with analog-filtered Class-D digital output stages for both power amplifier output zones and for the 600 ohm output.
The HD-MA35UA features two mixers. The Zone 1 mixer is located on the front-panel providing user level and tone controls for the 35 watt amplifier output. The tone controls adjust the equalization at the Zone 1 amplifier output and can be switch selected on the rear panel to also adjust the equalization at the line-level output. The Zone 2 mixer on the rear panel provides level trimmers normally set by the installer to provide music-on-hold and/or for background music in a small zone equipped with an 8 ohm speaker. The Zone 2 section includes a 4 watt amplifier, a 600 ohm transformer-balanced MOH output, and an active balanced line-level output that may be used to feed another audio power amplifier.
The HD-MA35UA has four inputs that are common to both mixers. Inputs 1 and 2 accept balanced mic or line level sources. Inputs 3 and 4 accept unbalanced mono or stereo line-level sources.
Input 1 is switch-selectable MIC or LINE. Phantom voltage (IEC standard 24 Vdc) is switch-selectable for the microphone input. The line input is transformer isolated and accepts balanced or unbalanced, high or low impedance audio sources. A gain trimmer is provided to set the input preamplifier to the optimum gain for the installation.
Input 2 is switch-selectable MIC or LINE. Phantom voltage (IEC standard 24 Vdc) is switch-selectable for the microphone input. The line input is active balanced and accepts balanced or unbalanced, high or low impedance sources. A gain trimmer is provided to set the input preamplifier to the optimum gain for the installation.
An RDL Dual-LED VU meter is provided on the rear panel to indicate proper gain adjustment for Inputs 1 and 2. Correct input gain adjustment insures adequate mixer stage headroom.
Inputs 3 and 4 each provide unbalanced stereo RCA input jacks, summed to mono.
The HD-MA35UA is equipped with a master VCA for remote adjustment of the Zone 1 amplifier output. An RJ45 jack is provided for direct connection of an optional RDL remote level control. Certain installations require the paging source to be audible even if the remote control is turned down. A rear-panel switch is provided to cause the paging input to bypass the master VCA and the tone controls, allowing pages to be heard at the level set by the Level 1 input control on the front panel regardless of the VCA remote control volume setting. If this bypass switch is not enabled, the paging source level is controlled by the master VCA.
The Zone 1 amplifier includes an analog compressor/limiter for audio fidelity noticeably superior to conventional class D amplifiers with digital limiting. Increasing the input gain can substantially increase the average output power beyond that of a standard 35 watt amplifier. A red front-panel LED flashes when the compressor is preventing output clipping. Normal audio level signals remain unaffected by the compressor thereby preserving audio dynamics. The audio is compressed according to three dynamic time constants providing aural transparency while maintaining clean, unclipped amplified audio for input overloads of up to 20 dB. The HD-MA35UA, with compression, is capable of producing average audio output levels and clarity normally expected from amplifiers with a much higher output power rating.
Features:
- Four inputs with individual front-panel volume controls
- Bass and Treble tone controls
- Designed for background music with paging and music-on-hold
- Master volume VCA controlled with remote adjustment capability
- Manual or automatic (VOX) priority ducking
- Balanced inputs and amplified outputs on detachable terminal blocks
- Unbalanced inputs and outputs on RCA jacks
- Includes power supply
- Automatic sleep mode meets strictest energy saving standards
