RDL FP-SPR1 SPDIF Repeater / Amplifier

S/PDIF Repeater / Amplifier

The FP-SPR1 is the ideal product for applications requiring either conversion between S/PDIF connector types or recovery of low S/PDIF signal levels. Power connections are made using either the full-size barrier block terminals or a dc power jack located in one end panel. A second dc power jack is provided on the other end panel for connecting additional FLAT-PAK modules.

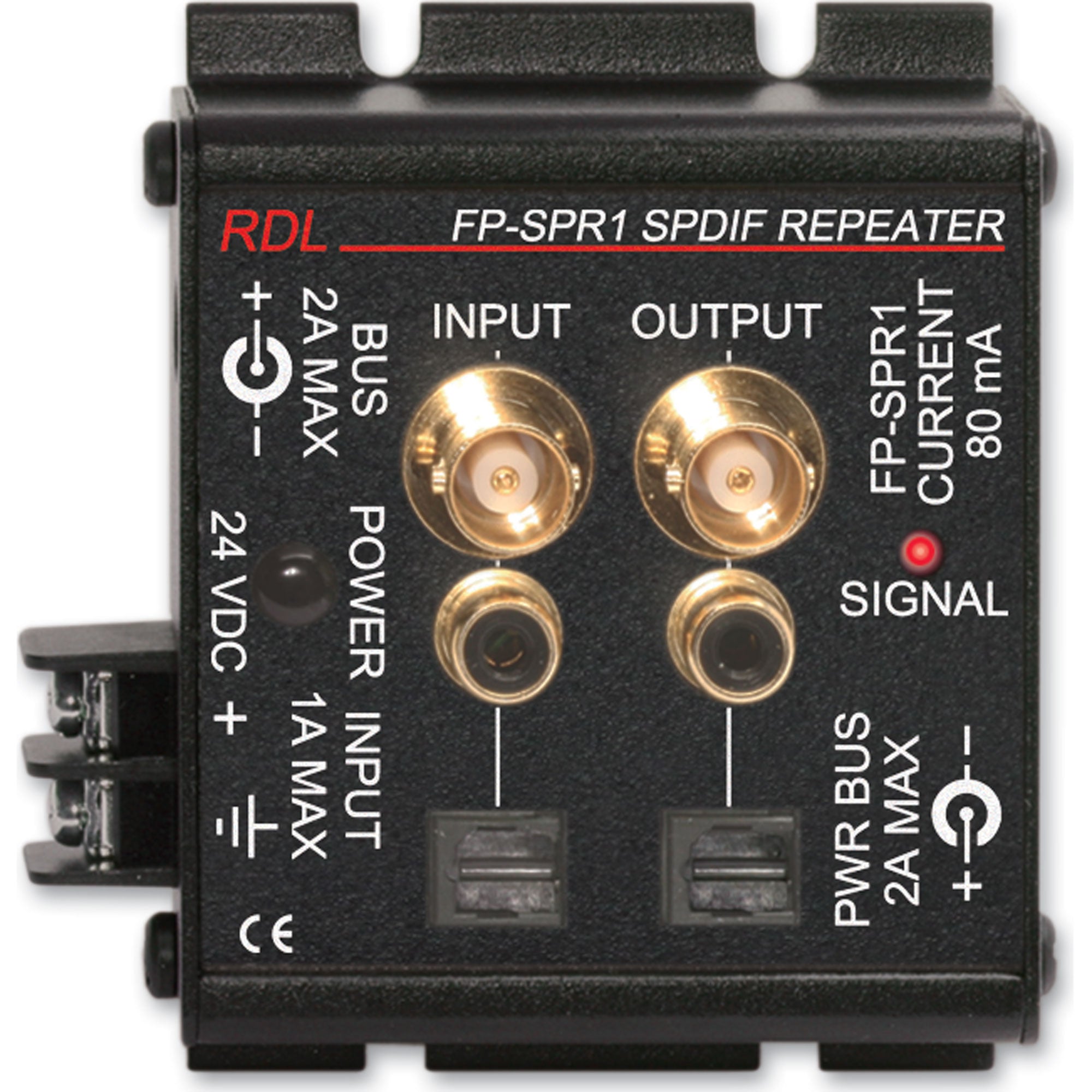

The FP-SPR1 is a single-channel module featuring three separate inputs. An input is provided in each conventional S/PDIF format: BNC, phono and optical. Any one of these inputs may be used. A coaxial input has priority over the optical input. Three output jacks are also provided: BNC, phono and optical. Either of the coaxial jacks may be used and/or the optical output may be connected. It is possible to use only one of the three outputs or use one coaxial and the optical output simultaneously. A front-panel SIGNAL LED illuminates when an input signal of sufficient amplitude is received to produce the correct output from the module.

Features:

• Correct S/PDIF Signal Level from Long Line
• Conversion Between S/PDIF Connector Types
• BNC, Phono and Optical Inputs
• BNC, Phono and Optical Outputs
• Reshape S/PDIF Waveforms
• Virtually Jitter-Free Performance
• Convenience of RDL FLAT-PAKs

Specifications:

• Inputs (3): 75 Ω BNC coaxial, 75 Ω phono coaxial, optical
• Input Level: 100 mV to 2.5 V p-p (coaxial)
• Outputs (3): 75 Ω BNC coaxial, 75 Ω phono coaxial, optical
• Output Level: 500 mV p-p (coaxial)
• Frequency Range: 28 kHz to 48 kHz
• Indicator (1): Signal present LED
• Jitter:
  < 200 pS (input signal 200 mV p-p or greater),
  < 1 nS (input signal 100 mV p-p)
• Ambient Operating Environment: -10° C to 55° C
• Power Requirement: GROUND-REFERENCED, 24 Vdc @ 80 mA Note: May operate from 12 Vdc in standalone installations
• Dimensions: Height: 1.34 in. 3.40 cm; Width: 3.25 in. 8.26 cm; Length: 2.82 in. 7.16 cm
• Package Type: Cardboard Box
• Tariff code: 8543.70.9860
• WEEE weight: 0.375 lbs.
• Shipping Weight: 0.55 lbs.
• Package Dimensions: 3.625 x 4.625 x 2.125 in.
