RDL DS-RC4ST 4 Channel Remote Control for ST-SX4 on Decora Plate (Stainless Steel)

4 Channel Remote Control on Decora Wall Plate for ST-SX4 4x1 Audio Switcher - Stainless Steel Finish

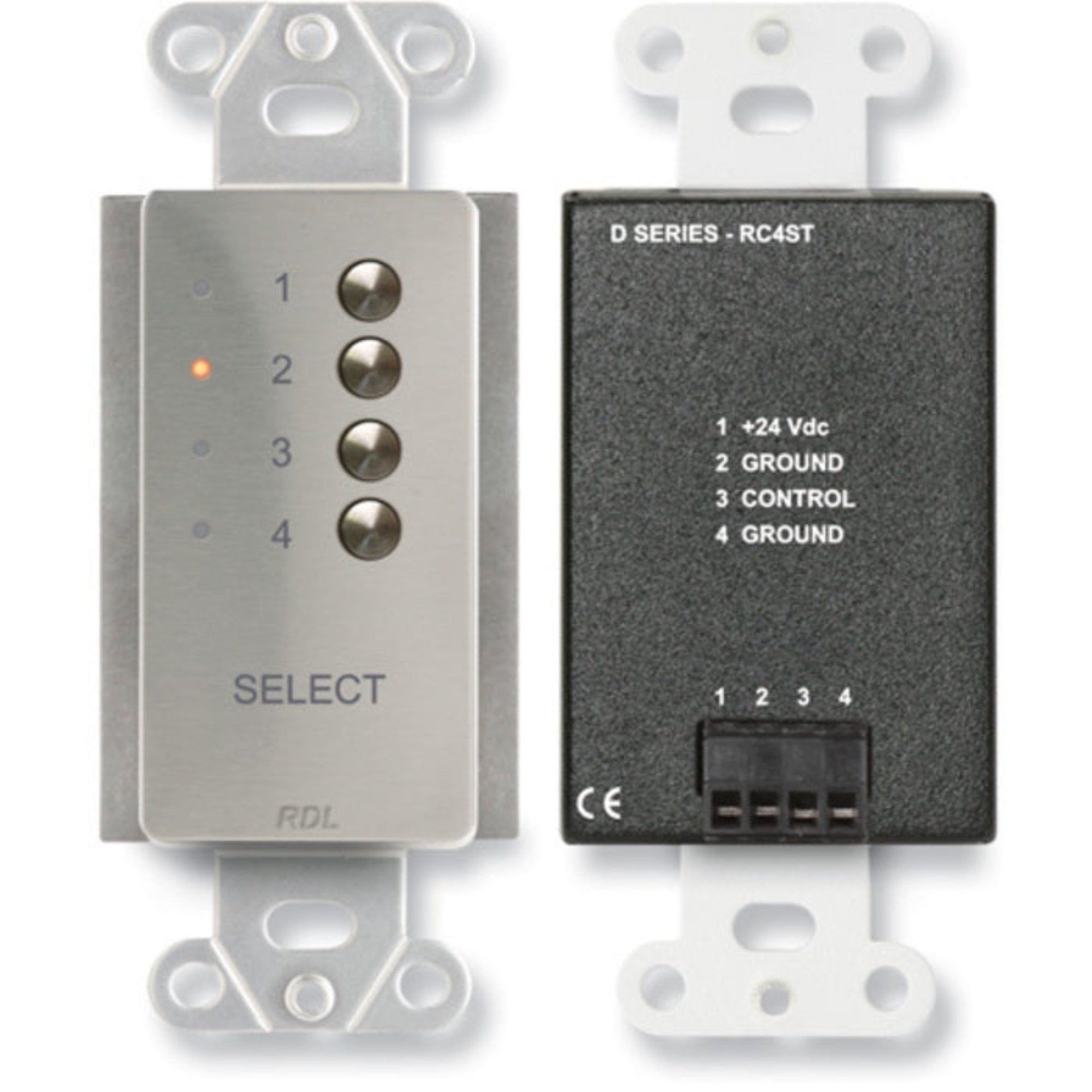

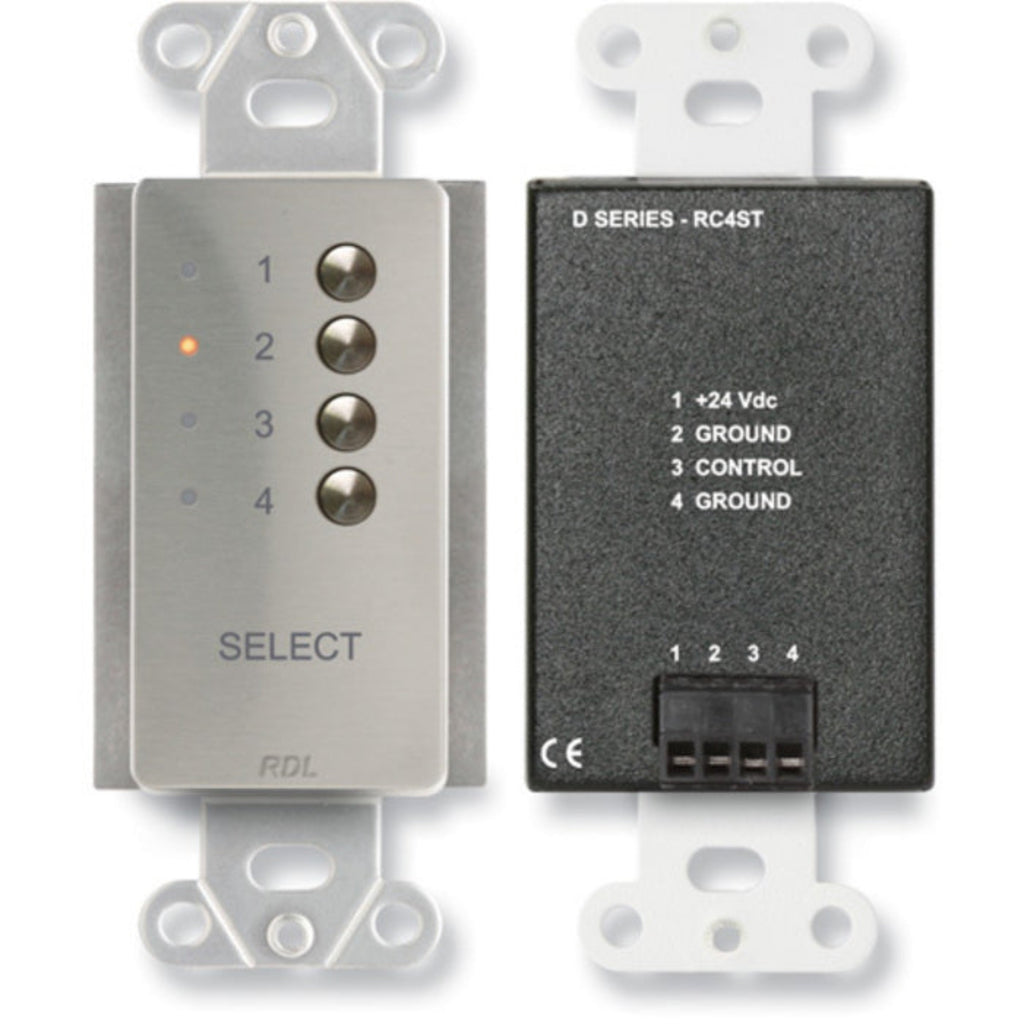

The DB-RC4ST is a wall-box mounted remote module designed to directly control an RDL ST-SX4 Audio Switcher Module. The ST-SX4 provides solid-state switching of one of four unbalanced audio inputs to a single unbalanced audio output. The DB-RC4ST connects directly to the POWER and CTRL terminals of the ST-SX4 using either a 3-conductor cable or a single shielded pair.

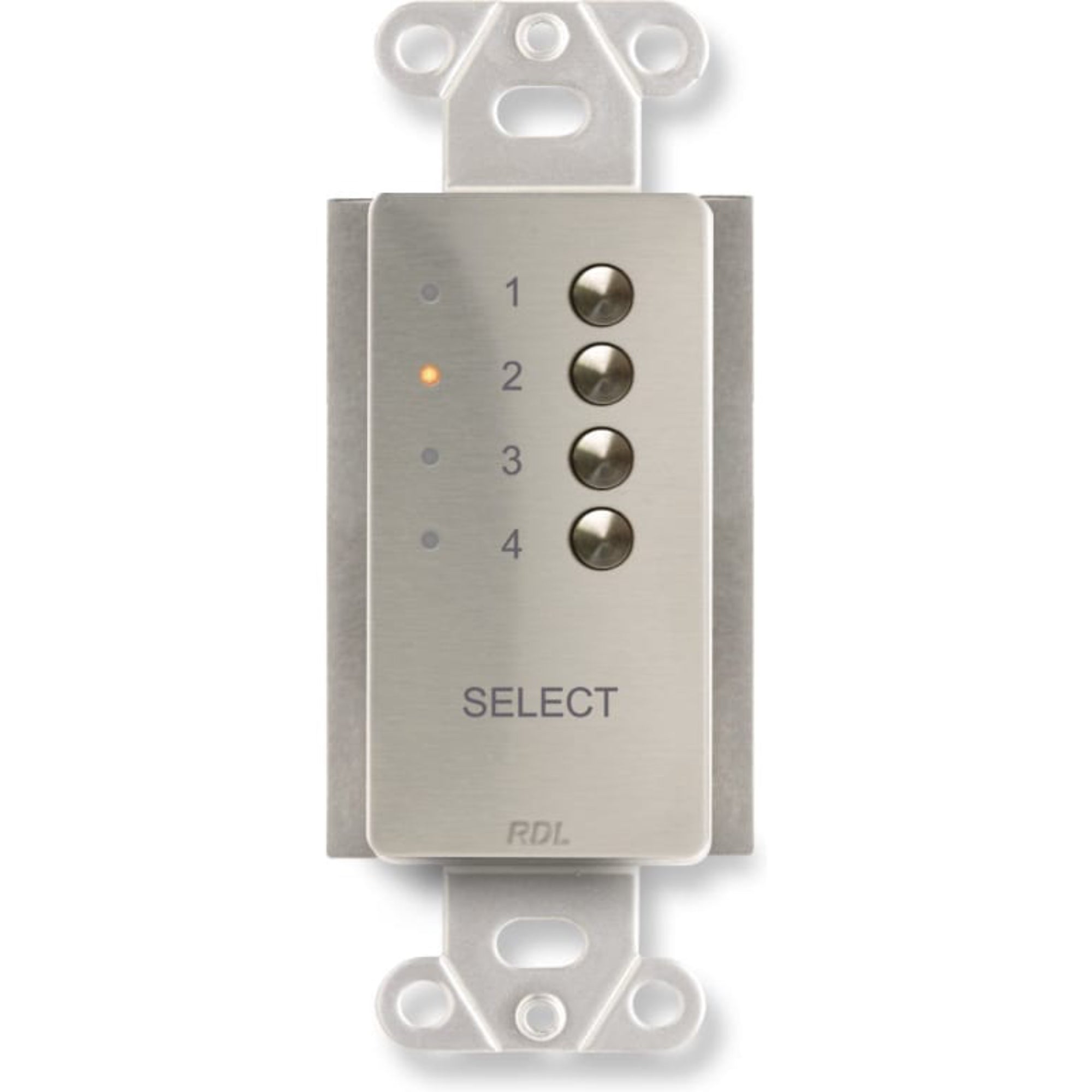

The front panel of the DB-RC4ST features four pushbuttons with four associated LEDs. Upon initial application of power, source 1 is selected. Touching any of the other three buttons de-selects source 1 and immediately selects the source corresponding to the button pushed. An LED, adjacent to each button shows which source is selected. For stereo installations, the SLAVE output from the ST-SX4 is used to drive the CTRL input of an additional ST-SX4.

Features:

• Remote Selection of 4 Audio Sources
• Single-Button Selection for Each Source
• Remote Selection of Unbalanced Audio Sources
• 3-Conductor Remote Wiring
• Professional Aesthetic Appearance
• Companion to other RDL Remote Controls

Specifications:

• Selectors (4): Momentary pushbuttons (1 for each channel)
• Indicators (4): Red LEDs (indicates channel selected)

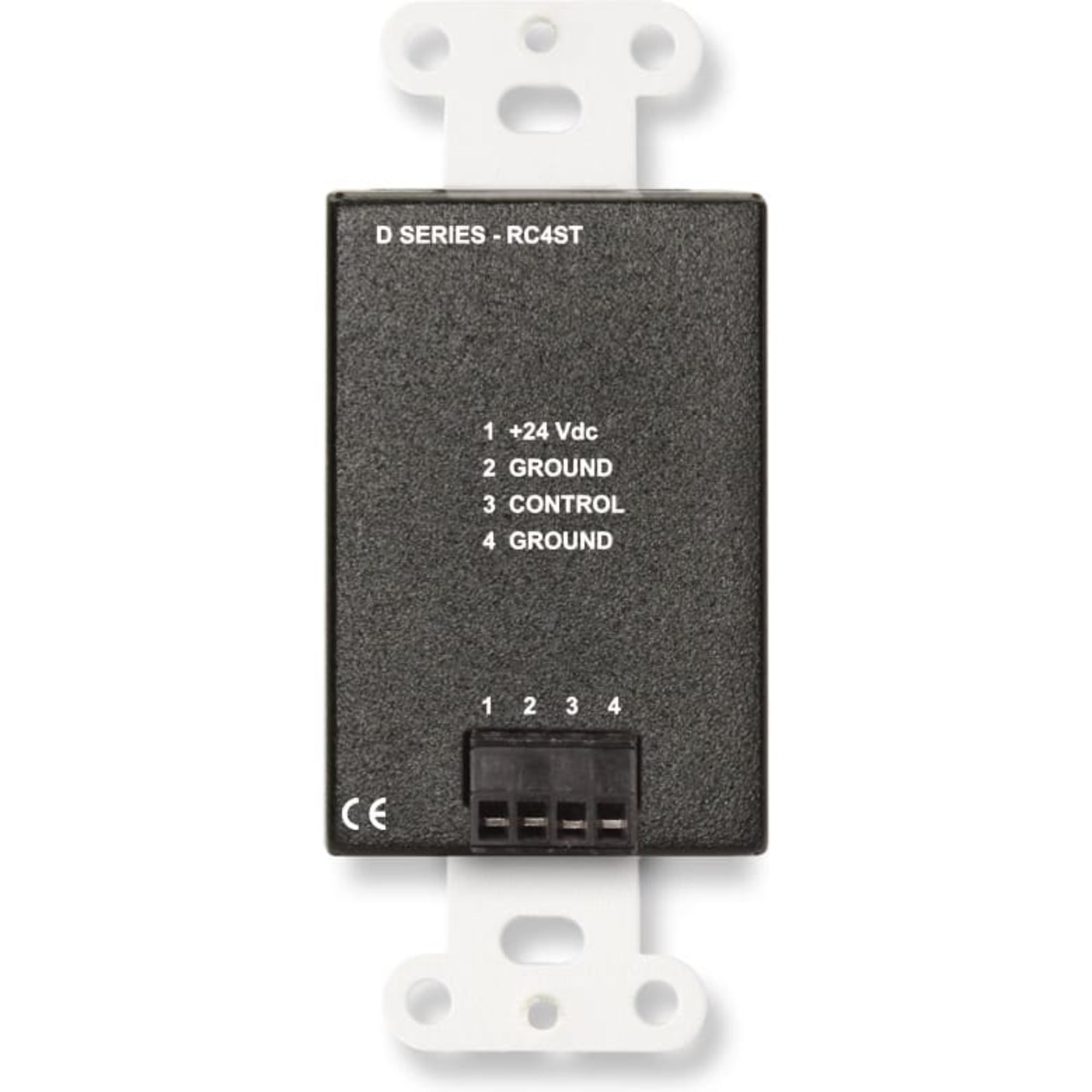

• Connections: Detachable terminal block; Interfaces directly with RDL ST-SX4
• Mounting: Mounts in standard US electrical box, RDL WB- or SMB- series boxes; cover plate available separately
• Power Requirement: GROUND-REFERENCED, 24 Vdc @ 30 mA
• Ambient Operating Environment: 0 C to 55 C
• Package Dimensions: 3.625 X 4.625 X 2.125 in.; 9.21 X 11.75 X 5.4 cm.
