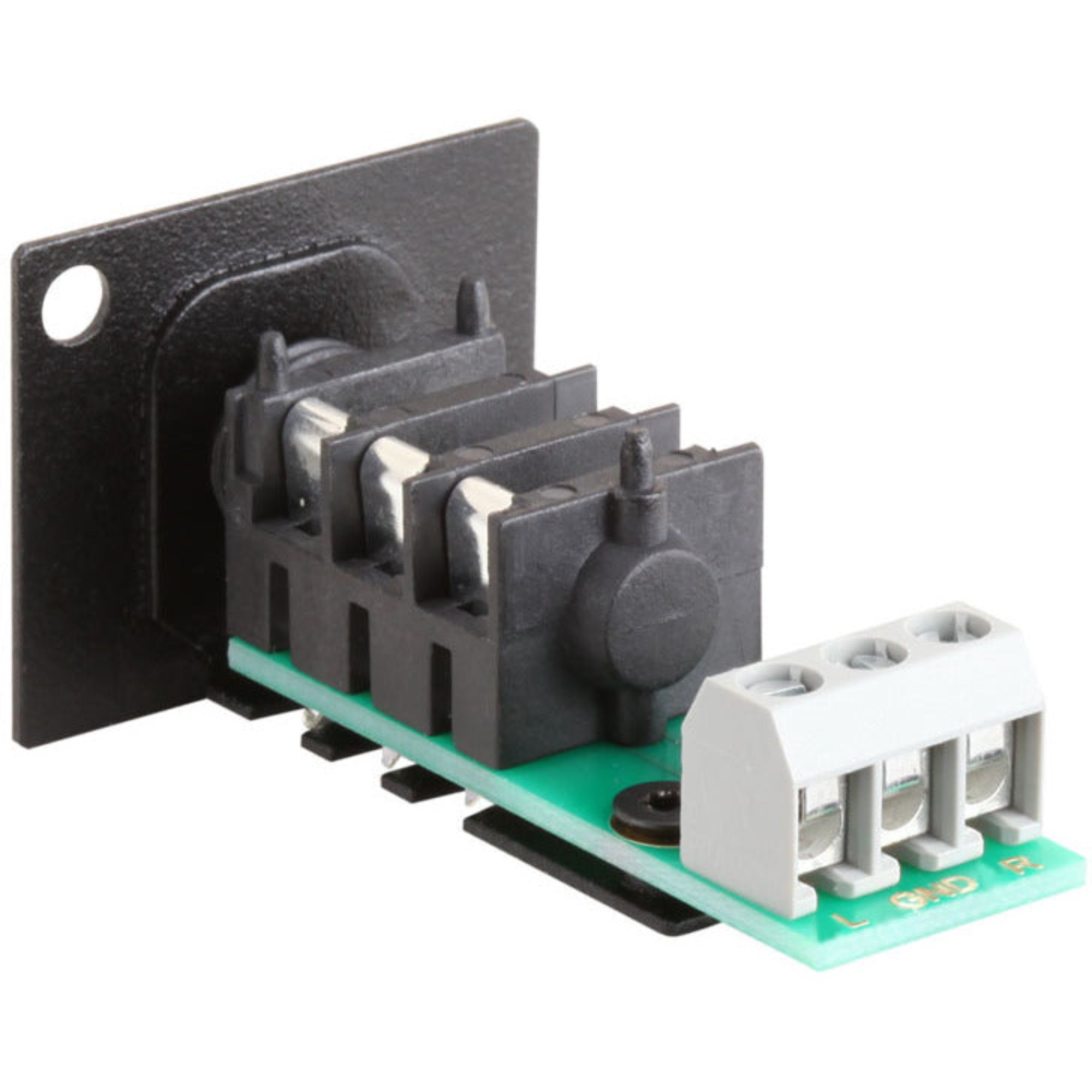

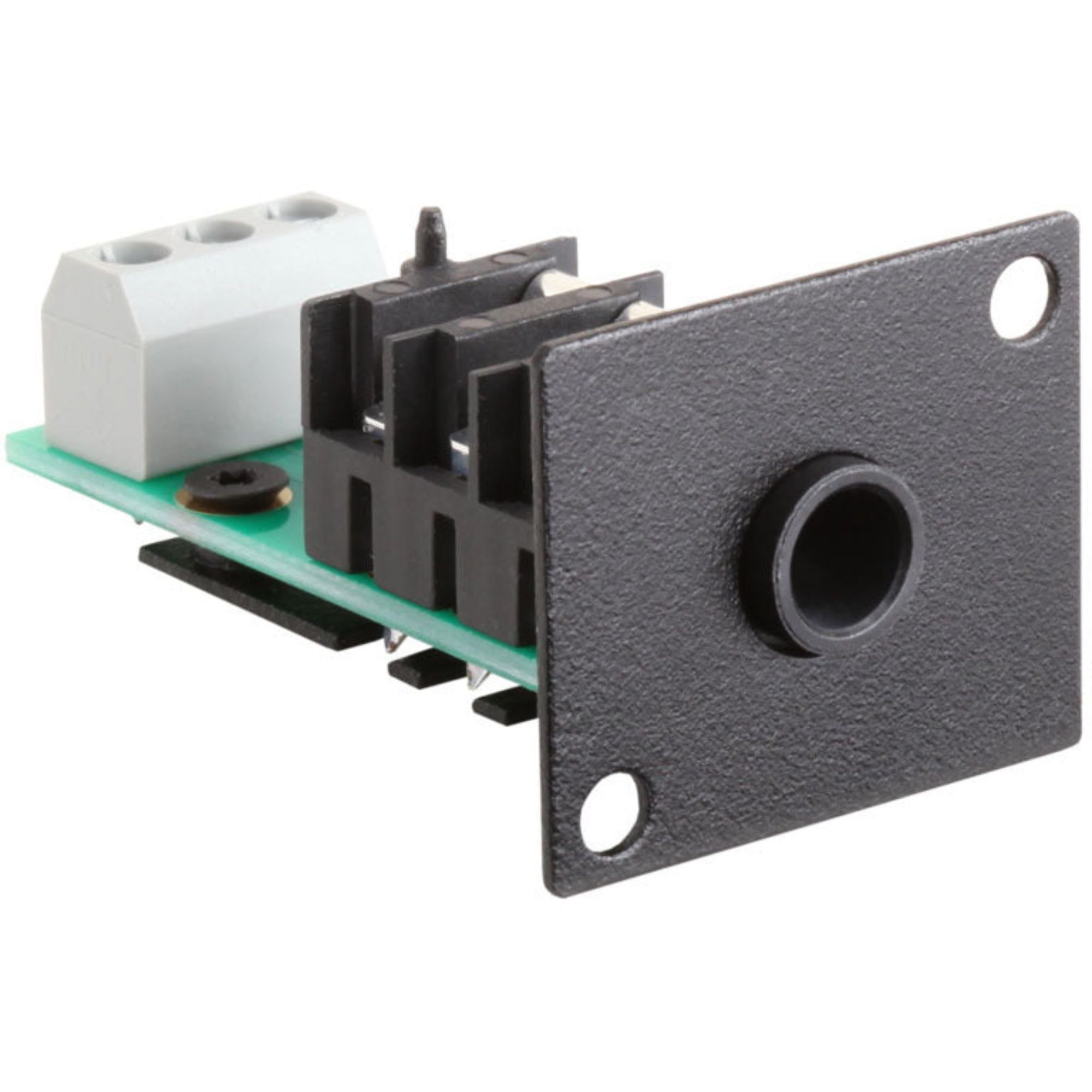

RDL AMS-1/4F 1/4" Stereo Phono Jack for AMS-UFI Universal Frame

1/4" Headphone Jack - Fits all AMS mounts

The AMS-1/4F is an accessory that mounts in AMS mounting frames and in standard D-style cutouts. It features a high quality 1/4" TRS jack that may be used as a line output, line input or headphone jack. A high quality terminal block is provided for external connections. The front plate and bracket are constructed of black satin powder coated steel. A black plastic bezel is provided to finish the D-style cutout hole when the accessory is mounted. These accessories are designed to mount behind the front panel of industry products that provide D-style cutouts.

Features:

• Mounts in D-Style Standard Cutouts
• Mounts in all RDL AMS Mounting Frames
• Mounts in RDL Decora-Style Wall Plates
• Availability of a Wide Variety of Associated AMS Accessories
• Bezel Provides Professional Aesthetic Appearance
• Provides Flexibility for Connections and Controls

Specifications:

• WEEE Weight: 0.044 lbs
• Shipping Weight: 0.072 lbs
• Package Type: Bag
• Ambient Operating Environment: -10° C to 70° C
• Mounting: AMS mounts; D-Style cutouts
• Depth (behind the panel): 2.06 in.
• Tariff code: 8536.69.4030
