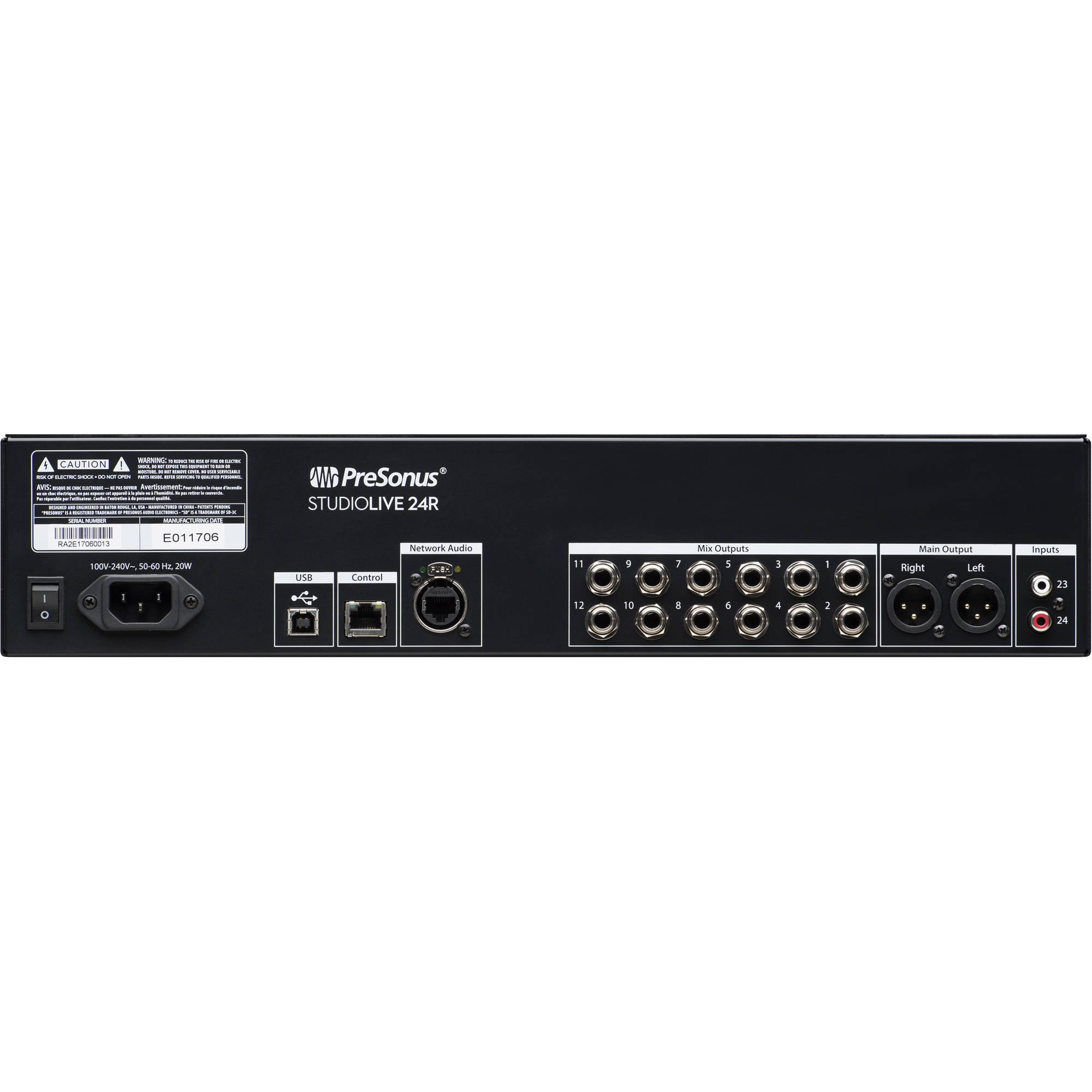

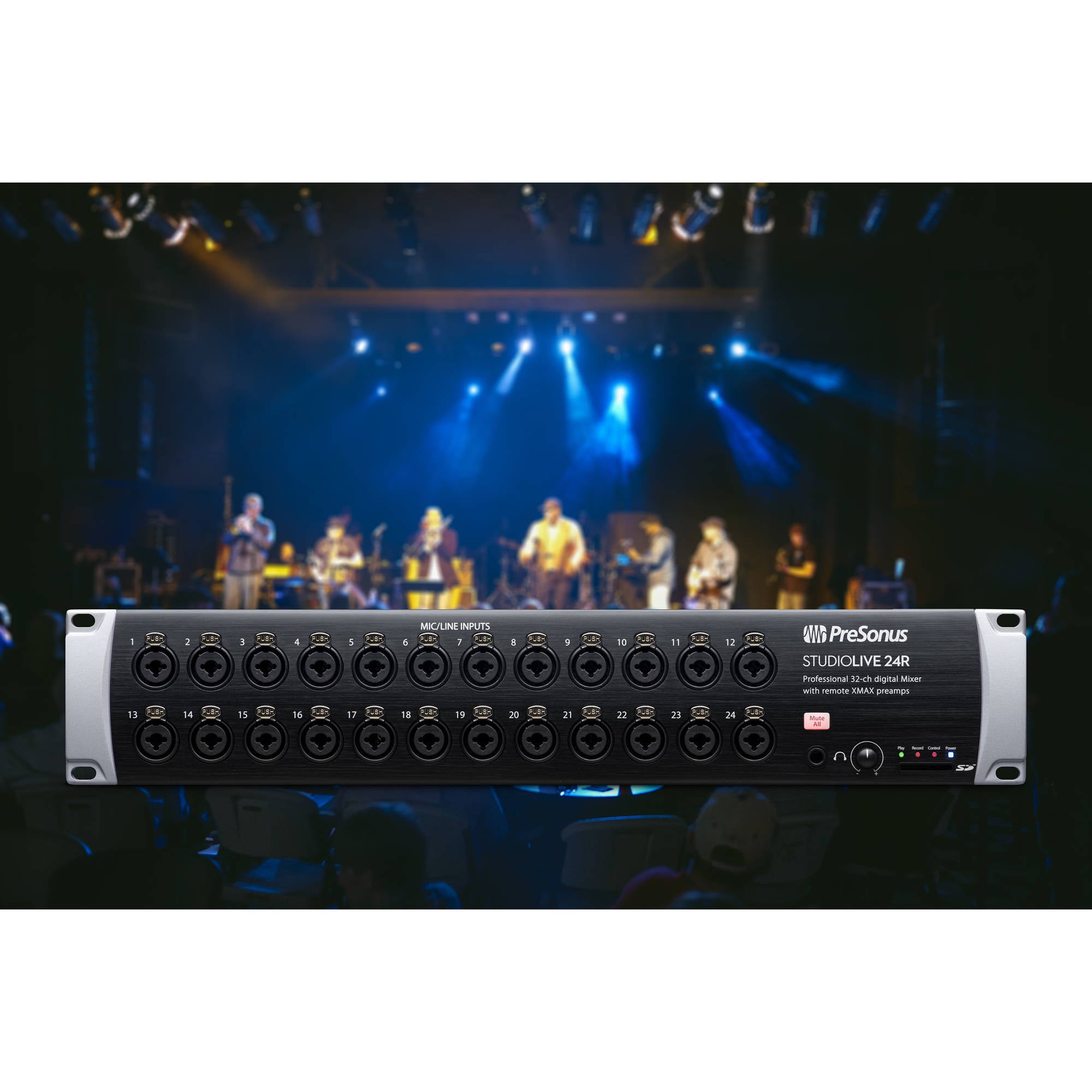

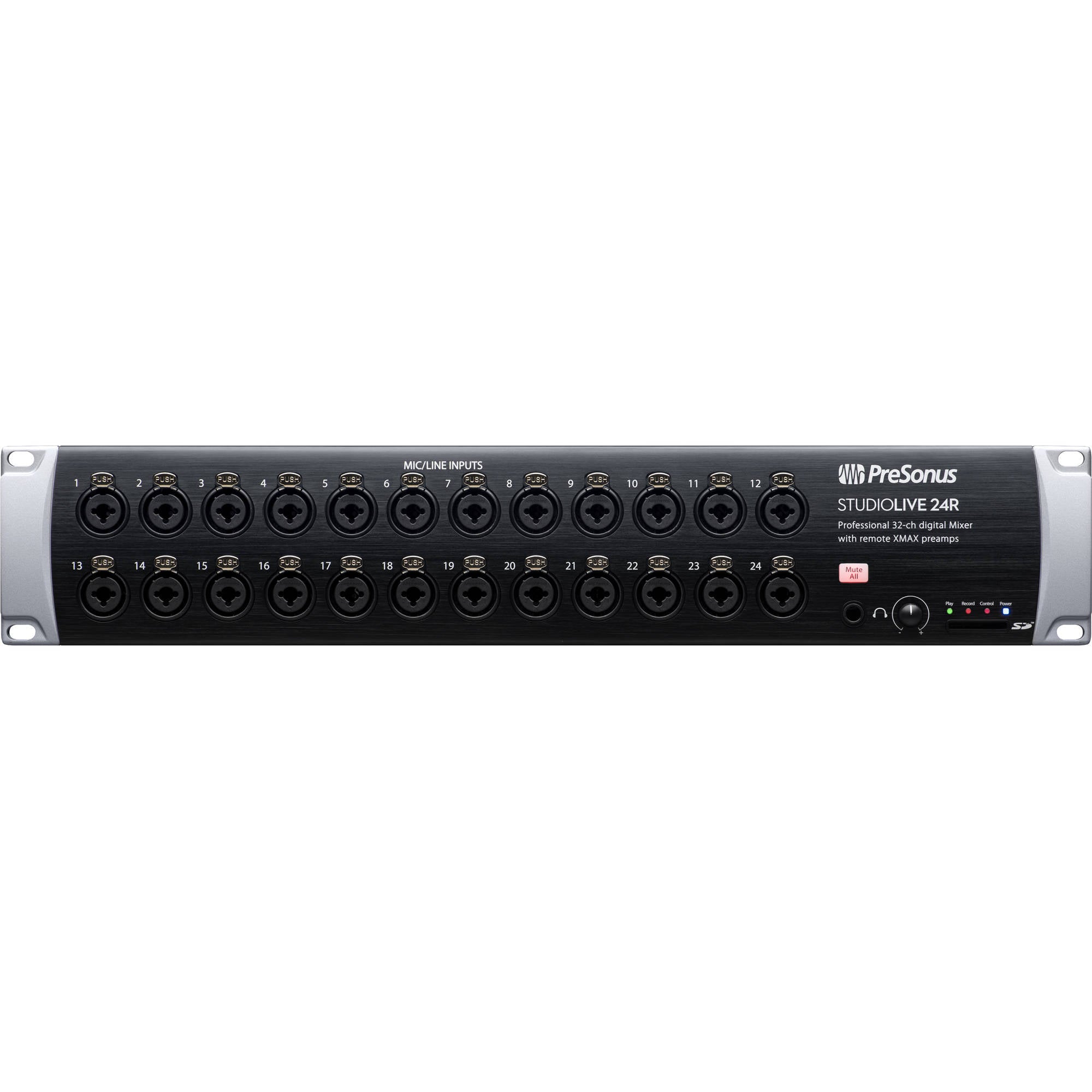

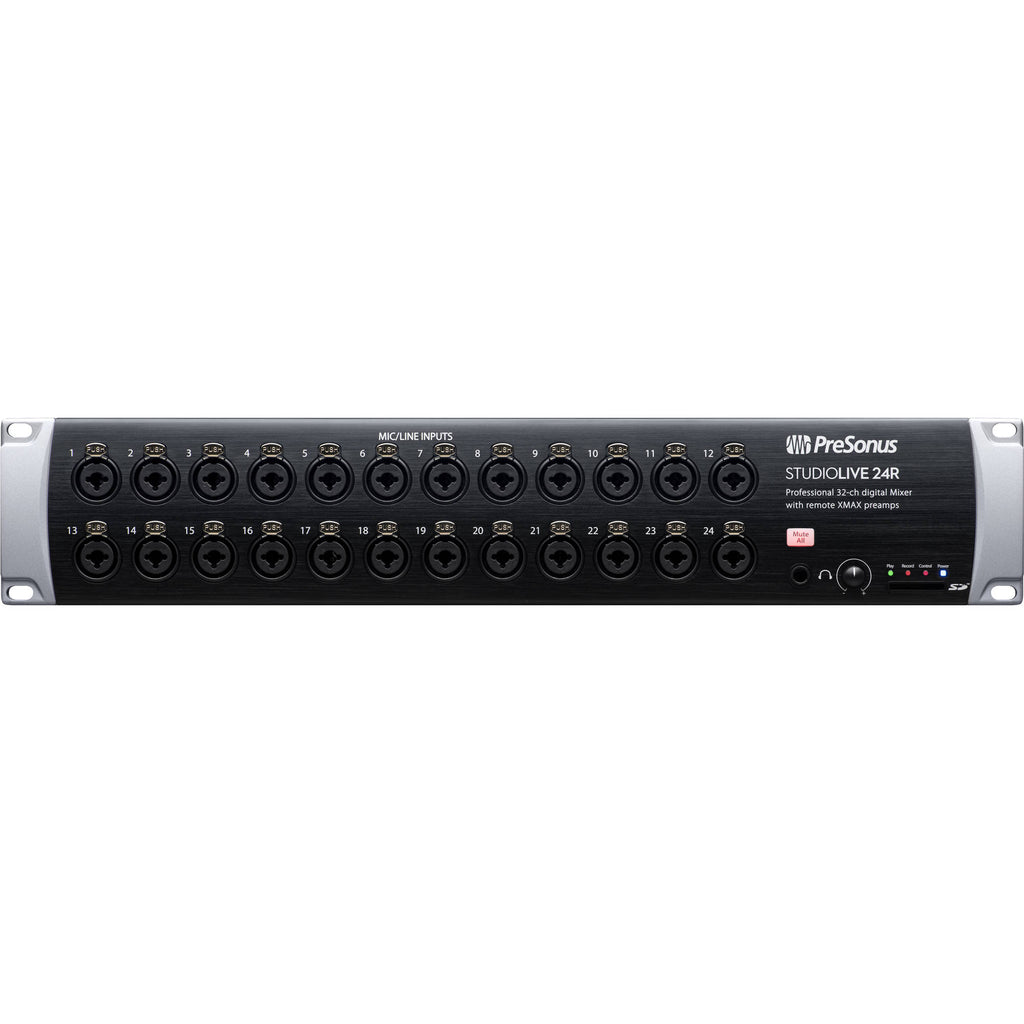

PreSonus StudioLive 24R Rack-Mount Digital Mixer

26-input, 40-channel rack mixer with stagebox and monitor mixer modes

The StudioLive 24R digital mixer is four audio tools in two compact rackspaces. Use it as a standalone digital mixer with Universal Control remote mixing software. Pair it with your StudioLive Series III console mixer to use as a stage box or integrated monitor mixer. Connect it with EarMix 16M monitor mixers for the ultimate personal monitor system. Plug it into your studio computer, and you have a continuously bidirectional, 128-channel (64x64) USB audio interface with modeled vintage dynamics and EQ plug-ins on every input and bus. Whether used standalone or as part of a complete audio system, no other rackmount digital mixer is as flexible or as powerful.

Inside the StudioLive 24R, the single-core PreSonus FLEX DSP Engine powers 40 mixing channels, 22 mix buses, and 270 simultaneous processors, including 4 stereo effects and Fat Channel plug-in models on every input channel and mix bus. This is a true 24-channel digital mixer that can comfortably fit in any size rig. Simply connect it to a standard wireless router and control every mix parameter from your iPad, Android tablet, or Windows Touch computer using Universal Control. Universal Control was designed to make mixing on a touch screen as intuitive as mixing on faders.

An integrated 128-channel (64x64) audio interface lets you record with digitally recallable analog preamps and a complete rack of vintage EQ and dynamics processors for every channel and bus. Modeled after classic analog studio designs, these compressor and EQ plug-ins load both natively on the StudioLive 24R and inside Studio One Pro, providing the ultimate mixing and recording flexibility.

Features

• Powered by the new dual-core PreSonus FLEX DSP Engine to provide the most processing of any digital mixer in its class
• 36 input-channel digital rack mixer with 24 local digitally controlled XMAX mic/line inputs and FLEX FX returns
• 26 mix buses: 16 FlexMixes (Aux, Subgroup, Matrix), 4 dedicated FLEX FX buses, and Stereo Main bus
• 286 simultaneous processors: HPF, Gate/Expander Compressor with Fat Channel plug-in models, 4-band/6-band parametric EQ with Fat Channel plug-in models, Limiter
• 31-band graphic EQ
• 4 FLEX FX slots featuring legendary classic reverb emulations and delays
• State Space Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output bus
• FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses
• 24 DCAs to control groups of channels
• 128-channel (64x64) recording over USB
• Onboard stereo SD recorder with true Virtual Soundcheck mode
• AVB networking onboard (64x64) to connect with other mixers, NSB-series stage boxes, EarMix 16M personal monitor mixers and more
• Monitor Mix and Stage Box mode for use with StudioLive Series III console mixers
• Pair with EarMix 16M personal monitor mixers for the ultimate personal monitor system
• Remote control every mix function from your computer, iPad, or Android tablet with Universal Control (included)
• Put your musicians' monitor mix under their fingers with QMix-UC (included) for iOS or Android
• Capture 3.0 multitrack software included with Automated Virtual Soundcheck
• Professional Recording Software Included - Studio One Pro License
