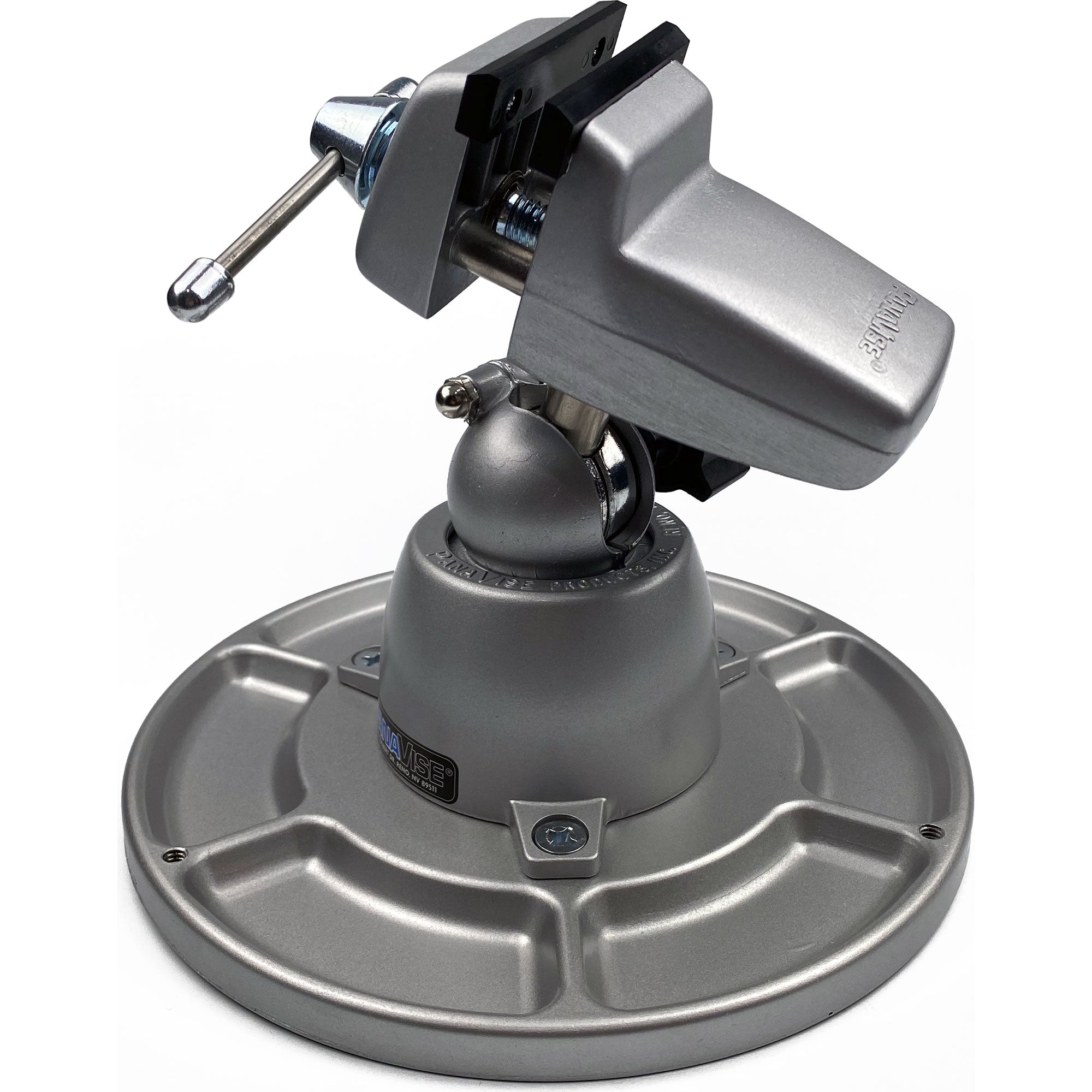

PanaVise 301 Complete Bundle with Standard Vise and Handy Tray Base

Original Standard PanaVise Unit with Cast Aluminum Tray Base

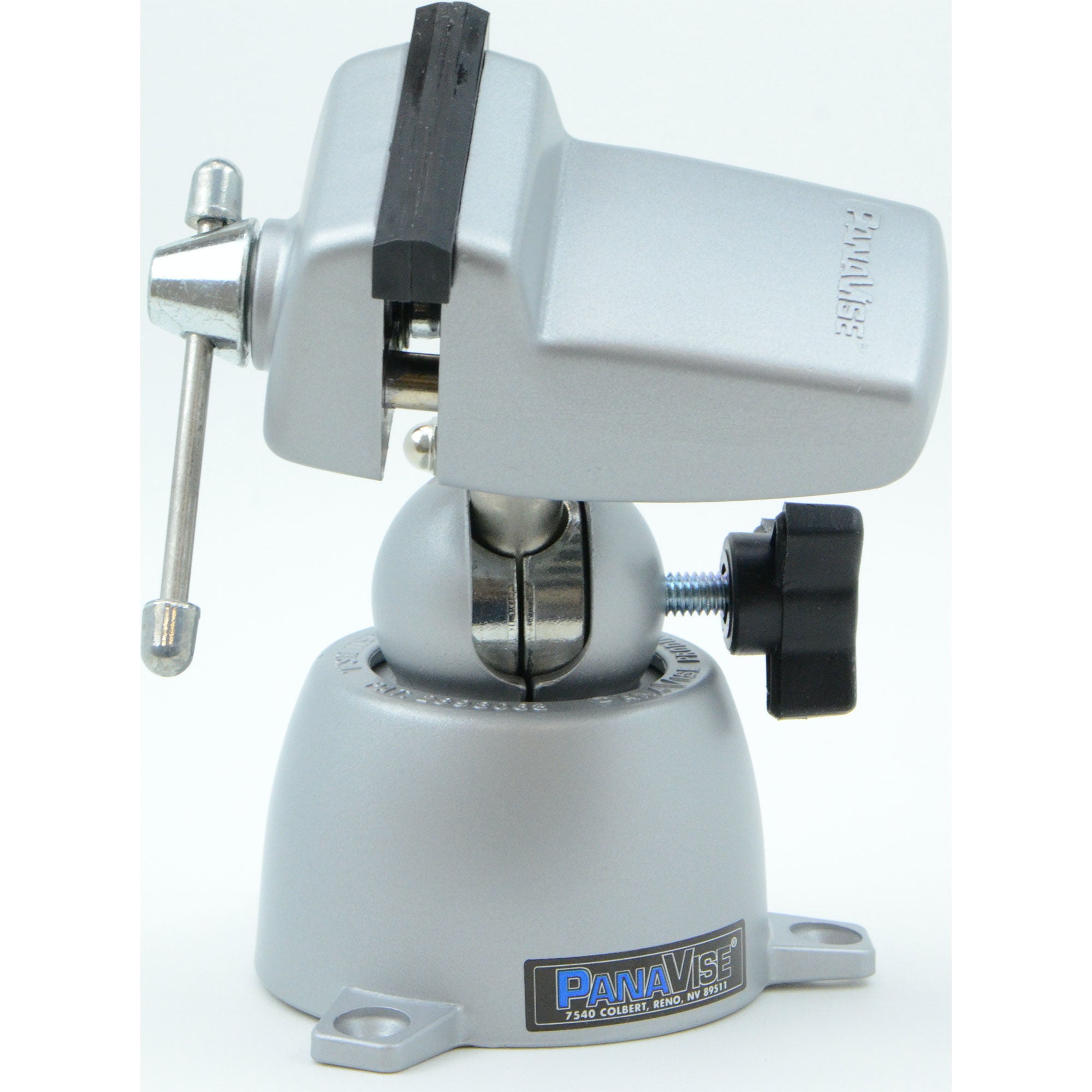

PanaVise 301 Standard PanaVise

The original standard PanaVise is an all-purpose work holding unit, perfect for both industrial and home hobbyist applications. Head is die-cast alluminum alloy with steel and brass inserts. Vise head tilts, turns, and rotates with one knob and moves easily through three planes: 360 degree rotation, 360 degree swivel, and 90 degree pivot. Jaws are 2-1/2 inch (64mm) wide and open to 2-1/4 inch (58mm). The base features a 4-5/16 inch (111mm) bolt circle. Original PanaVise stands 6 3/4 inch (173mm) tall, weighs 2 lbs, 11 oz. (1.2kg).

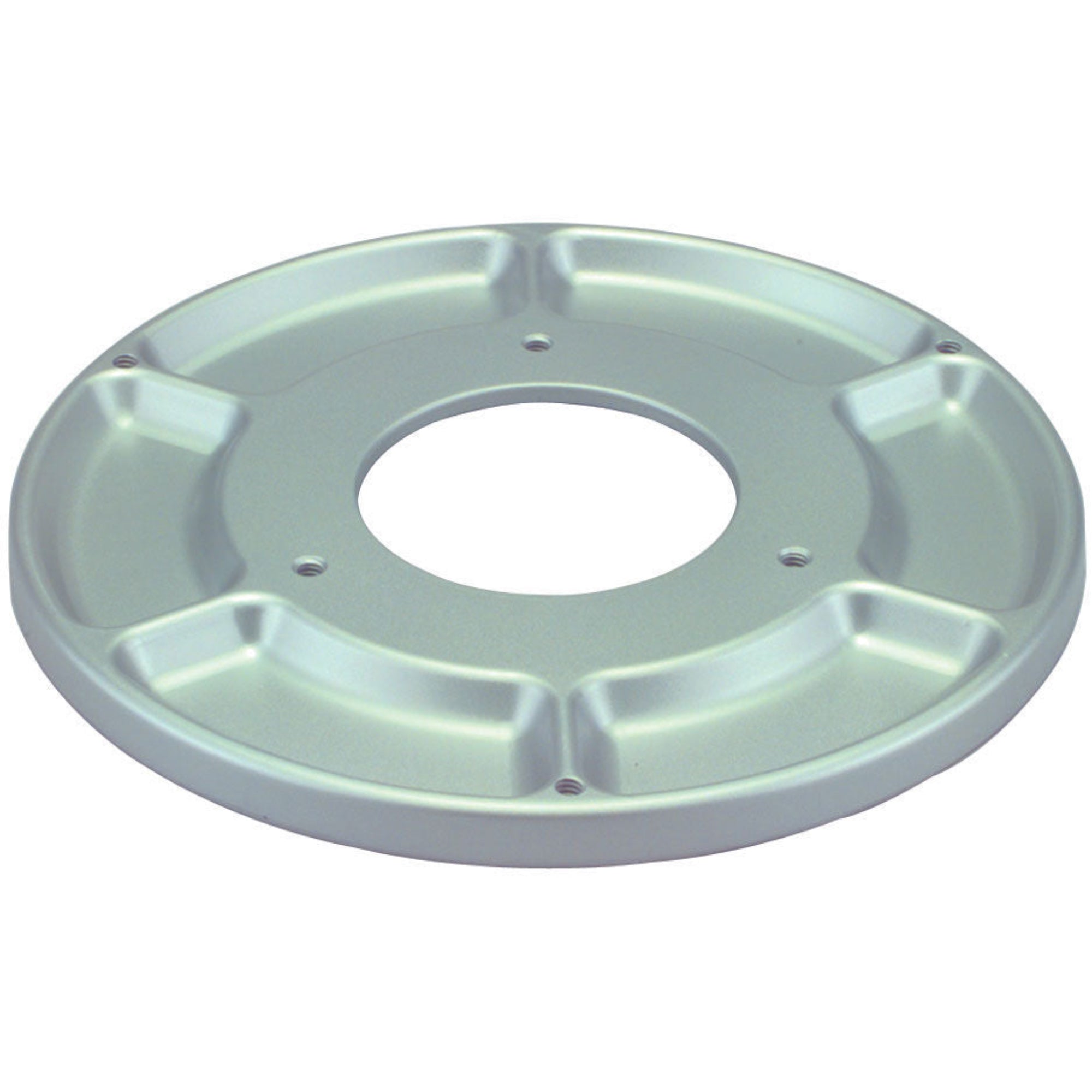

PanaVise 312 Tray Base Mount

This cast aluminum Base Mount adds stability and has six integral parts wells with rounded and sloped walls for easy parts retrieval. Compatible with the 201 PV Jr. Vise, 300, 301 and 305 Bases. Includes six non-marring, anti-skid pads. Three 1/4-20 holes are drilled and tapped on the outer lip for mounting accessories such as the 371 Solder Station. Overall diameter: 8.5-Inch (215.9mm) Height: 0.75-Inch (19.1mm), Weight: 1.9 lbs. (0.9kg). Limited Lifetime Warranty!

Features:

• PanaVise 301 Standard PanaVise
• The easy-to-use single knob controls head movement through 3-planes: 90° Tilt, 360° Turn & 360° Rotation
• Jaws are 2.5" (63.5mm) wide, 0.5" (12.6mm) tall and open to 2.25" (57.1mm)
• Nylon jaws offer excellent electrical insulation and gentle holding power [continuous heat tolerance up to 200°F (93°C), intermittent heat to 300°F (149°C)]. Interchangeable jaws available
• Base accepts all 300 series Heads and any 5/8" (15.9mm) diameter post
• Base features 4.3125" (109.5 mm) bolt circle countersunk for three 1/4" (6.3mm) flat-head screws (not included)
• Height: 6.25" (171.4mm), Weight: 2.7 lbs. (1.2kg)
• PanaVise 312 Tray Base Mount
• Compatible with the 201 PV Jr. Vise and 300 & 305 Bases
• Includes six non-marring, anti-skid pads
• Three 1/4-20 holes are drilled and tapped on the outer lip for mounting accessories such as the 371 Solder Station (page 23)
• Overall diameter: 8.5" (215.9mm)
• Height: 0.75" (19.1mm)
• Weight: 1.9 lbs. (0.9kg)

Includes:

• 1x PanaVise 301 Standard PanaVise
• 1x PanaVise 312 Tray Base Mount
