Key Features
- 5-Pole Mini XLR Female Connector
- Black Metal Shell
- Gold-Plated Contacts
- Intuitive Locking System
- Shielded for Noise & EMI
- Full Box of 100 Connectors
Description

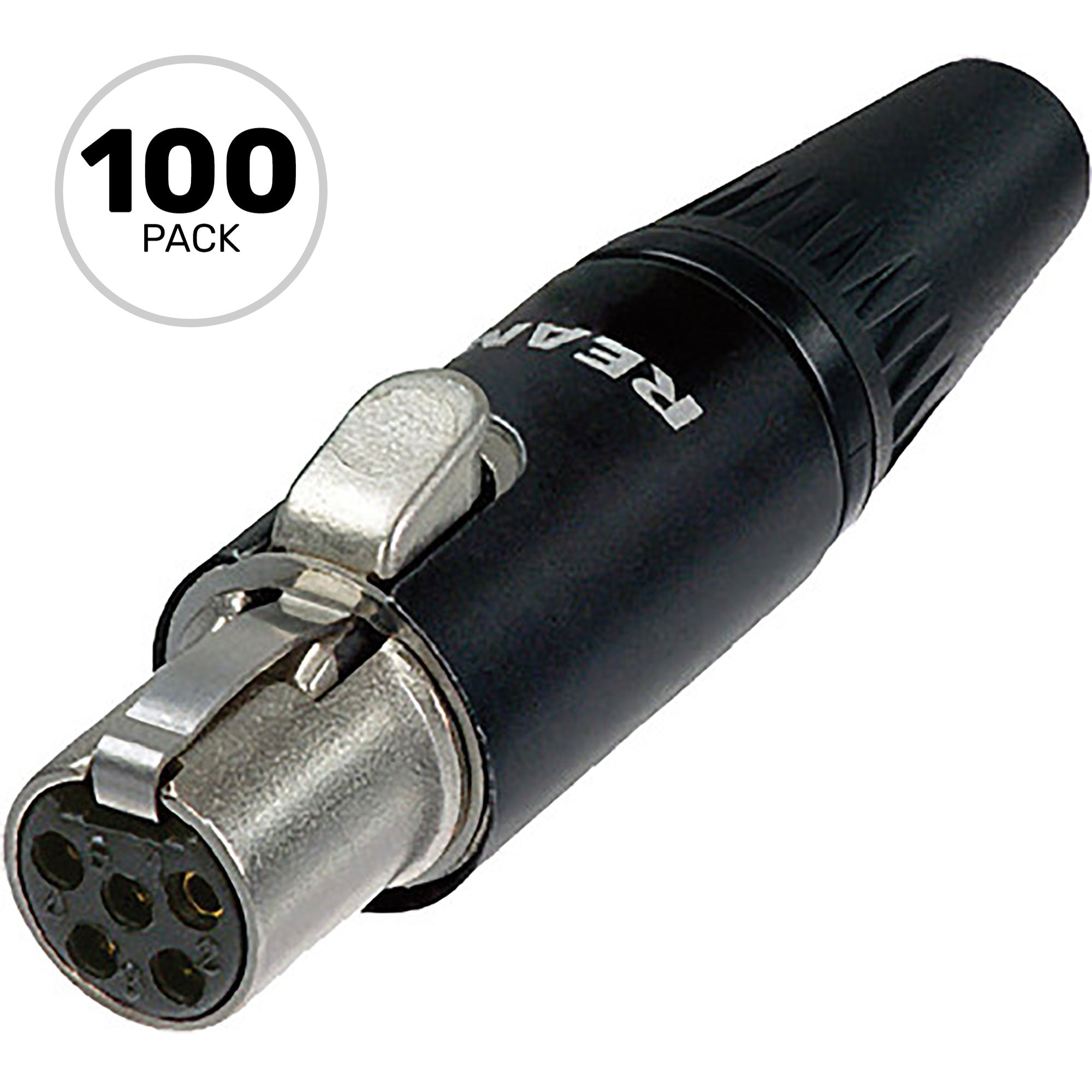

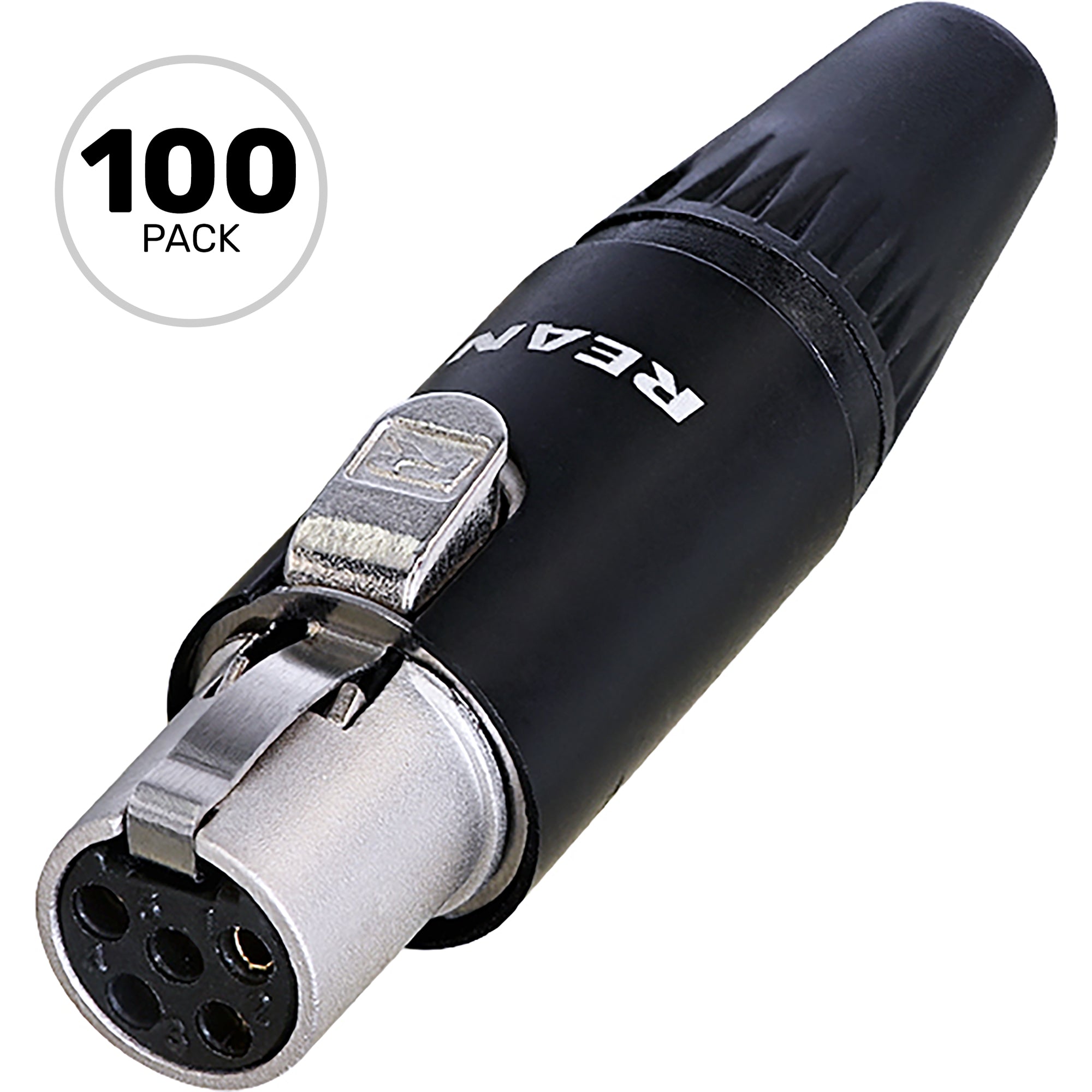

Female 5-Pole Mini-XLR Cable Mount Connector, Black Housing, Gold Contacts - Full Box of 100 Connectors

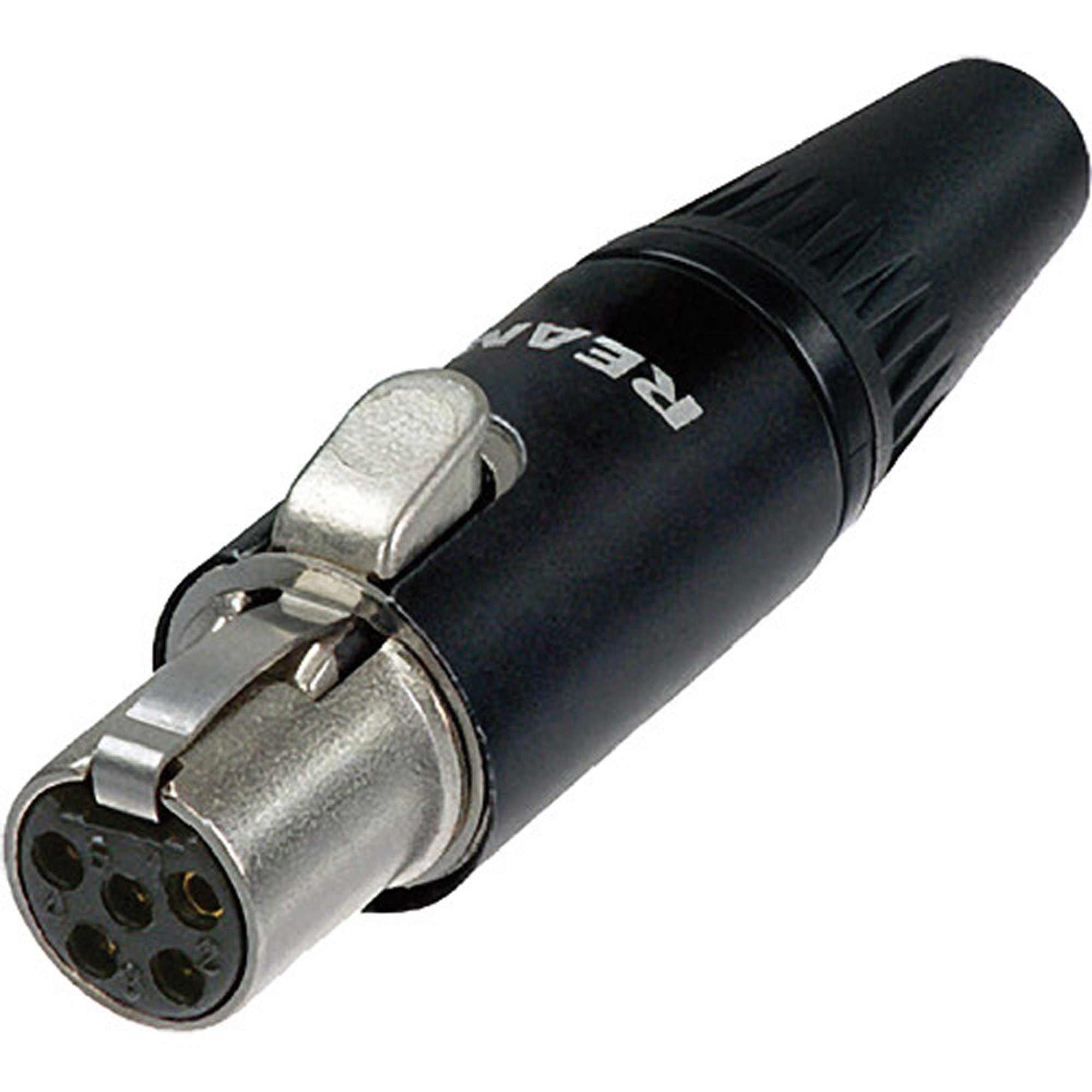

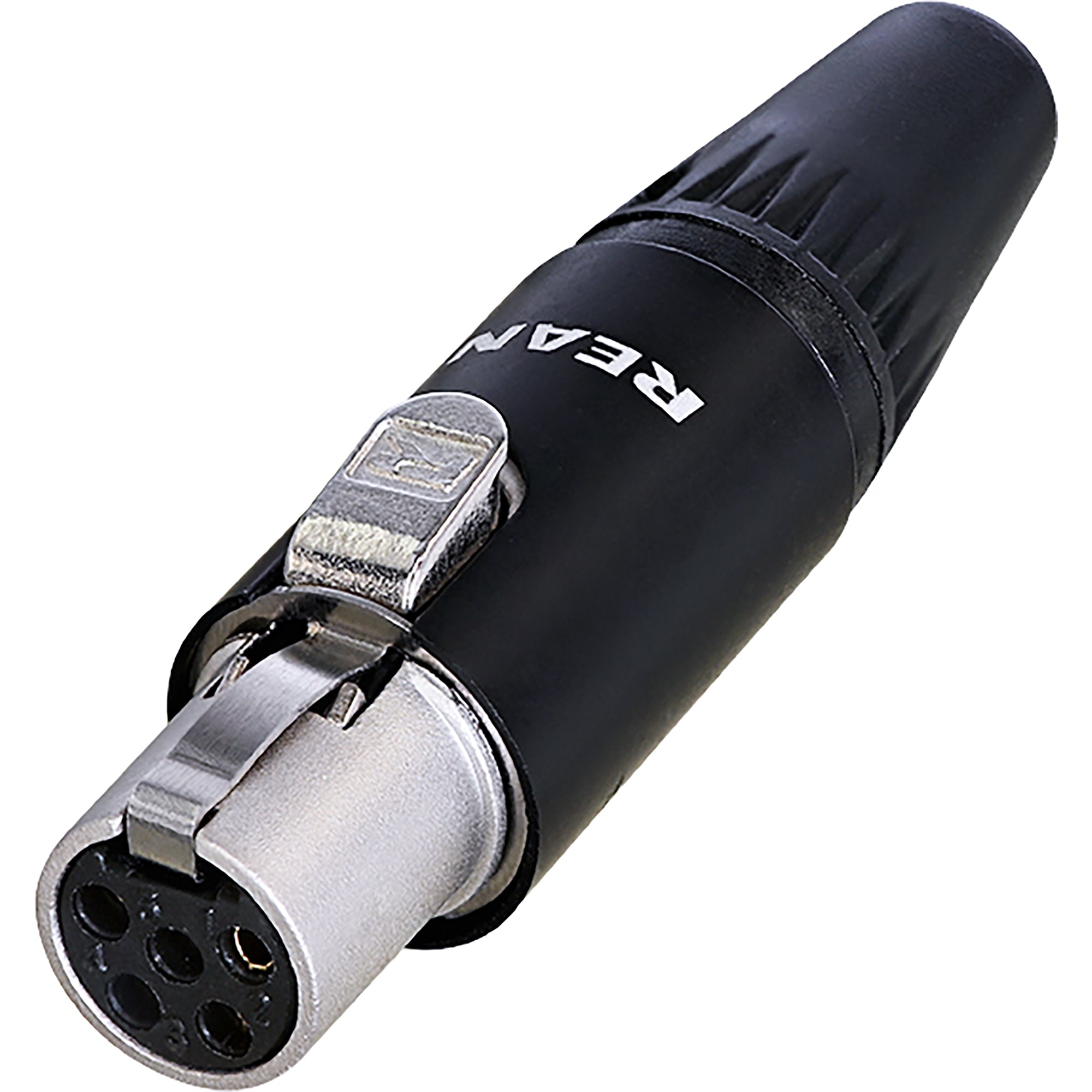

The Rean RT5FC-B TINY XLR from Neutrik is a cable connector with a 5-pole mini XLR female connection point. It's easy to assemble and offers a simple locking mechanism for an added measure of connective security. It also boasts high-noise immunity and EMI protection due to its shielded construction. The RT5FC-B utilizes a black metal shell and gold-plated nickel contacts. Keyed insert and strain relief helps you avoid improper rotation with the cable you're using in conjunction with this connector.
Item Variations
- RT5FC-B: Black plated housing, gold plated contacts
- RT5FC-B-W: Black plated housing, gold plated contacts, water resistant boot
Features:
- Easy to assemble
- Robust metal housing with best flex relief
- Shielded system - high noise immunity and EMI protection
- Intuitive and rugged locking mechanism provides secure locking system
- Millionfond proven chuck type strain relief - up to 4.00 mm cable diameter
- Keyed insert and strain relief to avoid mispositioning / rotation of insert respectively cable
Specifications:
- Product:
- Title: RT5FC-B
- Connection Type: XLR
- Electrical:
- Contact Resistance: ≤10 mΩ
- Insulation Resistance: >1 GΩ
- Dielectric Strength: >500 V rms
- Rated current per contact: ＜5 A
- Mechanical:
- Cable O.D. Range: 2.0-4.5mm
- Lifetime: >1000 Mating Cycles
- Wiresize: 0.22 mm²
- Wiresize: 24 AWG
- Material:
- Ground Contact: Steel
- Rubber Spring: Rubber
- Latch: Zinc
- Chuck: POM
- Boot: PC/ABS+TPU
- Housing: Zinc
- Plastic housing: PA6+30%GF
- Jack: Bronze
- Ground Contact: Bronze
- Tube: Aluminum
- Latch: Nickel Plating
- Housing: Nickel Plating
- Jack: Gold Plating
- Ground Contact: Tin and Cer
- Tube: Black Plating
