Key Features
- 1/4" TS Mono Plug
- Right Angle Pancake-Style
- Black Top Cover
- Heavy Duty Cable Clamp
- Best Strain Relief
- Cable O.D. up to 7 mm
Description

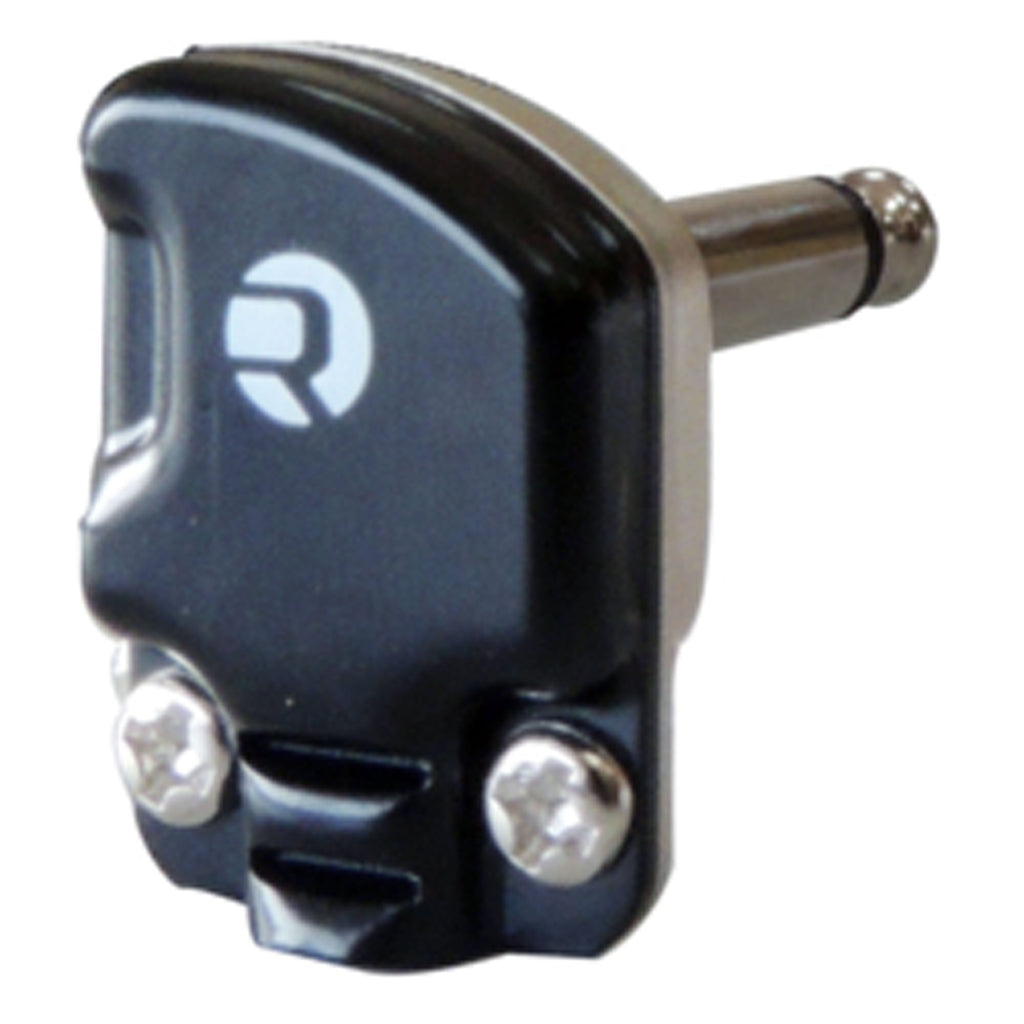

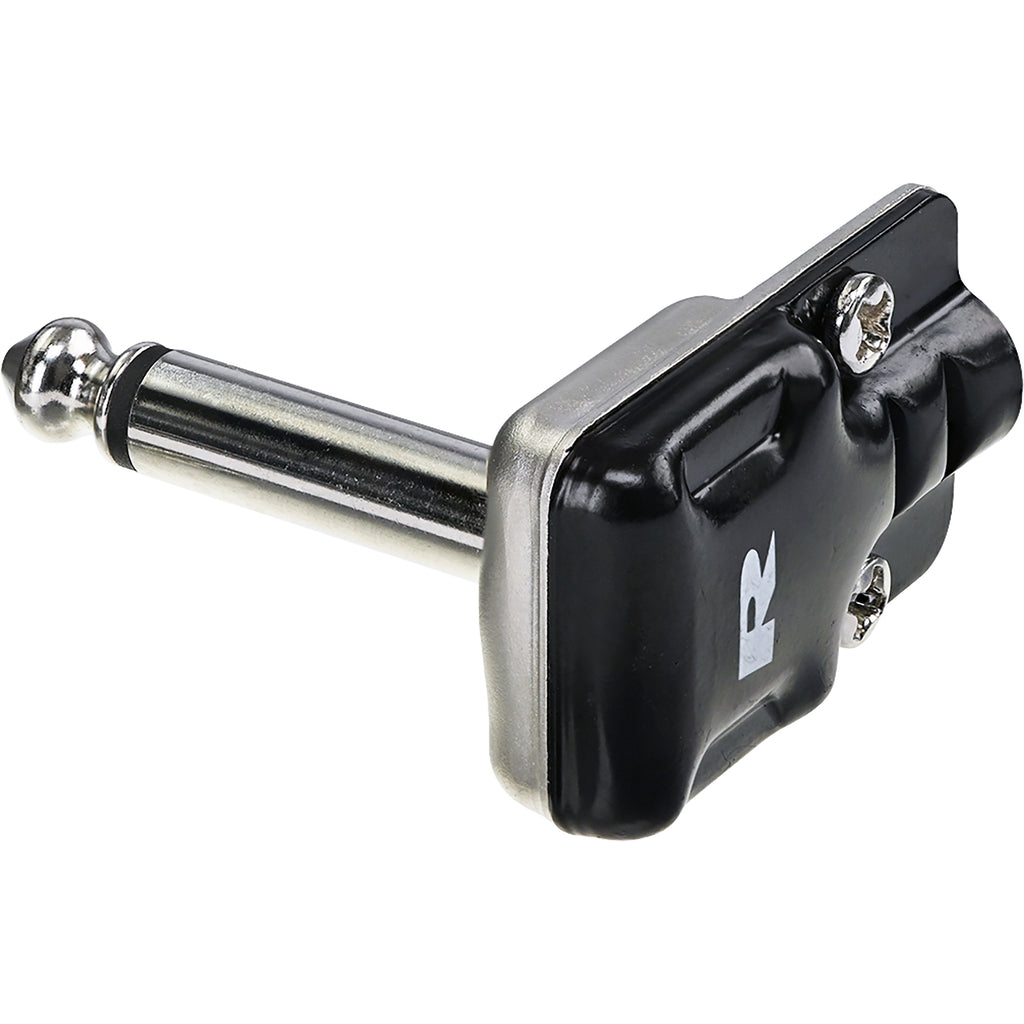

Pancake-Type Mono 1/4" TS Right-Angle Plug with Pan Head - Black Top Cover
2 pole 6.35 mm right angle plug, pancake-type, nickel metal bottom housing and top cover, nickel plated contacts. Single packed
Features:
- 1/4" mono plug
- Right angle version
- Available with nickel or black cover
- Heavy duty cable clamp for best strain relief
- Cable O.D. up to 7 mm
Specifications:
- Product:
- Title: RP2RCF-BAG
- Connection Type: Plug
- Electrical:
- Contact resistance: depends on mating connector mΩ
- Dielectric strength: 0.5 kV dc
- Insulation resistance: > 1 GΩ
- Mechanical:
- Lifetime: > 1000 mating cycles
- Insertion and Withdrawal force: ≤ 60N
- Cable O.D.: 4 - 7 mm
- Material:
- Sleeve & Inner: Brass
- Sleeve plating: Nickel
- Inner plating: Nickel / Gold
- Shell: Steel
- Shell plating: Nickel / Black
- Environmental:
- Temperature range: -20 °C to +70 °C
- Flammability: UL 94 HB
- Solderability: complies with IEC68-2-20
