Key Features
- 1/8" Male to 1/4" Female
- Tip, Ring, Sleeve (TRS) Connections
- Nickel Metal Housing
- Silver Contacts
Description

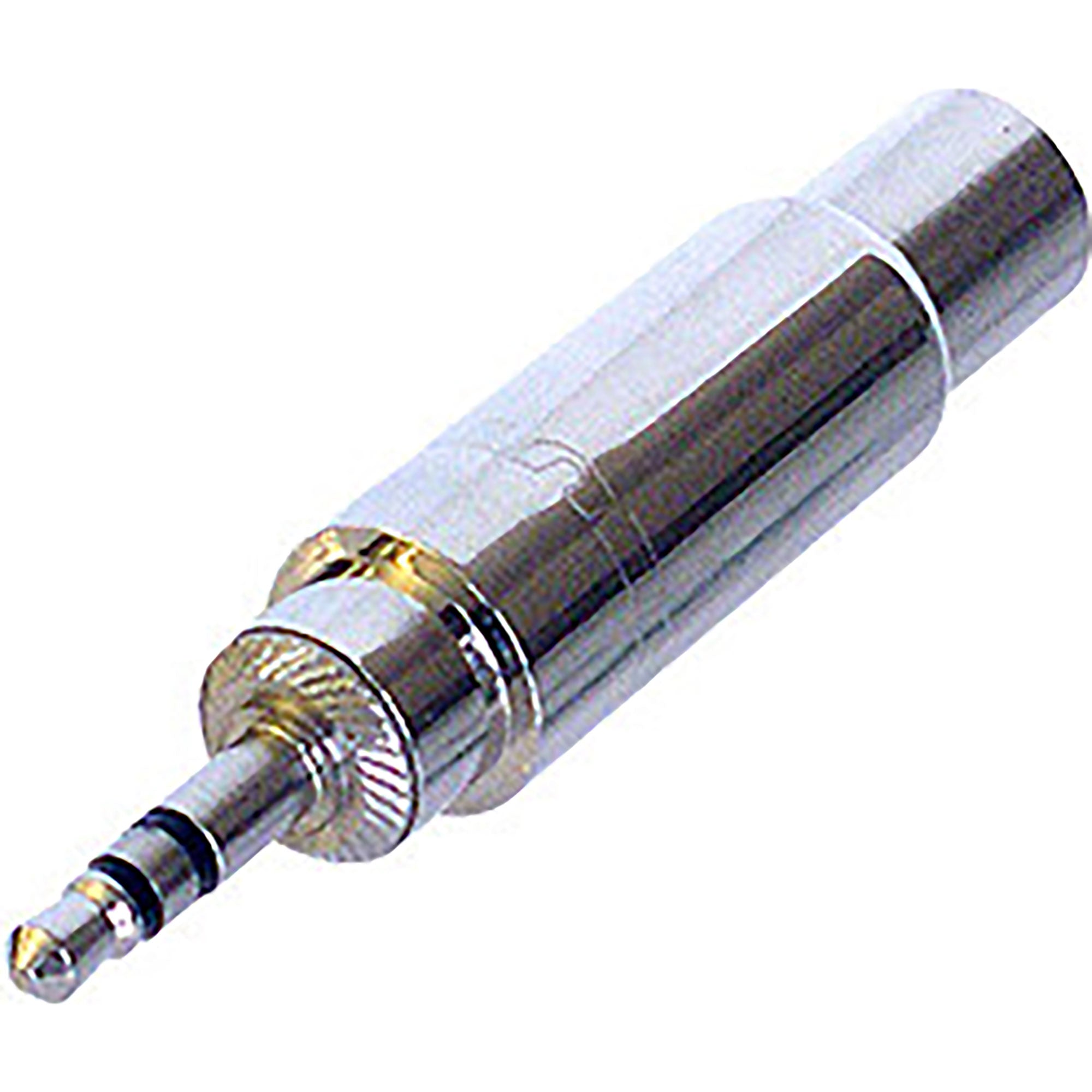

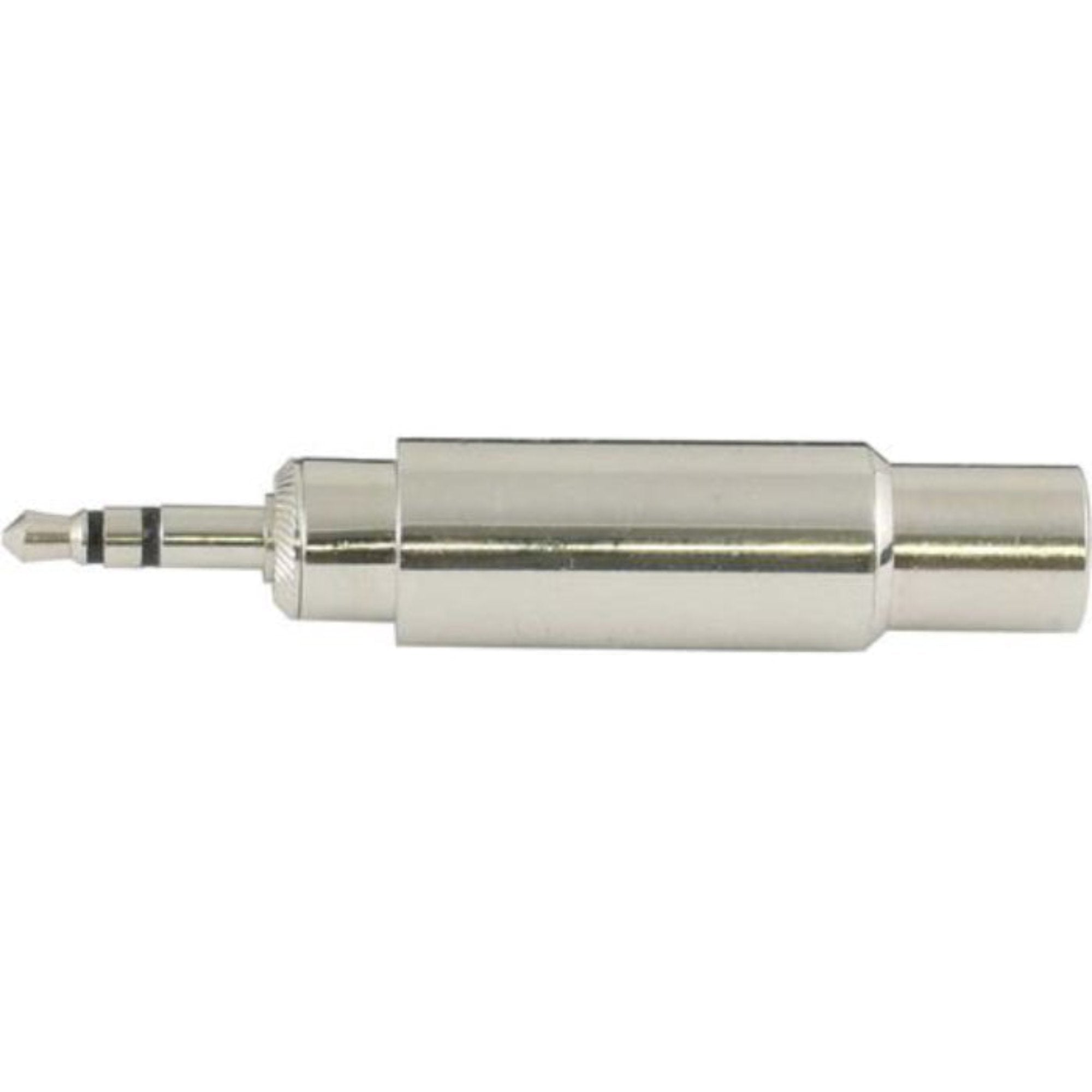

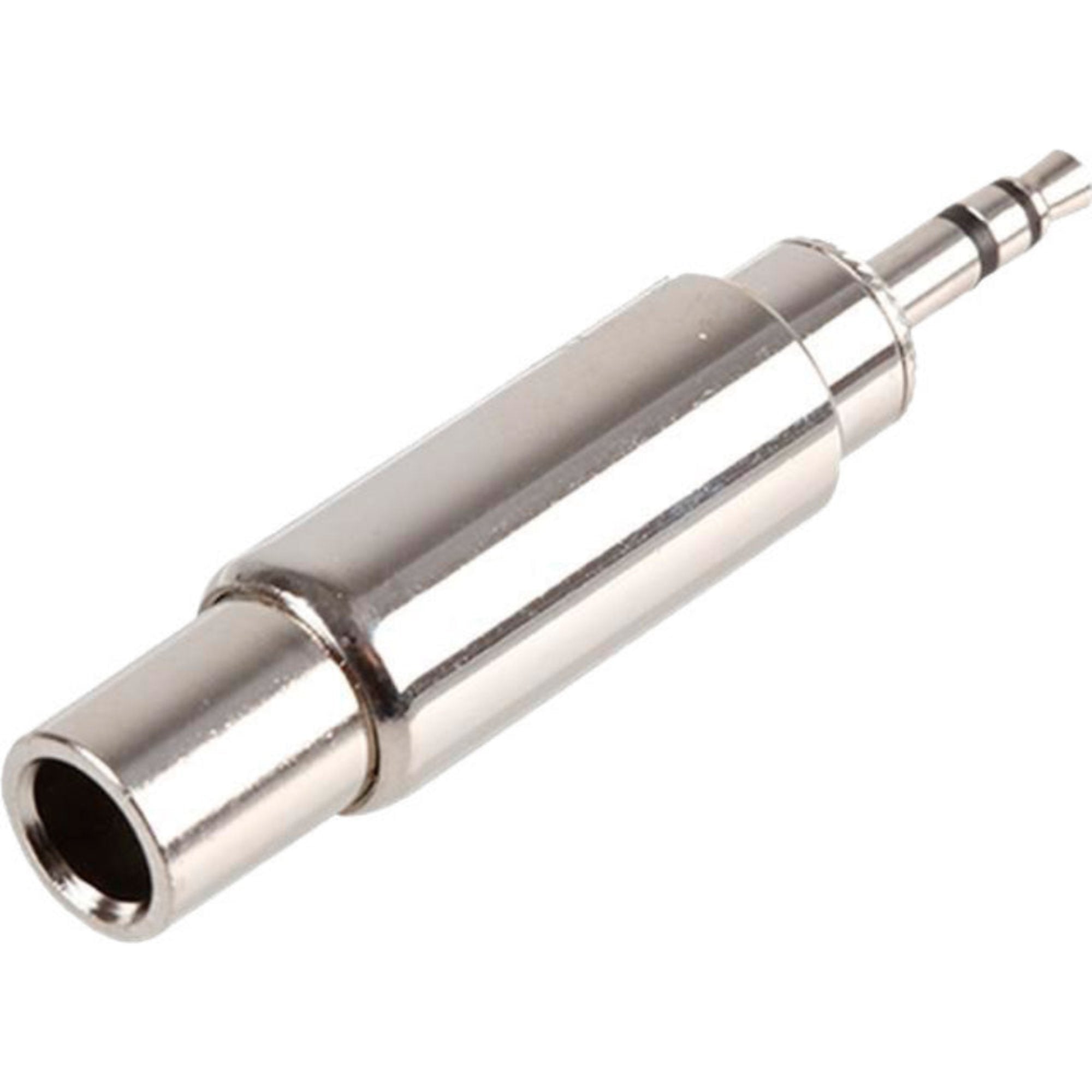

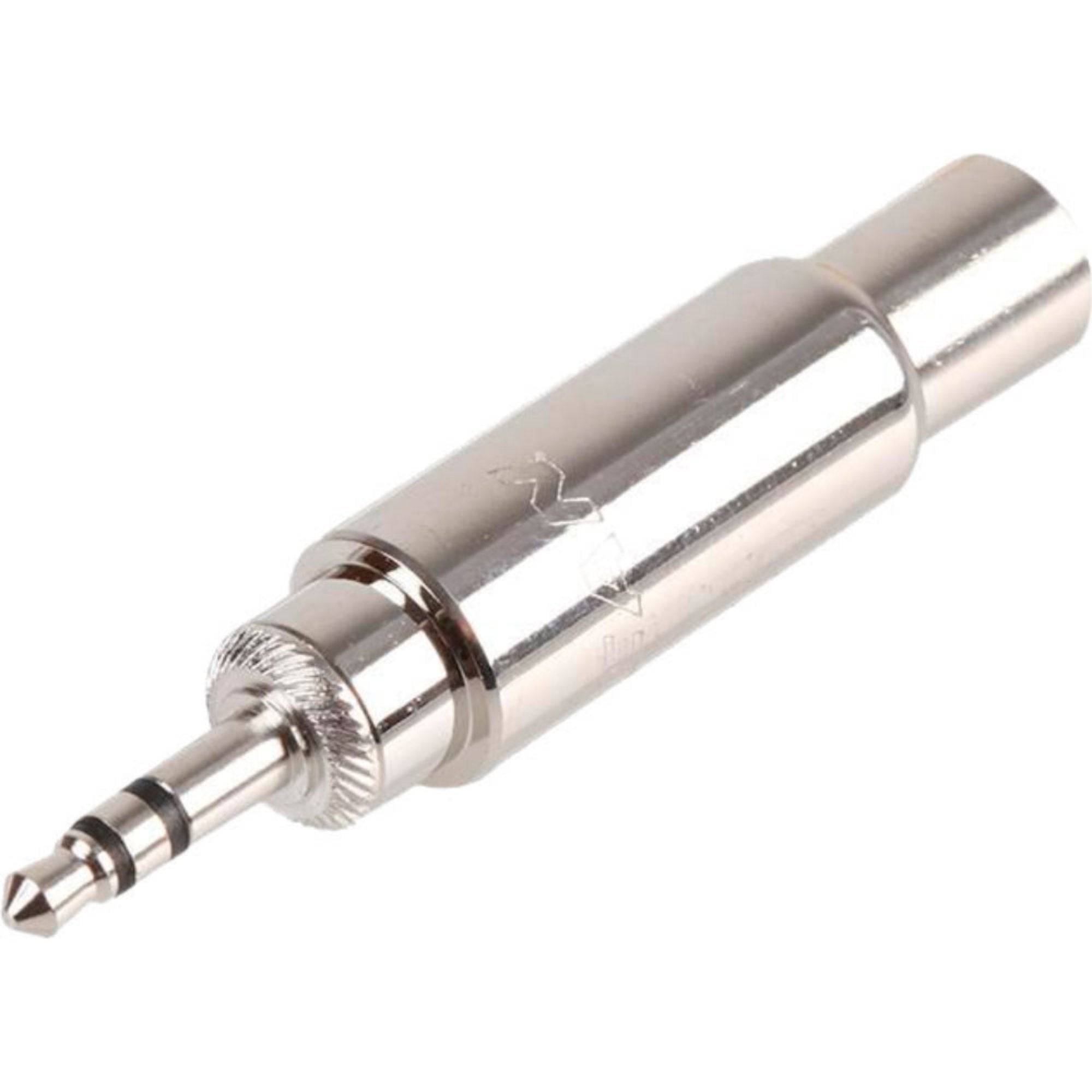

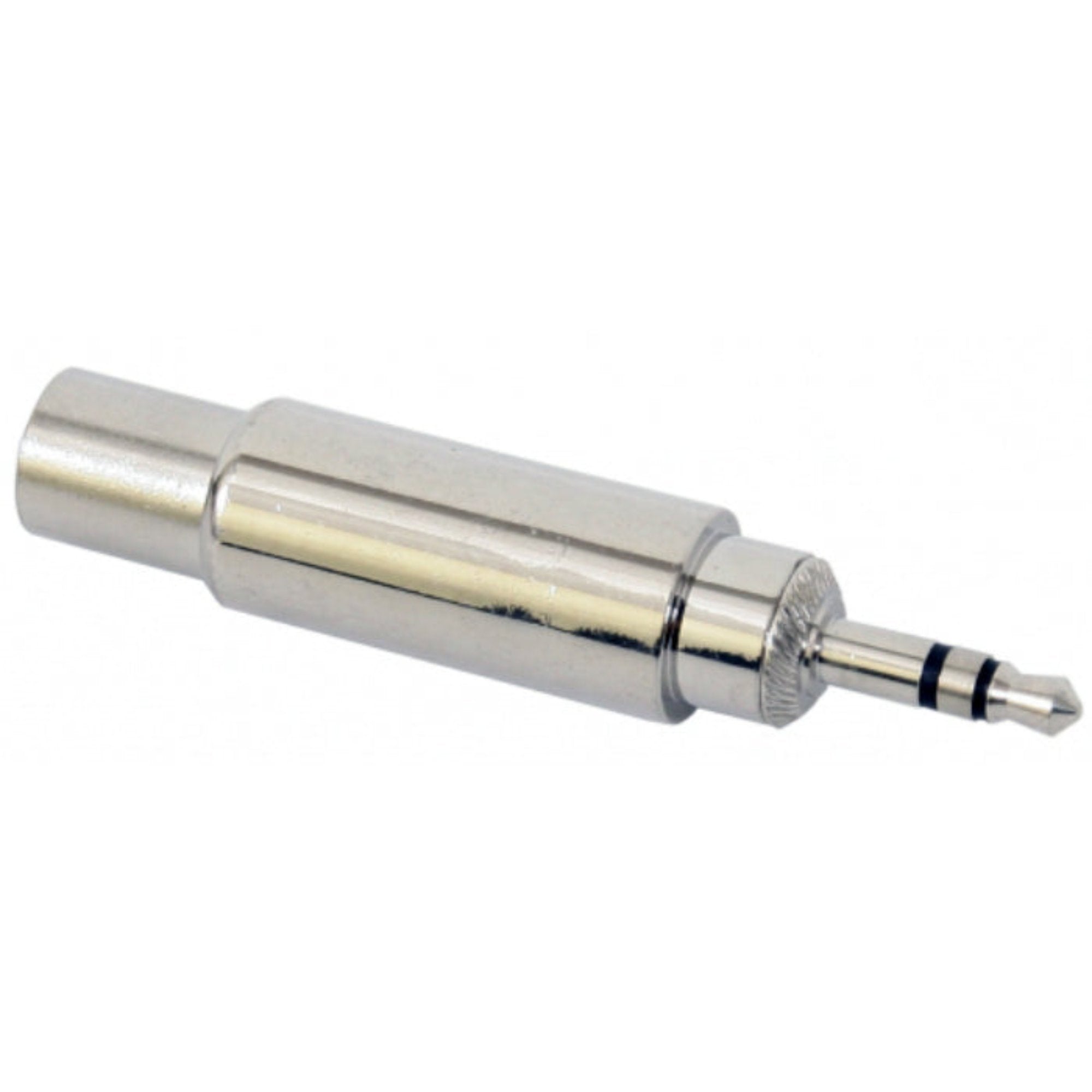

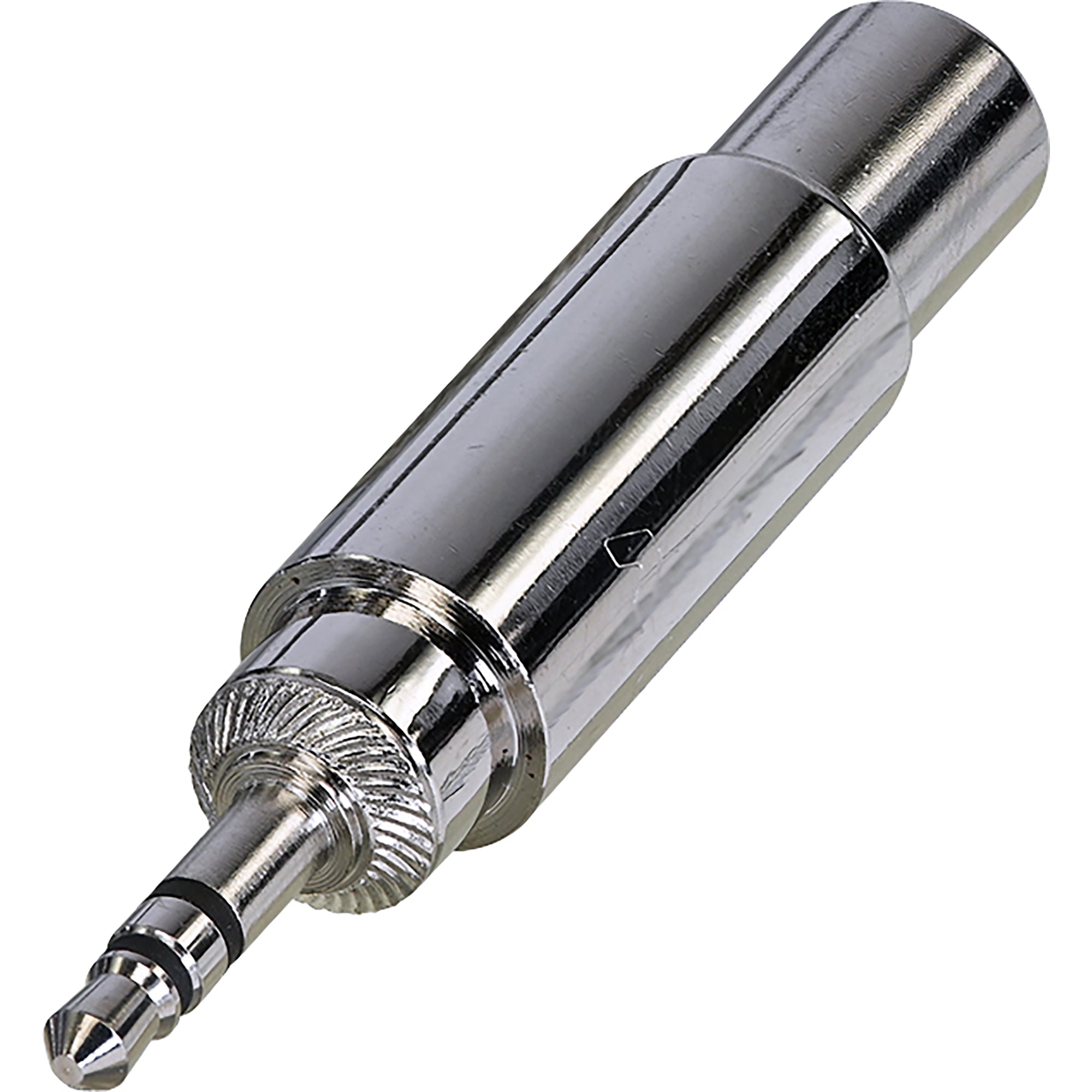

Male 1/8" (3.5mm) Stereo to Female 1/4" Stereo Adapter
3 pole 3.5 mm plug to 3 pole 1/4" jack adapter, all metal
Specifications:
- Product
- Title: NYS227
- Electrical
- Dielectric strength: 0.5 kVdc
- Insulation resistance:>200 MΩ (Initial)
- Rated current: depends on mated connector
- Contact resistance: depends on mated connector
- Mechanical
- Lifetime: 1000 mating cycles
- Material
- Insulation: Thermoplastic
- Environmental
- Temperature range: -25 °C to +70 °C
