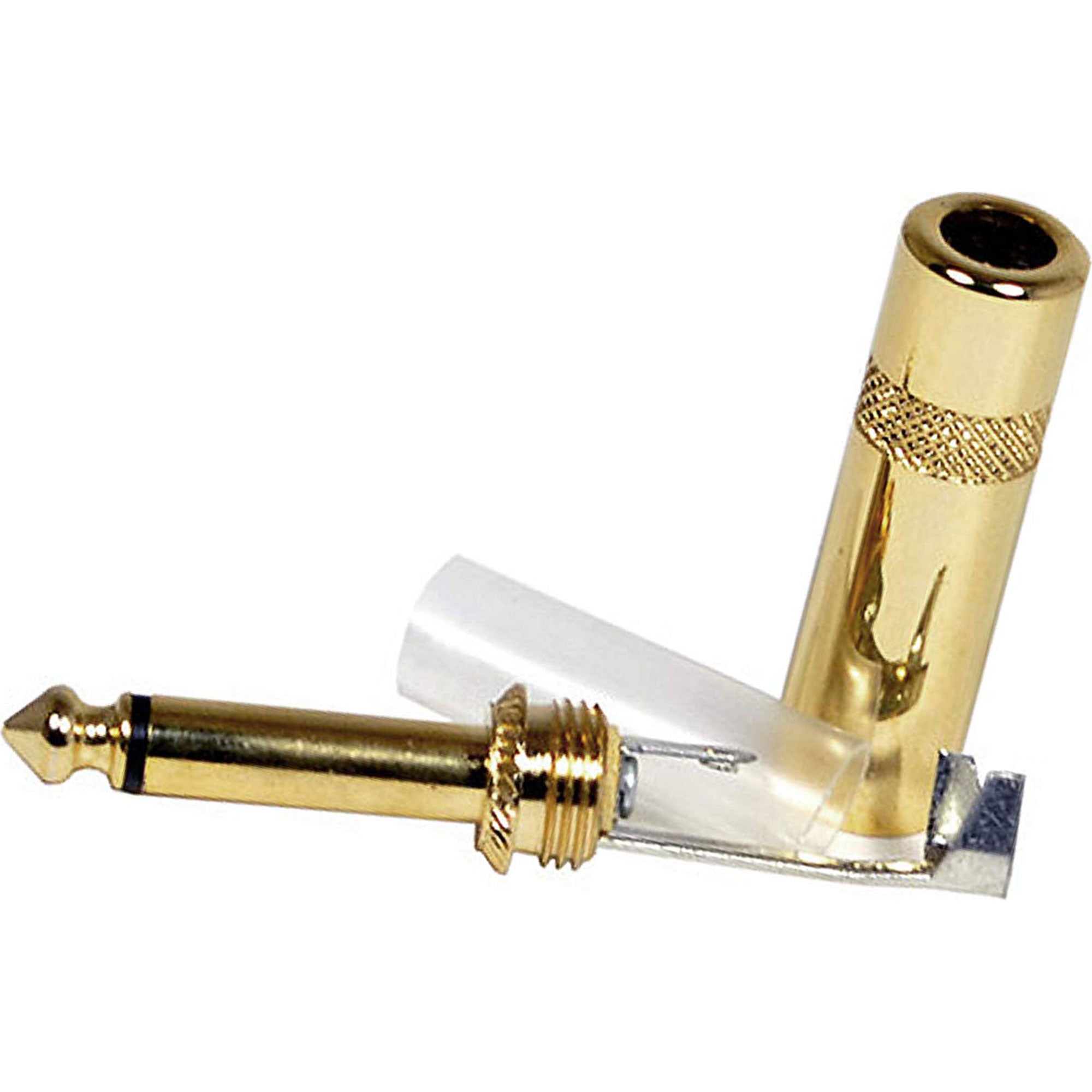

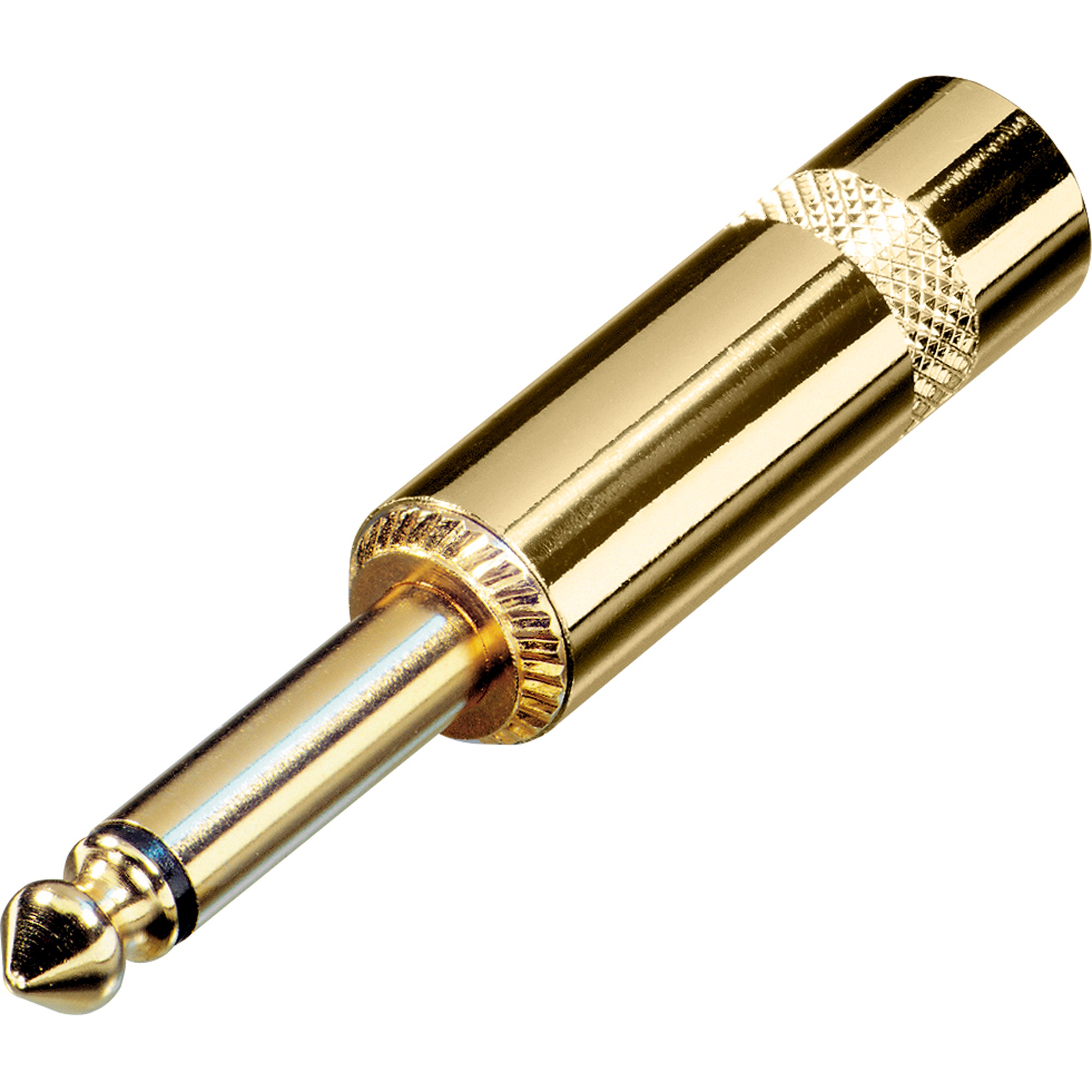

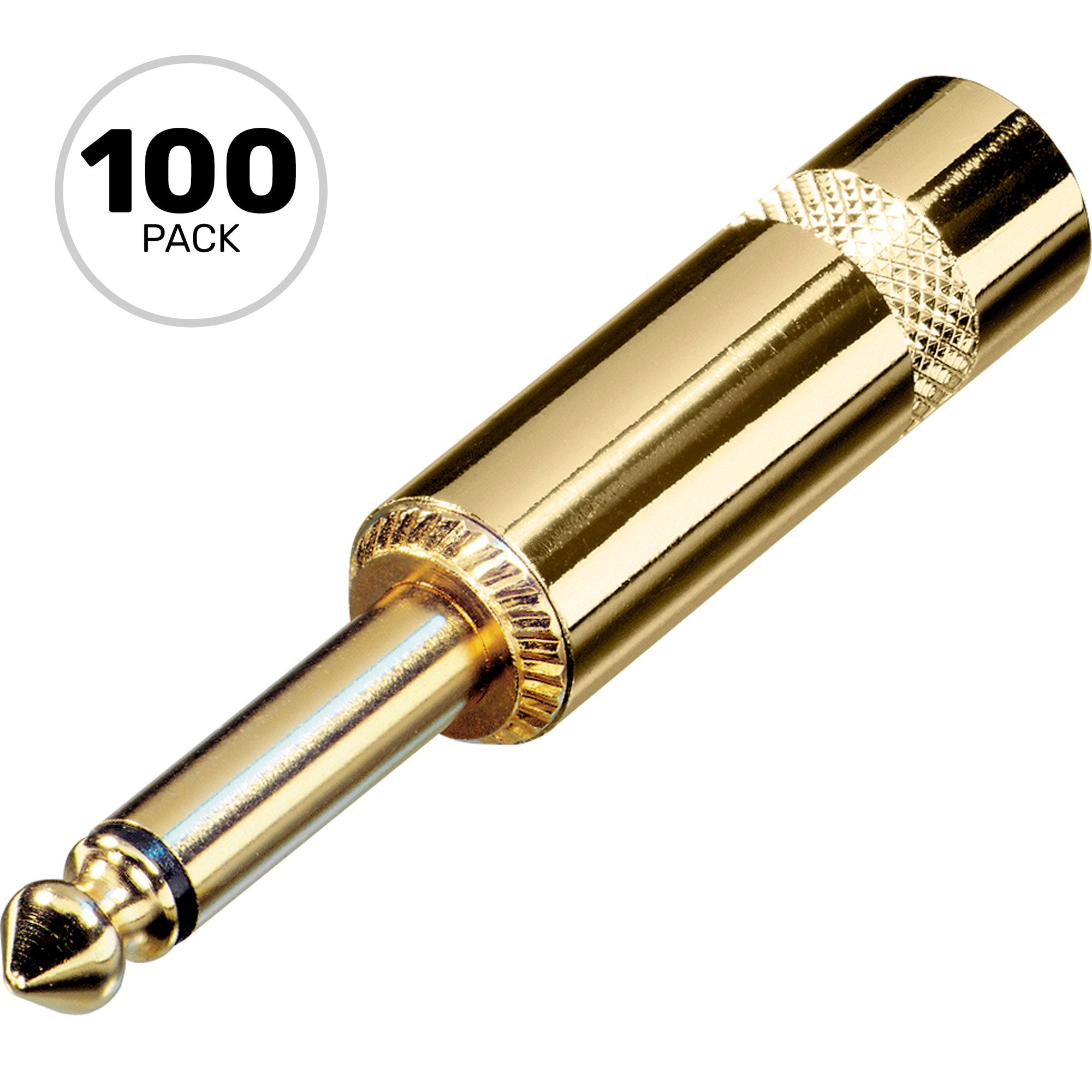

Neutrik Rean NYS224AG 1/4" Mono Phone Long Barrel Plug (Gold/Gold, Box of 100)

Male 1/4" TS Mono Long Barrel Plug, Cable End, Gold Housing, Gold Contacts - Full Box of 100 Connectors

Mono 1/4" plug, long diecast gold handle, gold plated contacts

Features & Benefits

• Mono 1/4" plug for multi-series engineering applications
• High quality materials, insuring best signal transmission
• Meet all prvailing standards
• Sturdt diecast metal shell, no rivets
• Gold plated sleeve and inner

Technical Information

• Product
• Title: NYS224AG
• Connection Type: Mono 1/4" plug
• Electrical
• Dielectric strength: 0.5kV dc
• Insulation resistance: ＞1 GΩ
• Mechanical
• Lifetime: > 1000 mating cycles
• Cable O.D.: ≤9.5 mm
• Insertion force: ≤60 N
• Withdrawal force: ≤60 N
• Material
• Shell: Zinc alloy
• Shell plating: Nickel
• Bushing: POM
• Sleeve Plating: Gold
• Inner Plating: Gold
• Cable Clamp: Steel
• Environmental
• Flammability: UL 94 HB
• Solderability: IEC68-2-20
• Temperature range: -20°C - ﹢70°C
