Key Features
- Male 1/4" Mono Phone Plug
- Tip, Sleeve (TS) Connections
- Right-Angle Design
- Solder Cups
- Nickel Metal Housing
- Silver Contacts
Description

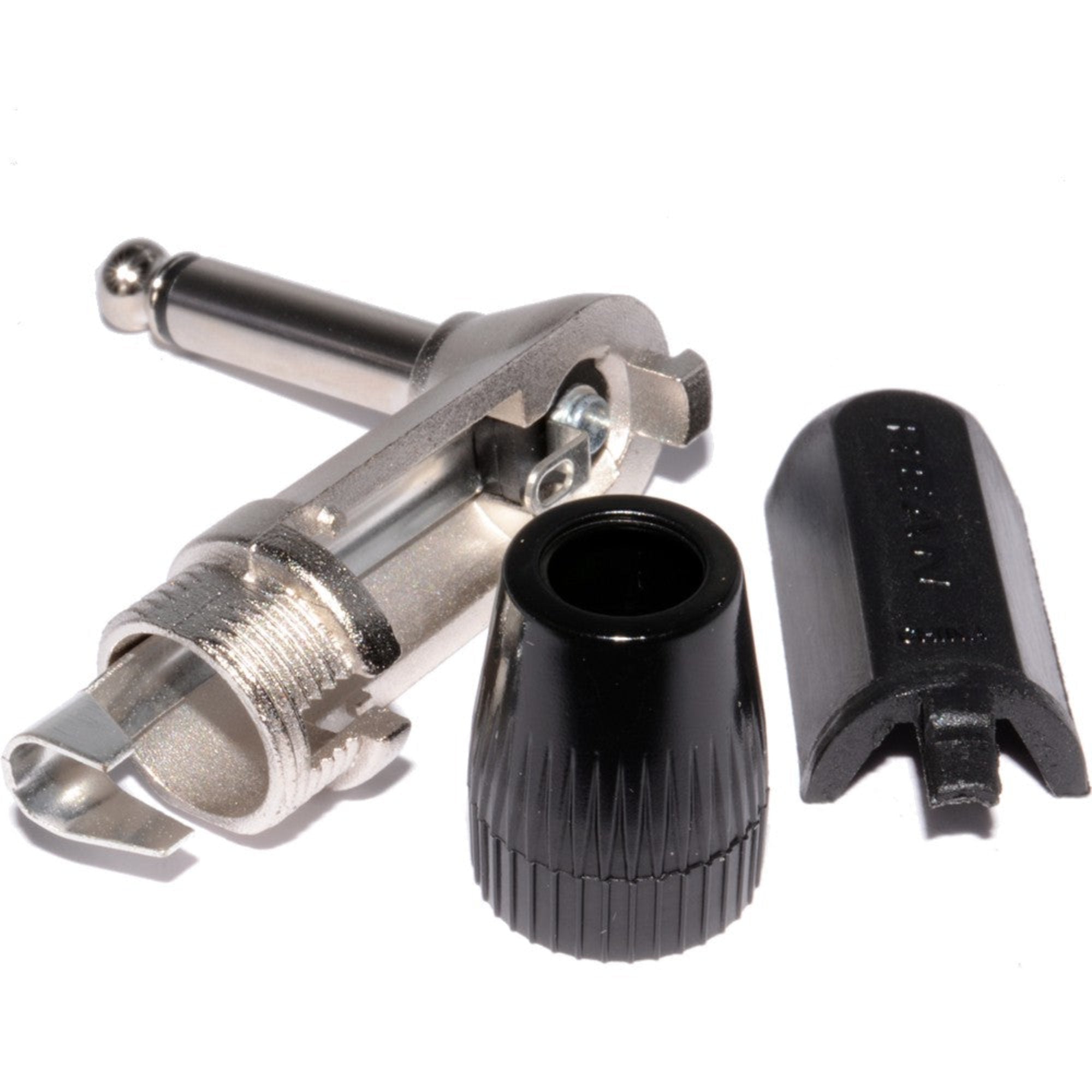

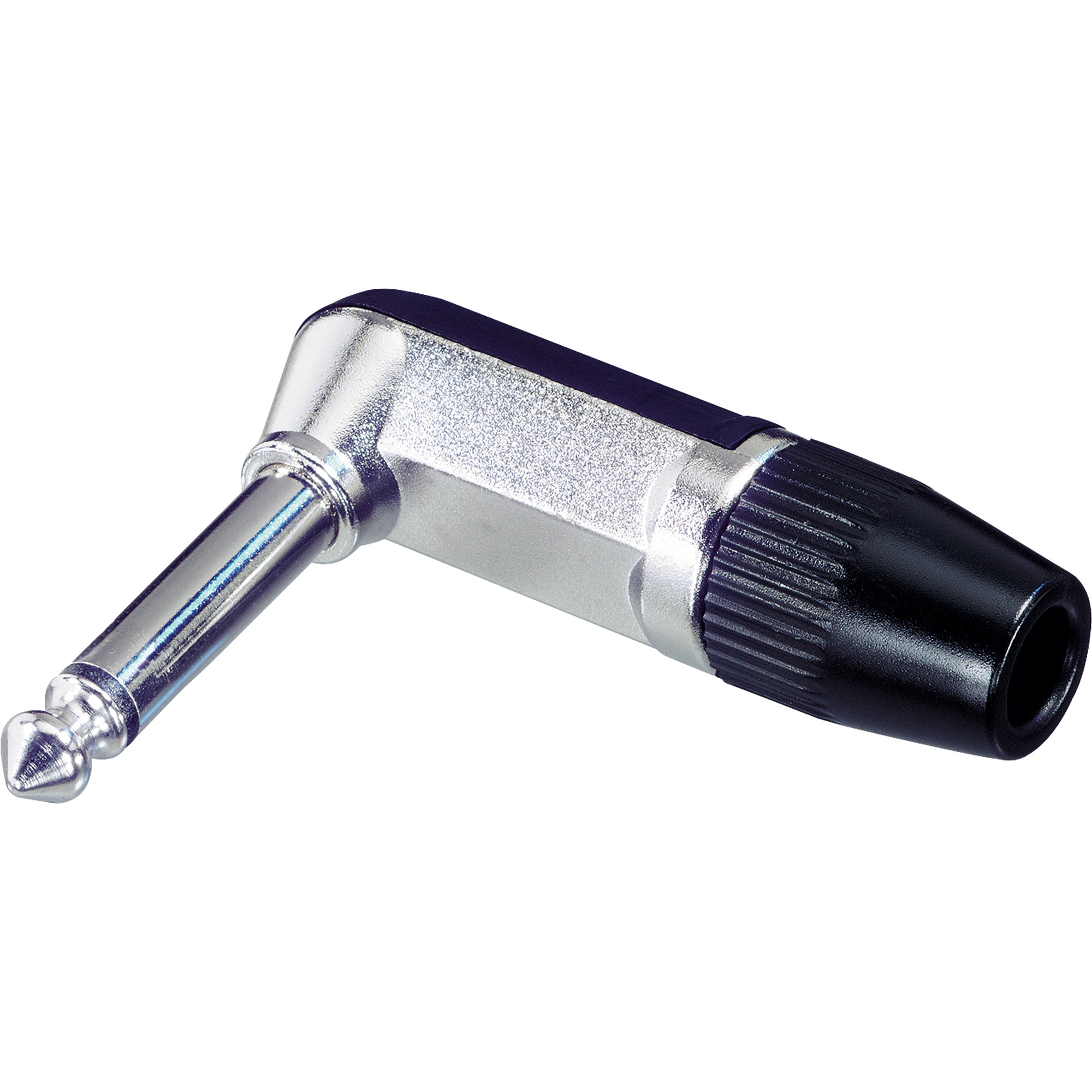

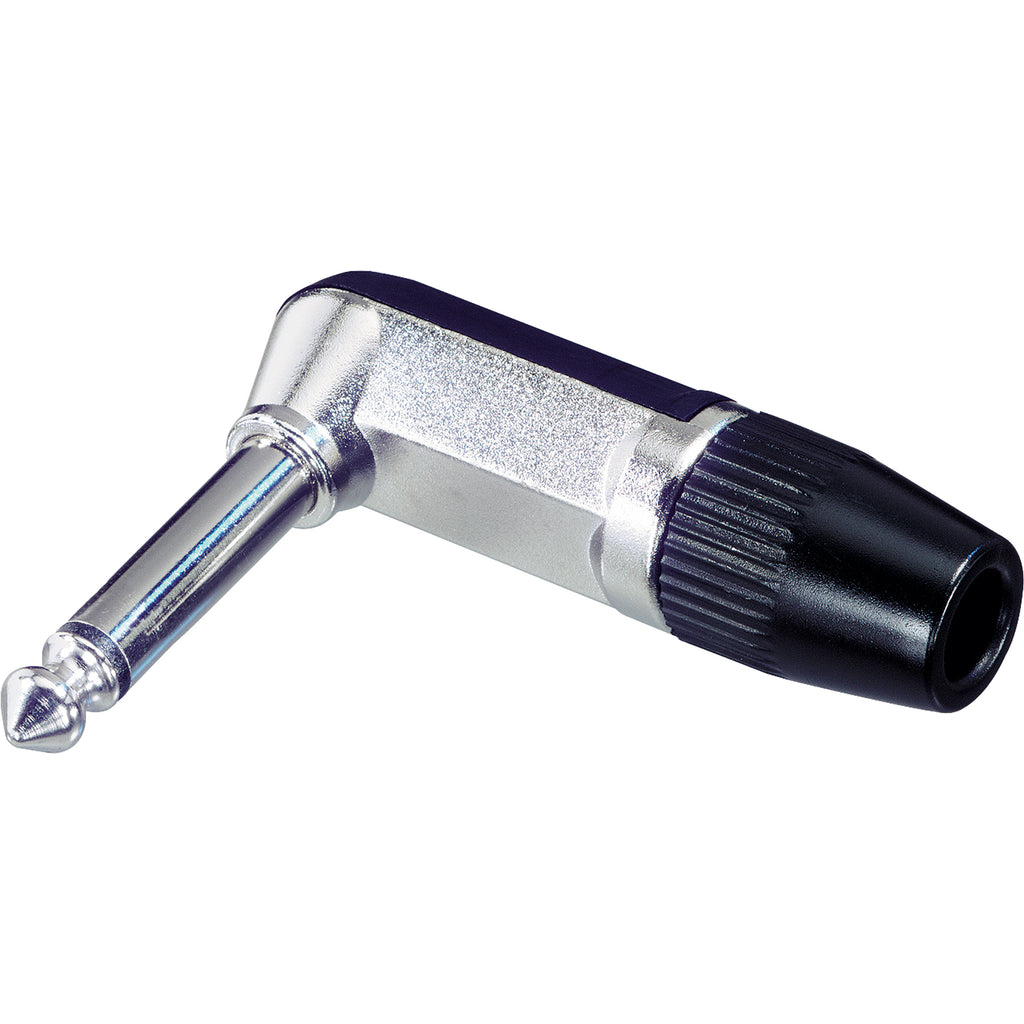

Male 1/4" Right-Angle TS Mono Phone Plug, Cable End, Black Plastic Cover, Silver Contacts
Mono 1/4" right-angle plug, nickel plated handle, black plastic cover and bushing
Features & Benefits
- Mono 1/4" right-angle plug for multi-series engineering applications
- Right-angle plug provide (red/black) polyamides cover
- Optional different plating for housing, contact, sleeves
- Optional different cable sizes
Technical Information
- Product
- Title: NYS207
- Connection Type: Mono 1/4" right-angle plug
- Electrical
- Dielectric strength: 0.5kV dc
- Insulation resistance: ＞1 GΩ
- Mechanical
- Lifetime: > 1000 mating cycles
- Cable O.D.: ≤7.5 mm
- Insertion force: ≤60 N
- Withdrawal force: ≤60 N
- Material
- Shell: Zinc alloy, black polyamides cover
- Shell plating: Nickel
- Bushing: POM
- Tube: Polyamides
- Sleeve Plating: Nickel
- Inner Plating: Nickel
- Cable Clamp: Steel
- Environmental
- Flammability: UL 94 HB
- Solderability: IEC68-2-20
- Temperature range: -20°C to ﹢70°C
