Key Features
- For Pro Audio Applications
- Robust Egonomic Design
- Standard HEX Crimp Cable Clamp
- Red Plastic Housing
- Silver Contacts
Description

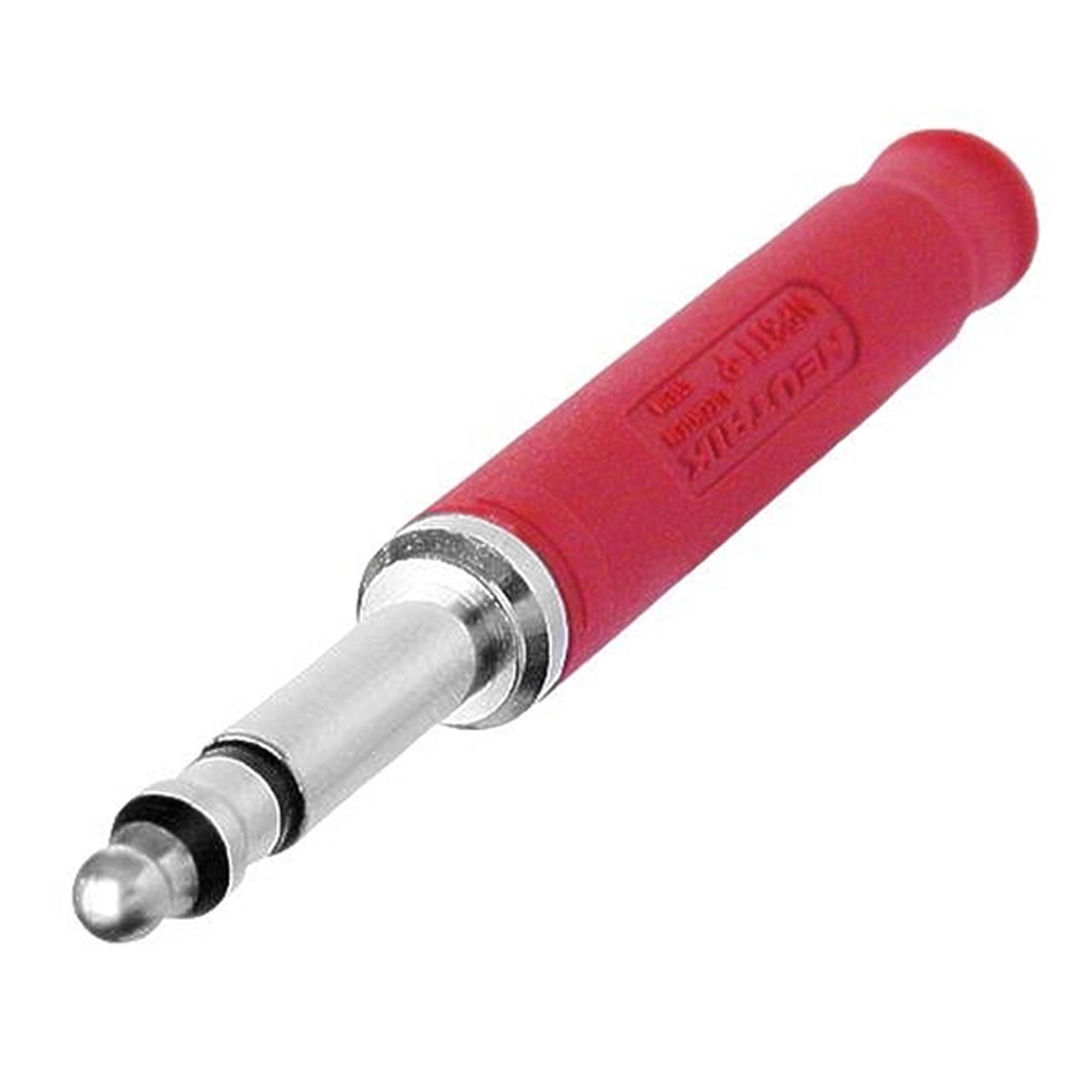

4.4mm Tiny Telefone Plug Bantam Type, Hex Crimp, Red Housing, Silver Contacts
4.4 mm (0.173") tiny telefone plug bantam type, solder termination for T+R, hex crimp of S with a standard RG58 crimp tool, red plastic housing, Nickel contacts. Ideal use with TT patch panels.
Features:
- Designed for pro audio applications
- Robust egonomic design - long-lasting and depenable
- Standard HEX crimp cable clamp for shield termination and cable retention
- Colored sleeves available for coding and marking
Specifications:
- Product:
- Title: NP3TT-P-R
- Connection Type: Plug
- Gender: male
- Electrical:
- Contact resistance: depends on mating connector mΩ
- Dielectric strength: 1 kVdc
- Insulation resistance: > 2 GΩ (initial)
- Rated current per contact: depends on mating connector A
- Rated voltage: < 50 V
- Mechanical:
- Cable O.D.: 4 - 4.8 mm
- Crimp size: 5,41 Hex crimp (shield) acc. IEC 60803 (die designation D)
- Lifetime: > 1000 mating cycles
- Wiresize: 0,25 mm²
- Wiresize: 24 AWG
- Wiring: Solder contacts
- Material:
- Bushing: Polyacetal (POM) + PU
- Contact plating: 2 µm Ni (Su)
- Contacts: Bronze (CuSn6) (Tip)
- Insert: Polyamide (PA 6.6 30 % GR)
- Shell: Brass (CuZn39Pb3)
- Shell plating: Polyamide (6 30% GR) (red)
- Environmental:
- Standard compliance: MIL-P-642/13
- Solderability: Complies with IEC 68-2-20
- Temperature range: -20°C to +65°C
