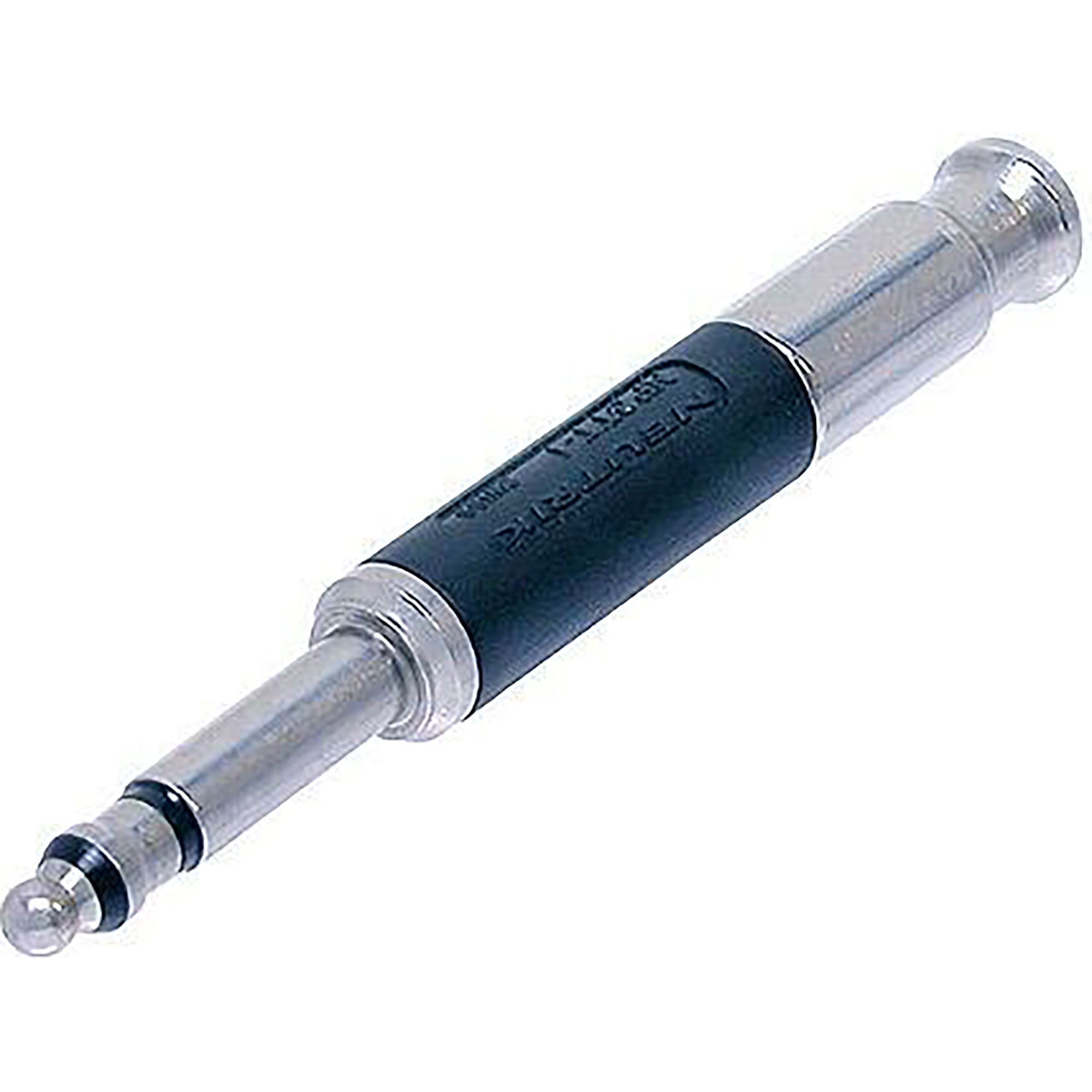

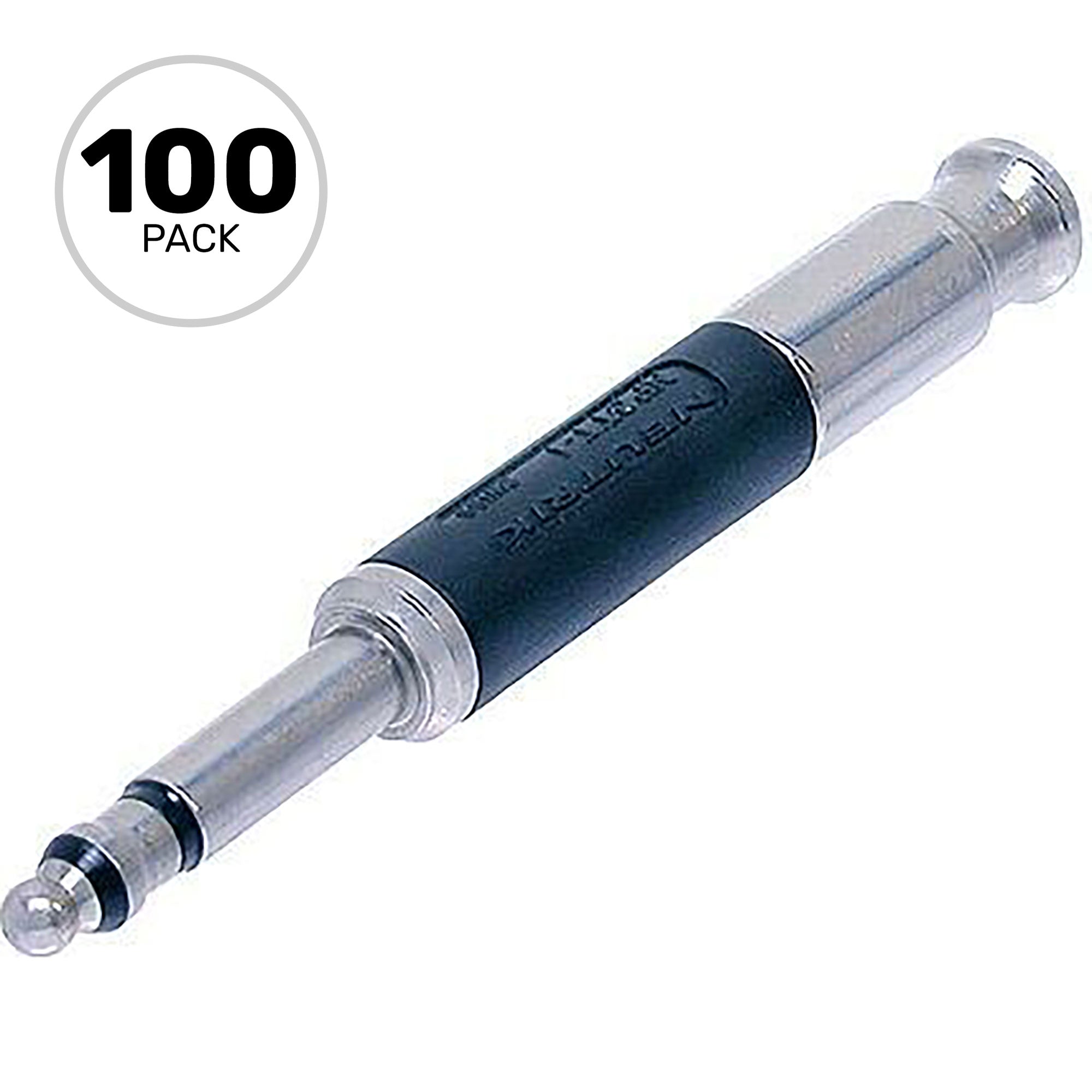

Neutrik NP3TT-1-B 4.4mm (0.173") TT Bantam Plug with HEX Crimp (Black/Silver, Box of 100)

4.4mm (0.173") Tiny Telefone Plug Bantam Type, Solder and Crimp Terminations, Black Plastic Housing, Nickel Contacts - Full Box of 100 Connectors

4.4 mm (0.173") tiny telefone plug bantam type, solder termination for T + R, crimp termination for S, HEX crimp cable strain relief, black plastic housing, Nickel contacts. Ideal use with TT patch panels.

Features:

• Designed for pro audio applications
• Robust egonomic design - long-lasting and depenable
• Standard HEX crimp cable clamp for shield termination and cable retention
• Colored sleeves available for coding and marking

Specifications:

• Product:
• Title: NP3TT-1-B
• Connection Type: Plug
• Gender: male
• Electrical:
• Contact resistance: depends on mating connector mΩ
• Dielectric strength: 1 kVdc
• Insulation resistance: > 2 GΩ (initial)
• Rated current per contact: depends on mating connector A
• Rated voltage: < 50 V
• Mechanical:
• Cable O.D.: 4 - 4.8 mm
• Crimp size: 5 Hex crimp (shield)
• Lifetime: > 1000 mating cycles
• Wiresize: 0,25 mm²
• Wiresize: 24 AWG
• Wiring: Solder contacts
• Material:
• Bushing: Polyacetal (POM) + PU
• Contact plating: 2 µm Ni (Su)
• Contacts: Bronze (CuSn6) (Tip)
• Insert: Polyamide (PA 6.6 30 % GR)
• Shell: Brass (CuZn39Pb3)
• Shell plating: 2 µm Ni (Su) + PA 6 30% GR (black)
• Environmental:
• Standard compliance: MIL-P-642/13
• Solderability: Complies with IEC 68-2-20
• Temperature range: -20°C to +65°C
