Neutrik NP2RX-BAG Professional Right-Angle 1/4" TS Mono Phone Plug (Black/Silver)

Black/Silver right-angle 1/4-inch TS cable plug

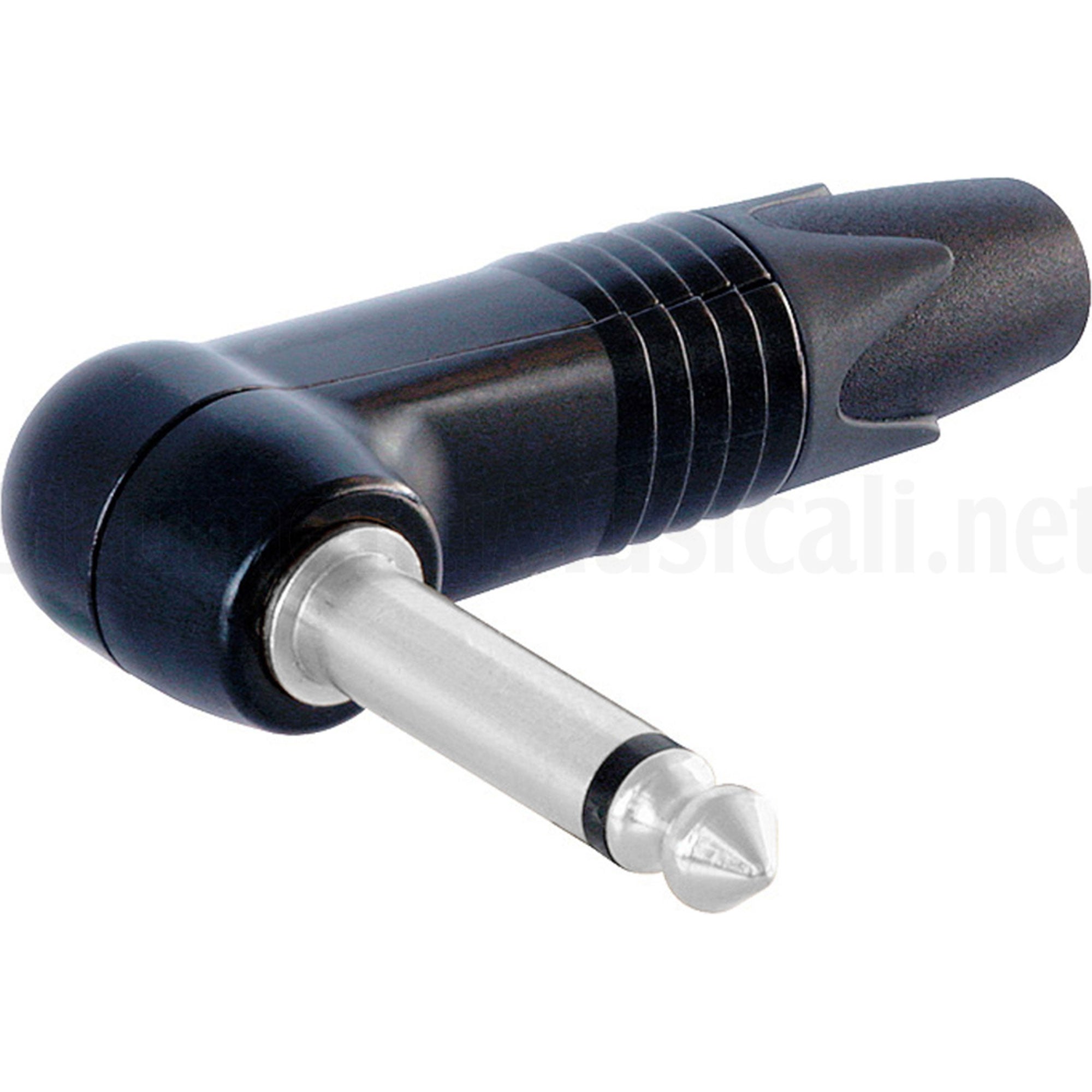

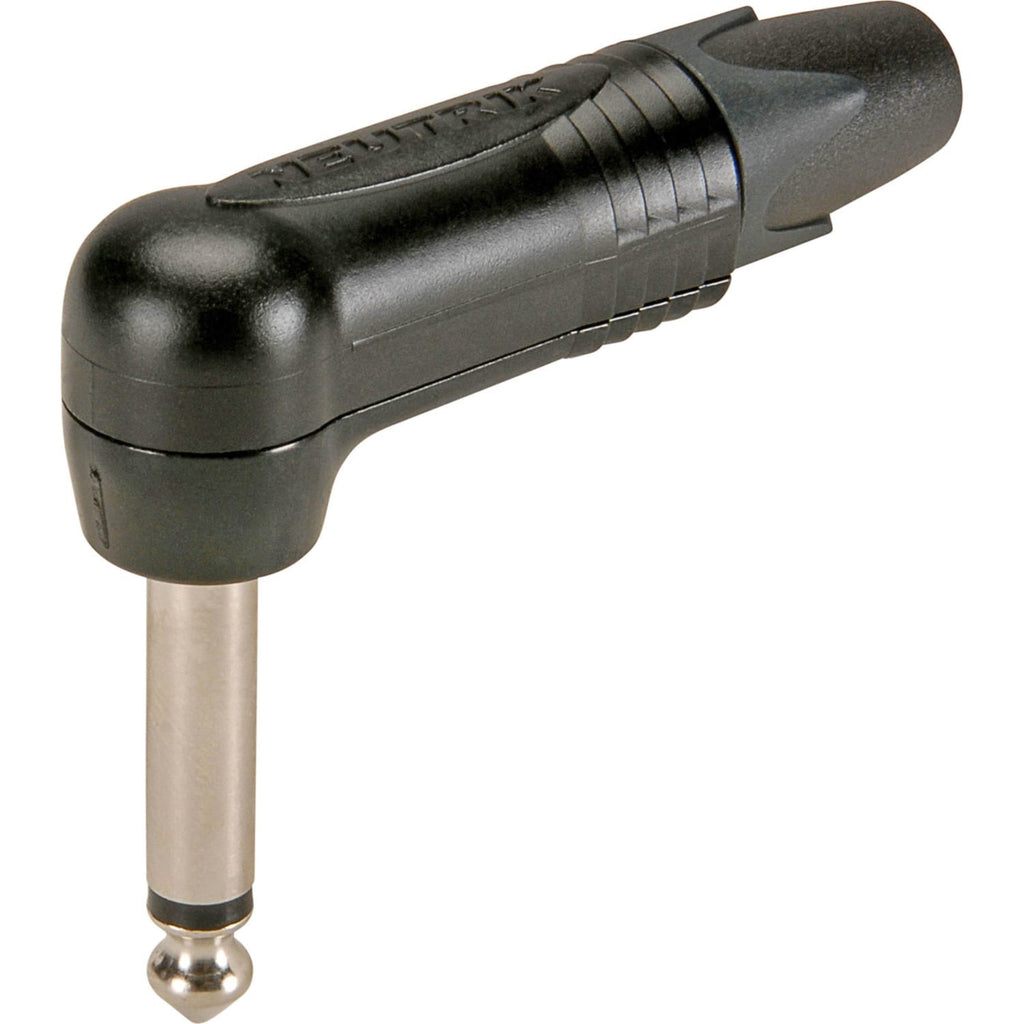

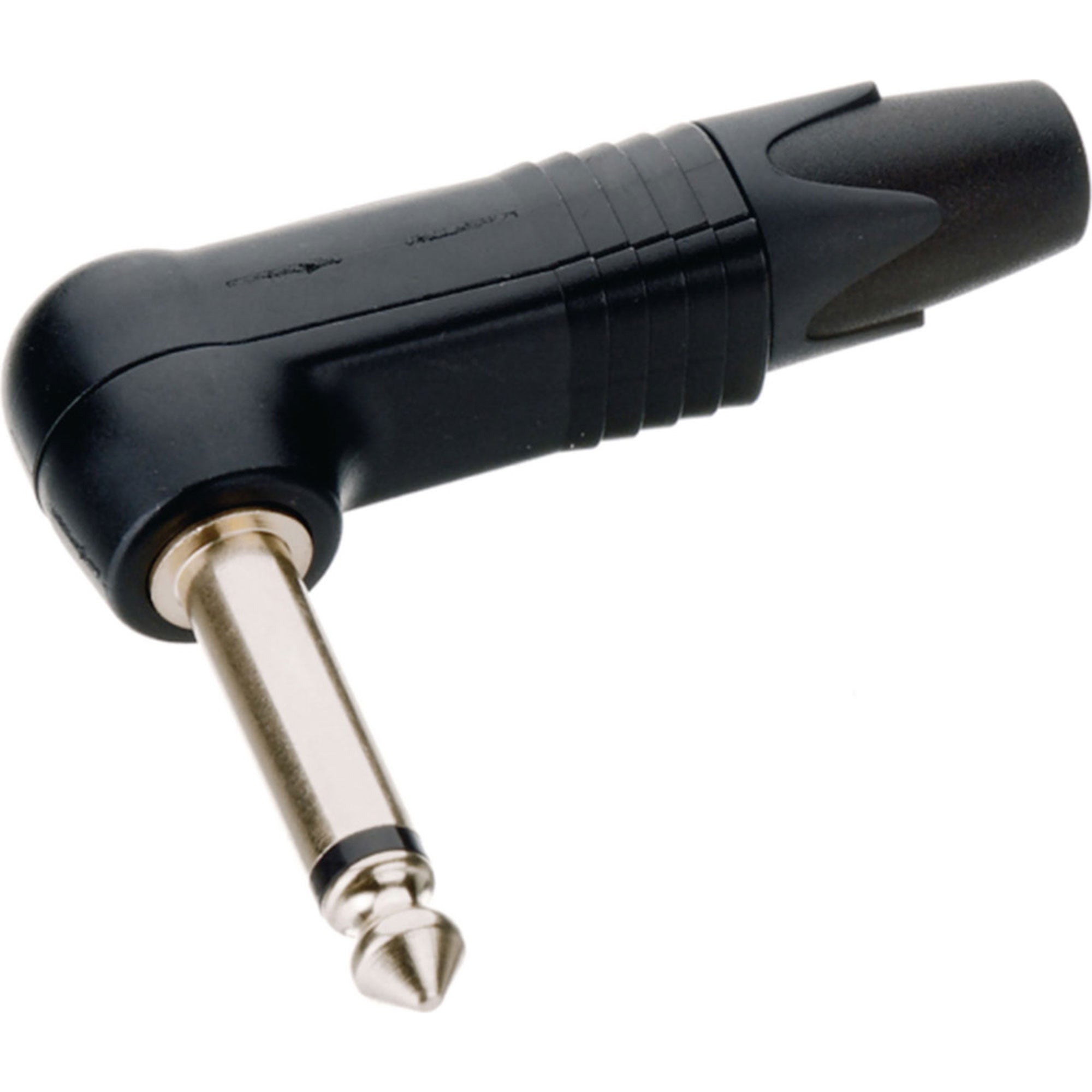

The Neutrik NP2RX-BAG is a male, two-contact 1/4-inch TS mono cable plug with a Black chromium-plated diecast shell and Silver-colored contacts. Its right-angle design offers a sideways cable exit for builds where a straight plug would project in the wrong direction. This is a solder-on cable connector, not a finished cable.

Choose your finish

This listing is the Black/Silver NP2RX-BAG. The other standard finish options are Black/Gold NP2RX-B and Nickel/Silver NP2RX.

Choose TS for the right connection

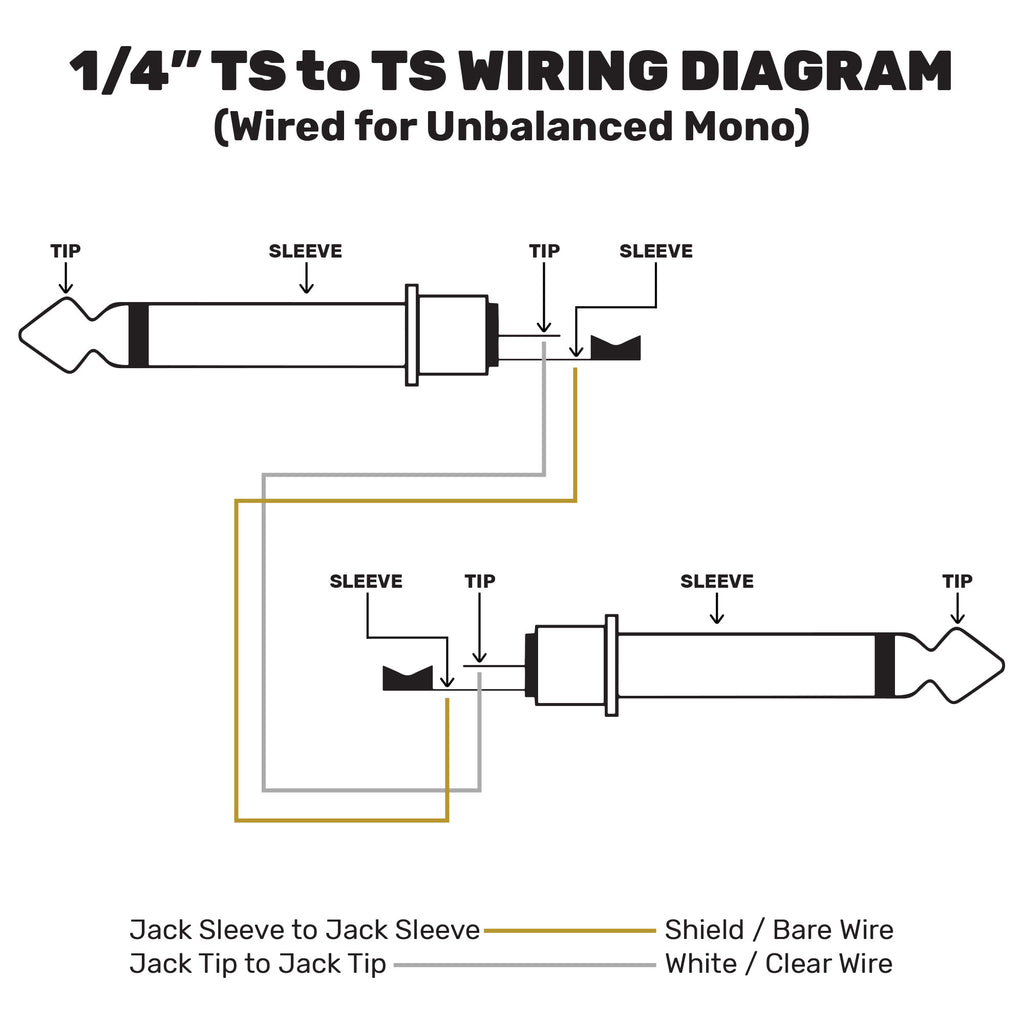

The two contacts are tip and sleeve. Use this model where your equipment requires a 1/4-inch TS connection, such as an unbalanced mono instrument cable. It is not a three-contact TRS plug for balanced mono or stereo wiring. Confirm the connector type and pinout required by your equipment before ordering.

Cable fit and right-angle clearance

Fits cable outer diameters of 4–7 mm. The listed wire size is 18 AWG. Check both jacket diameter and conductor fit before assembly, including any shield or drain-wire bundle that must fit the sleeve termination.

The listed shell width is 14.5 mm. Check clearance around the equipment jack, neighboring plugs, recessed sockets, and the intended cable-exit direction. Shell width alone does not guarantee fit in every closely spaced jack layout.

Assembly

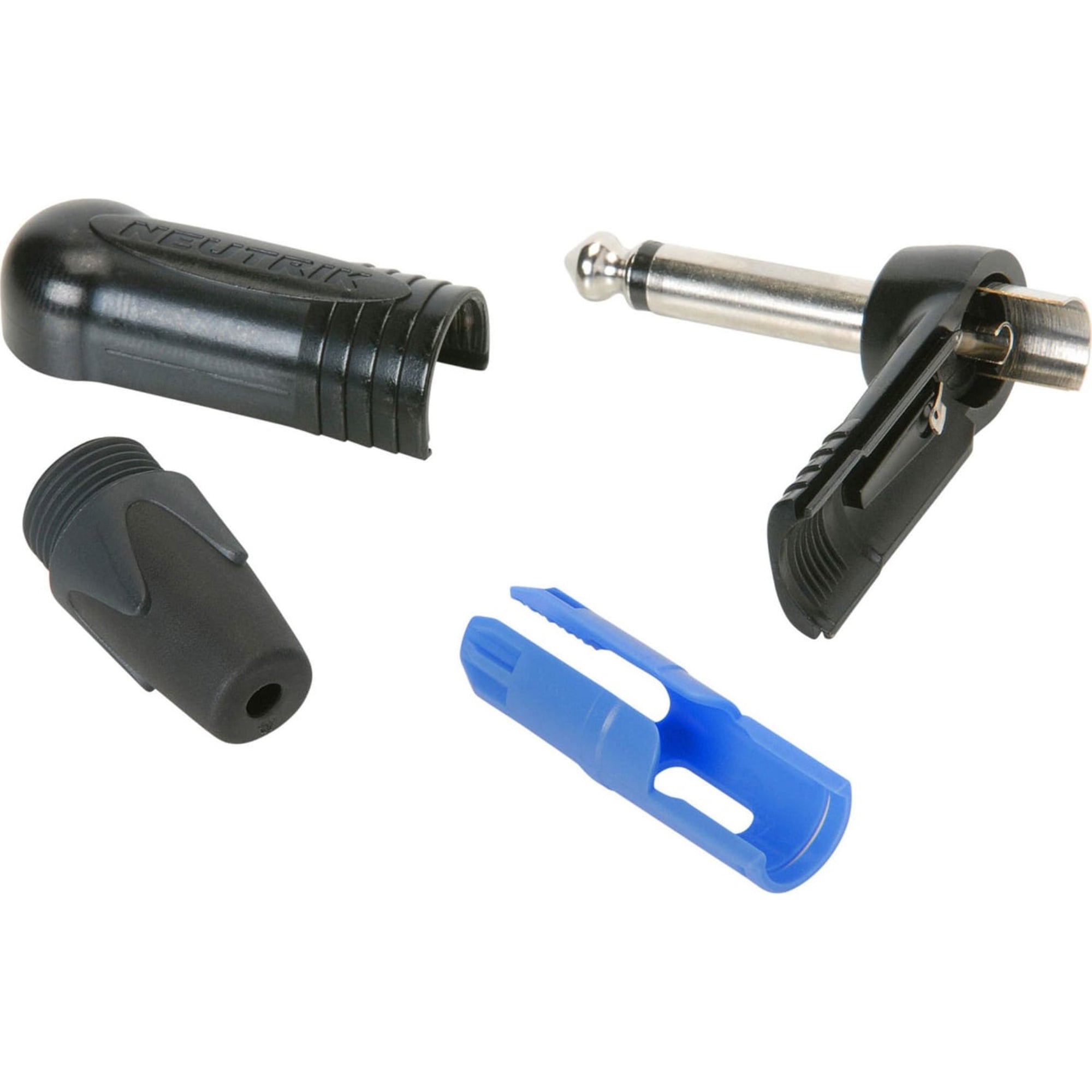

Soldering is required. Follow Neutrik’s cable-preparation and assembly instructions, fit the housing and bushing onto the cable before soldering, and secure the jacket with the chuck-type strain relief. Verify tip/sleeve continuity and check for shorts before use.

Features

• Male 1/4-inch TS mono plug with right-angle cable exit.
• All-metal housing and robust diecast shell.
• Black chromium shell finish and Silver-colored contacts.
• Chuck-type strain relief for cable retention.
• Precision-machined one-piece tip contact without rivets.
• Slim 14.5 mm shell width.

Electrical specifications

• Model: NP2RX-BAG
• Contacts: 2, tip and sleeve.
• Dielectric strength: 1 kV DC.
• Initial insulation resistance: Greater than 2 GΩ.
• Rated current per contact: Dependent on mating connector.
• Listed rated voltage: 50 V.

Mechanical specifications

• Cable outer diameter: 4–7 mm.
• Listed wire size: 18 AWG.
• Termination: Solder contacts.
• Lifetime: Greater than 1,000 mating cycles.

Materials

• Bushing: Polyacetal, POM, and PU.
• Contacts: Brass, CuZn39Pb3.
• Contact plating: Listed as nickel in the existing specifications; Silver denotes the contact finish color in this listing.
• Insert: Polyamide, PA 6.6, 30% glass reinforced.
• Shell: Zinc diecast, ZnAl4Cu1.
• Shell plating: Black chromium.
• Strain relief: Polyacetal, POM.

Environmental specifications

• Standard compliance: IEC 60603-11 / EIA RS-453.
• Solderability: IEC 68-2-20.
• Temperature range: −20°C to +65°C.
