Key Features
- 8 Pole Female speakON Connector
- Solder Contacts
- Black Metal Housing
- Long-Lasting & Reliable
- Weatherproof Design
- Full Box of 20 Connectors
Description

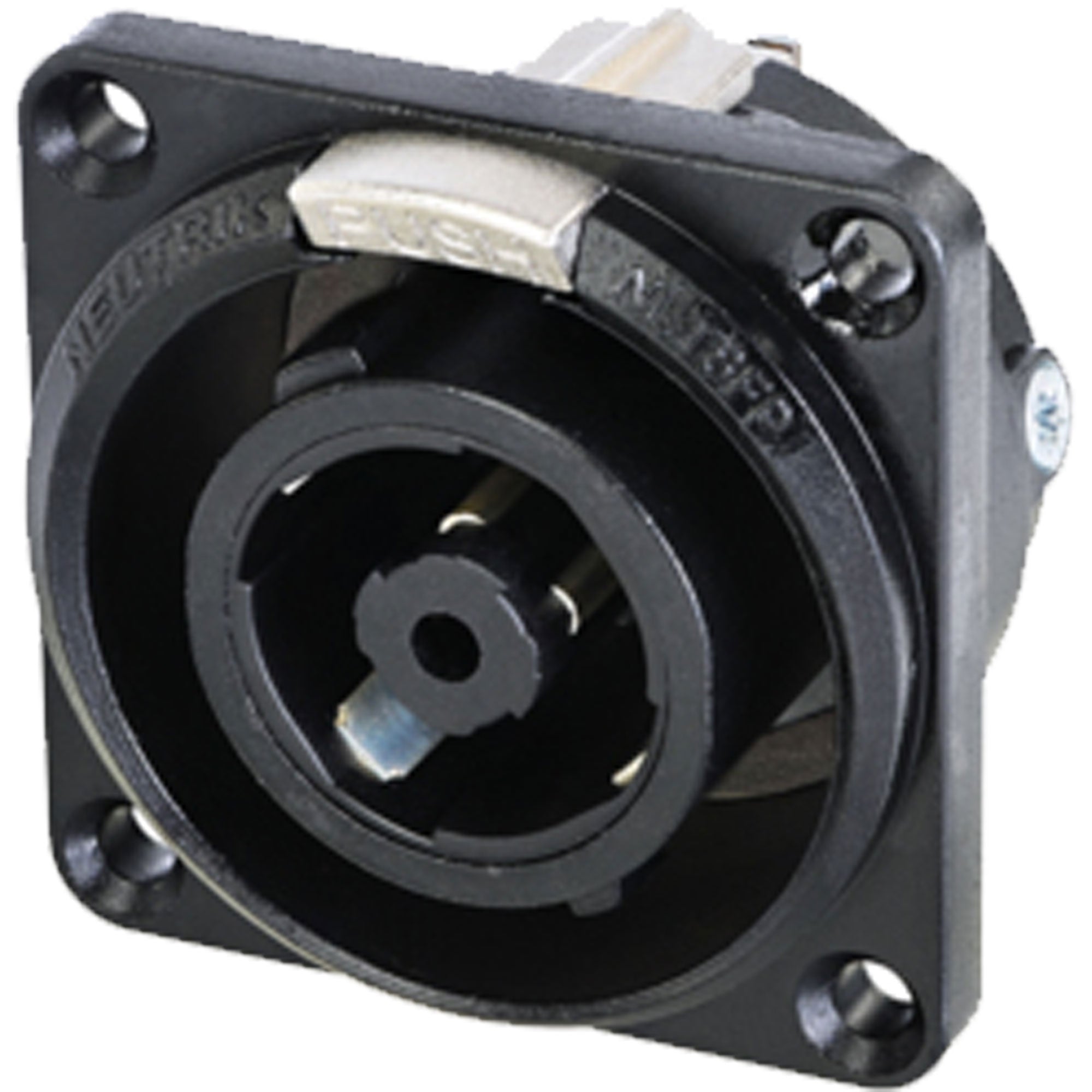

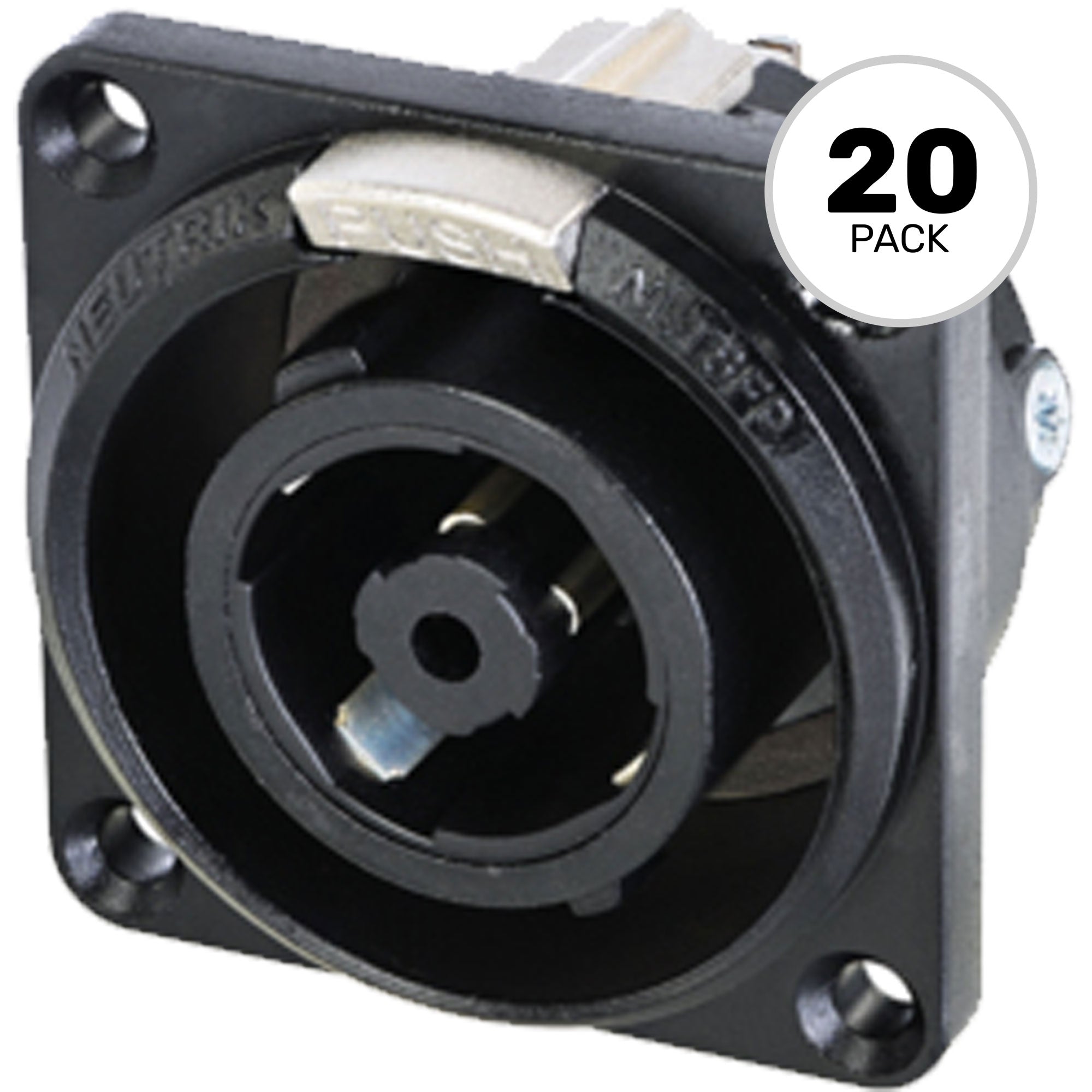

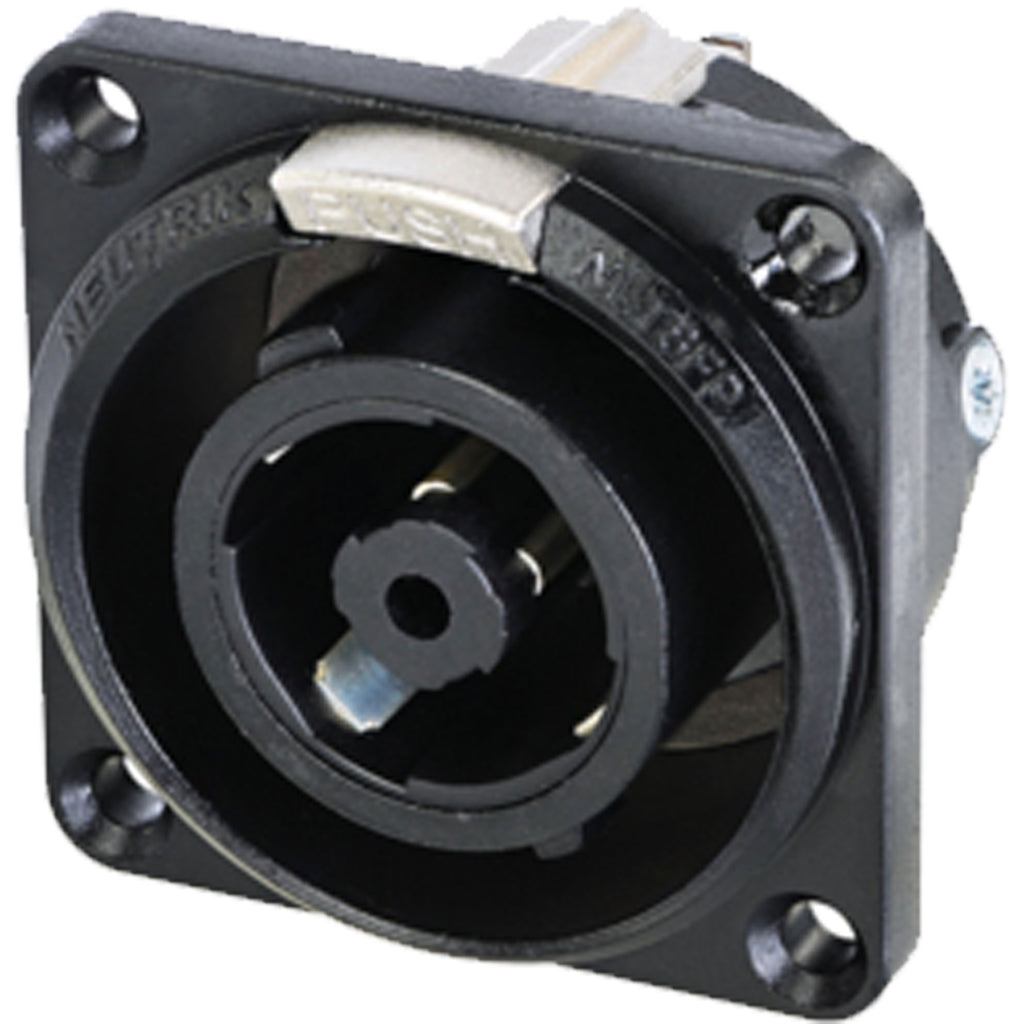

8 Pole Female STXX Series speakON Chassis Connector, Black Metal G-Size Housing, Solder Contacts, Countersunk Thru Holes - Full Box of 20 Connectors
This connector is accepted within audio equipment designed according to IEC 62368-1 due to its component certification according to IEC 61984.
The speakON STXX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STXX Series features an all metal housing.
Features:
- IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
- Current rating 30 A rms
- Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment
- Uses precise "Quick Lock" system
- Compatible with complete speakON 8 pole product series
Specifications:
- Product:
- Title: NLT8FPXX-BAG
- Gender: female
- Electrical:
- Contact resistance: < 2 mΩ
- Dielectric strength: 1.5 kVac
- Insulation resistance: > 0.1 GΩ (after dampheat)
- Rated current per contact: 30 A rms continuous (acc. to IEC 61984)
- Rated voltage: 250 V ac
- Attention: speakON is NOT to be used as an mains or power supply connector (AC / DC)!
- Mechanical:
- Lifetime: > 5000 mating cycles
- Wiresize: 1.5 mm² - 6 mm²
- Wiresize: 10 AWG
- Termination: solder contacts
- Locking device: Quick Lock
- Mounting direction: Front mounting
- Chassis shape: square G-size flange
- Layout: four thru holes
- Material:
- Contact plating: Ag
- Contacts: Copper Alloy
- Shell: Zinc diecast, black chrome plated
- Insert: Polyamide (PA 6.6)
- Environmental:
- Temperature range: -30 °C to +80 °C
- Flammability: UL 94 V-0
- Protection class: IP 50 (mated condition)
- Solderability: Complies with IEC 68-2-20
