Key Features
- 4 Pole Female Connector
- Solder Tabs
- Standard D-Shape Housing
- Long-Lasting and Reliable
- Weatherproof Design
- Nickel Finish
Description

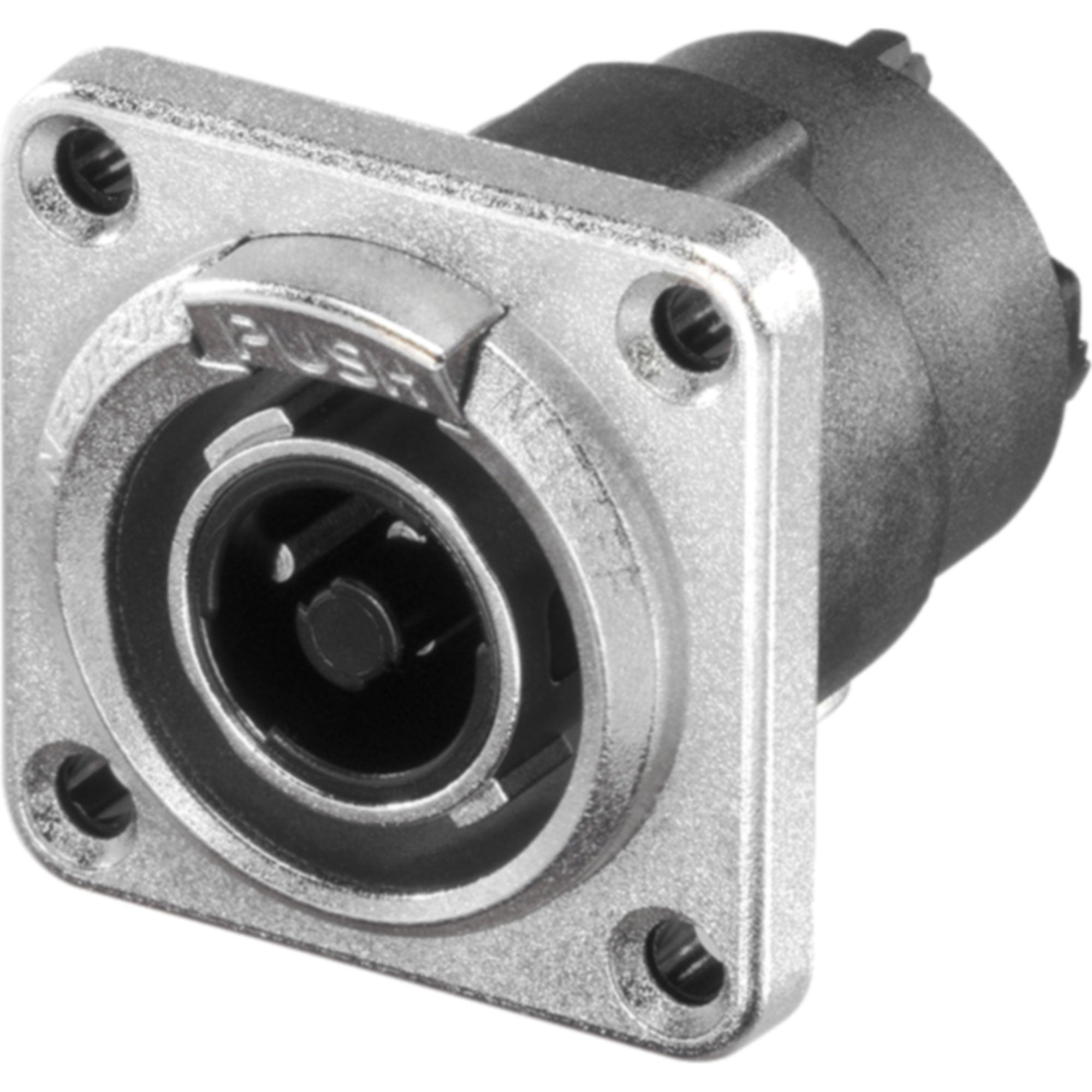

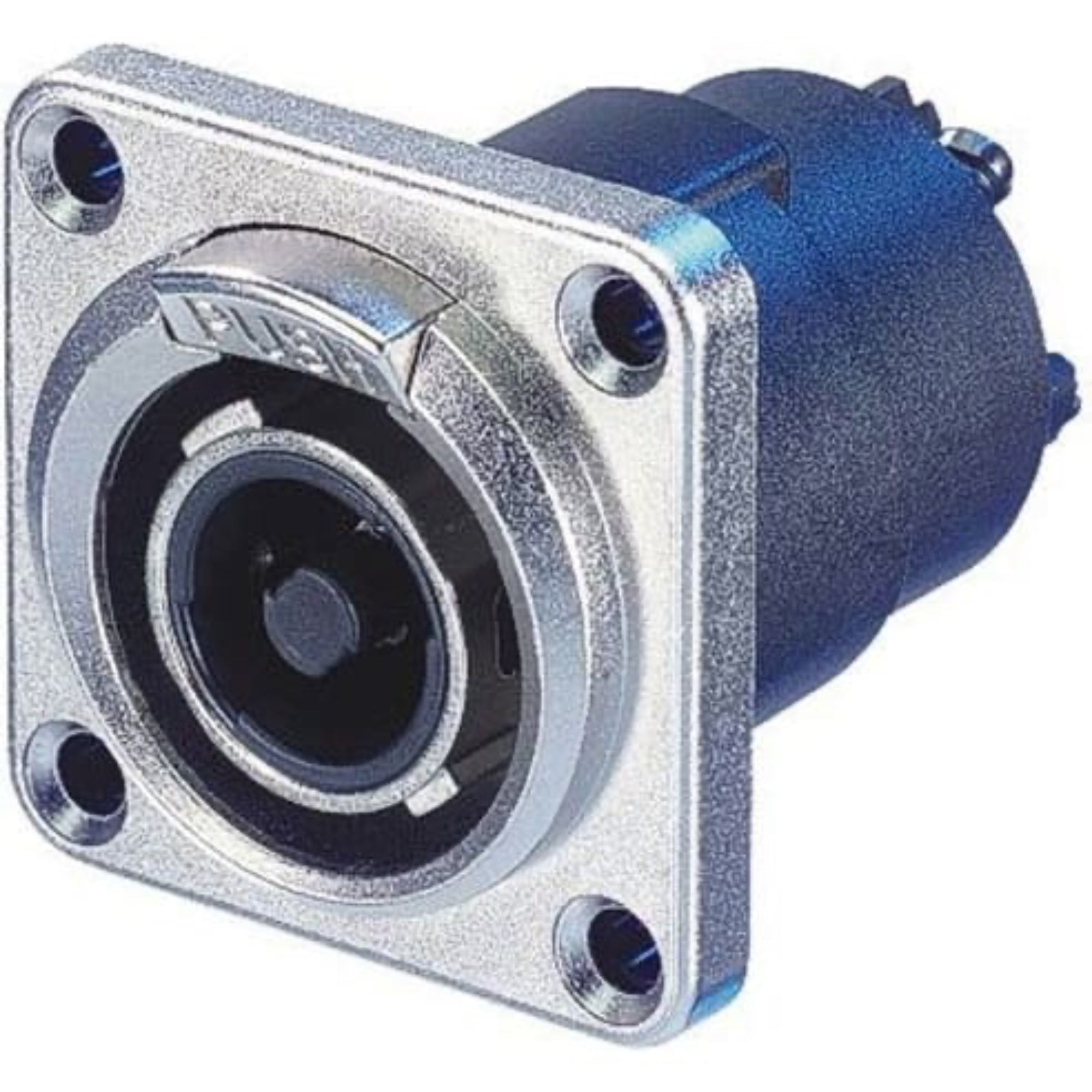

4-Pole Metal Female speakON STX Series Receptacle with Solder Contacts
4 pole female chassis connector, metall housing, solder contacts
The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.
Features:
- Extremely robust metal housing designed for harsh and demanding environment
- Ideal product for touring applications and harsh environments
- Current rating 40 Amp continuous, 50 Amp audio with 50% duty cycle
- Uses precise "Quick Lock" system
- Mates with all currently available speakON products
- Weatherproof built-in gasket meets IP 54 protection class (4 pole)
- 4 pole version has UL Recognized components, CSA listed
- 4 type range - also male cable connector and female receptacle on 4-pole version
Specifications:
- Product
- Title: NLT4FP
- Connection Type: speakON
- Gender: female
- Electrical
- Contact resistance: < 2 mΩ (inner) (after lifetime)
- Dielectric strength: 4 kVdc (peak)
- Insulation resistance: > 10 GΩ (after dampheat)
- Rated current per contact: 40 A rms continuous
- Rated current per contact: 50 A audiosignal, duty cycle 50 %
- Rated voltage: 250 V (Insulation)
- Attention: speakON is NOT to be used as an AC mains or power supply connector!
- Mechanical
- Lifetime: > 5000 mating cycles
- Wiresize: 6 mm-
- Wiresize: 10 AWG
- Wiring: Solder contacts
- Locking device: Quick Lock
- Chassis shape: square G-size flange
- Layout: four thru holes
- Material
- Contact plating: 4 -m Ag
- Contacts: Spring copper
- Insert: Polyamide (PA 6 30 % GR)
- Locking element: Zinc diecast (ZnAl4Cu1)
- Shell: Zinc diecast (ZnAl4Cu1) Ni
- Environmental
- Flammability: UL 94 HB
- Protection class: IP 54 (mated condition)
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30 °C to +80 °C
