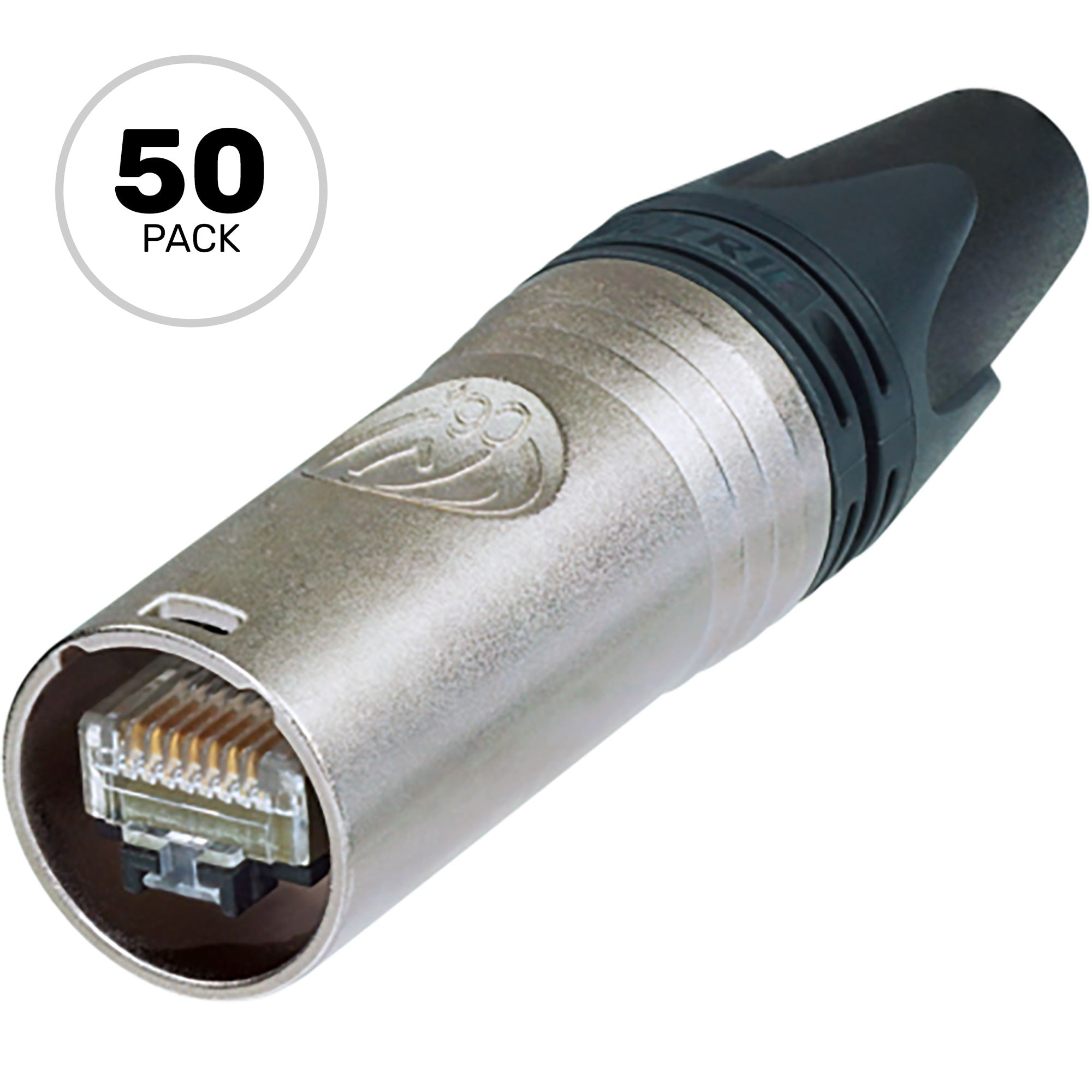

Neutrik NE8MX6 etherCON Cat6a Cable Connector (Nickel, Box of 50)

etherCON Cat6a Cable Connector - Nickel - Full Box of 50 Connectors

etherCON CAT6A cable connector self-termination, for insulation diameter > 1.1 mm, nickel plating

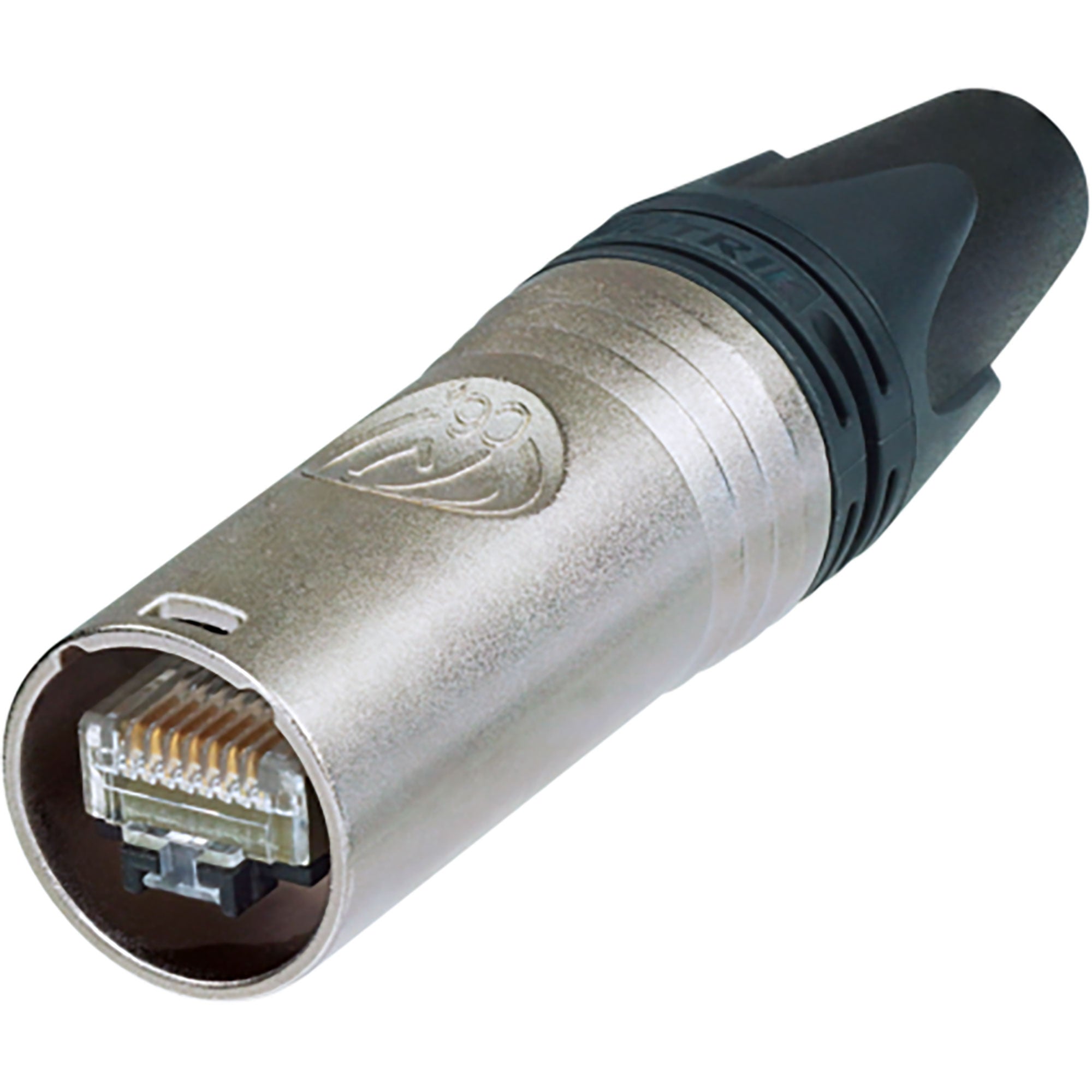

The set NE8MX6 consists of a cable plug carrier offering a robust metal shell, proven Neutrik chuck-type strain relief and a CAT6A compliant RJ45 plug. The set is suitable for a cable diameter range of 7 mm to 9.5 mm and wire gauge of AWG24/1 - AWG22/1 (solid) or AWG24/7 - AWG22/7 (stranded).

Attention! Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

If the insulation diameter is ≤ 1.1 mm please refer to NE8MX6-T.

Features:

• Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2

• PoE++ compliant according to 802.3bt Type4

• IP65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W

• Rugged latch lock system million fold proven

• Intermateable with the existing etherCON CAT5 range

• Unique Neutrik chuck-type strain relief


Specifications:

• Product:

• Title: NE8MX6

• Gender: male

• Electrical:

• Dielectric strength: 1 kVdc

• Insulation resistance: > 0.5 GΩ

• Rated current per contact: 1.5 A

• Transmission performance: CAT6A, acc. TIA/EIA rating

• CAT6A, acc. IEC/ISO/EN rating

• Power over Ethernet: PoE++ acc. IEEE 802.3bt

• Mechanical:

• Cable O.D.: 7.0 - 9.5 mm

• Lifetime: > 1000 mating cycles

• Wiresize: AWG 24/1 - AWG 22/1 (solid)

• AWG 24/7 - AWG 22/7 (stranded)

• Locking device: Latch lock

• Insulation diameter: 1.1 - 1.6 mm

• Material:

• Bushing: PA / PU

• Contact plating: Au

• Shell: Zinc diecast (ZnAl4Cu1)

• Shell plating: Nickel

• Strain relief: POM

• Environmental:

• Protection class: IP 65 (in combination with NE8FDX-*6-W)

• Temperature range: -40 °C to +70 °C
