Key Features
- Ruggedized Coupler
- For Cat 6a Cables
- Up to 10 Gb/s Transfer Rate
- RJ45 Compatibility
- PoE+ Support
- Latch Lock
Description

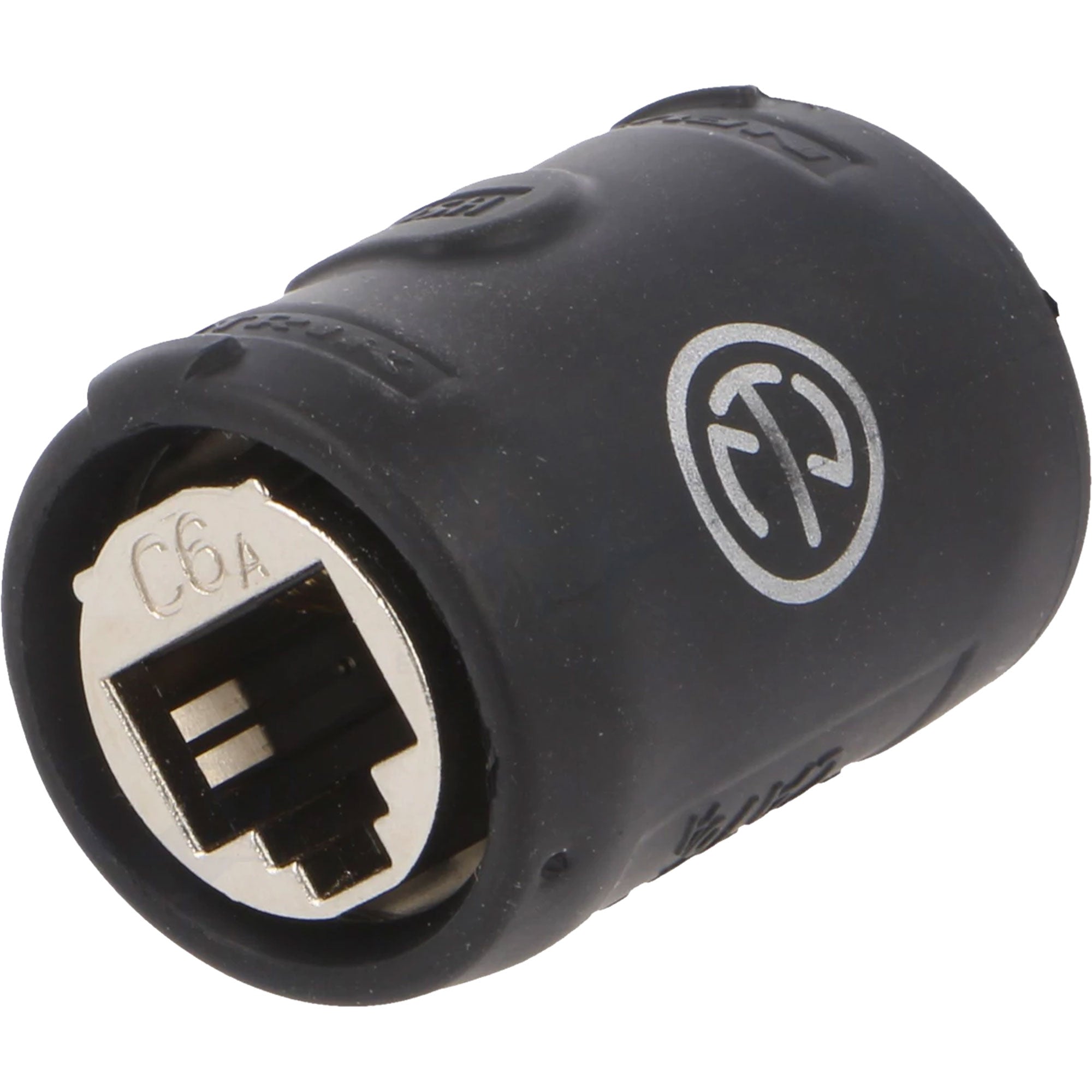

etherCON CAT6A feedthrough coupler for cable extensions.
Features & Benefits
- Ruggedized coupler with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
- IP65 protected when mated with NE8MX6*
- Accommodates standard RJ45 plug
- Revolutionary small form factor
- The adapter offers the million-fold proven robust latch lock system
- The adapters are problem solvers for various intermating problems for professional and semi-professional applications
Technical Information
- Product
- Title: NE8FFX6-W
- Connection Type: Adapter
- Gender: female
- Electrical
- Contact resistance: < 200 mΩ
- Dielectric strength: > 1.5 kVdc
- Insulation resistance: > 0.5 GΩ
- Rated current per contact: 1.5 A
- Transmission performance: CAT6A, acc. TIA/EIA rating
- Class EA, acc. IEC/ISO/EN rating
- Power over Ethernet: PoE+ acc. IEEE 802.3at
- Mechanical
- Insertion force: ≤ 50 N
- Withdrawal force: ≤ 50 N
- Lifetime: > 1000 mating cycles
- Wiresize:
- Wiring: Feedthrough
- Locking device: Latch lock
- Material
- Contact plating: Au
- Shell: Rubber (EPDM)
- Strain relief: CuZn35Pb2, Tin plated
- Shell coating: Black KTL
- Environmental
- Temperature range: - 30 °C to + 80 °C
- Protection class: IP65 (in combination with NE8MX*)
Details
- Manufacturer: Neutrik
- MPN: NE8FFX6-W
- Model Number: NE8FFX6-W
