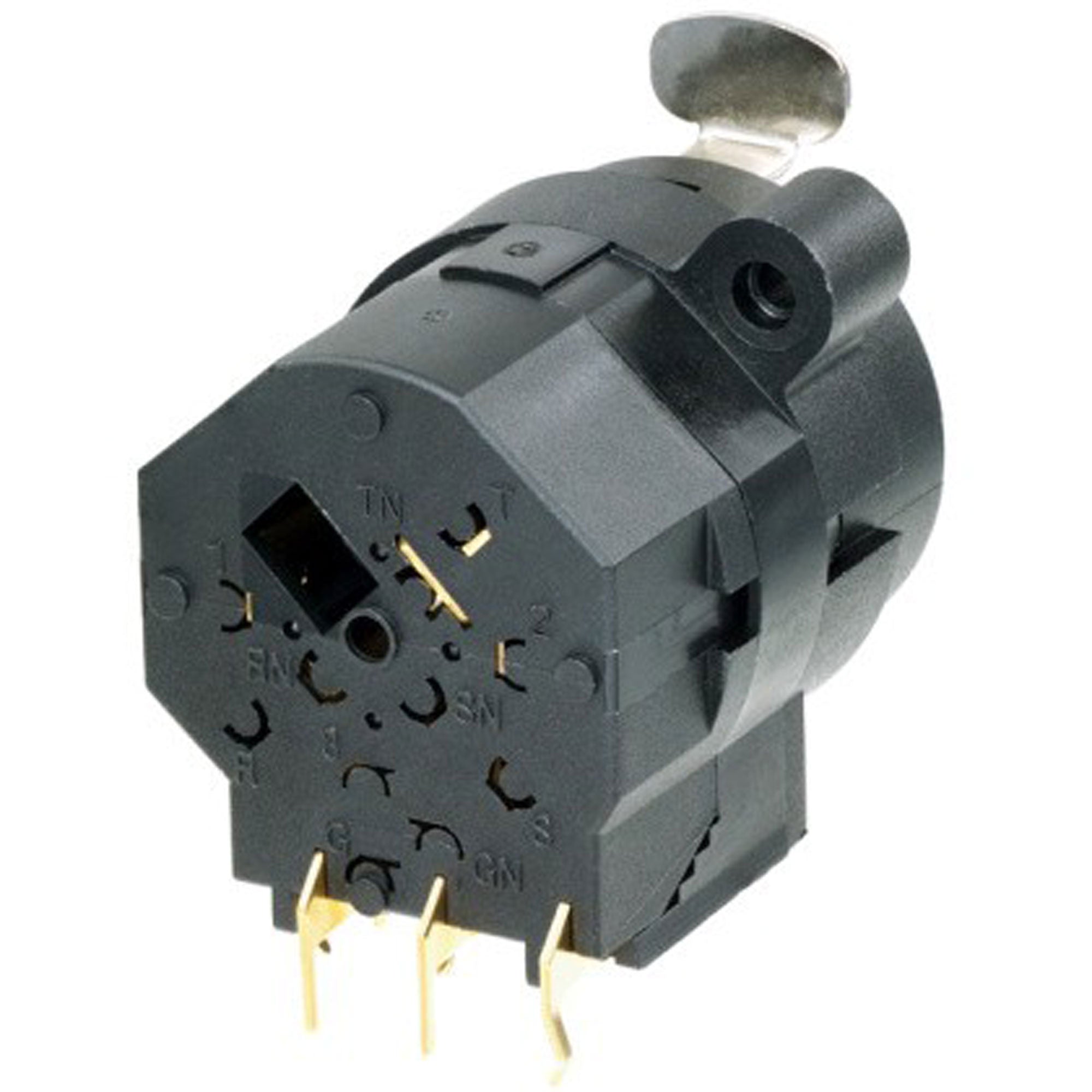

Neutrik NCJ9FI-H Combo XLR & 1/4" Switching Stereo Jack (Horizontal PCB, Box of 100)

Combination Female 3-Pin XLR Receptacle and 1/4" Stereo Switching Jack, Horizontal PCB Mount - Full Box of 100 Connectors

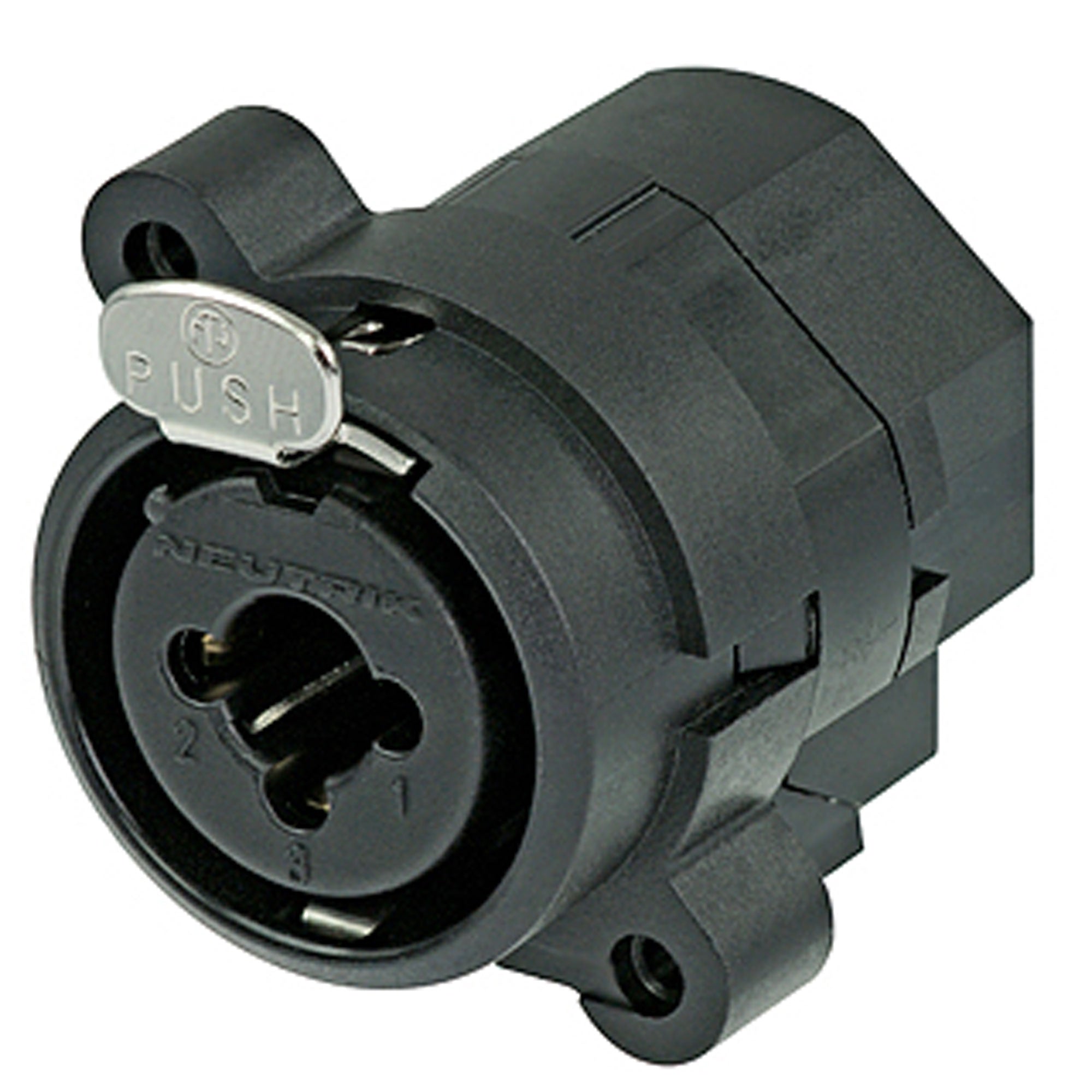

3 pole XLR female receptacle with 1/4" switching stereo jack, horizontal PCB mount

XLR / jack hybrid chassis connector combining 3 pole XLR receptacle and 1/4" jack.

Features:

• Combined XLR receptacle and 1/4" phone jack
• Balanced or line inputs in one XLR shell
• Saves rack space by combining 2 connectors in one housing
• Very low conductor capacitance, therefore suitable for digital audio

Specifications:

• Product:
• Title: NCJ9FI-H
• Connection Type: Combo
• Gender: female
• Electrical:
• Contact resistance: < 10 m&ohm; (XLR)
• Contact resistance: < 20 m&ohm; (jack & switching contacts)
• Dielectric strength: 1,5 kVdc
• Insulation resistance: > 10 G&ohm; (initial)
• Rated current per contact: 7,5 A (XLR)
• Rated current per contact: 7,5 A (Jack)
• Rated voltage: < 50 V
• Switching contacts: 3
• Mechanical:
• Insertion force: ≤ 25 N
• Withdrawal force: ≤ 25 N
• Lifetime: > 1000 mating cycles
• Panel thickness: max. 7 mm 0.27"
• Wiresize:
• Mounting direction: Rear mounting
• Material:
• Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
• Contacts: Bronze (CuSn6)
• Insert: PA66
• Locking element: Steel Ck67
• Environmental:
• Flammability: UL 94 V-0
• Temperature range: -30°C to +80°C
