Key Features
- Male 5-Pin XLR Connector
- Vertical PCB Mount
- Pin 1 Isolated
- Separate Ground Contact
- Black Plastic Housing
- Gold Plated Conductors
Description

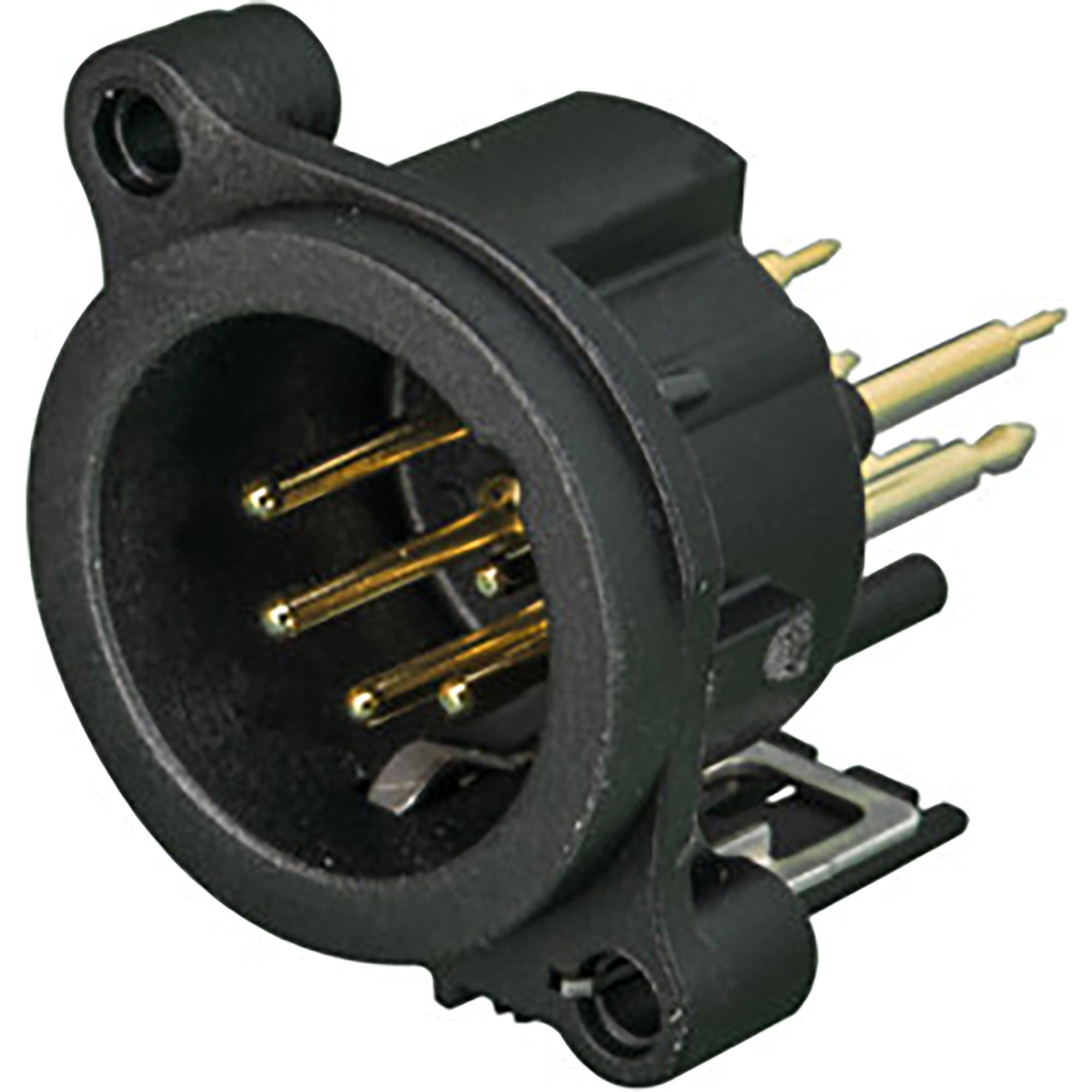

Male 5-Pin XLR Receptacle, A Series, Vertical PCB Mount
The "State of the Art" receptacle. Round plastic body XLR PCB mount panel connector. These have the smallest size and highest packing density (23mm between centres). New designed fork type contacts with hard gold plating and polished contact areas. UL recognized component.
5 pole male XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, vertical PCB mount, color coding available.
Features:
- Smallest XLR receptacles, highest packing density
- Plastic housing, steel latch lock
- Polished contact areas and hard gold plating
- Housing flammability UL94HB
Specifications:
- Product
- Connector Type: XLR
- Gender: male
- Electrical
- Capacitance between contacts: <= 7 pF
- Contact resistance: <= 6 mΩ
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 2 GΩ (initial)
- Insulation resistance: > 1 GΩ (after damp heat test)
- Rated current per contact: 3 A
- Rated voltage: 50 V
- Grounding options: Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1
- Mechanical
- Insertion force: <= 20 N
- Withdrawal force: <= 20 N
- Lifetime: > 1000 mating cycles
- Wiring: Vertical PCB mount
- Locking device: latch lock
- Mounting direction: rear
- Chassis shape: A
- Mounting: A-Screw
- Material
- Contact plating: 0.2 m AuCo over 2 m NiP15 (Tribor)
- Contacts: Brass (CuZn35Pb2)
- Insert: Polyamide (PA 6.6 30 % GR)
- Locking element: Steel Ck67
- Flange: Black Plastic
- Environmental
- Flammability: UL 94 HB
- Standard compliance: IEC 61076-2-103
- Protection class: IP 40
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30 C to +80 C
