Key Features
- Female 3-Pin XLR Connector
- Vertical PCB Mount
- Standard D-Shape Housing
- Black Metal Housing
- Silver Contacts
Description

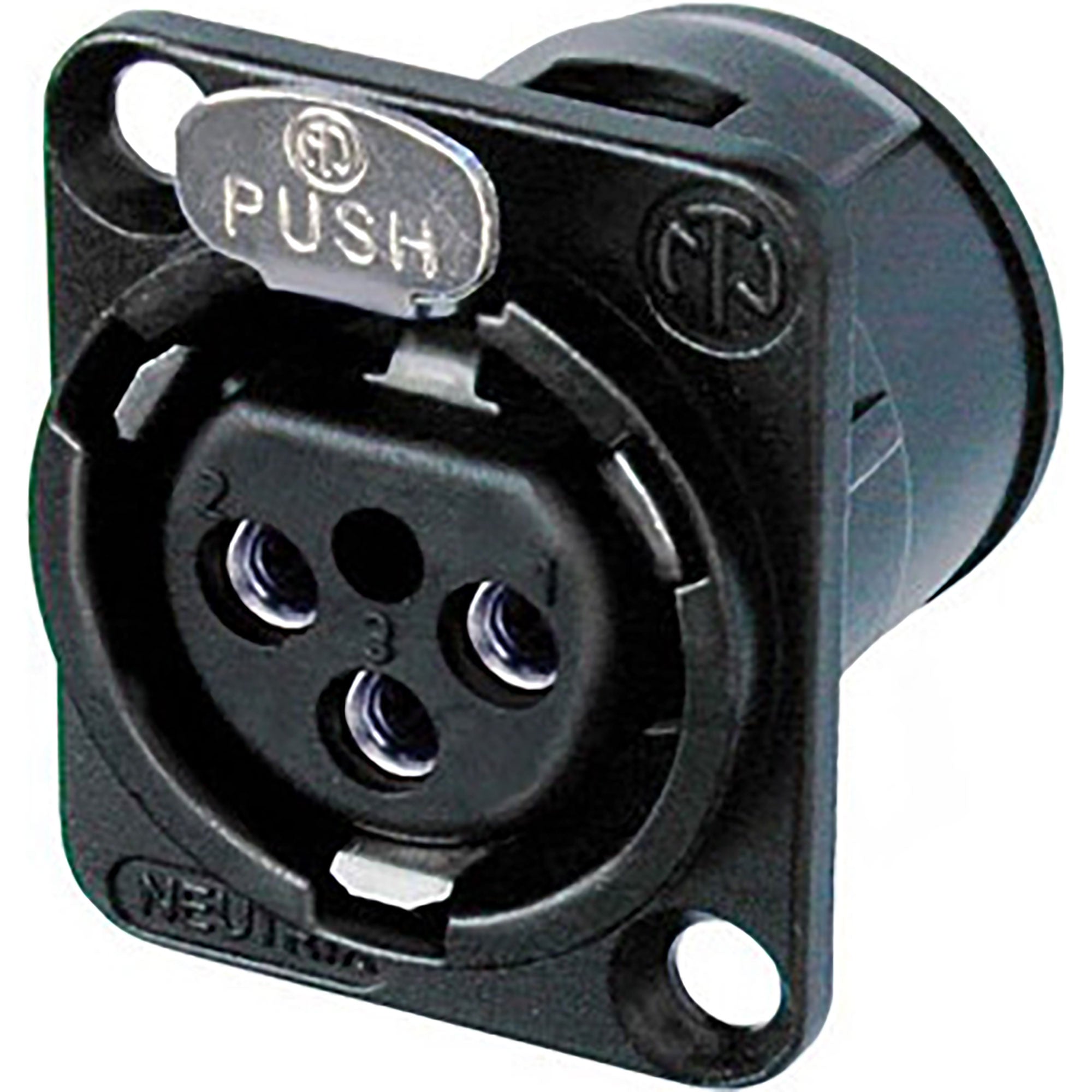

Female 3-Pin XLR Receptacle, Vertical PCB Mount, Black Housing, Silver Contacts
3 pole female receptacle, vertical PCB mount, black metal housing, silver contacts
Universal D-size metal body XLR panel mount series for pcb mount applications. Insert is removable from shell for ease assembling. UL recognized component.
Features:
- D-shape metal shell
- Optimal RF protection using 3 shield contacts.
- Insert is removable from rear of connector and locked into place by internal latch - permitting assembling and testing of pcb before assembling into housing
- Front or rear panel mount
Specifications:
- Product
- Title: NC3FD-V
- Connection Type: XLR
- Gender: female
- Electrical
- Capacitance between contacts: <= 4 pF
- Contact resistance: <= 5 mΩ
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 10 GΩ (initial)
- Rated current per contact: 6 A
- Rated voltage: < 50 V
- Mechanical
- Insertion force: <= 20 N
- Withdrawal force: <= 20 N
- Lifetime: > 1000 mating cycles
- Wiring: vertical PCB mount
- Locking device: Latch lock
- Mounting direction: Hinten
- Chassis shape: D
- Material
- Contact plating: 2 µm Ag over 2 µm Ni
- Contacts: Bronze (CuSn6)
- Insert: Polyamide (PA 6.6 30 % GR)
- Locking element: Steel Ck67
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Nickel
- Environmental
- Approvals: UL
- Flammability: UL 94 HB
- Standard compliance: IEC 61076-2-103
- Protection class: IP 40
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30 °C to +80 °C
