Key Features
- Female 3-Pin XLR Connector
- Screw Terminals
- Standard D-Shape Housing
- Black Metal Housing
- Gold Contacts

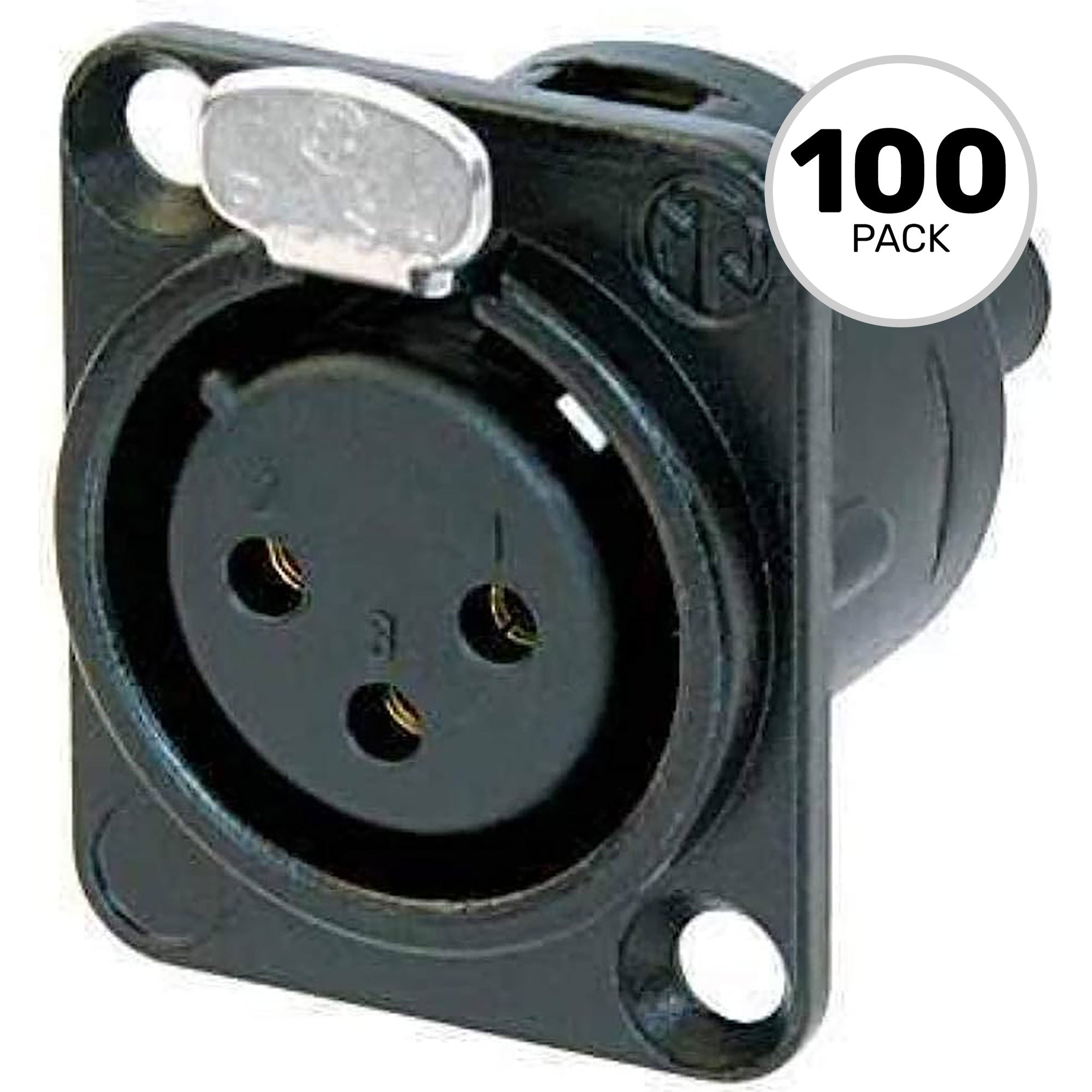

- Full Box of 100 Connectors
Description

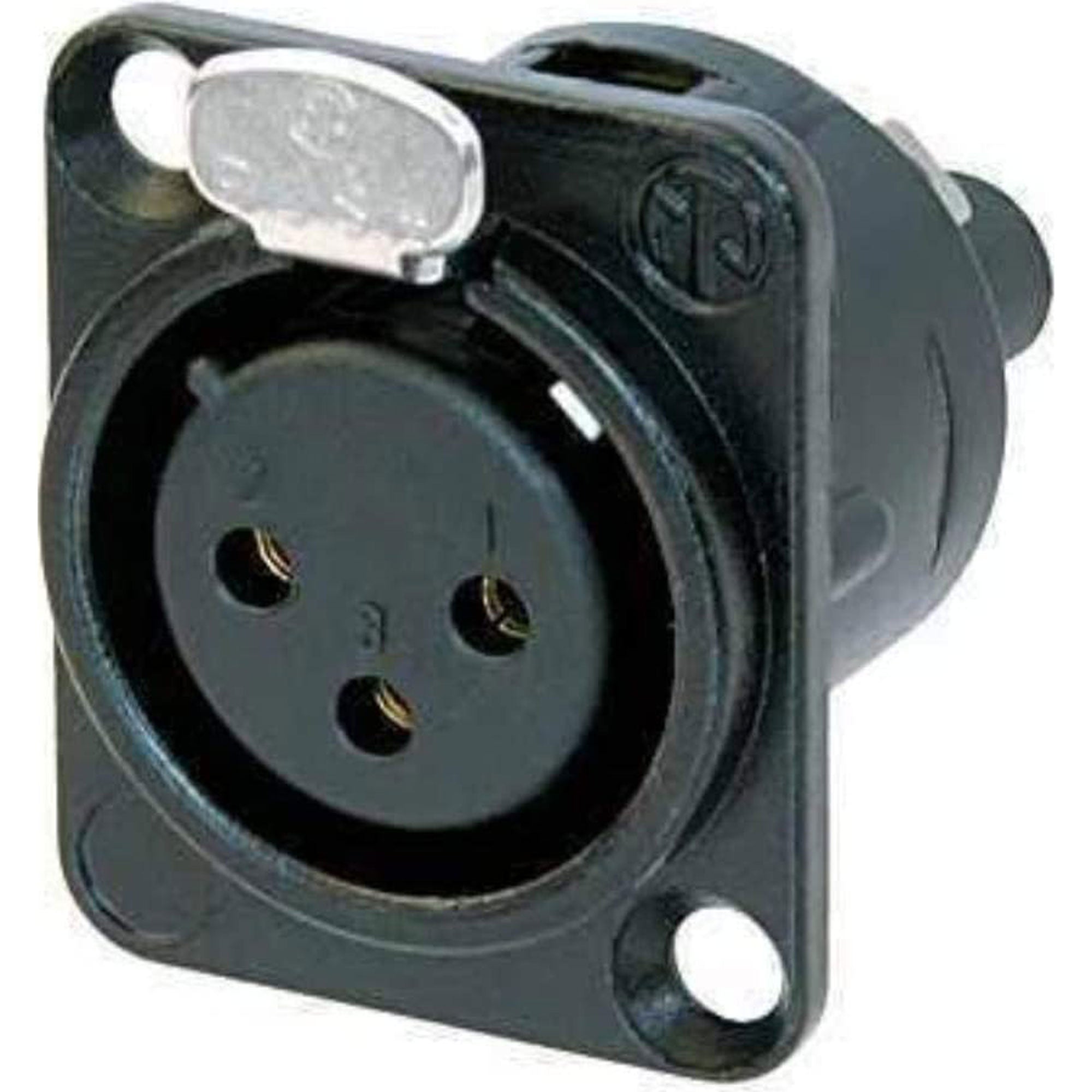

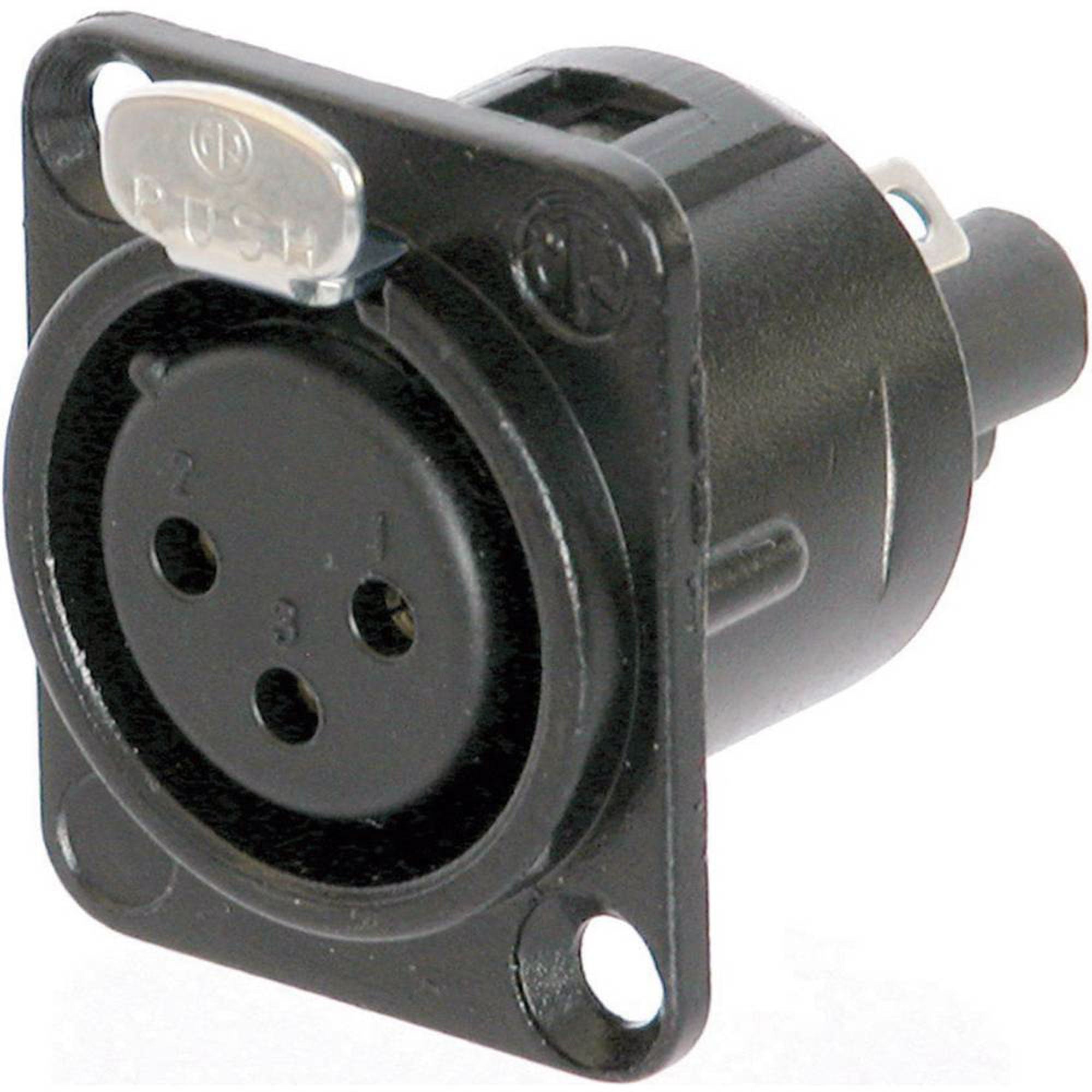

Female 3-Pin XLR Receptacle, DLX Series, Screw Terminals, Black Housing, Gold Contacts - Full Box of 100 Connectors
3 pole female receptacle, D-size metal body, screw terminals accommodating wire range 0.14mm² to 0.5mm² (AWG 26 -20), black metal housing, gold contacts, UL recognized component.
Features:
- Robust "D" metal shell
- Standardized D sized 24 mm panel cutout

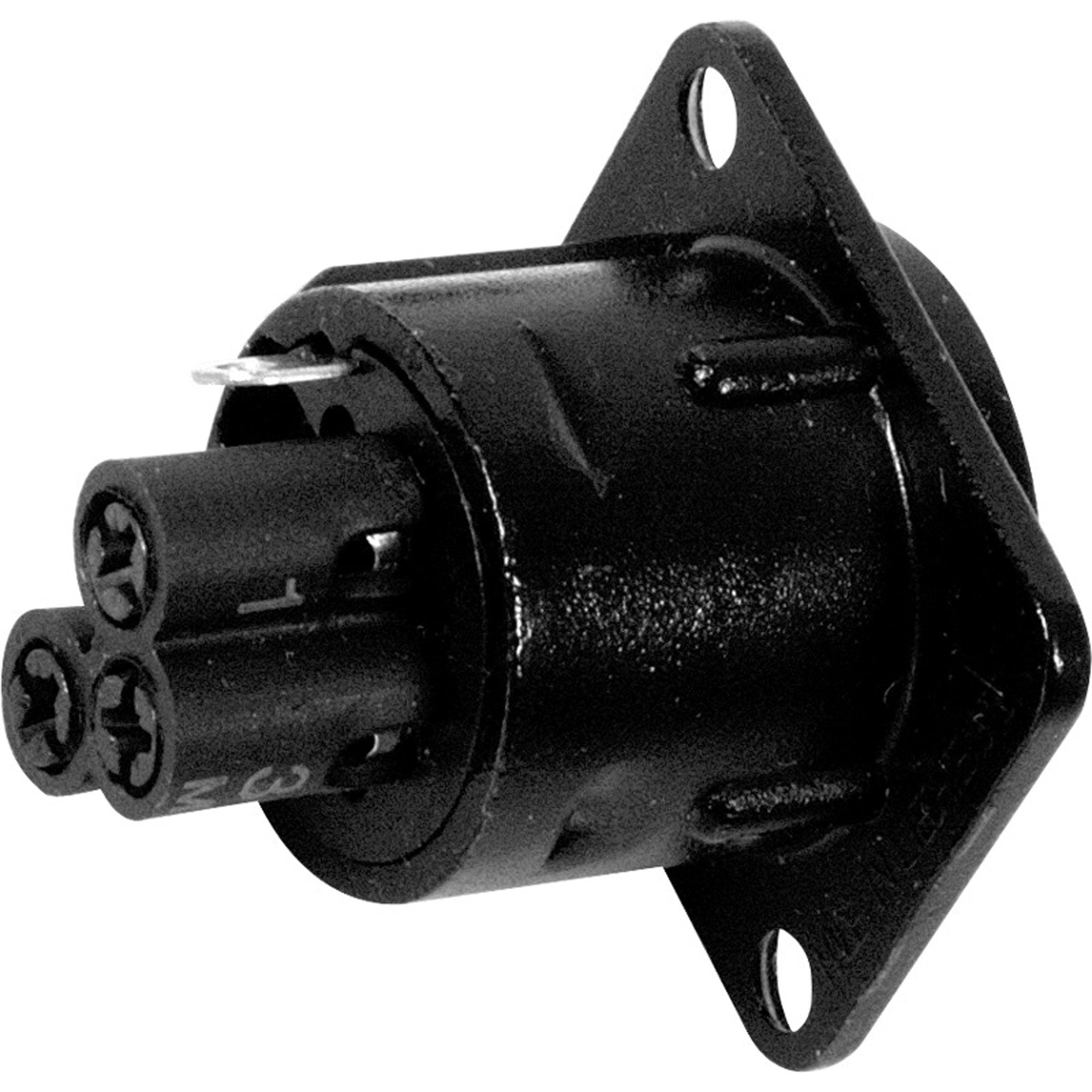

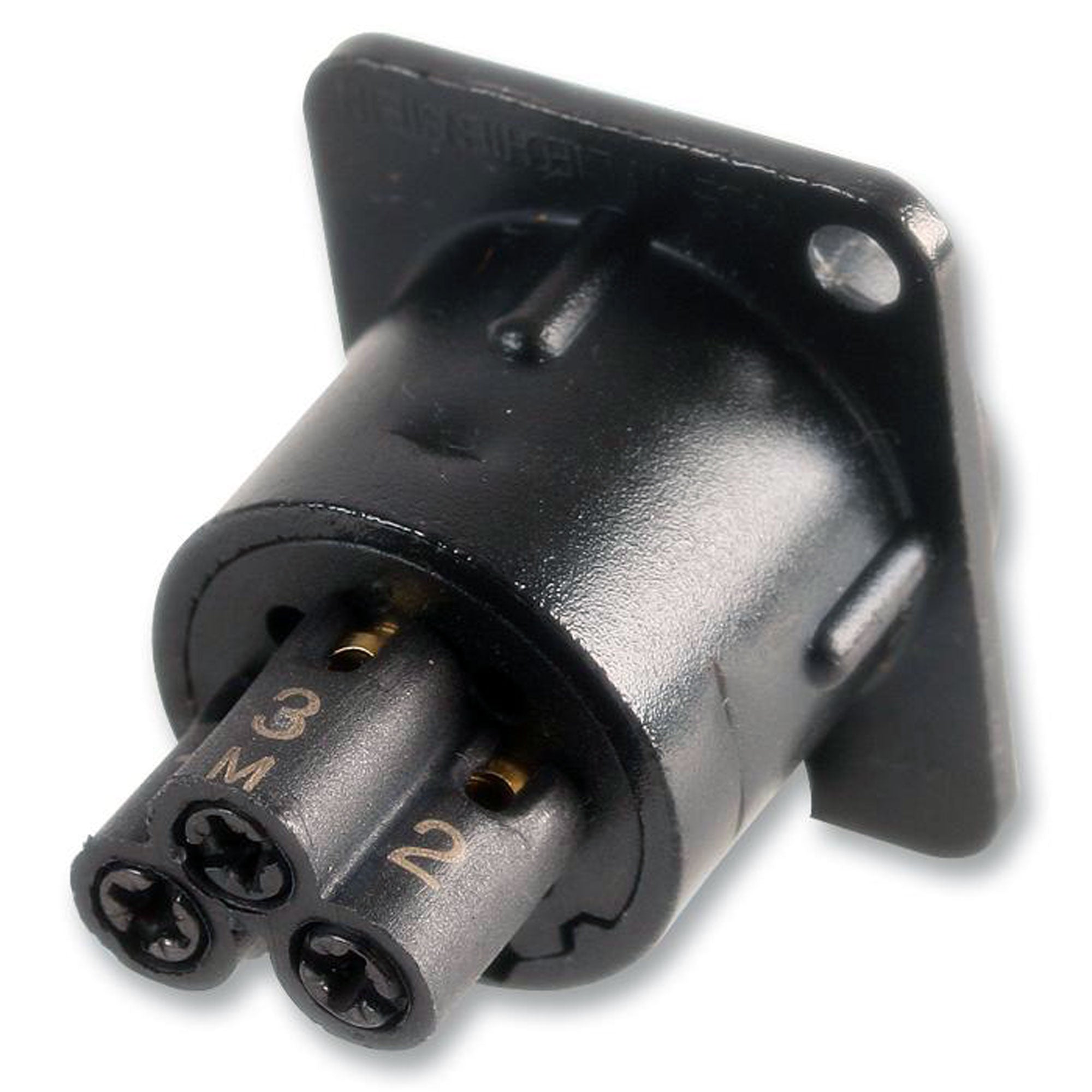

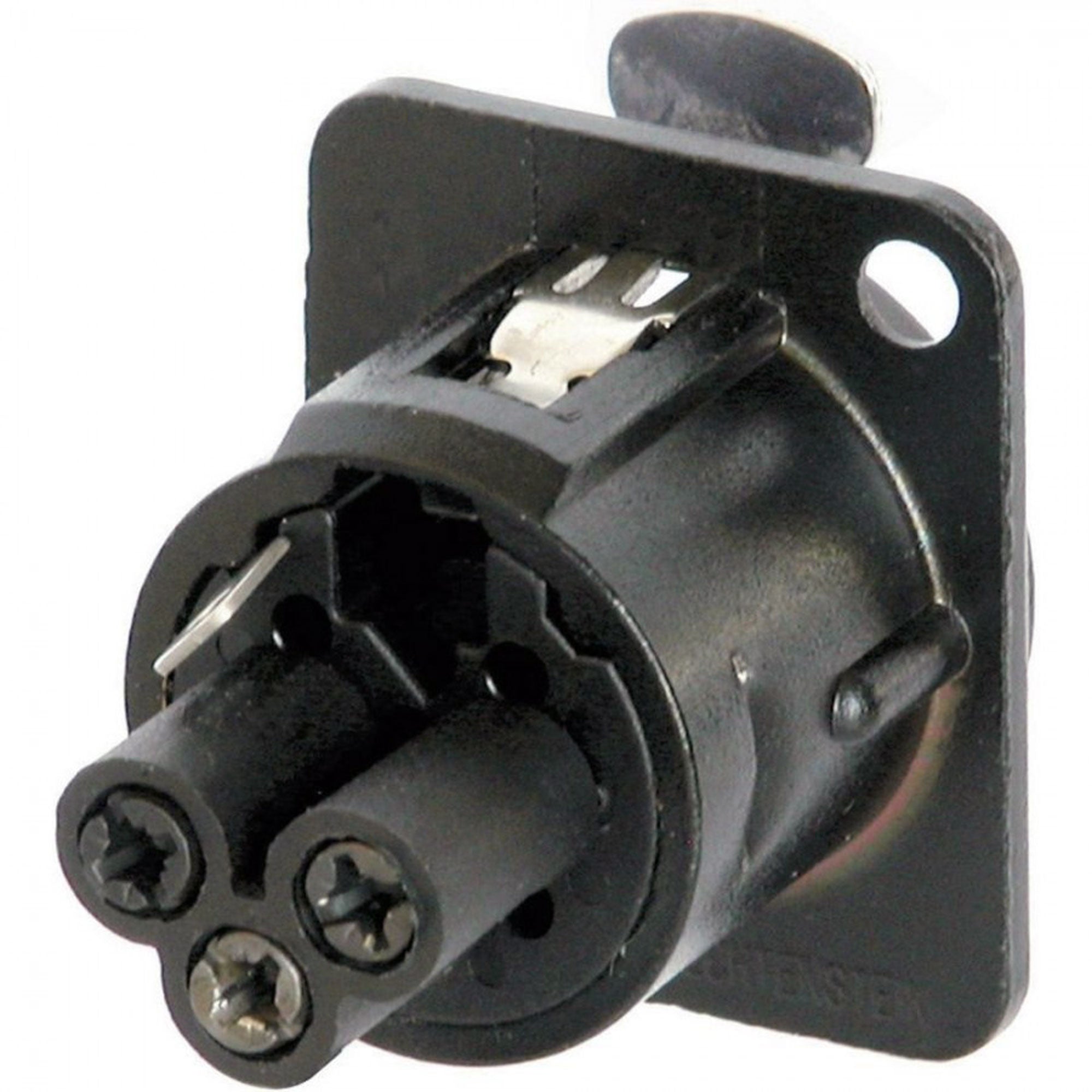

- Screw terminals
Specifications:
- Product:
- Title: NC3FD-S-1-B
- Connection Type: XLR
- Gender: female
- Electrical:
- Capacitance between contacts: <= 4 pF
- Contact resistance: <= 5 m
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 10 GΩ (initial)
- Rated current per contact: 3 A
- Rated voltage: < 50 V
- Mechanical:
- Insertion force: <= 20 N
- Withdrawal force: <= 20 N
- Lifetime: > 1000 mating cycles
- Wiresize: 0.14 mm² bis 0.5 mm²
- Wiresize: 26 AWG - 20 AWG
- Wiring: screw terminals
- Locking device: Latch lock
- Mounting direction: Rear mounting
- Chassis shape: D
- Material:
- Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
- Contacts: Bronze (CuSn8)
- Insert: PA66
- Locking element: Steel Ck67
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Black chromium
- Environmental:
- Flammability: UL 94 V-0
- Standard compliance: IEC 61076-2-103
- Protection class: IP 40
- Temperature range: -30°C to +80°C
