Key Features
- USB 3.0 Feedthrough
- Reversible Insert
- Standard D-Shape Housing
- Removable Screen to Chassis Grounding
- Nickel Housing
Description

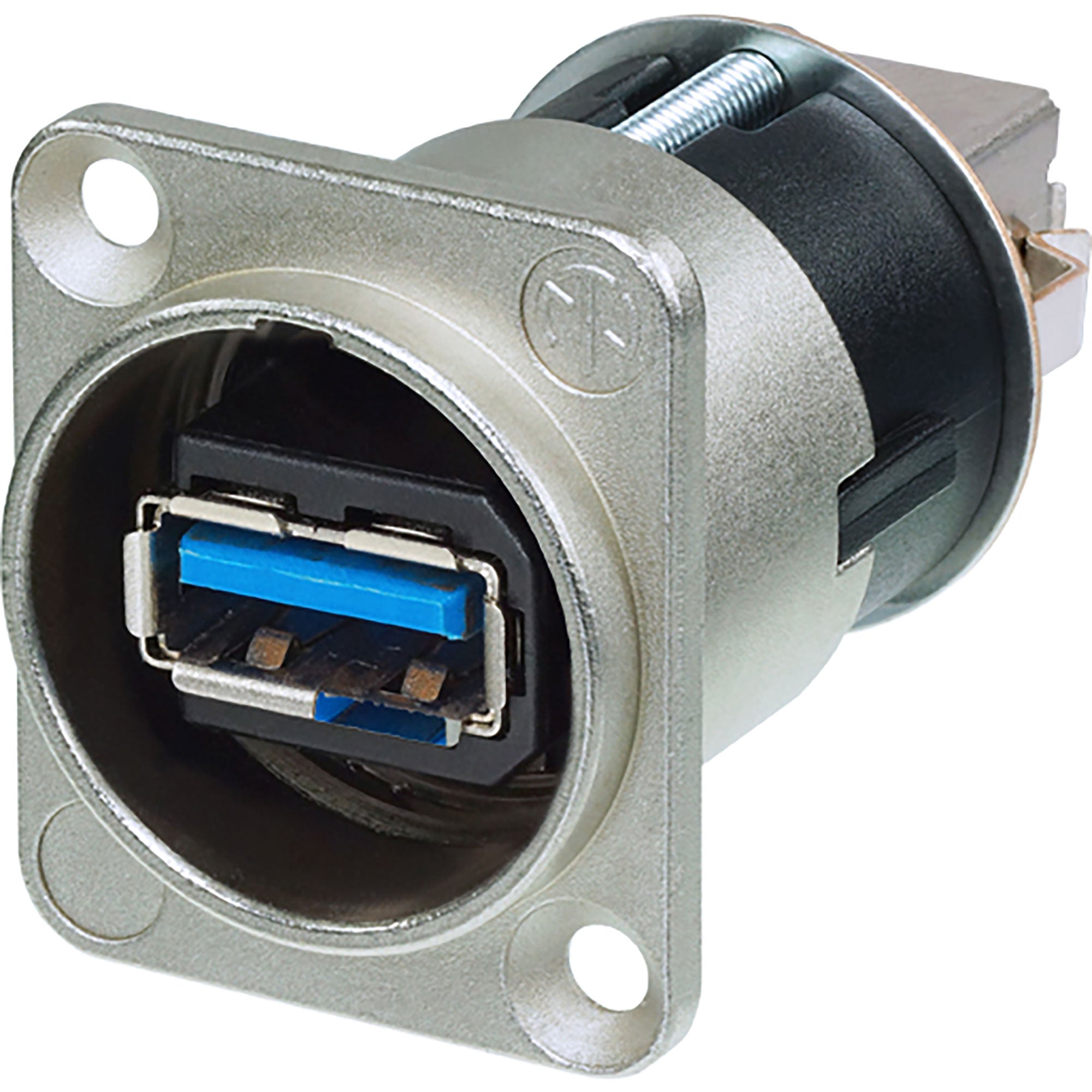

Reversible USB 3.0 Feedthrough Receptacle (A-B), Nickel Housing
Reversible USB 3.0 gender changer (type A and B), Nickel D-housing
The NAUSB3 is a reversible USB 3.0 feed through adapter. The standardized D-shape housing of the adapter fits into conventional patch panels and offers an additional protection for the connector.
USB 3.0 Performance
To meet the USB3.0 specifications the NAUSB3* chassis contain tight tolerance pin wiring and an improved ground connection due to an additional copper film between the USB jacks. As a result the feed through adapter guarantees permanent writing and reading speed > 200 MB/s.
Gender Changeable

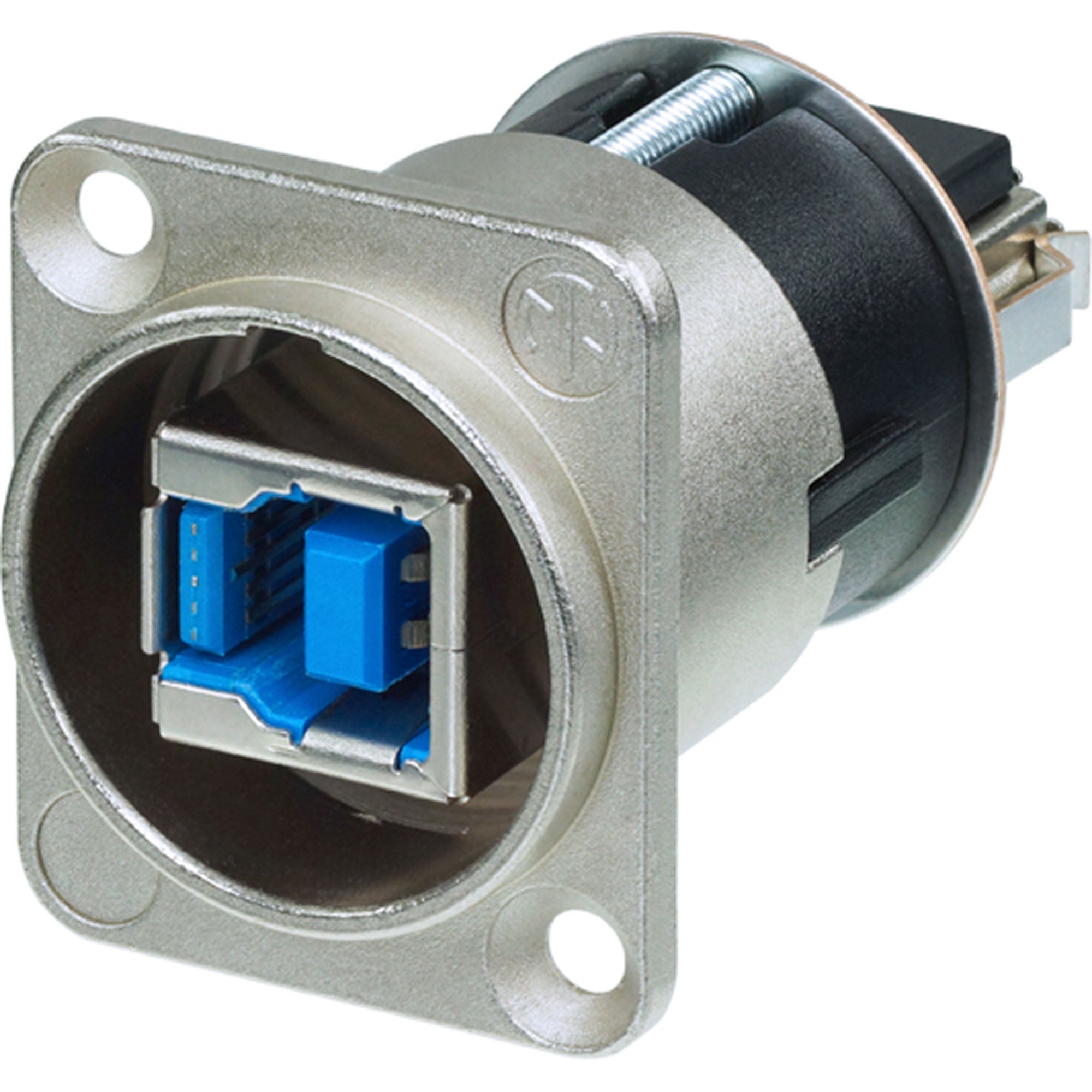

Certain applications require that the USB 3.0 type A or type B jack is on front to connect end devices like hard disk, cameras, etc. The connector configuration of the NAUSB3* can be changed by rotating the USB insert without special tools.
Optimized Ground Connection
An additional metal lip guarantees optimum ground connection from USB 3.0 jack to the D-size flange in order to achieve a consistent ground level. To eliminate the ground connection pinch off the metal lip.
Cable lengths
To ensure an error-free data transmission it is essential to use an appropriate cable with correct length. The table below lists the maximum cable length according to the wire gauge (AWG) of the used USB 3.0 cable.
Wire gauge: Cable length
AWG 22: 1.75 m
AWG 24: 1.0 m
AWG 26: 0.6 m
AWG 28: 0.35 m
Features:
- USB 3.0 feedthrough adapter
- Reversible insert offering type A or B on front or rear end
- Standard D-shape housing
- Removable screen for chassis grounding
- Meets USB 3.0 specifications
Specifications:
- Product
- Title: NAUSB3
- Connection Type: Adapter
- Gender: female
- Electrical
- Reading / Writing speed: >200 MB/s
- Mechanical
- Mounting direction: Front mounting
- Chassis shape: D
- Material
- Contact plating: Au
- Contacts: Brass (CuZn39Pb3)
- Insert: PBTP 15 % GR
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Nickel
- Environmental
- Flammability: UL 94 V-0
- Standard compliance: USB 3.0 specifications
- Temperature range: -25 °C to +85 °C
