Key Features
- Link powerCON Cables
- Twist Lock Latching System
- 3 Conductor
Description

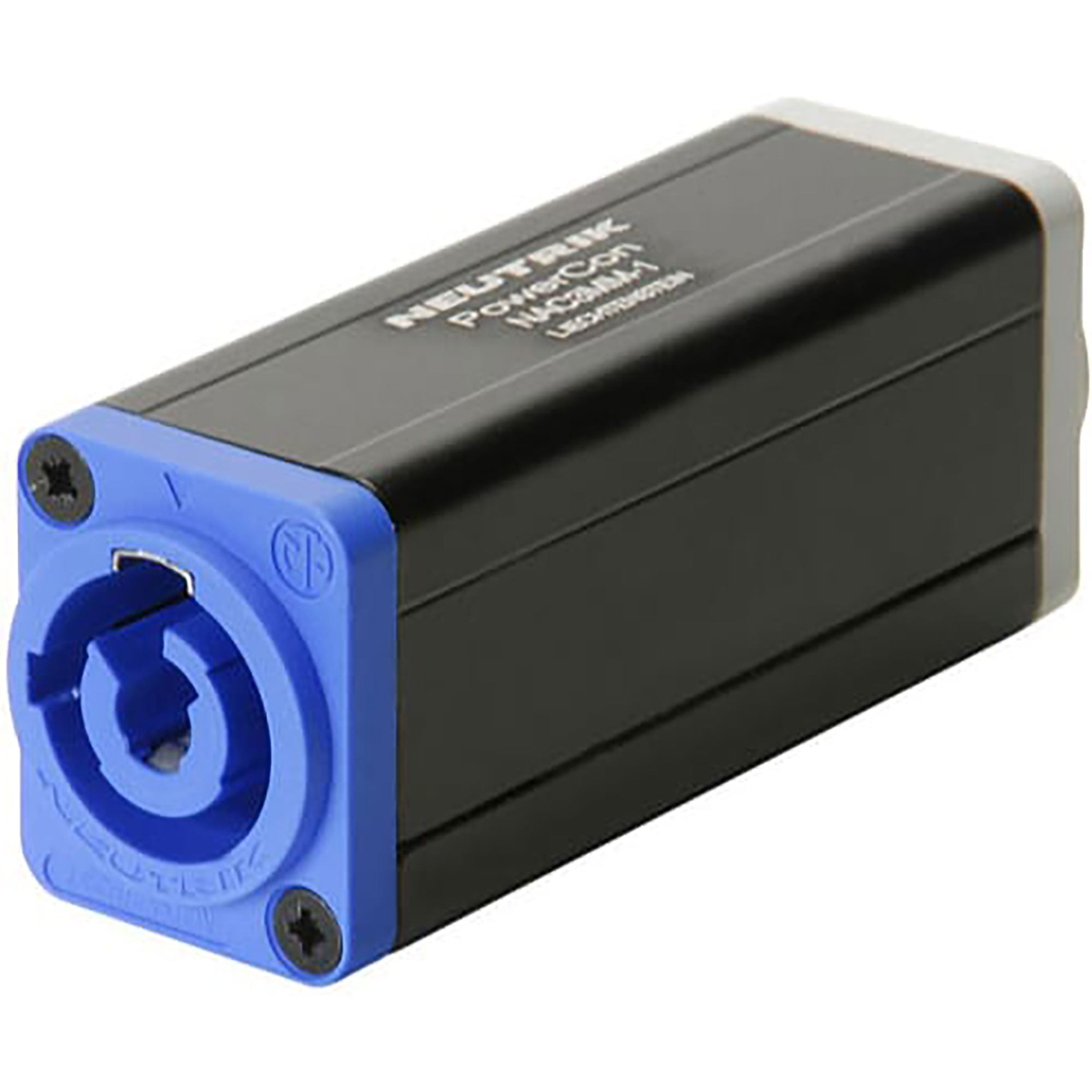

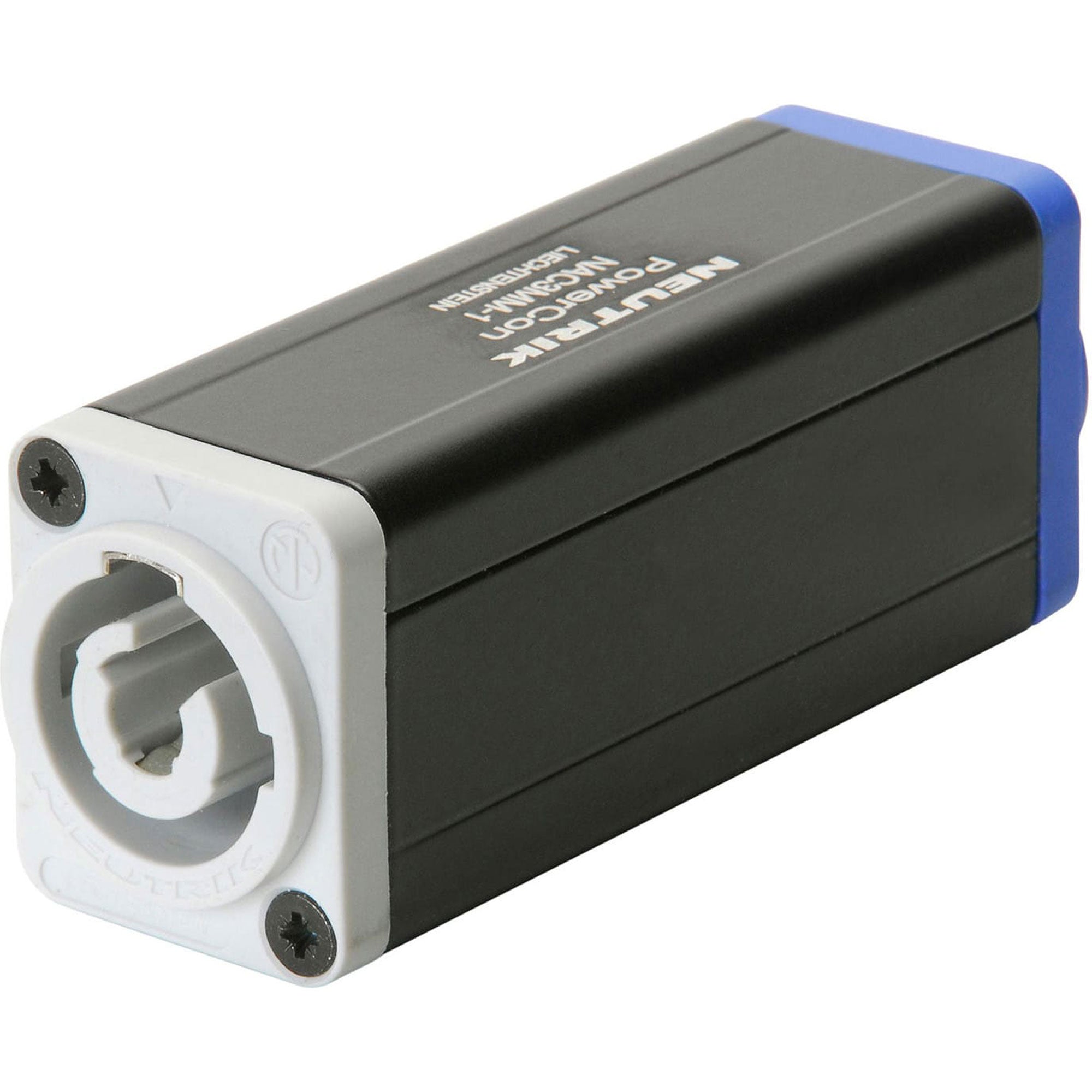

powerCON Coupler - NAC3FCA to NAC3FCB
powerCON NAC3MPA-1 (power in) - powerCON NAC3MPB-1 (power out), coupler for linking cables
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!
Features:
- PowerCON NAC3MPA-1 (power in) to PowerCON NAC3MPB-1 (power out)
- Lockable 3 pole equipment (AC) connector with contacts for line, neutral and premating safety ground
- High current capacity, rated at 20A / 250V ac
- Color coded for easy identification, powerCON offers power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
- Fast and easy locking system
- Extremely robust and reliable
- Excellent cable retention
- UL, cUL recognized components (file no. E 135070) VDE certified (Reg. No. 6360), SEV approved (No. 96.1 10096)
- New latch design for easier handling and secure locking
- Branded with unique hologram - guarantees genuine and authentic Neutrik product
- Coupler for linking cables (couples NAC3FCA to NAC3FCB)
Specifications:
- Product
- Title: NAC3MM-1
- Connection Type: Adapter
- Gender: male
- Electrical
- Contact resistance: <= 3 mΩ (inner)
- Dielectric strength: 4 kVdc
- Insulation resistance: > 0.1 GΩ (after damp heat test IEC 68-2-30)
- Rated current per contact: 20 A rms
- Rated voltage: 250 V ac
- Mechanical
- Lifetime: > 1000 mating cycles
- Locking device: Quick Lock
- Material
- Contact plating: 2 °m Ag
- Locking element: Steel Ck67
- Shell: Polyamide (PA 6.6 30 % GR)
- Contacts: Bronze (CuNi1Si0.2)
- Environmental
- Flammability: UL 94 V-0
- Protection class: IP 20 (mated)
- Safety Requirements: EN/IEC 61984
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30 °C to +80 °C
