Key Features
- Rugged Metal Housing
- Pre-Wired and Ready to Use
- 3-Pin XLRF to 5-Pin XLRM
- For DMX Lighting Applications
Description

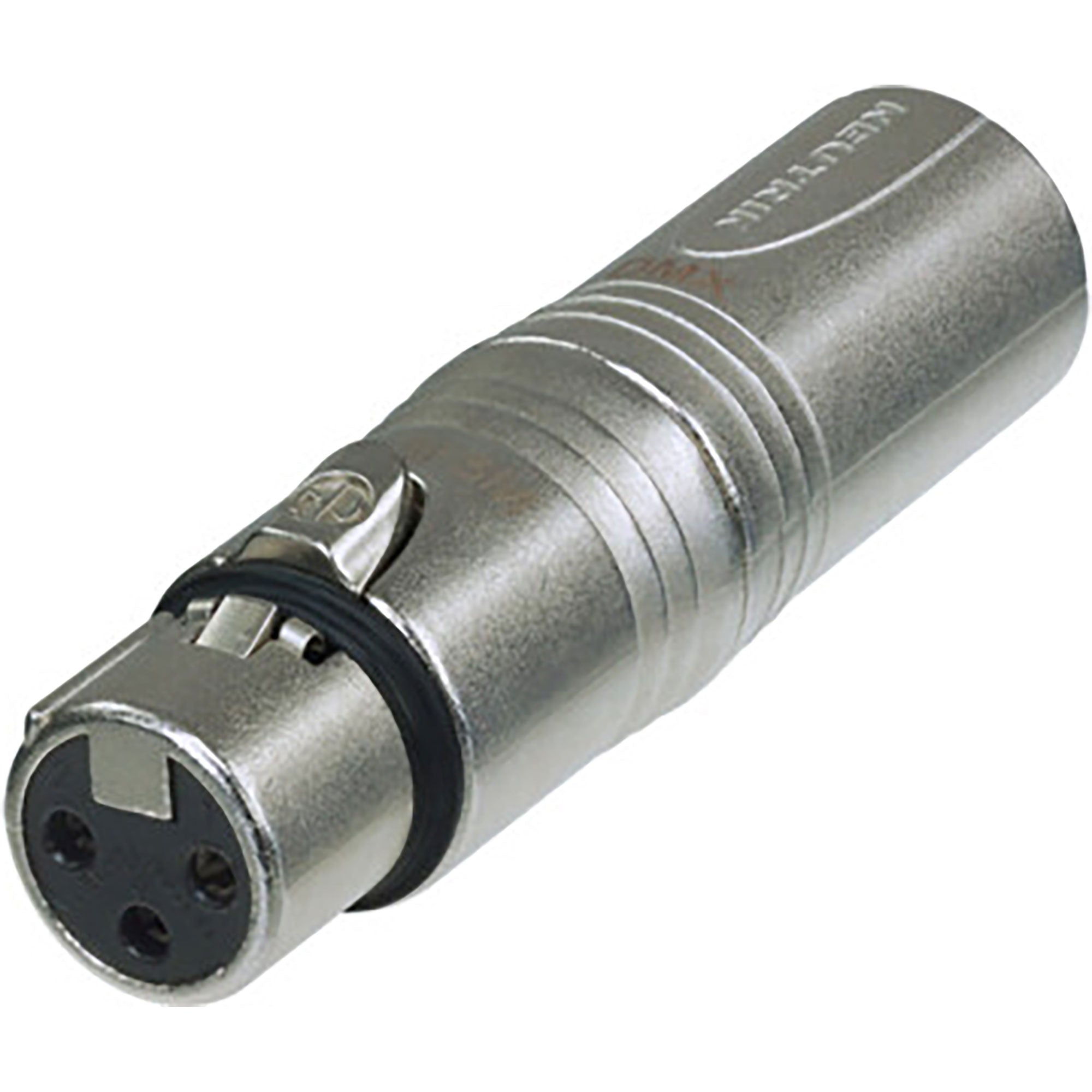

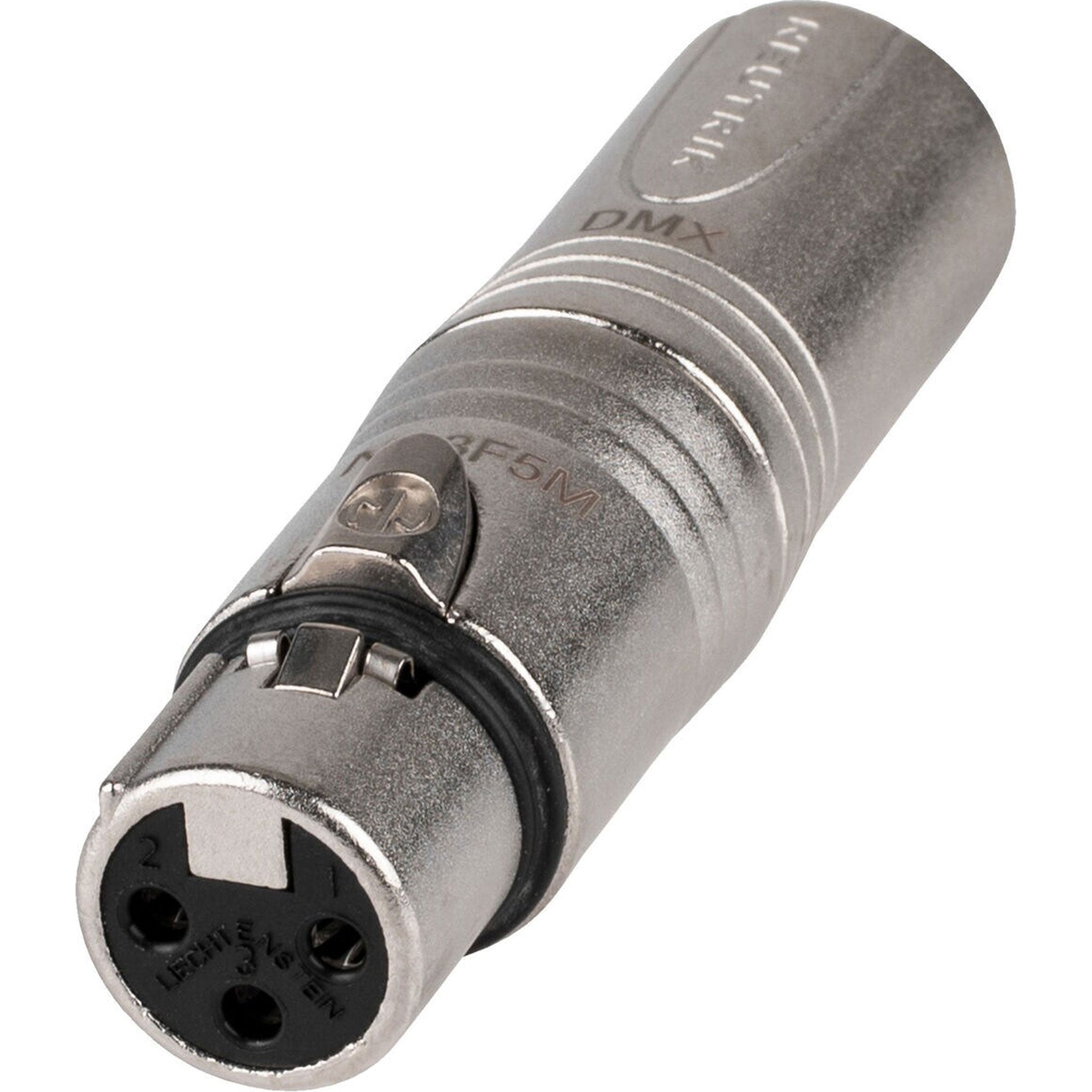

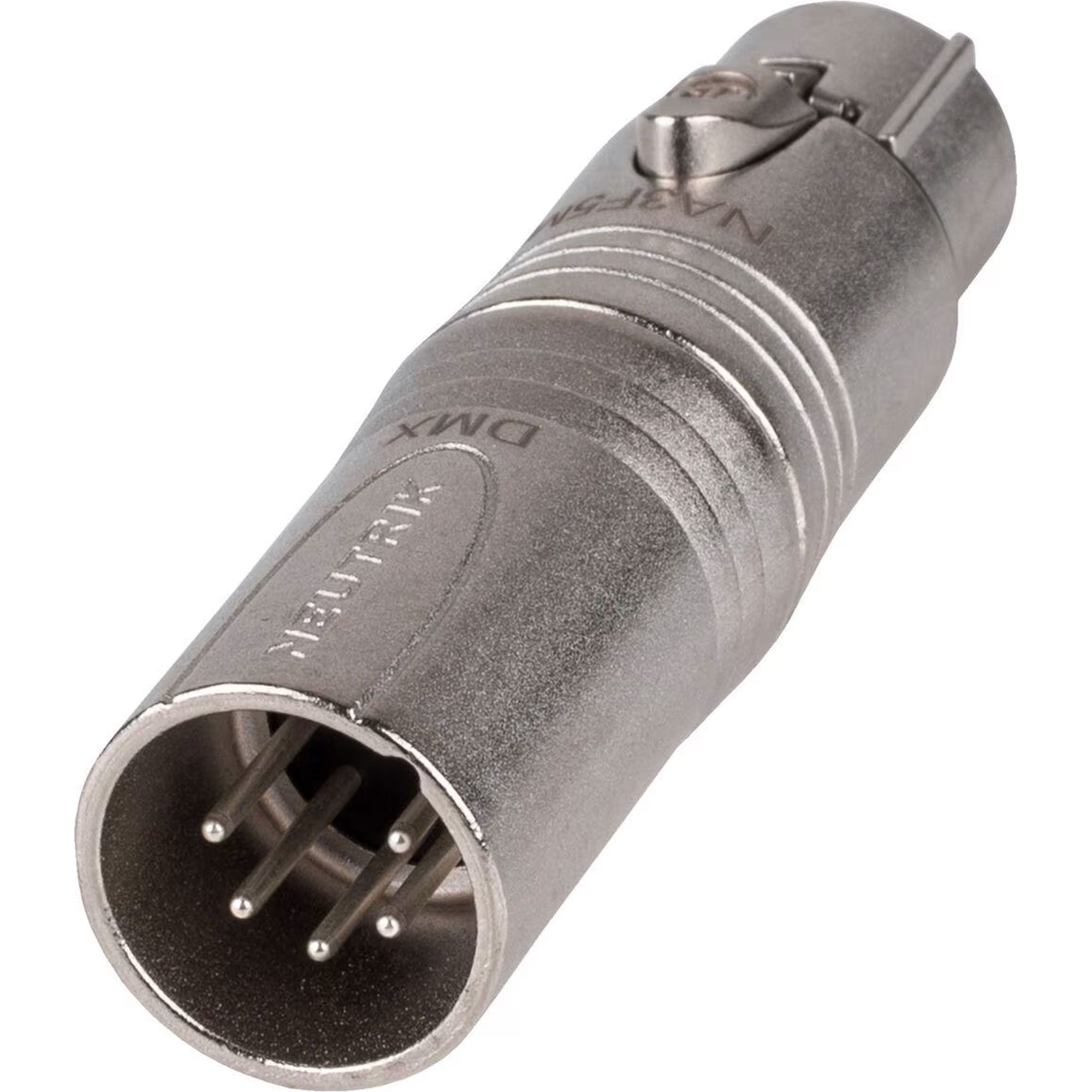

Female 3-Pin XLR to Male 5-Pin XLR Adapter for DMX Lighting Applications
The Neutrik NA3F5M 3-Pole XLR Female to 5 Pole XLR Male DMX Adapter is used for DMX lighting applications.
Features:
- Compact XLR 3 to 5 pole adapter for lighting (DMX) applications
- Solve interconnection problems of the old (3-pole) and new (5-pole) DMX standard
- Professional look and compact space saving design, based on the XX Series
- Rugged diecast shell for best reliability
Specifications:
- Product
- Title: NA3F5M
- Connection Type: Adapter
- Electrical
- Contact resistance: <= 3 mΩ (inner)
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 2 GΩ
- Rated current per contact: 3 A
- Mechanical
- Insertion force: < 20 N
- Withdrawal force: < 20 N
- Lifetime: > 1000 mating cycles
- Locking device: Latch lock
- Material
- Contact plating: 2 -m Ag
- Contacts: Bronze (CuSn6) (female)
- Insert: Polyamide (PA 6.6 30 % GR)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Nickel
- Environmental
- Temperature range: -30 °C to +80 °C
