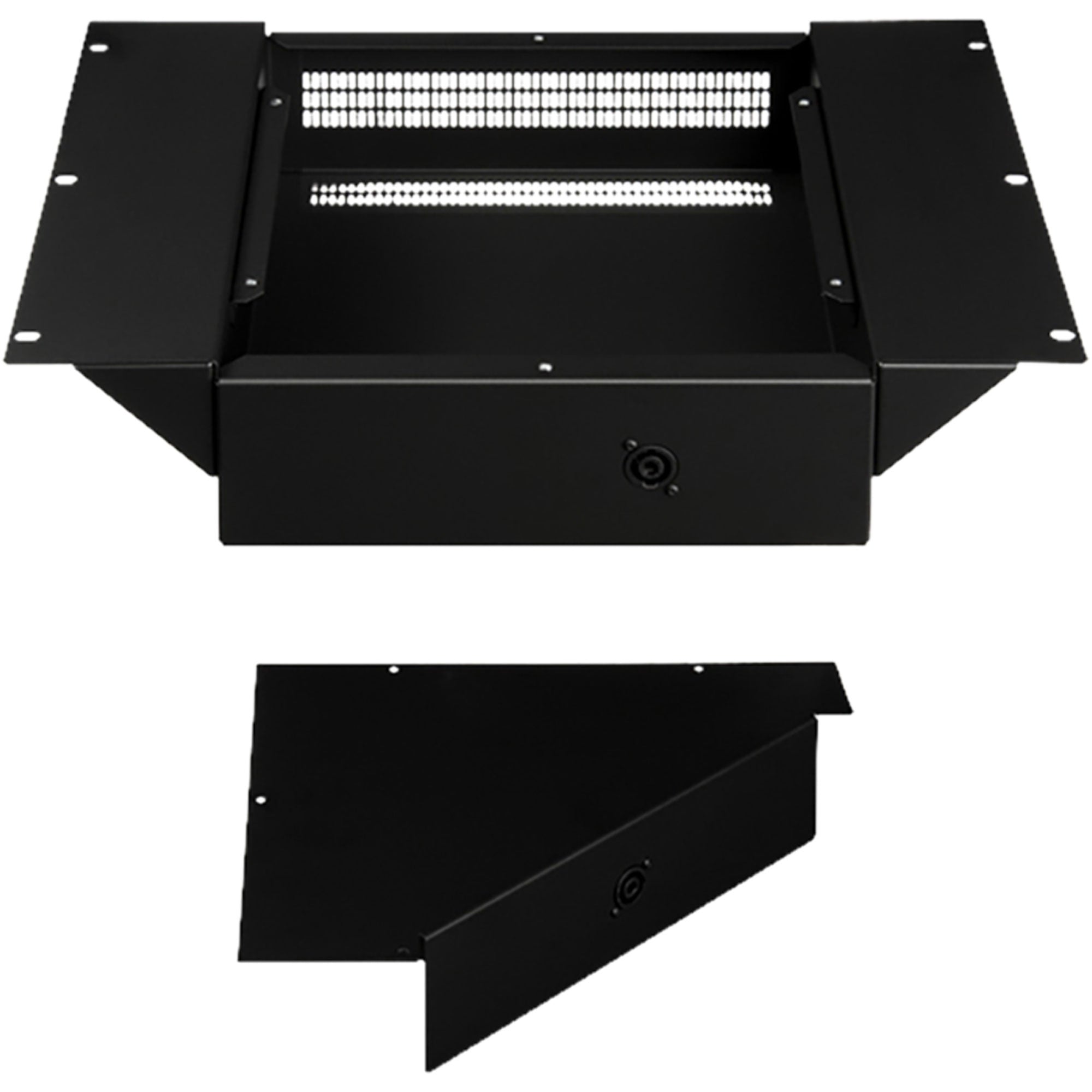

Neumann REK 3 Remote Electronics Kit (Subwoofers)

Move a Subwoofers Electronics Panel Up to 90 Feet

A kit to locate the electronics panel up to 30 m (90') away from the subwoofer cabinet. A standard 4-pole Speakon terminated subwoofer cable, available from third parties, is required.

Features:

• No heat dissipation problems
• Easy adjustment of the controls
• Easier servicing of the electronics
• Shorter cable runs

Specifications:

• Subwoofer electronics' chassis:
• Height: 343 mm (13 1/2") - 8 U

• Width: 482 mm (19")

• Depth: 100 mm (4")

• Weight:3.6 kg (7.9 lbs), without subwoofer electronics

• Color: black (RAL 9005)
• Material: steel
• Cover plate for subwoofer:
• Height: 319 mm (12 1/2")
• Width: 289 mm (11 3/8")
• Depth: 80 mm (3 1/8")
• Weight: 1 kg (2.2 lbs)
• Color: black (RAL 9005)
• Material: Steel
• Connectors:
• Neutrik Speakon NL4MD-H
• 4 pole connector
• Pin assignment of the RC remote control cable:
• (Driver / Speakon Pins):
• Bass 1 / 1+/-
• Bass 2 / 2+/-
• "Bass 2" is not used when there is only one bass driver in the cabinet.
• Cross-section of the loudspeaker cables:
• (Cable length / Cable cross-section):
• < 20 m / 2.5 mm2 (14 AWG)
• > 20 m / 4.0 mm2 (12 AWG)

Includes:

• 1 REK 3 subwoofer electronics' chassis
• 1 REK 3 cover plate for subwoofer
• 6 Torx screws M5x12, black, 4 pre-mounted to the cover plate
• 1 Cable A with Neutrik Speakon NL4MP chassis connector and 4-pole plug, for connection of the REK 3 chassis to the subwoofer electronics; 1 ferrite core pre-mounted; Speakon chassis connector pre-mounted to the rear of the chassis 2
• 1 Cable B with Neutrik Speakon NL4MP chassis connector and 4-pole socket, for connection of the REK 3 cover plate to the subwoofer
• 1 Ferrite core, needs to be installed when a subwoofer with 2 drivers is used (see page 9) 4 PT screws 3x10 mm, black
• 1 Socket cover cap 32.5 mm, mounted to the cover plate
• 1 Operating manual
