Mogami W3161 4-Pair AES/EBU 110 Ohm Digital Audio Snake Cable (By the Foot)

Mogami SKU: MOG W3161
MPN: W3161-00
Price:
$3.56
Stock:
90 In Stock & Ready to Ship

Make it a bundle

Mogami W3161 4-Pair AES/EBU 110 Ohm Digital Audio Snake Cable (328'/100m Roll) Image 1
Mogami W3161 4-Pair AES/EBU 110 Ohm Digital Audio Snake Cable (328'/100m Roll)
$1,050.91
Custom Cable 9 Feet of Mogami W3161 Wire Image 1
Custom Cable 9 Feet of Mogami W3161 Wire
$32.04
Custom Cable 13 Feet of Mogami W3161 Wire Image 1
Custom Cable 13 Feet of Mogami W3161 Wire
$46.28
Custom Cable 45 Feet of Mogami W3161 Wire Image 1
Custom Cable 45 Feet of Mogami W3161 Wire
$160.20
Custom Cable 35 Feet of Mogami W3161 Wire Image 1
Custom Cable 35 Feet of Mogami W3161 Wire
$124.60
Custom Cable 90 Feet of Mogami W3161 Wire Image 1
Custom Cable 90 Feet of Mogami W3161 Wire
$320.40
Custom Cable 250 Feet of Mogami W3161 Wire Image 1
Custom Cable 250 Feet of Mogami W3161 Wire
$890.00
Custom Cable 180 Feet of Mogami W3161 Wire Image 1
Custom Cable 180 Feet of Mogami W3161 Wire
$640.80
Custom Cable 60 Feet of Mogami W3161 Wire Image 1
Custom Cable 60 Feet of Mogami W3161 Wire
$213.60
Custom Cable 23 Feet of Mogami W3161 Wire Image 1
Custom Cable 23 Feet of Mogami W3161 Wire
$81.88
Custom Cable 85 Feet of Mogami W3161 Wire Image 1
Custom Cable 85 Feet of Mogami W3161 Wire
$302.60
Custom Cable 24 Feet of Mogami W3161 Wire Image 1
Custom Cable 24 Feet of Mogami W3161 Wire
$85.44

Key Features

  • 8 Conductors (4 Pair)
  • 24 AWG
  • 110 Ohm
  • AES/EBU Digital Audio
  • Sold by the Foot
  • Shipped in a Continuous Length

Description

Mogami W3161 bulk four-pair 110-ohm AES/EBU snake cable

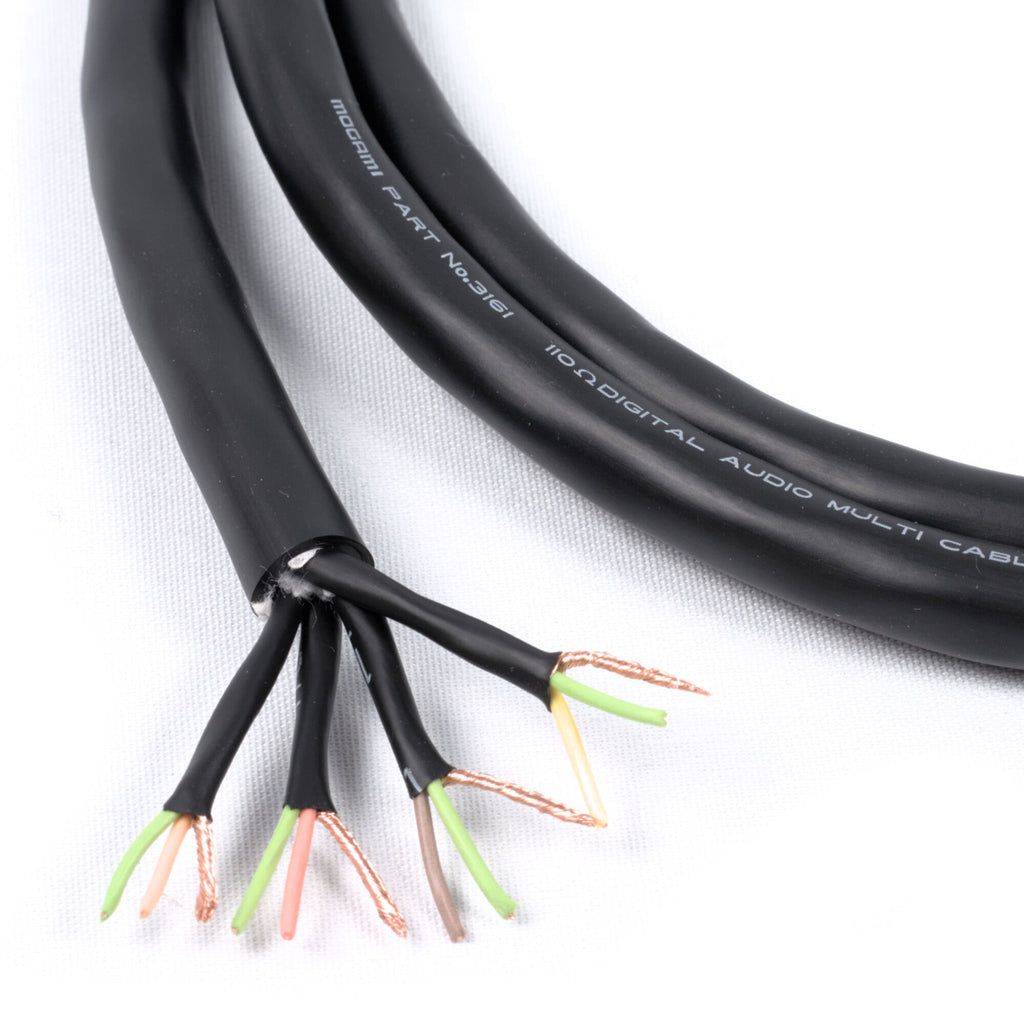

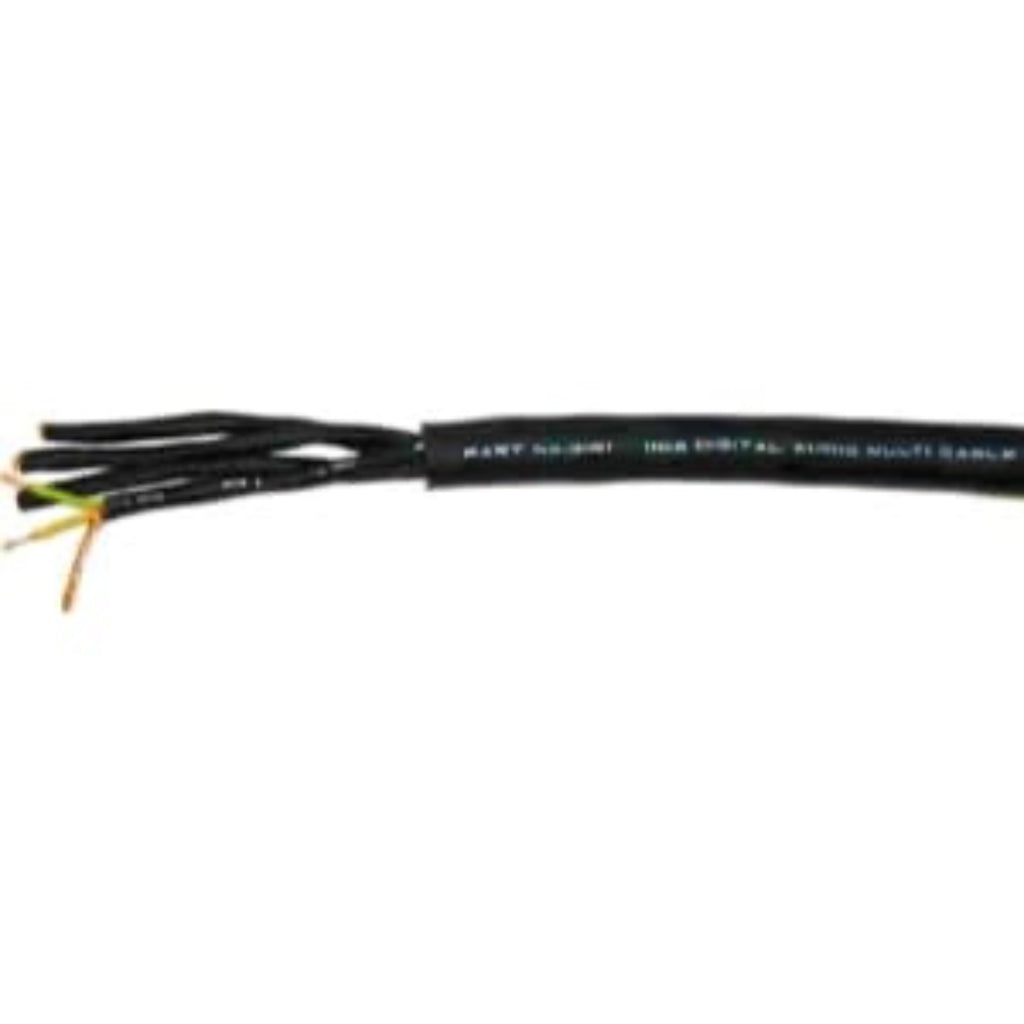

Mogami W3161 combines four individually shielded pairs in a flexible, compact multicore cable for building compatible AES/EBU digital audio snakes. Numbered cores help identify each connection, while drain wires assist termination. This listing is for unterminated bulk cable, not a finished snake; connectors are not included.

Ordering by the foot

Quantity equals feet of the complete four-pair cable, supplied as one continuous piece. Quantity 25 provides one 25-foot continuous length, not 25 separate lengths of 1 foot each. Allow extra for routing, breakouts and connector preparation.

Compatibility and assembly

Confirm your equipment requires 110-ohm AES/EBU connections, and verify the connector type, pinout and pair mapping at both ends. Do not assume a multipin connector uses the same wiring on every device.

Plan the breakout and strain relief around the approximately 10.5 mm overall jacket and 3.2 mm individual core jackets. Choose connectors suitable for the individual conductors and core diameter. Follow the connector and equipment manufacturers' termination instructions, retain each pair's construction as far as practical, and label and test every completed connection for continuity, shorts and digital operation.

Check usable transmission distance with your connected equipment's manufacturer. The original cable specification lists a maximum available cable length of 305 m (1,000 ft); this is not a guaranteed AES/EBU transmission distance or a statement of current stock availability. Do not assume receiver equalization automatically extends the usable run.

Features

  • Four individually shielded pairs for custom digital audio snakes.
  • 110-ohm characteristic impedance, listed ±10% tolerance.
  • Cellular polypropylene insulation.

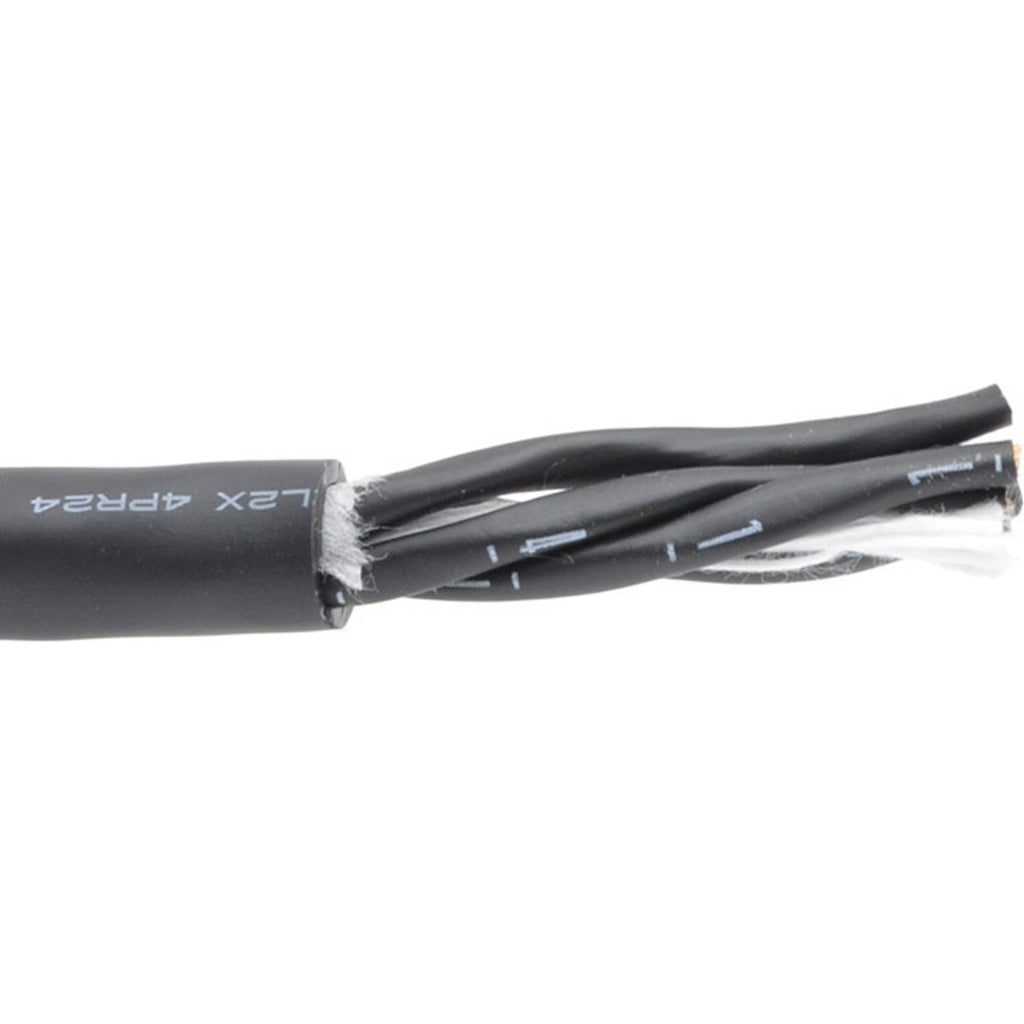

  • Numbered cores for connection identification.
  • Drain wires with the same construction as the conductors.
  • Served spiral shields and flexible PVC core coverings.
  • Compact approximately 10.5 mm overall diameter.
  • Continuous-length ordering by the foot.

Overall cable specifications

  • Model: W3161
  • Pairs/cores: 4
  • Overall diameter: Approximately 10.5 mm (0.413 inch)
  • Overall jacket thickness: Approximately 1.2 mm (0.047 inch)
  • Weight: 14 kg per 100 m

Individual core specifications

  • Conductor: 0.22 mm², listed 24 AWG; 7 × 0.20 mm strands
  • Insulation: Cellular polypropylene; 1.35 mm insulated diameter
  • Drain wire: Same construction as conductor, 7 × 0.20 mm
  • Served spiral shield: Approximately 79 × 0.10 mm
  • Core covering: Flexible PVC; 3.2 mm outside diameter
  • Identification: Numbered cores

Electrical and mechanical specifications

  • Characteristic impedance: 110 Ω ±10%
  • Inner-conductor DC resistance at 20°C: 0.081 Ω/m
  • Shield DC resistance at 20°C: 0.024 Ω/m
  • Effective conductor-to-conductor capacitance at 1 kHz, 20°C: 46 pF/m
  • Inductance: 0.8 µH/m
  • Attenuation at 6 MHz: 0.065 dB/m
  • Phase constant at 6 MHz: 0.17 rad/m
  • Listed electrostatic-noise test result: 5.0 mV maximum
  • Listed electromagnetic-noise test result at 10 kHz: 2.0 mV maximum
  • Listed microphonics test result: 60 mV
  • Dielectric test: 500 V DC for 15 seconds; not an operating-voltage rating
  • Insulation resistance at 125 V DC, 20°C: Minimum 10,000 MΩ·m
  • Listed tensile strength of one core: 303 N
  • Listed jacket migration characteristic: Non-migrating to ABS resin
  • Listed applicable temperature: −20°C to +70°C (−4°F to +158°F)
  • Listed cable markings: UL13 CL2X 60°C / UL20002 AWM 30 V 60°C VW-1

Test figures describe specified test conditions, not guaranteed results for every installation or finished assembly. Observe the applicable cable-marking limits, which may differ from the general temperature range. Connector selection, termination, routing and connected equipment affect the completed signal path.

Details
  • Manufacturer:  Mogami
  • MPN: W3161-00
  • Model Number: W3161
