Key Features
- Flexible PVC Jacket
- Coaxial Design
- 2x 14 AWG Conductors
- 0.256" Outer Diameter
- Sold by the Foot
- Made in Japan
Description

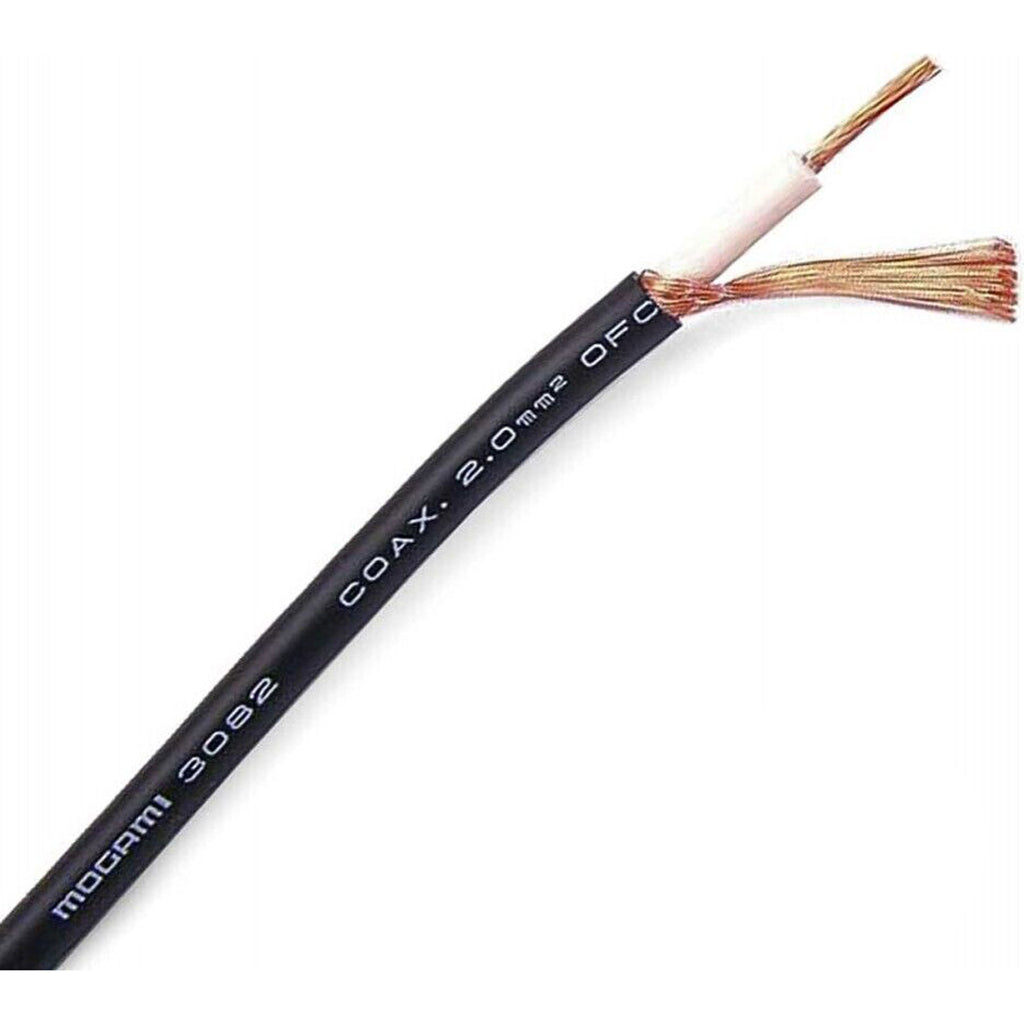

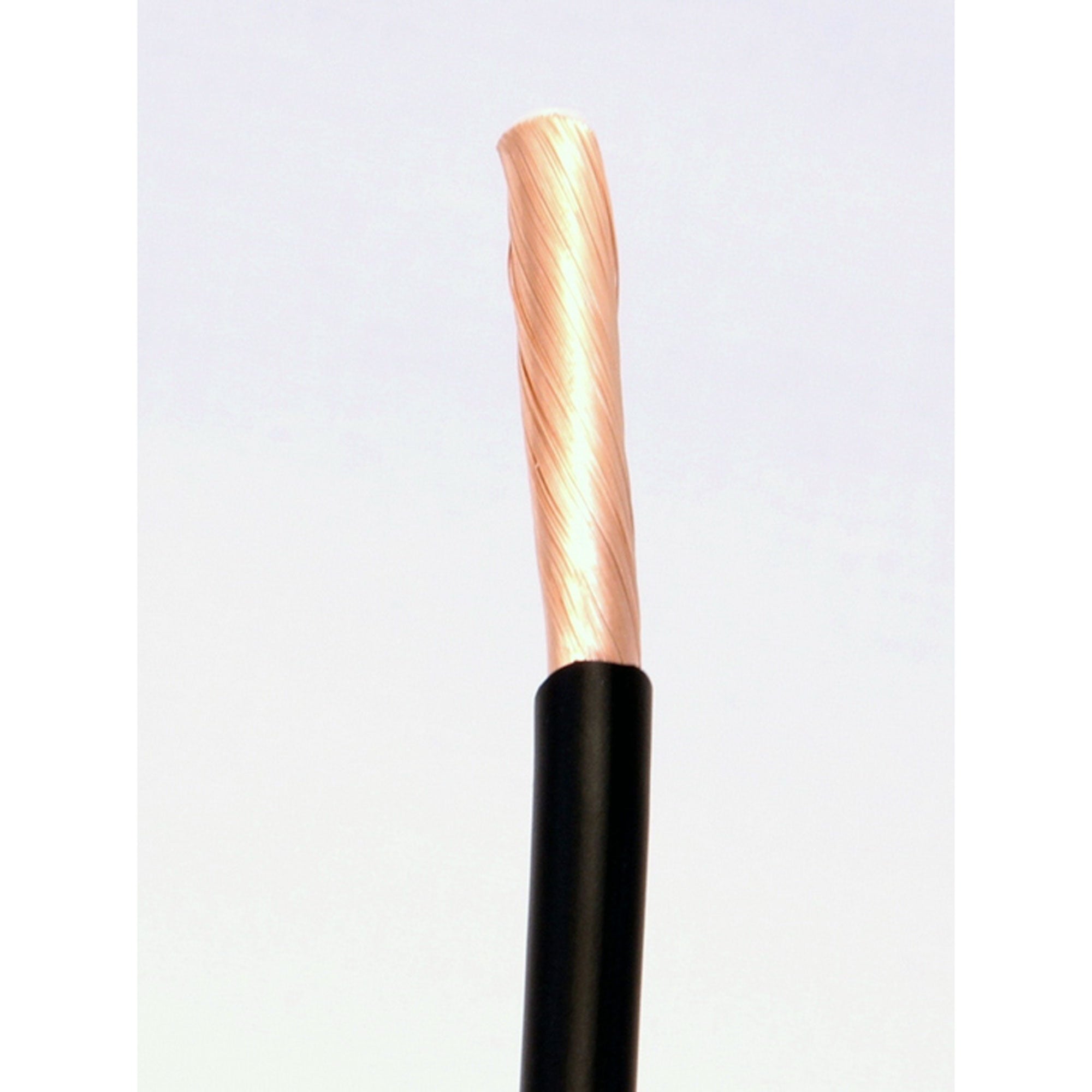

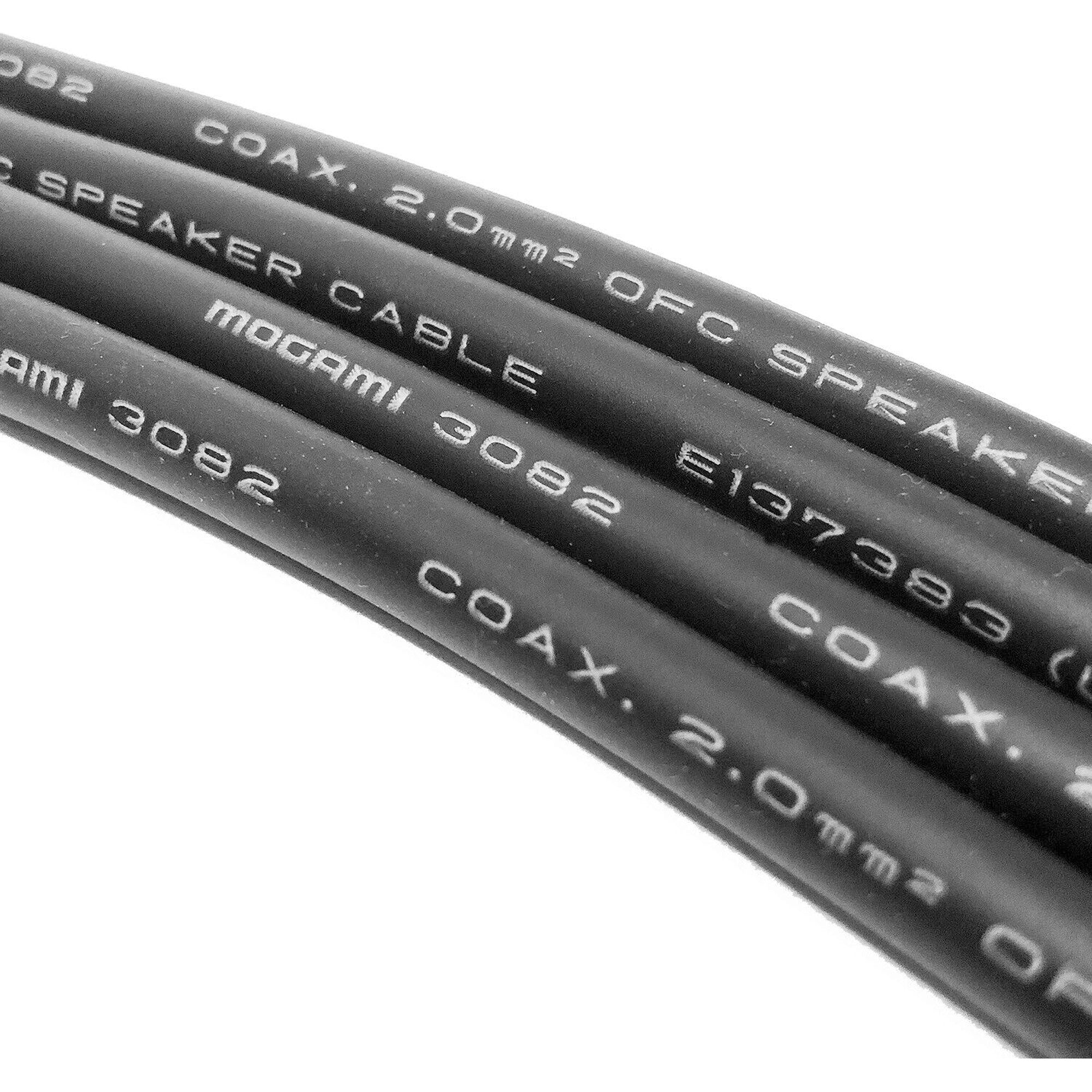

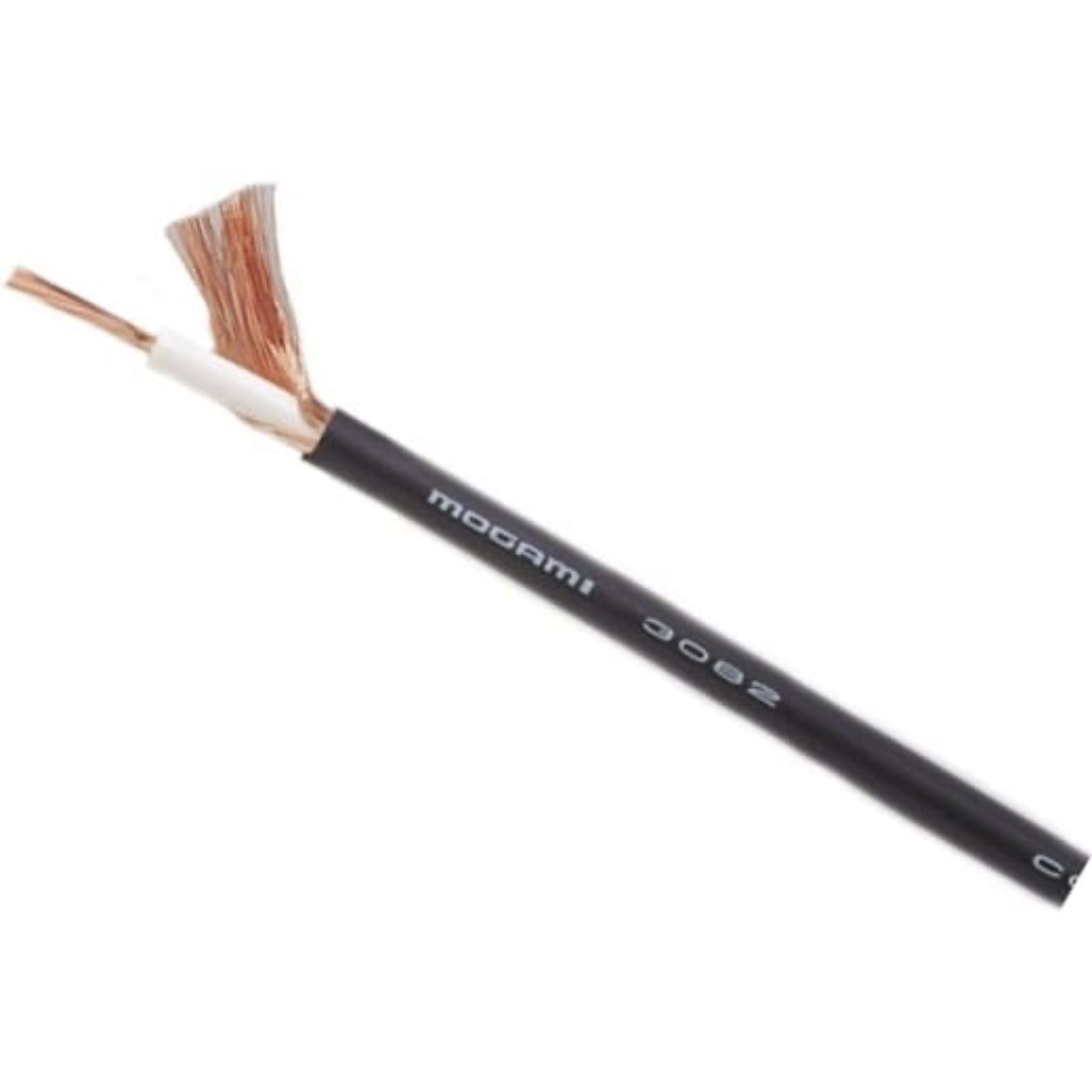

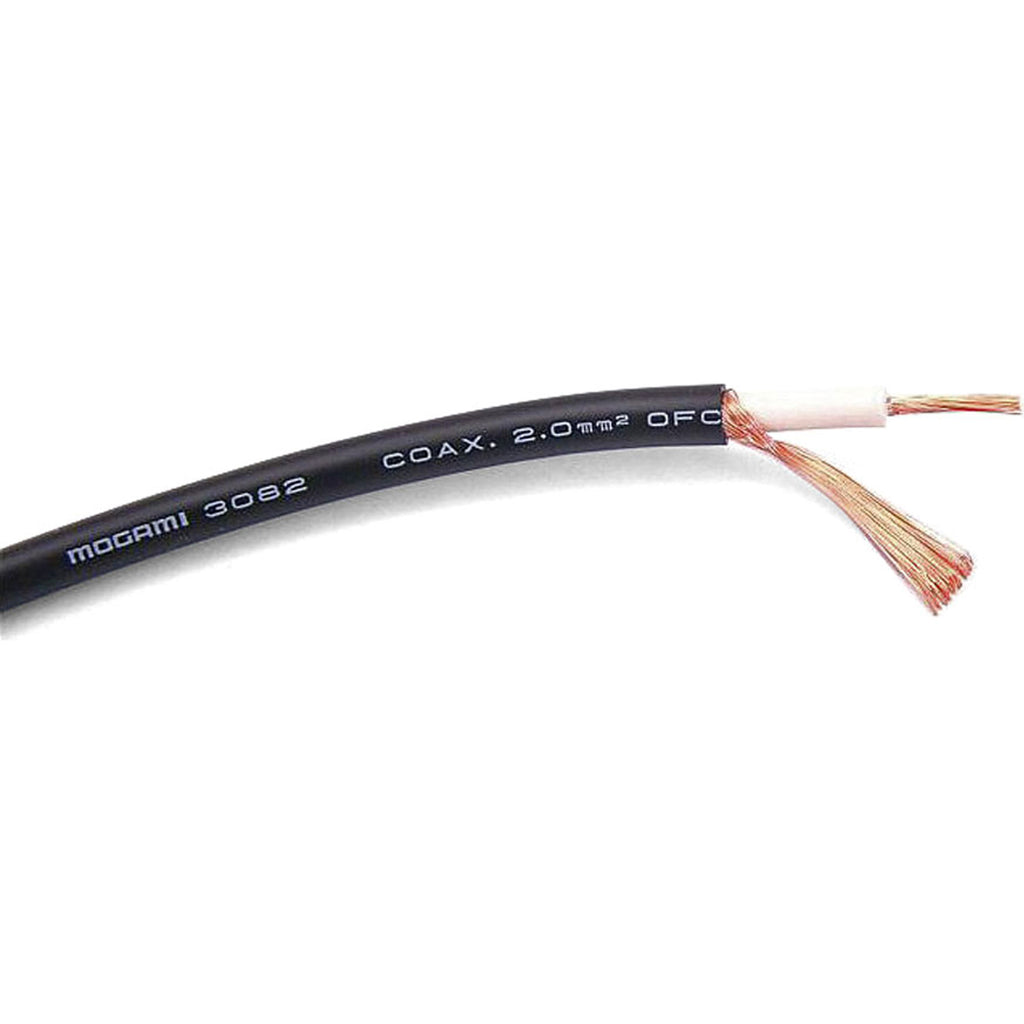

2 Conductor 15 AWG High Definition Coaxial Speaker Cable - Sold by the Foot
This standard speaker cable is designed to meet XLR audio connector cable clamp. Coaxial Design is used to provide as large a conductor size as possible, which results in the following features:
Features:

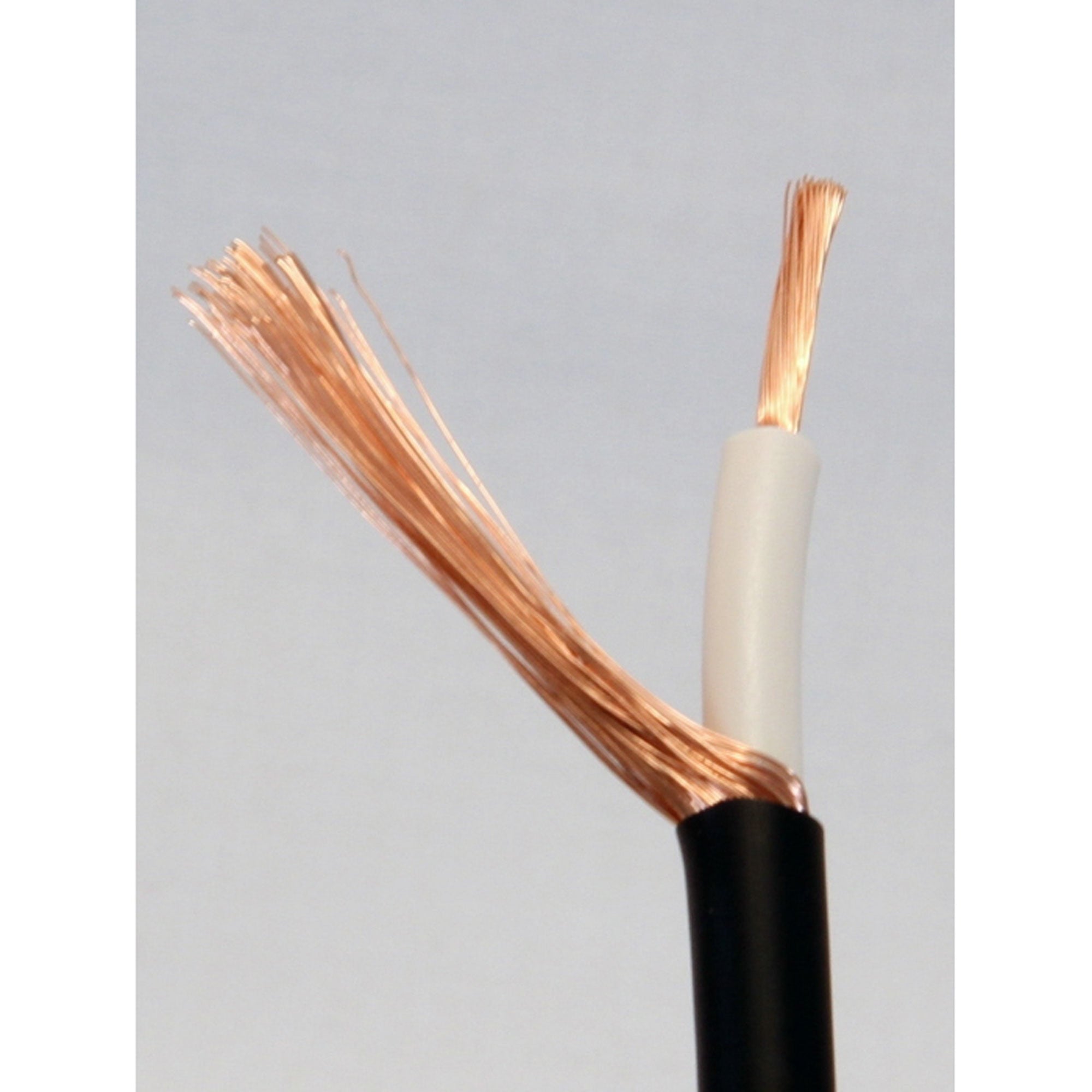

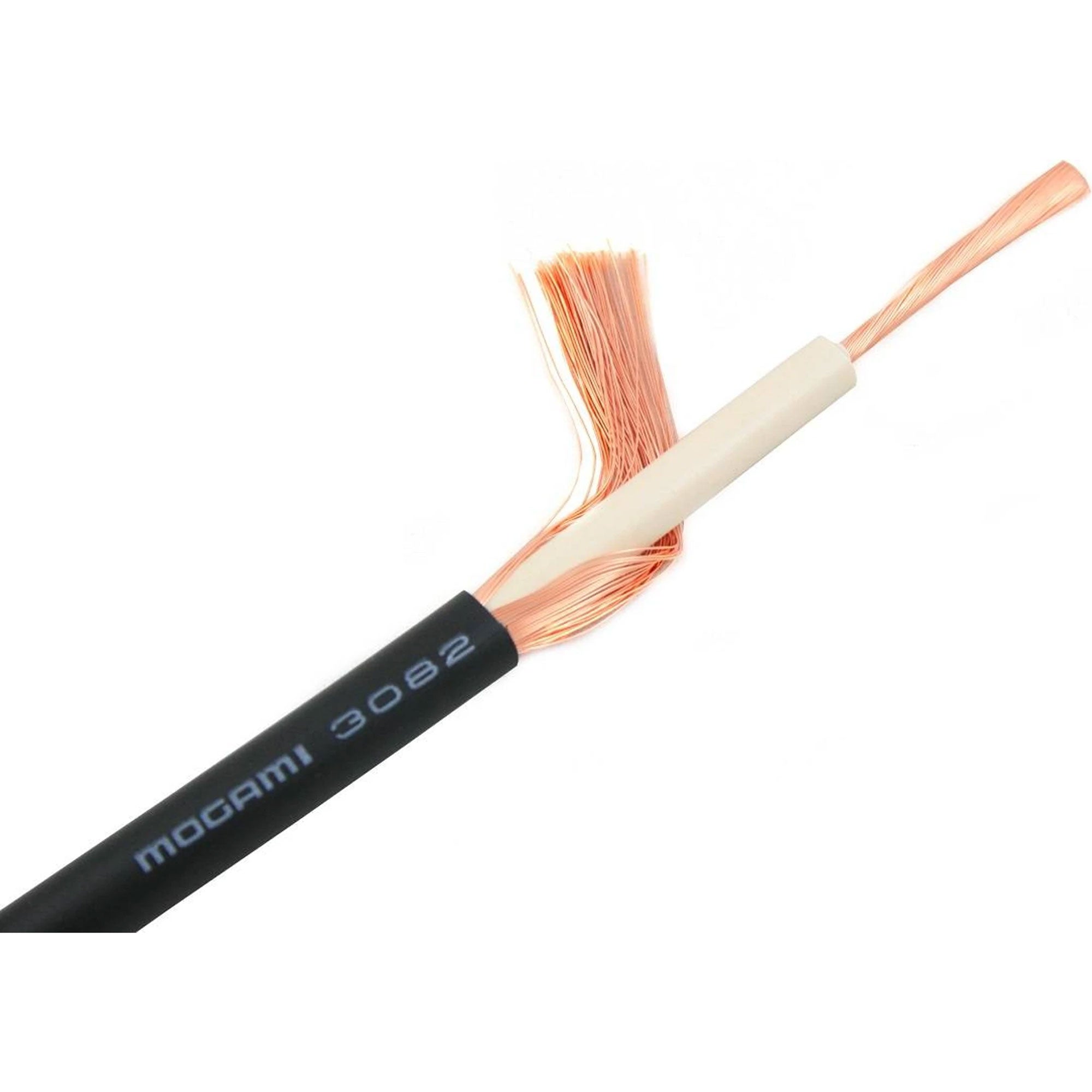

- Large conductor size of 2.0mm (close to #14AWG) despite small OD of 6.5mm (0.256"). (Same conductor size for both internal and external (shield) conductors.)
- Extremely low induction from outside and affection to outside.
- Suitable impedance as speaker cable.
- Better sound quality than quad nor regular parallel configuration. Now, specify MOGAMI #3082 as world standard of economy and popular professional speaker cable.
Specifications:
- Conductor Details: 80/0.18 OFC (80x33AWG)
- Conductor Size(mm²): 2.03mm² (Approx. #14AWG)
- Insulation Ov. Dia.(mm): 4.6Ø (0.181")
- Insulation Material: PVC
- Insulation Colors: White
- Served Shield Details: 80/0.18 OFC (80x33AWG)
- Served Shield Size(mm²): 2.03mm² (Approx. #14AWG)
- Jacket Ov. Dia.(mm): 6.5±0.5Ø (0.256±0.0197"Ø)
- Jacket Material: Flexible PVC
- Jacket Color: Black
- Roll Size: 100m (328Ft) / 200m (656Ft) / 153m (500Ft)
- Weight per 100m Roll: 7.5kg
- ELECTRICAL & MECHANICAL CHARACTERISTICS
- DC Resistance at 20°C: 0.009Ω/m(0.0027Ω/Ft)
- Capacitance at 1kHz, 20°C: 253pF/m(77pF/Ft)
- Inductance: 0.4µH/m(0.12µH/Ft)
- Electrostatic Noise: 0.2mV Max.
- Electromagnetic Noise at 10kHz: 0.2mV Max.
- Voltage Breakdown: Must withstand at DC 500V/15sec.
- Insulation Resistance: 100000 MΩ x m Min. at DC 500V, 20°C
- Flex Life: 15,000 cycles
- Tensile Strength: More than 980N
- Emigration: Non-emigrant to ABS resin
- Applicable Temperature: -20°C +70°C(-4°F +158°F)
- Standard: UL13 CL2 75°C
