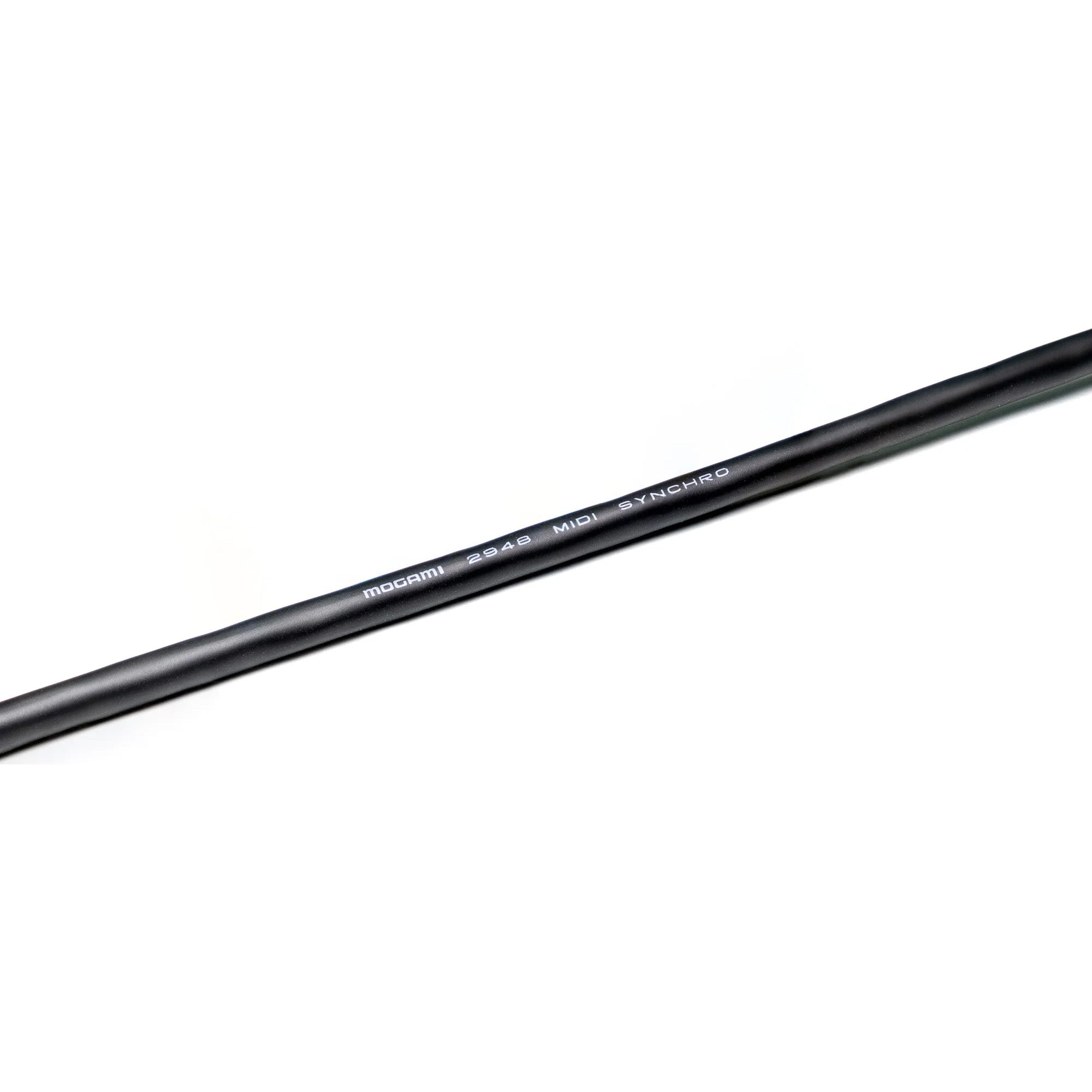

Mogami W2948 MIDI Synchro Cable (By the Foot)

Mogami SKU: MOG W2948
MPN: W2948
Price:
$0.94
Stock:
1901 In Stock & Ready to Ship

Make it a bundle

Custom Cable 7 Feet of Mogami W2948 Wire Image 1
Custom Cable 7 Feet of Mogami W2948 Wire
$6.58
Custom Cable 9 Feet of Mogami W2948 Wire Image 1
Custom Cable 9 Feet of Mogami W2948 Wire
$8.46
Custom Cable 20 Feet of Mogami W2948 Wire Image 1
Custom Cable 20 Feet of Mogami W2948 Wire
$18.80
Custom Cable 2 Feet of Mogami W2948 Wire Image 1
Custom Cable 2 Feet of Mogami W2948 Wire
$1.88
Mogami W2948 MIDI Synchro Cable (656'/200m Roll) Image 1
Mogami W2948 MIDI Synchro Cable (656'/200m Roll)
$554.98
Custom Cable 6 Feet of Mogami W2948 Wire Image 1
Custom Cable 6 Feet of Mogami W2948 Wire
$5.64
Custom Cable 22 Feet of Mogami W2948 Wire Image 1
Custom Cable 22 Feet of Mogami W2948 Wire
$20.68
Custom Cable 11 Feet of Mogami W2948 Wire Image 1
Custom Cable 11 Feet of Mogami W2948 Wire
$10.34
Custom Cable 35 Feet of Mogami W2948 Wire Image 1
Custom Cable 35 Feet of Mogami W2948 Wire
$32.90
Custom Cable 18 Feet of Mogami W2948 Wire Image 1
Custom Cable 18 Feet of Mogami W2948 Wire
$16.92
Custom Cable 45 Feet of Mogami W2948 Wire Image 1
Custom Cable 45 Feet of Mogami W2948 Wire
$42.30
Custom Cable 12 Feet of Mogami W2948 Wire Image 1
Custom Cable 12 Feet of Mogami W2948 Wire
$11.28

Key Features

  • 4-Conductor, 25AWG
  • Served (Spiral) Shield
  • Use with 5-Pin DIN Connectors
  • Black PVC Jacket
  • Sold by the Foot

Description

Black Mogami W2948 bulk MIDI Synchro cable

Black Mogami W2948 is flexible, shielded bulk cable for building custom MIDI and compatible synchro cable assemblies. It has four insulated copper conductors, a served spiral shield and a 5.0 mm flexible PVC jacket. This listing is for unterminated cable, not a finished MIDI patch cord; connectors are not included.

Ordering by the foot

Quantity equals the number of feet you need, supplied as one continuous piece. For example, quantity 25 provides one 25-foot length. The quantity applies to the complete four-conductor cable, not separate lengths of each conductor. Allow extra length for routing and connector preparation.

Check wiring and connector fit

Use W2948 to make cable assemblies for MIDI equipment, instruments and patchbays that accept the connectors and wiring you choose. Match the connector type, pin assignment and permitted cable length to the equipment's documentation. The additional conductors can support compatible synchro wiring when required; do not assume every MIDI device uses those connections.

Choose connectors and strain relief that accommodate the 5.0 mm jacket and conductor size. Follow the connector manufacturer's preparation and termination instructions, verify pin numbering from the correct viewing side, and check continuity and shorts before connecting equipment. Shield termination and any unused conductors should follow the required wiring diagram.

Features

  • Four insulated copper conductors for custom MIDI and compatible synchro assemblies.
  • Twisted-pair construction for the MIDI signal, supporting electromagnetic noise rejection.
  • Served spiral shield.
  • Flexible, satin Black PVC jacket.
  • Black, White, Red and Green conductor insulation for identification.
  • Sold by the foot as one continuous length.

Construction specifications

  • Conductor area: 0.15 mm² per conductor
  • Conductor stranding: 30 × 0.08 mm
  • Insulation: PVC; 1.2 mm insulated diameter
  • Insulation colors: Black, White, Red and Green
  • Shield: Served; 98 × 0.12 mm
  • Jacket: Flexible Black PVC; 5.0 mm outside diameter
  • Weight: 8.6 kg per 200 m
  • Twisted-pair pitch: Approximately 30 mm

Electrical and mechanical specifications

  • DC resistance at 20°C, inner conductor: 0.12 Ω/m
  • DC resistance at 20°C, shield: 0.02 Ω/m
  • Capacitance at 1 kHz and 20°C, between twisted-pair conductors: 99 pF/m
  • Capacitance, shield to one twisted-pair conductor: 182 pF/m
  • Capacitance, shield to synchro conductor: 180 pF/m
  • Capacitance, one twisted-pair conductor to synchro conductor: 91 pF/m
  • Listed electromagnetic-noise test result: 0.02–0.06 mV under Mogami's standard test method
  • Dielectric test: 500 V DC for 15 seconds; not an operating-voltage rating
  • Listed cable-to-connector joint tensile strength: Minimum 480 N under the specified assembly/test conditions
  • Listed flex life at connector strain relief: 45,000 cycles under Mogami's standard test method
  • Listed cable flex life: 6,700 cycles with 200 g load and 12.7 mm cable-stopper bend radius under Mogami's standard test method
  • Listed jacket migration characteristic: Non-migrating to ABS resin

Test figures describe specific test conditions, not guaranteed results for every finished cable assembly. Connector selection, termination and strain relief affect the completed cable's performance.

Details
  • Manufacturer:  Mogami
  • MPN: W2948
  • Model Number: W2948
