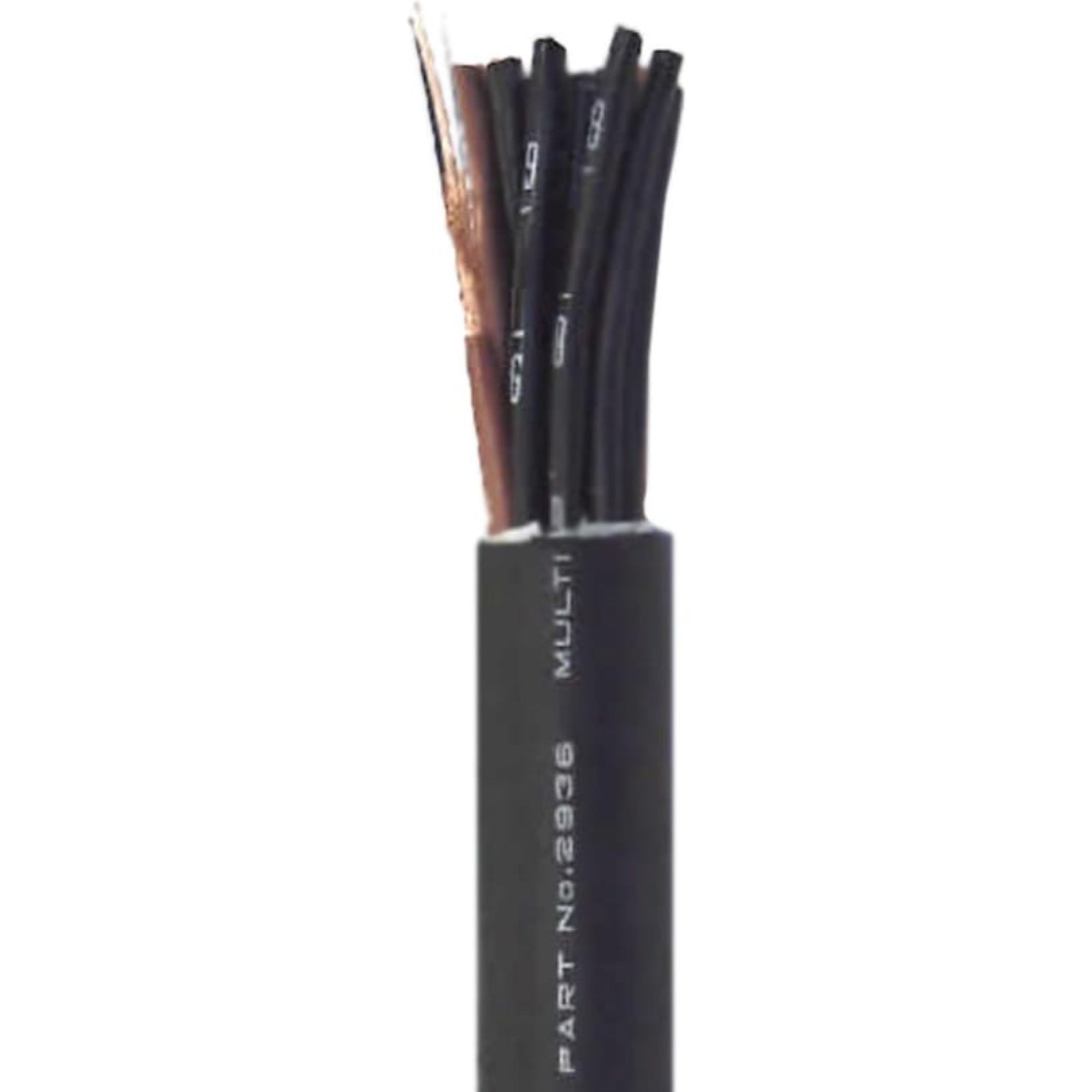

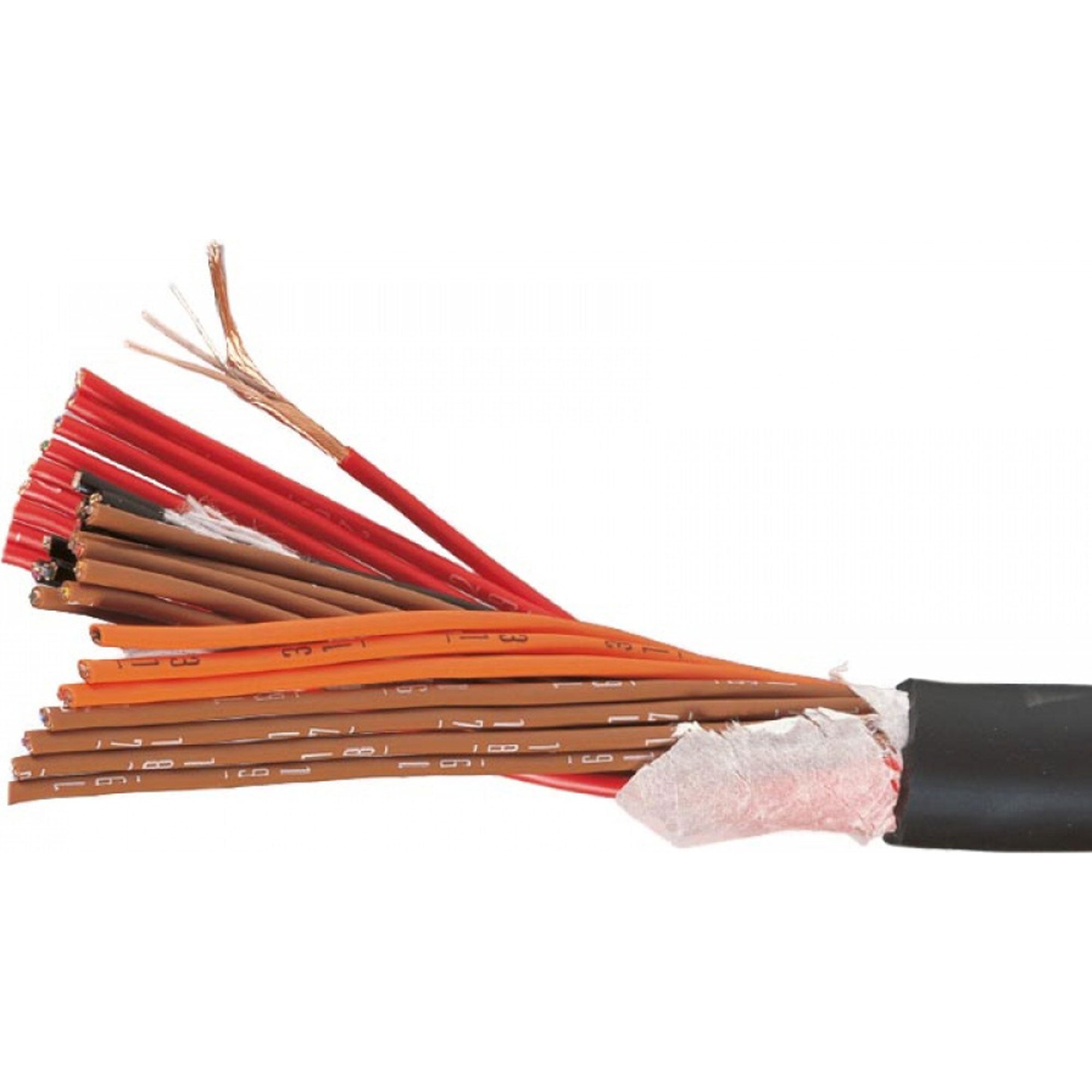

Mogami W2939 48-Channel Audio Snake Cable (By the Foot)

Mogami SKU: MOG W2939
MPN: W2939-00
Price:
$25.71
Stock:
Out of Stock, But We'll Ship It Fast!

Make it a bundle

Mogami W2939 48-Channel Audio Snake Cable (250' Roll) Image 1
Mogami W2939 48-Channel Audio Snake Cable (250' Roll)
$5,784.75
Custom Cable 50 Feet of Mogami W2939 Wire Image 1
Custom Cable 50 Feet of Mogami W2939 Wire
$1,285.50
Custom Cable 24 Feet of Mogami W2939 Wire Image 1
Custom Cable 24 Feet of Mogami W2939 Wire
$617.04
Custom Cable 8 Feet of Mogami W2939 Wire Image 1
Custom Cable 8 Feet of Mogami W2939 Wire
$205.68
Custom Cable 9 Feet of Mogami W2939 Wire Image 1
Custom Cable 9 Feet of Mogami W2939 Wire
$231.39
Custom Cable 6 Feet of Mogami W2939 Wire Image 1
Custom Cable 6 Feet of Mogami W2939 Wire
$154.26
Custom Cable 170 Feet of Mogami W2939 Wire Image 1
Custom Cable 170 Feet of Mogami W2939 Wire
$4,370.70
Custom Cable 90 Feet of Mogami W2939 Wire Image 1
Custom Cable 90 Feet of Mogami W2939 Wire
$2,313.90
Custom Cable 17 Feet of Mogami W2939 Wire Image 1
Custom Cable 17 Feet of Mogami W2939 Wire
$437.07
Custom Cable 160 Feet of Mogami W2939 Wire Image 1
Custom Cable 160 Feet of Mogami W2939 Wire
$4,113.60
Custom Cable 18 Feet of Mogami W2939 Wire Image 1
Custom Cable 18 Feet of Mogami W2939 Wire
$462.78
Custom Cable 250 Feet of Mogami W2939 Wire Image 1
Custom Cable 250 Feet of Mogami W2939 Wire
$6,427.50

Key Features

  • Individually Twisted Shielded Pairs
  • Rugged & Flexible Construction
  • Easy Cable Identification System
  • 26 AWG Conductors
  • 48-Channels
  • Sold by the Foot
  • Shipped in a Continuous Length

Description

Build a forty-eight-channel audio snake

Mogami W2939 is a forty-eight-channel multipair audio cable for custom studio snakes and balanced audio cable assemblies. Sold by the foot, it combines forty-eight individually twisted, shielded pairs within a Black outer jacket.

Numbered channel jackets and color-coded pairs help you keep connections organized during assembly. Each channel has its own served copper shield and drain wire to simplify termination.

Plan your connectors and breakout

The cable’s approximate 26.0 mm overall diameter is an important check when selecting connector housings and strain relief. Each channel contains two 26-AWG signal conductors plus a separate drain wire.

Match your connector contacts to the conductor sizes, and allow room to support and protect all forty-eight pairs at the breakout. Follow the connector manufacturer’s preparation and wiring instructions.

Features

  • Forty-eight individually twisted, shielded pairs.
  • Numbered channel jackets for identification from either end.
  • Color-coded pair jackets and inner conductors.
  • Individual served copper shields and drain wires.
  • Cross-linked polyethylene conductor insulation.
  • Flexible construction for routing and handling.
  • Sold by the foot.

Specifications

  • Model: W2939
  • Channel count: 48
  • Signal conductors: Two per channel
  • Signal conductor size: 26 AWG, 0.15 mm²
  • Signal conductor construction: 30 strands × 0.08 mm
  • Drain wire size: 25 AWG, 0.18 mm²
  • Conductor insulation: XLPE
  • Individual channel jacket diameter: 2.8 mm
  • Overall cable diameter: Approximately 26.0 mm, 1.02 in.
  • Outer jacket thickness: Approximately 2.0 mm
  • Jacket color: Black
  • Cable weight: 97 kg/100 m
  • Operating temperature: −20°C to +70°C
Details
  • Manufacturer:  Mogami
  • MPN: W2939-00
  • Model Number: W2939
