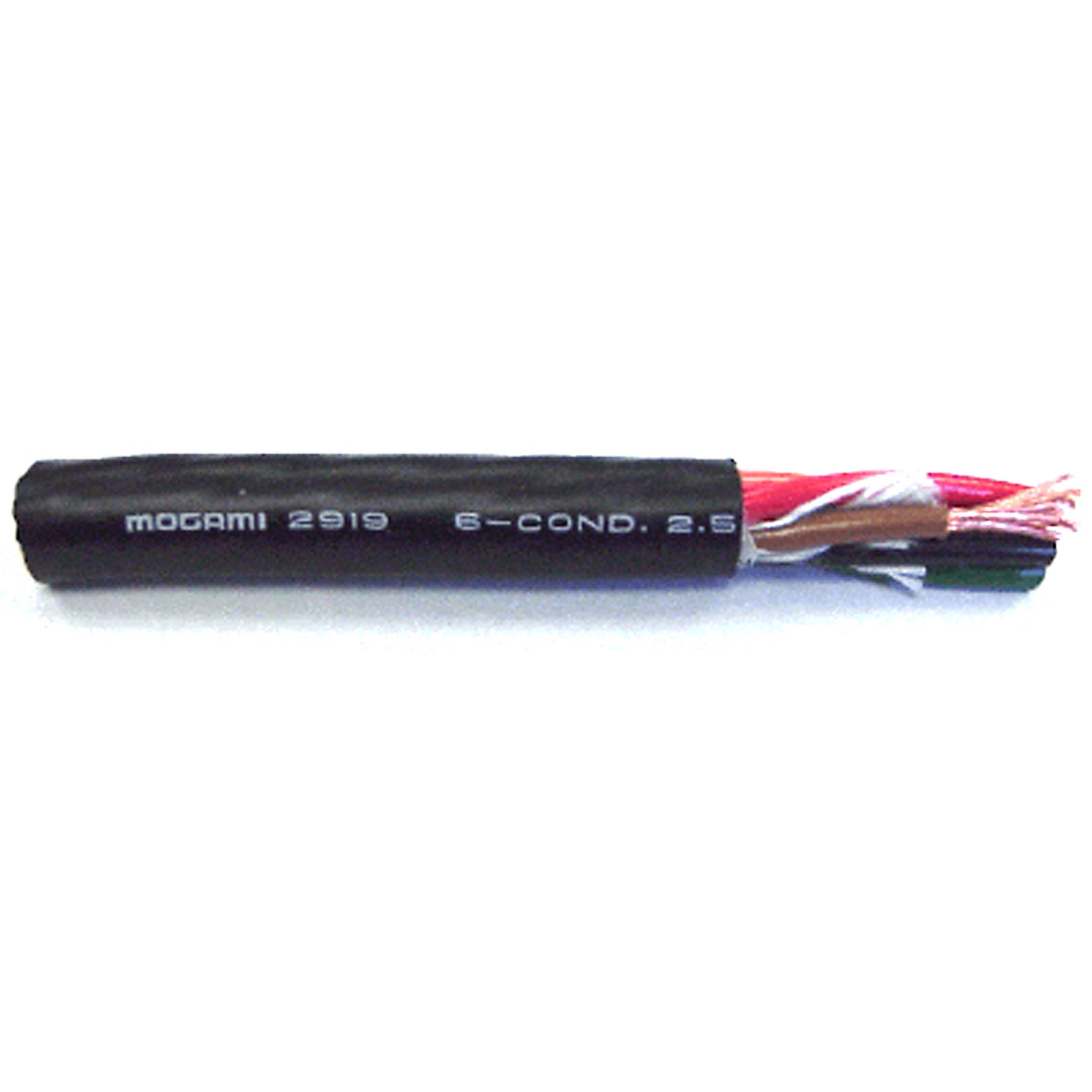

Mogami W2919 Six Conductor High Definition Speaker Cable (By the Foot)

6 Conductor 13 AWG Superflexible High Definition Speaker Cable - Sold by the Foot

High Definition Multi Series Professional Speaker Cables

These unique professional speaker cables are originally designed to deliver maximum performance from state-of-the-art Tri-Amp Systems.

They offer true audiophile performance for accurate sound transmission with clear transparent response yet possess a rugged superflexibility for the most demanding professional applications.

Each conductor features many strands in rope-lay of famous MOGAMI 'NEGLEX' Oxygen-Free-Copper within colour-coded PVC insulation. A tough, low profile matte black superflexible PVC jacket protects the cables.

Available in series of 2mm² (close to #14AWG), 2.5mm² (close to #13AWG) and 4mm² (close to #11AWG) conductor sizes.

Specifications:

• Part No.: W2919
• No. of Conductor: 6
• Conductor Size: 2.5mm² (#14AWG)
• Overall Diameter (mm / inch): 12.8Ø / 0.504Ø
• Core Colors: Black / Brown / Red / Orange / Yellow / Green
• Conductor Details: 7/32/0.12 NEGLEX OFC (bare)
• Conductor Size: 2.53mm² (#14AWG)
• Insulation Ov. Dia.(mm): 3.4Ø (0.134"Ø) PVC
• Jacket Ov. Dia.(mm): 12.8Ø (0.504"Ø)
• Jacket Material: Flexible PVC, Matte Black
• Weight per 153m (500Ft) Roll: 39kg
• DC Resistance (: ): 0.008Ω/m Typ. (0.0024Ω/Ft)
• Voltage Breakdown: Must withstand at DC 500V/15sec.
• Insulation Resistance: 10000 MΩ x m Min. at DC 125V, 20°C
• Emigration of Jacket Material: Non-Emigrant to ABS resin
• Applicable Temperature: -20°C-+70°C (-4°F-+158°F)
• Roll Sizes: 100m (328Ft) / 153m (500Ft) / 300m (984Ft)
• Standard: UL13 CL2 75°C
