Key Features
- Audiophile Quality Sound
- Rugged & Super Flexible
- Neglex Oxygen-Free-Copper
- 14AWG Conductors
- Full 500ft Roll
Description

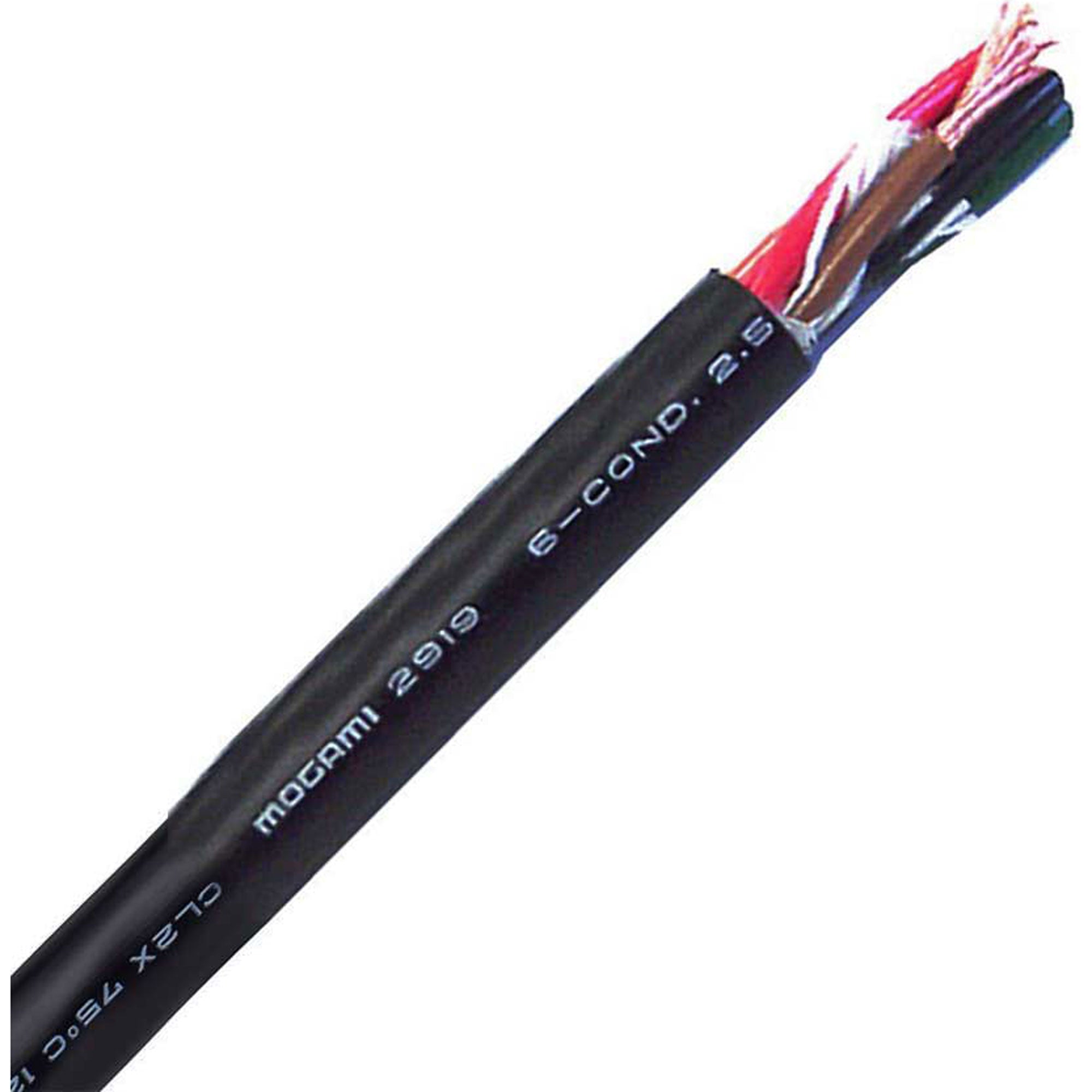

6 Conductor 14awg HiDef Superflexible Studio Speaker Cable - Full 500' Roll
- These unique professional speaker cables are originally designed to deliver maximum performance from state-of-the-art Tri-Amp Systems.
- They offer true audiophile performance for accurate sound transmission with clear transparent response yet possess a rugged superflexibility for the most demanding professional applications.
- Each conductor features many strands in rope-lay of famous MOGAMI 'NEGLEX' Oxygen-Free-Copper within colour-coded PVC insulation. A tough, low profile matte black superflexible PVC jacket protects the cables.
- Available in series of 2mm(2) (close to #14AWG), 2.5mm(2) (close to #13AWG) and 4mm(2) (close to #11AWG) conductor sizes.
Available Colors: Black

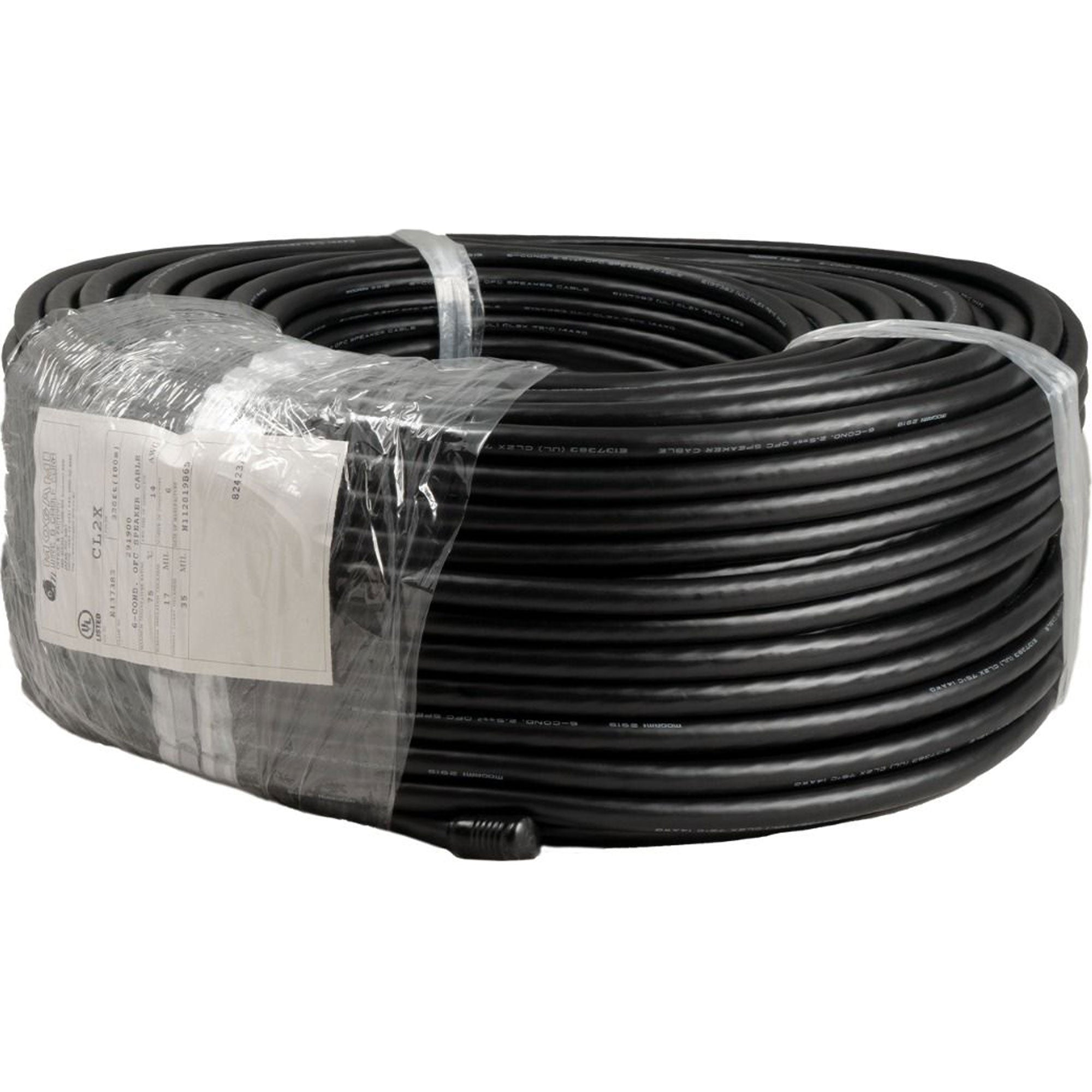

Standard Roll Lengths:
- 500 feet
Specifications:
- No. of Conductor: 6
- Conductor:Details: 7/32/0.12 NEGLEX OFC (bare)Size: 2.53mm(2) (#14AWG)
- Insulation Ov. Dia.(mm): 3.4 diameter (0.134" diameter) PVC
- Jacket:Ov. Dia.(mm): 12.8 diameter (0.504" diameter)Material: Flexible PVC, Matte Black
- Weight per 153m (500Ft) Roll: 39kg
- Voltage Breakdown: Must withstand at DC 500V/15sec.
- Insulation Resistance: 10000 MW m Min. at DC 125V, 20C
- Emigration of Jacket Material: Non-Emigrant to ABS resin
- Applicable Temperature: -20C~+70C (-4F~+158F)
- Roll Sizes: 100m (328Ft) / 153m (500Ft) / 300m (984Ft)
- Standard: UL13 CL2 75C
Electrical & Mechanical Characteristics:
- DC Resistance (20C): 0.008W/m Typ. (0.0024W/Ft)
- Inductance (1kHz, 20C):(Refer to the figures shown in the capacitance data.)1-2: 0.4H/m (0.12H/Ft)1-3: 0.45H/m (0.14H/Ft)1-4: 0.65H/m (0.20H/Ft)
| Capacitance (20C) | Frequency | 100Hz | 1kHz | 10kHz | 50kHz | 100kHz |
| W2919 | 1-2 | 126pF/m(38.4pF/Ft) | 102pF/m(31.1pF/Ft) | 87pF/m(26.5pF/Ft) | 80pF/m(24.4pF/Ft) | 78pF/m(23.8pF/Ft) |
| 1-3 | 94pF/m(28.7pF/Ft) | 72pF/m(22.0pF/Ft) | 61pF/m(18.6pF/Ft) | 56pF/m(17.1pF/Ft) | 55pF/m(16.8pF/Ft) | |
| 1-4 | 82pF/m(25.0pF/Ft) | 62pF/m(18.9pF/Ft) | 52pF/m(15.9pF/Ft) | 48pF/m(14.6pF/Ft) | 46pF/m(14.0pF/Ft) |
Features:
- Offers true audiophile performance for accurate sound transmission with clear transparent response, yet possess a rugged superflexibility for the most demanding professional applications
- Each conductor features many strands in rope-lay of famous Mogami 'NEGLEX' oxygen-free-copper within color-coded PVC insulation
- A tough, low profile matte black superflexible PVC jacket protects the cable
Specifications:
- No. of Conductor: 6
- Conductor Details: 7/32/0.12 NEGLEX OFC (bare)
- Conductor Size: 2.5mm² (#14AWG)
- Insulation Ov. Dia.(mm): 3.4Ø (0.134"Ø) PVC
- Overall Diameter: 12.8mm, 0.504"
- Weight per 153m (500Ft) Roll: 39kg, 86lb
- DC Resistance (20°C): 0.008Ω/m Typ. (0.0024Ω/Ft)
- Inductance (1kHz, 20C): 1-2: 0.4H/m (0.12H/Ft), 1-3: 0.45H/m (0.14H/Ft), 1-4: 0.65H/m (0.20H/Ft)

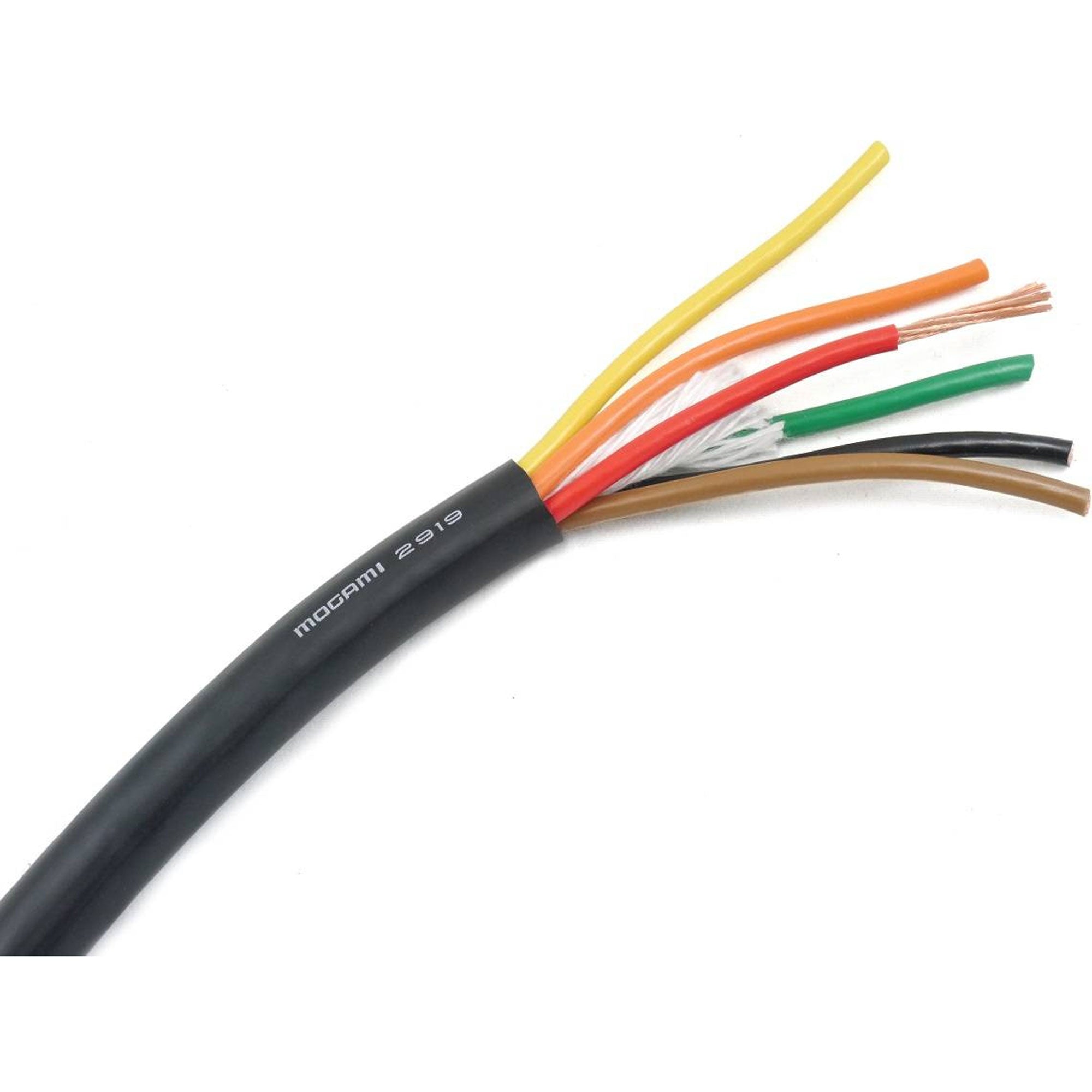

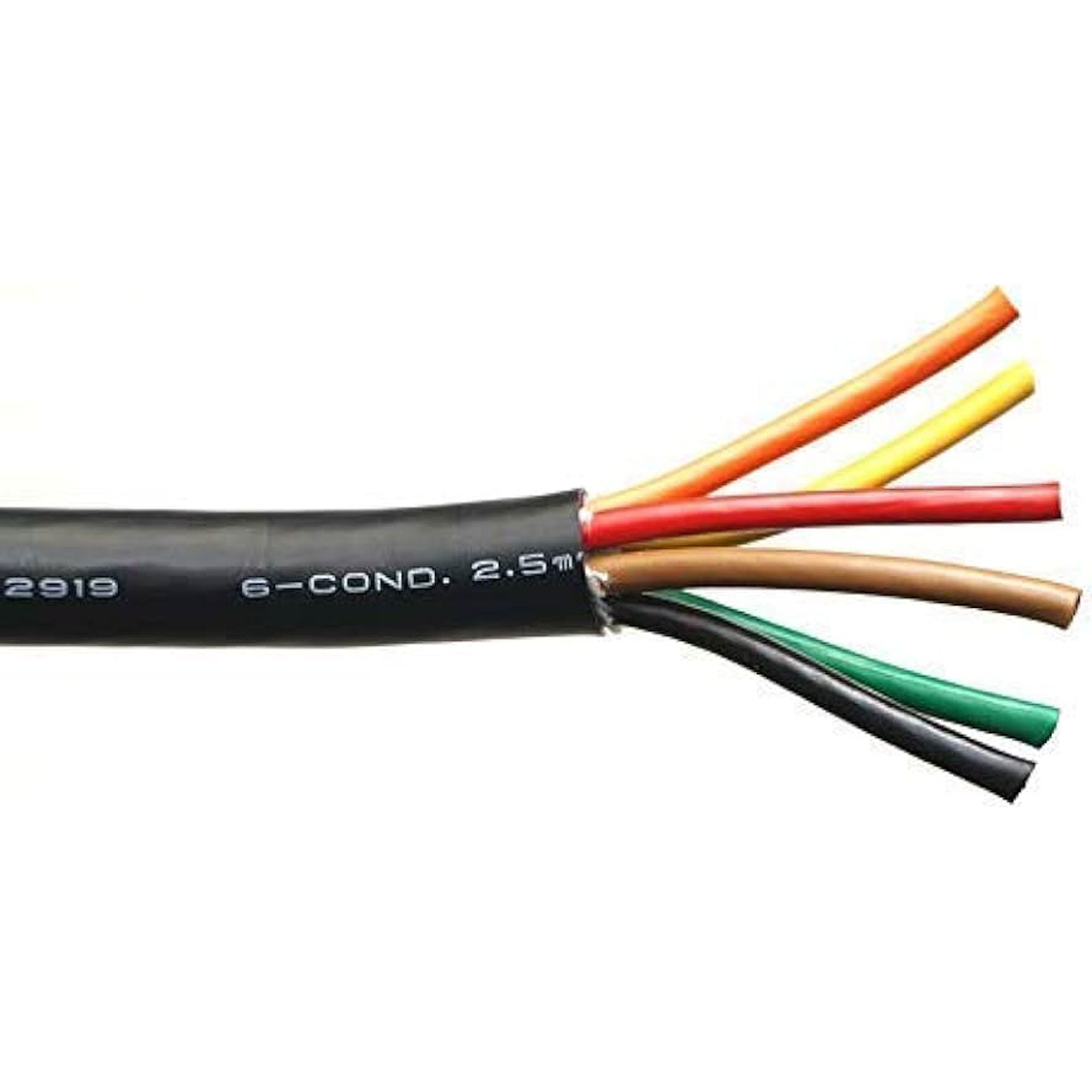

- Core Colors: Black / Brown / Red / Orange / Yellow / Green
- Voltage Breakdown: Must withstand at DC 500V/15sec.
- Insulation Resistance: 10000 MΩ × m Min. at DC 125V, 20°C
- Emigration of Jacket Material: Non-Emigrant to ABS resin
- Applicable Temperature: -20°C to +70°C (-4°F to +158°F)
- Roll Sizes: 100m (328Ft) / 153m (500Ft) / 300m (984Ft)
- Standard: UL13 CL2 75°C
