Key Features
- Miniature Microphone Cable
- 2-Conductor, 30AWG
- Tensile Strength
- Longer Flex Life
- Black Jacket
- Sold by the Foot
- Shipped in a Continuous Length
Description

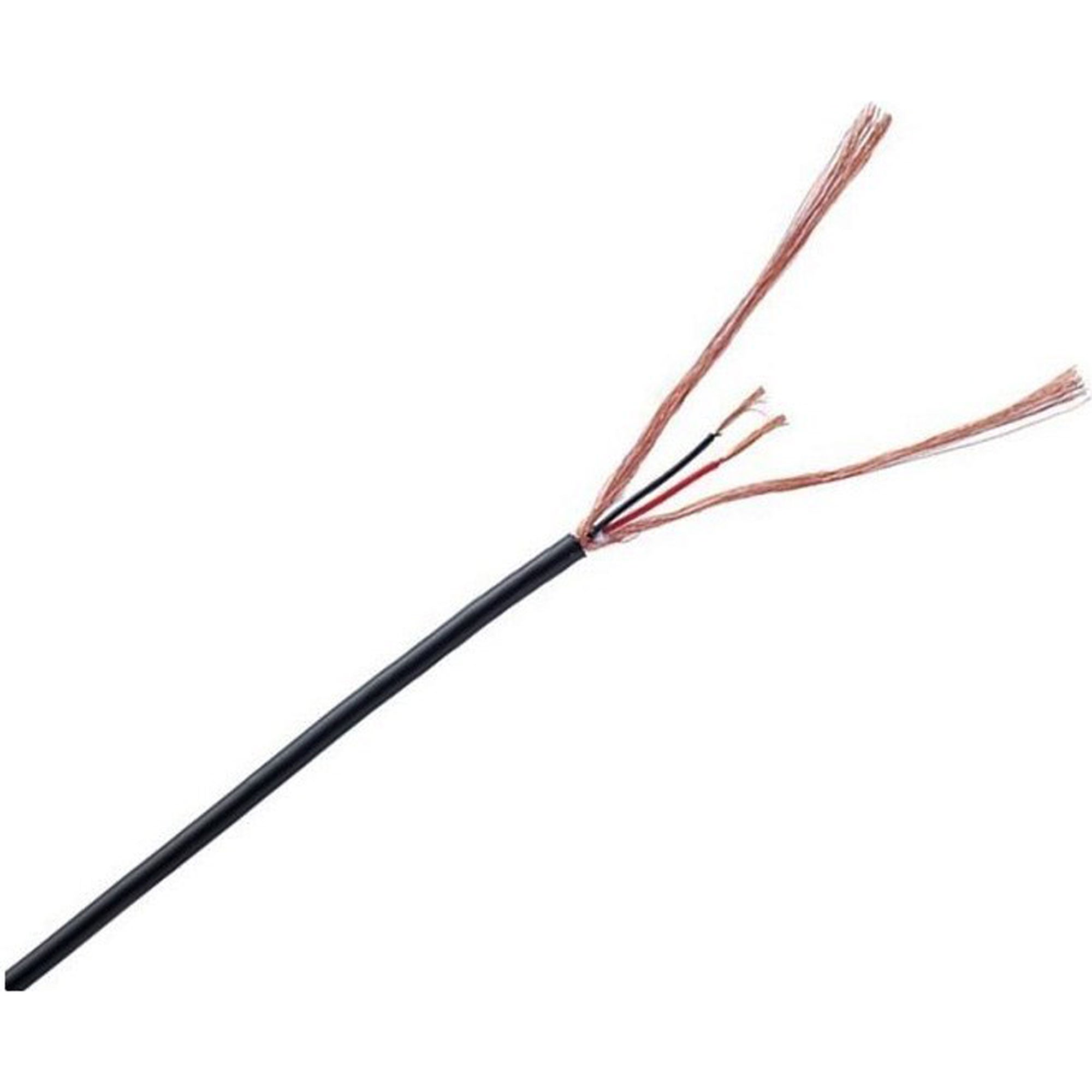

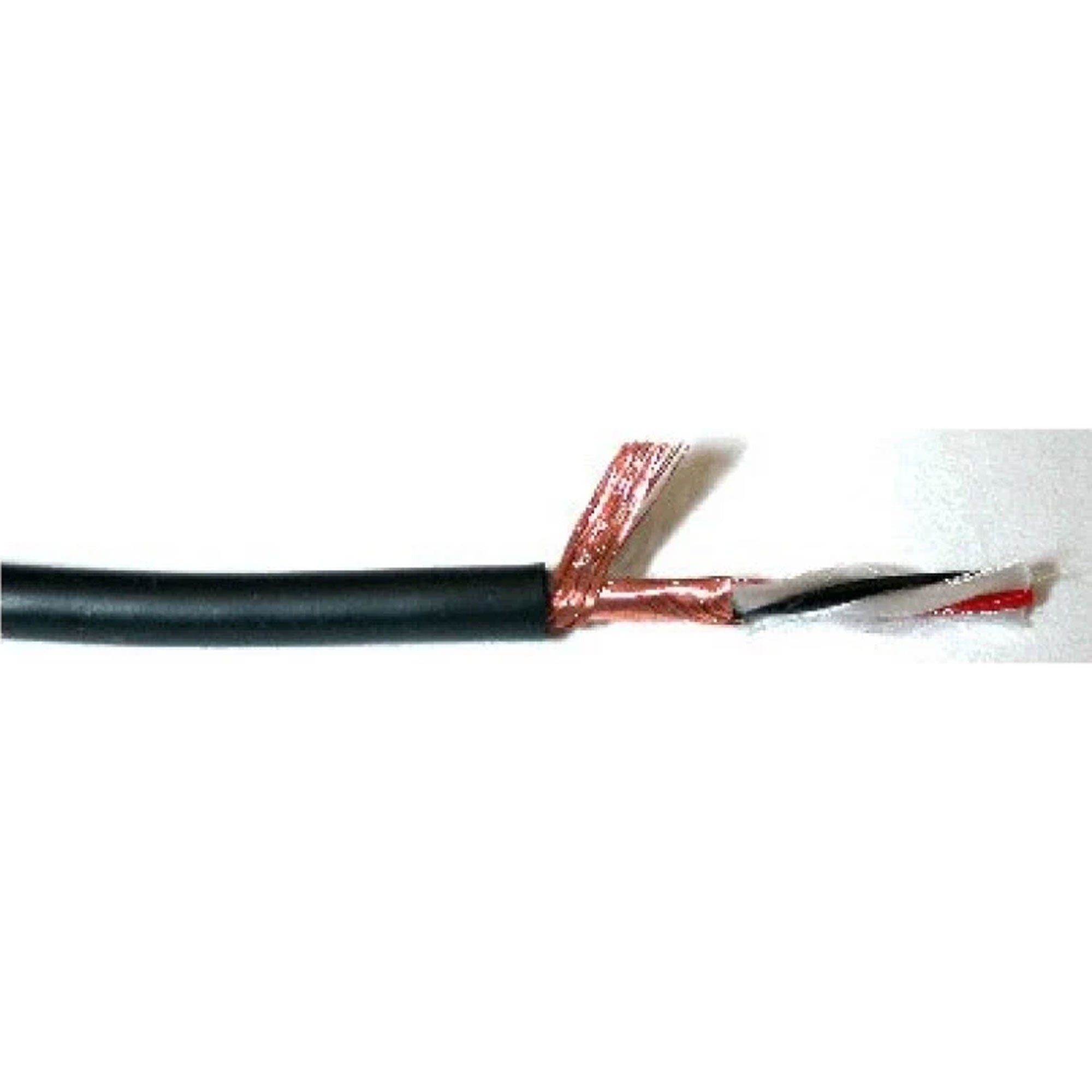

Black 2 Conductor 30awg Miniature Balanced Mic Cable - Sold by the Foot
These miniature microphone cables feature necessary mechanical strength (tensile strength and long flex life) and flexibility for lavalier microphones and other applications. All balanced configuration. Part No. W3031 cable is exactly same construction as Part No. W2697 cable except for shield structure. Part No. W2697 cable is constructed with served (spiral) shield, while Part No. W3031 cable is constructed with braided shield. Part No. W2901 is specially designed with better tensile strength and longer flex life, sacrificing some sound quality, and creating a slightly more difficult soldering job because of used copper-tin alloy conductor, this cable is mechanically very strong and durable. Of couse, its cost is higher.
Specifications:
- Part No.: W2901
- No. of Conductor: 2
- Conductor Details: 43/0.04 Cu-Sn
- Conductor Size(mm²): 0.054mm² (#30 AWG)
- Insulation Ov. Dia.(mm): 0.6Ø (0.0236")
- Insulation Material: Polyester
- Insulation Colors: Black / Red
- Filler Thread: Polypropylene

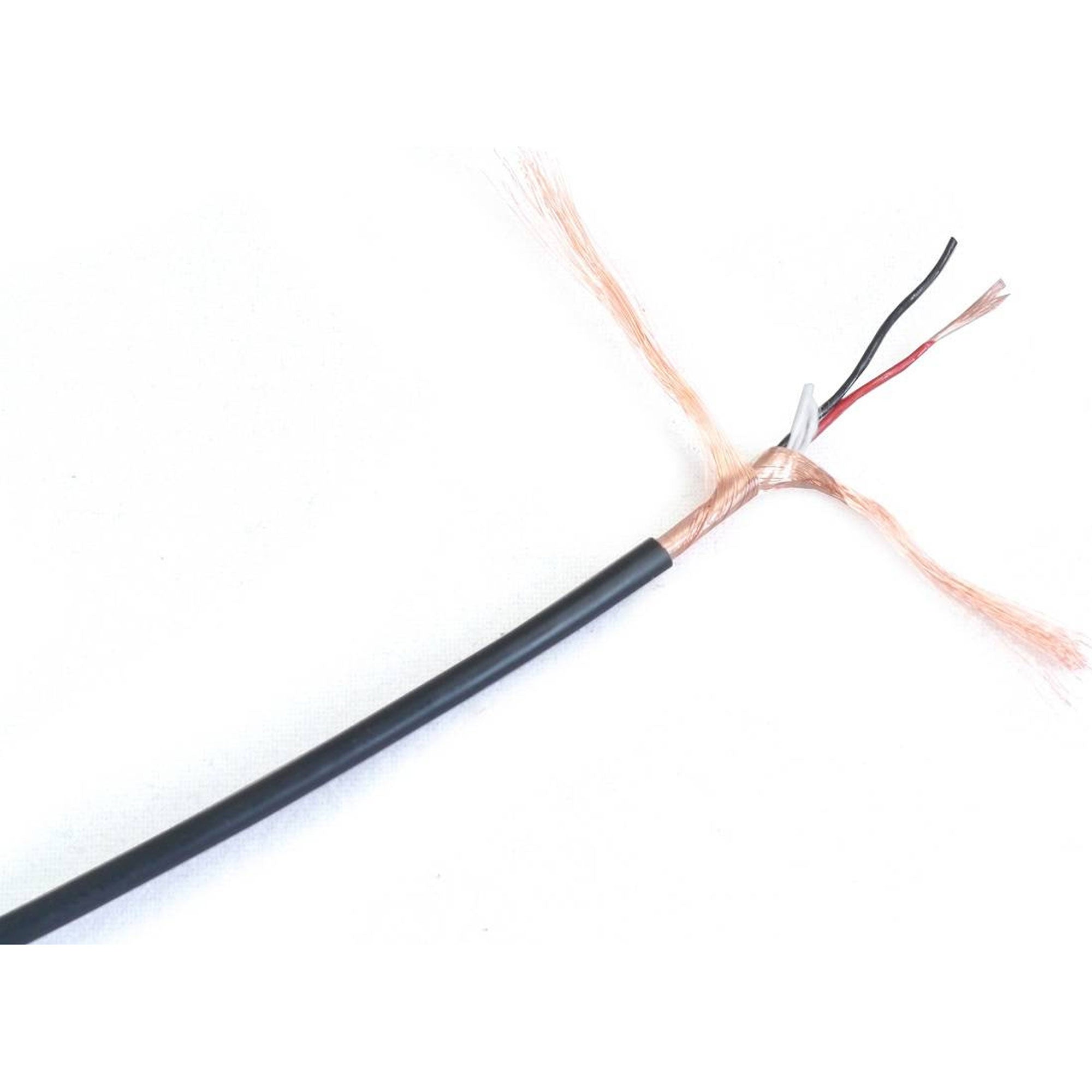

- Shield: Double Served Shield
Approx. 35/0.08A,
Approx. 40/0.08A - Jacket Ov. Dia.(mm): 2.16Ø (0.085")
- Jacket Material: Flexible PVC
- Jacket Colors: Black
- Roll Sizes: 305m (1000Ft)
- Weight: 2.7kg / 305m
- ELECTRICAL & MECHANICAL CHARACTERISTICS
- DC Resistance at 20°C Inner Cond.: 0.41Ω/m(0.125Ω/Ft)
- DC Resistance at 20°C Shield: 0.07Ω/m(0.0214Ω/Ft)
- Capacitance at 1kHz, 20°C (Partial C. Value) K0: 176pF/m(54pF/Ft)
- Capacitance at 1kHz, 20°C (Partial C. Value) K1: 32pF/m(9.8pF/Ft)
- Inductance between conductors at 1kHz. 20°C: 0.8µH/m(0.24µH/Ft)
- Electrostatic Noise**: 1mV Max.
- Electromagnetic Noise**: 0.15mV Max.
- Microphonics at 50KΩ Load**: 40mV Max.
- Voltage Breakdown: Must withstand at DC 500V/15sec.
- Insulation Resistance: 100000 MΩ x m Min. at DC 125V, 20°C
- Flex Life**: 177,000 cycles
- Tensile Strength: 176N
- Emigration: Non-emigrant to ABS
- Applicable Temperature: -20°C‾ +70°C(-4°F‾ +158°F)
- ** Using standard testing methods of Mogami Wire & Cable Corp.
