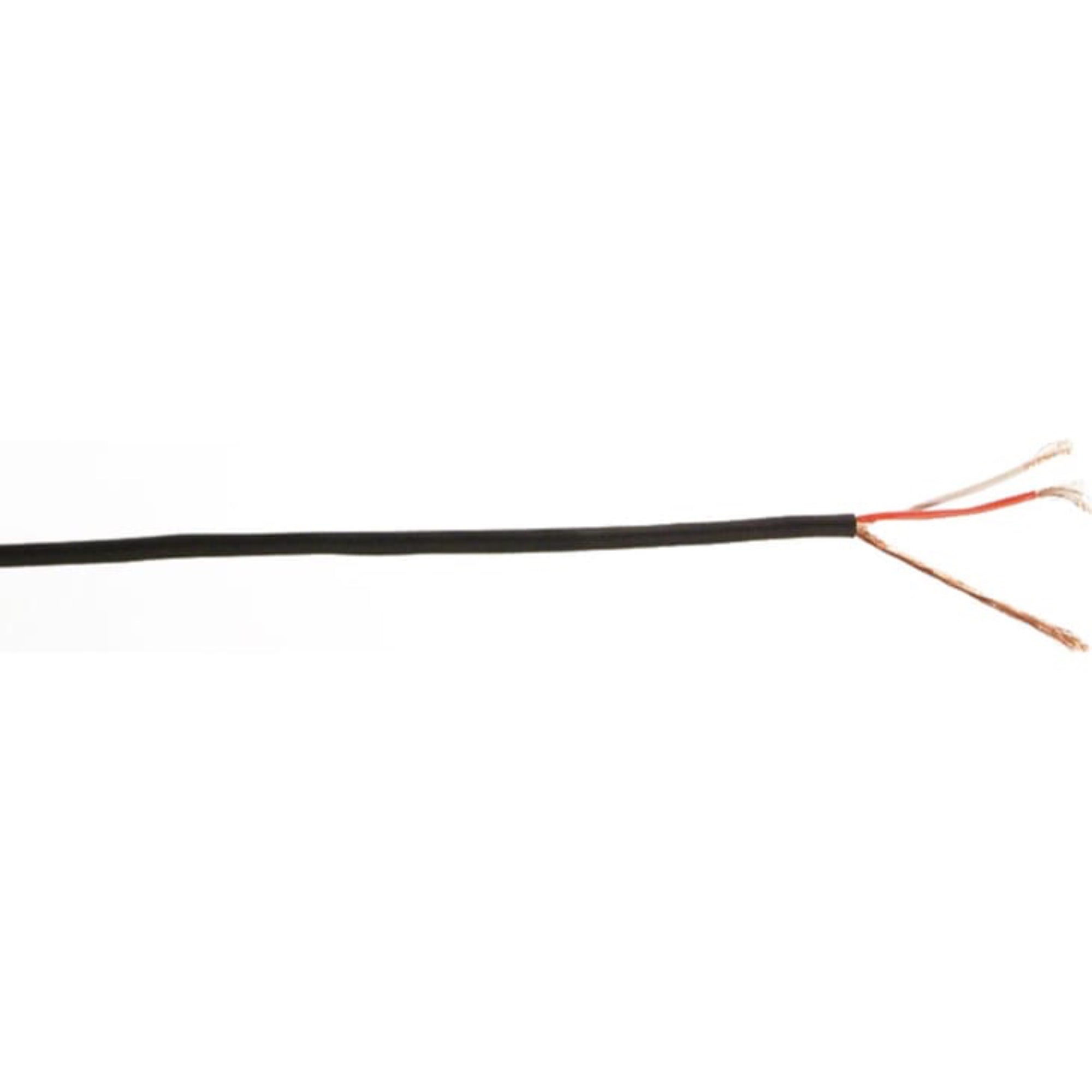

Mogami W2697 Miniature Balanced Mic Cable (Black, By the Foot)

2 Conductor 28awg Miniature Balanced Mic Cable - Sold by the Foot

These miniature microphone cables feature necessary mechanical strength (tensile strength and long flex life) and flexibility for lavalier microphones and other applications. All balanced configuration. Part No. W3031 cable is exactly same construction as Part No. W2697 cable except for shield structure. Part No. W2697 cable is constructed with served (spiral) shield, while Part No. W3031 cable is constructed with braided shield. Part No. W2901 is specially designed with better tensile strength and longer flex life, sacrificing some sound quality, and creating a slightly more difficult soldering job because of used copper-tin alloy conductor, this cable is mechanically very strong and durable. Of couse, its cost is higher.

Available Colors:
Black

Standard Roll Lengths:
164 feet
328 feet
656 feet

Specifications:

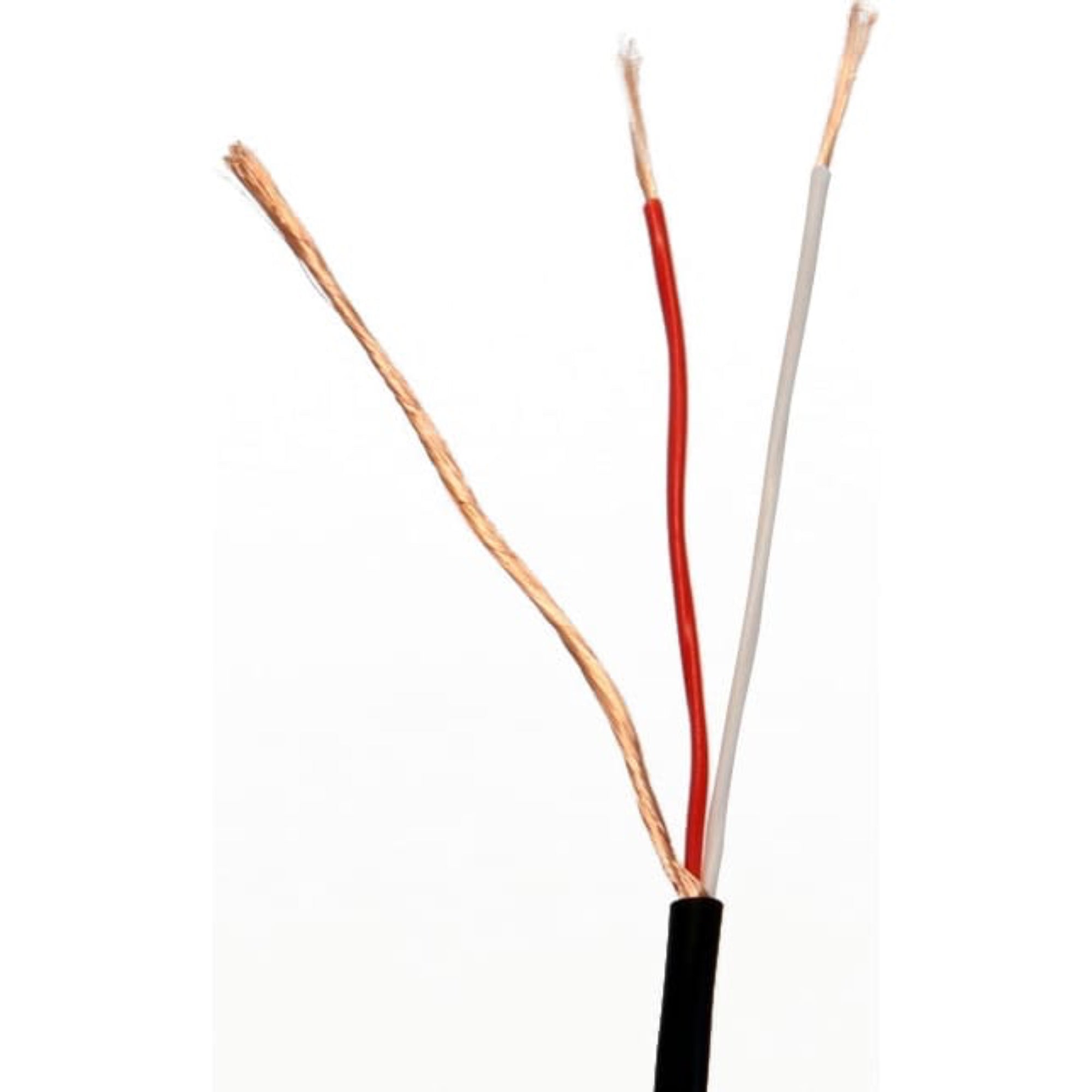

• No. of Conductor: 2
• Conductor Details: 16/0.08 A
• Conductor Size(mm(2)): 0.08mm(2) (#28 AWG)
• Insulation Ov. Dia.(mm): 0.85 diameter (0.033")
• Insulation Material: PVC
• Insulation Colors: Red / White
• Shield: Served Shield Approx. 60/0.08A
• Jacket Ov. Dia.(mm): 2.5 diameter (0.098")
• Jacket Material: Flexible PVC
• Jacket Colors: Black
• Roll Sizes: 50m (164 Ft), 100m (328Ft), 200m (656Ft)
• Weight: 1.8kg / 200m
• Electrical & Mechanical Characteristics:
• DC Resistance at 20C Inner Cond.: 0.23W/m(0.070W/Ft)
• DC Resistance at 20C Shield: 0.065W/m(0.020W/Ft)
• Capacitance at 1kHz, 20C (Partial C. Value) See below figure* K0: 300pF/m(92pF/Ft)
• Capacitance at 1kHz, 20C (Partial C. Value) See below figure* K1: 57pF/m(17pF/Ft)
• Inductance between conductors at 1kHz. 20C: 0.8H/m(0.24H/Ft)
• Electrostatic Noise**: 50mV Max.
• Electromagnetic Noise**: 0.15mV Max.
• Microphonics at 50KW Load**: 300mV Max.
• Voltage Breakdown: Must withstand at DC 500V/15sec.
• Insulation Resistance: 100000 MW m Min. at DC 125V, 20C
• Flex Life**: 49,000 cycles
• Tensile Strength: 294N
• Emigration: Non-emigrant to ABS
• Applicable Temperature: -20C~ +70C(-4F~ +158F)
• * Patial Capacitance** Using standard testing methods of Mogami Wire & Cable Corp.
