Key Features
- 7 Conductors
- 26 AWG
- Served Shield
- Gray Jacket
- Sold by the Foot
- Shipped in a Continuous Length
Description

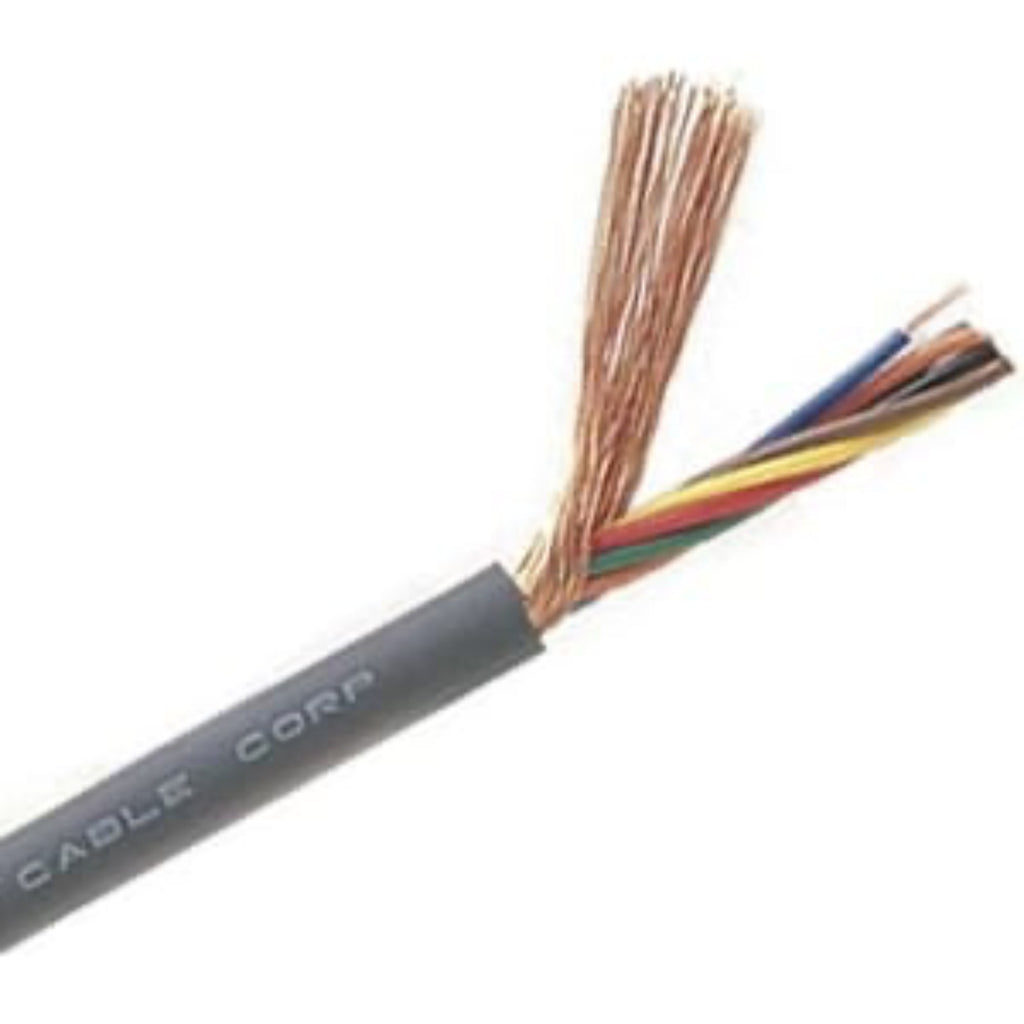

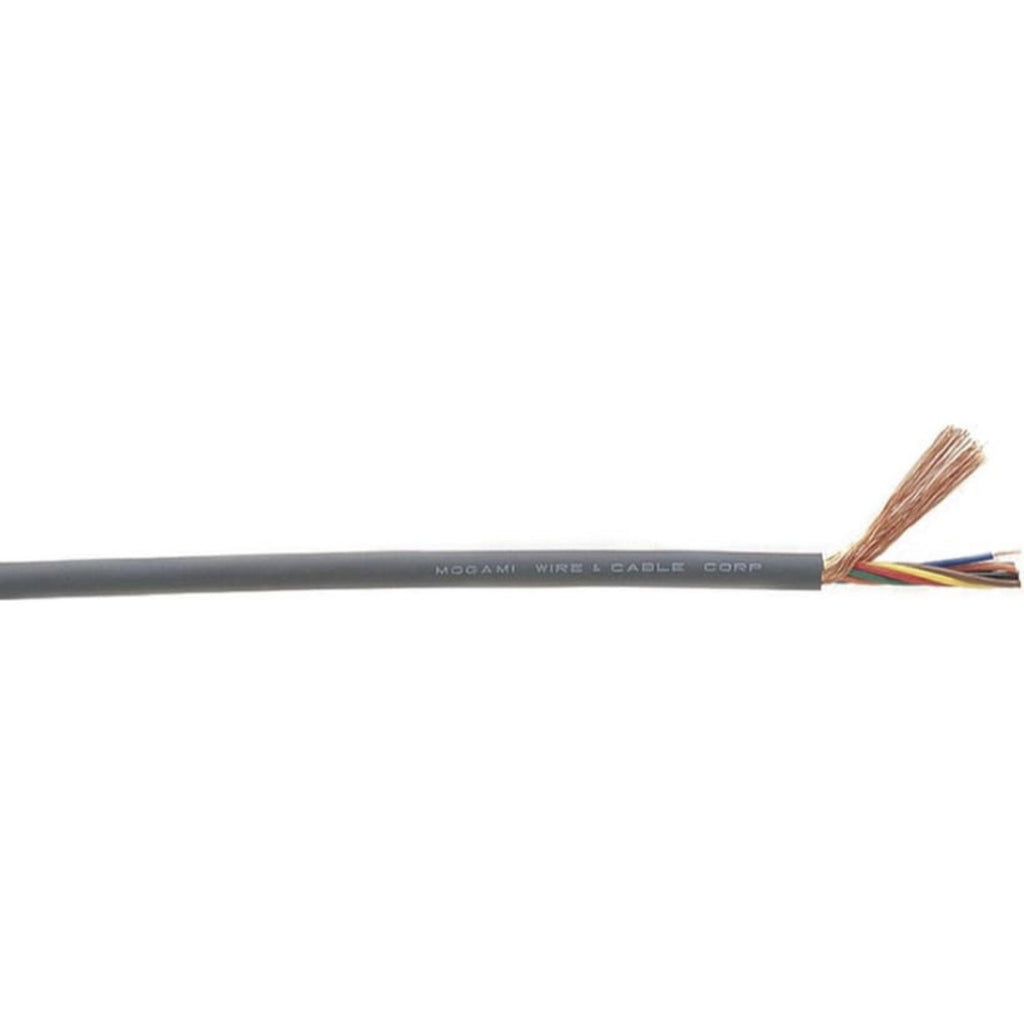

7 Conductor 26awg Superflex Conductor Overall Shield Cable - Sold by the Foot
0.15mm² (#26AWG ) conductor overall shield cable series is comprised of about two times larger conductor size as mechatro overall shield cable series. There is no community in design policy, as they were originally custom-made cables and remained as standard items one by one, however, they are suitable where larger conductor size, flexibility and compactness are all required. Available from five up to nine conductor, not in twisted pair configuration.
Available Colors:
Gray
Standard Roll Lengths:
656 feet
Specifications:
- No. of Conductors: 7
- Conductor: Details: 30/0.08A (40 #40AWG)Size(mm(2)): 0.150mm(2) (#26AWG)
- Insulation: Ov. Dia.(mm): 1.0 diameter (0.0394")Material: PVC
- Overall Shield: Type: See Each Spec.Coverage: 85% (Braid) ~ 100% (Served)
- Ov. Jacket:Material: Flexible PVCColor: Dark Gray or Black
- Ov. Dia. (mm): 5.0 diameter (0.197)
- Type of Shield: Served
- Color: Gray
- Roll size and weight per roll: 8.8kg/200m (656Ft)
- Electrical & Mechanical Characteristics:
- DC Resistance at 20C: 0.13W/m(0.040W/Ft)
- Electromagnetic Noise: 0.1mV Max.
- Voltage Breakdown: Must withstand at DC 500V/15sec.
- Insulation Resistance: 10000 MW m Min. at DC 500V , 20C
- Emigration: Non-emigrant to ABS resin
- Applicable Temperature: -20C~ +70C(-4F~ +158F)
