Key Features
- 2-Conductor, 25AWG
- Low Cost High Performance
- Superflexible Cable
- Black Jacket
- Sold by the Foot
- Shipped in a Continuous Length
Description

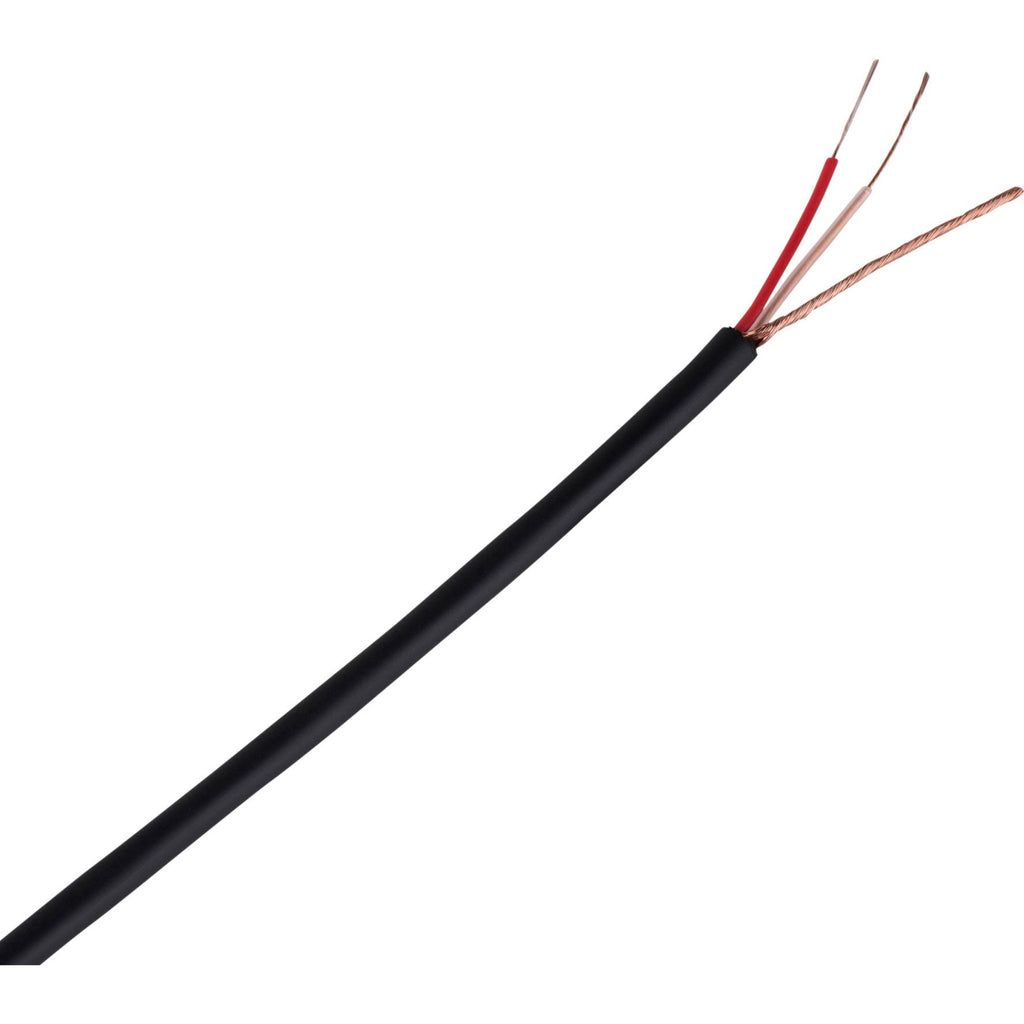

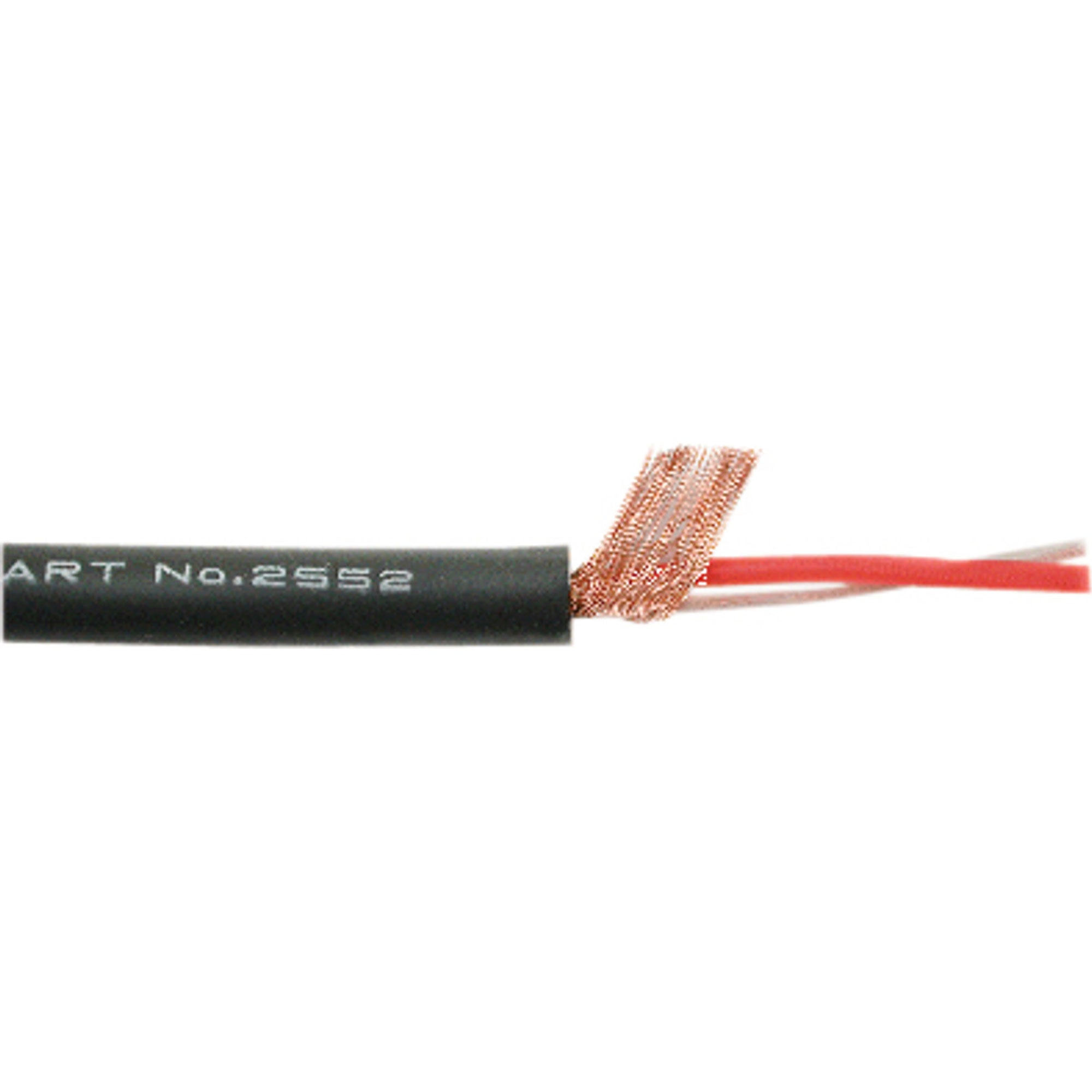

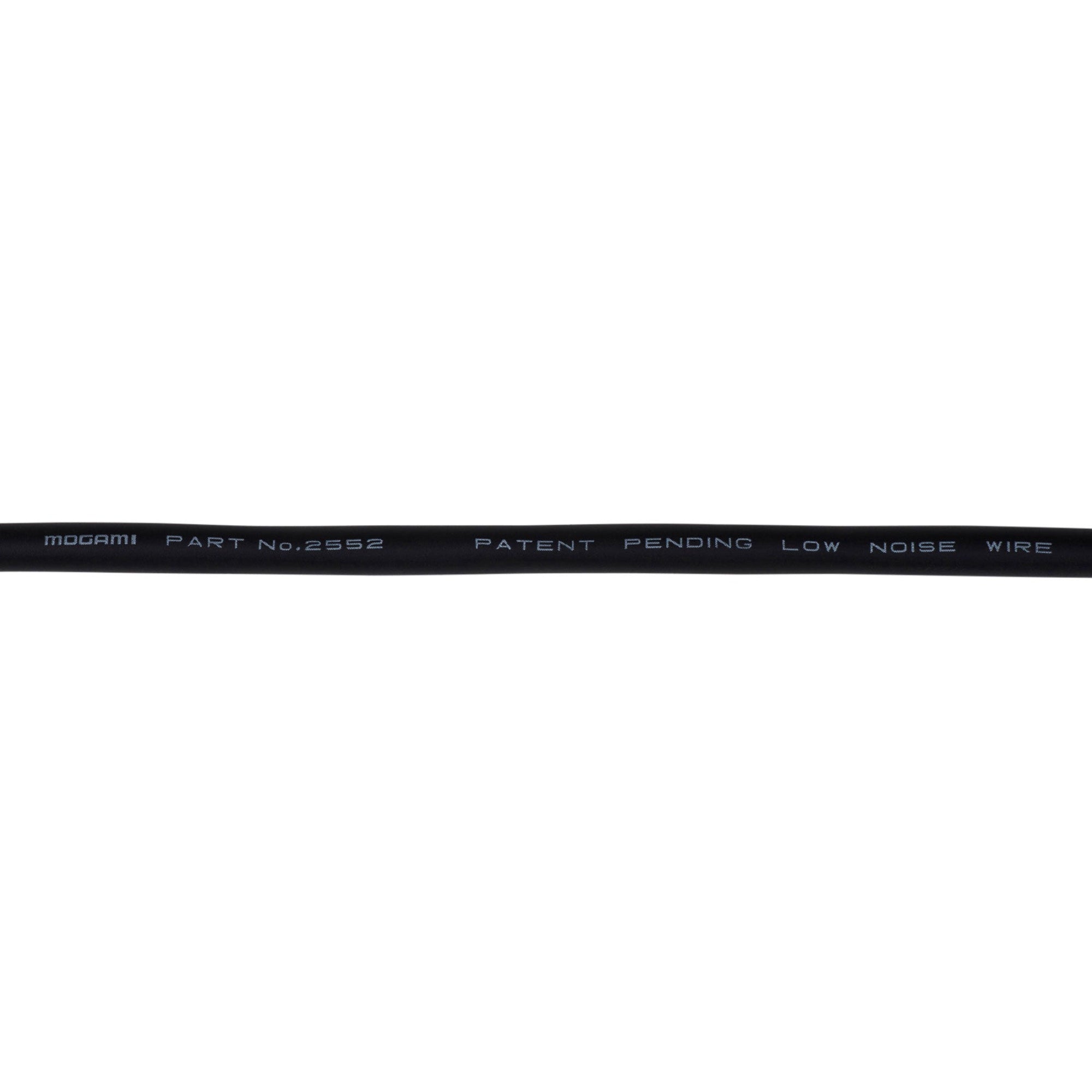

2 Conductor 25awg General Purpose Mic Cable - Sold by the Foot
A specially developed high performance yet economical series of low impedance balanced microphone cables. These cables are small in size and special rubber - like PVC jacket is extremely flexible and exhibits good resistance to rough handling and abrasion.

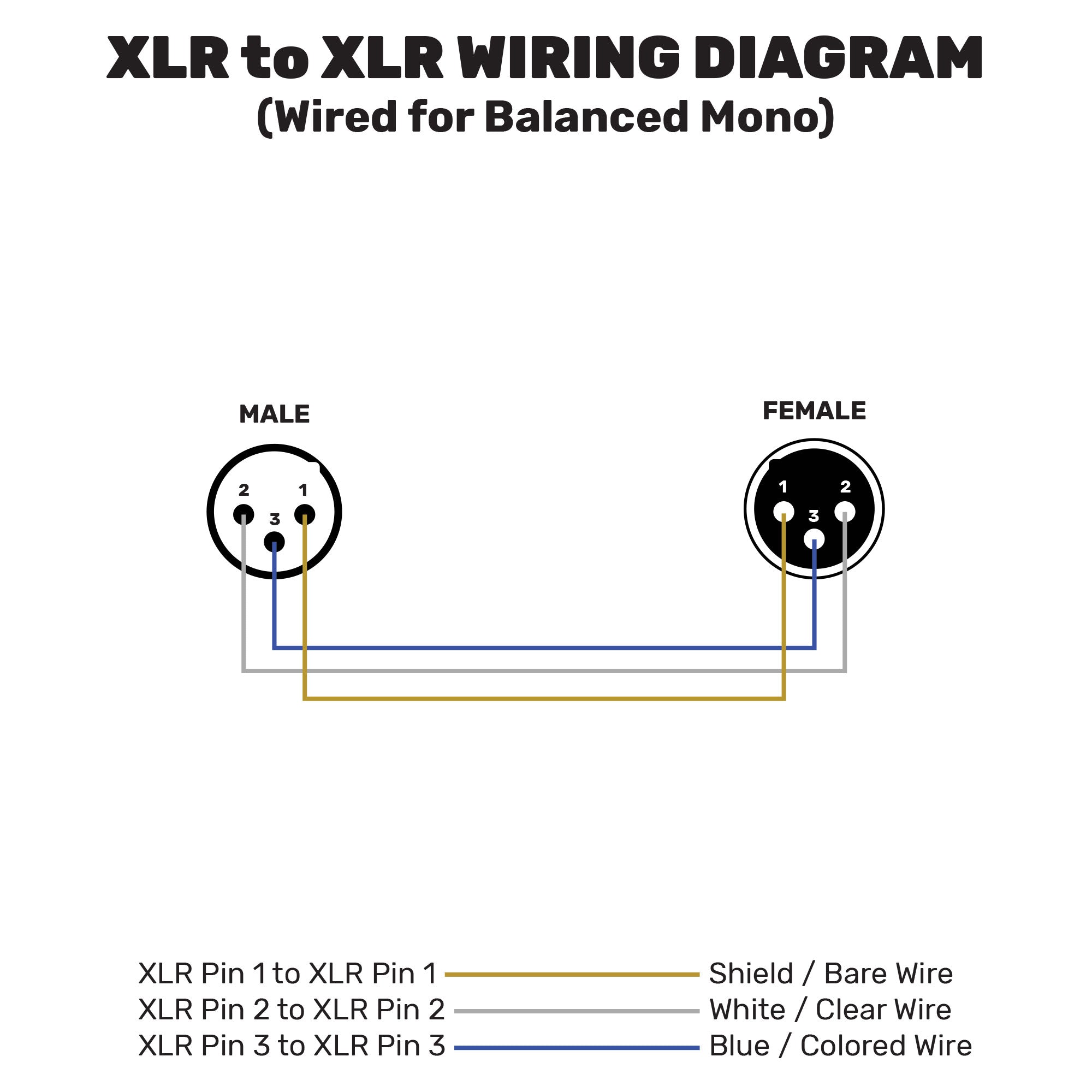

High grade insulation material is designed to minimize heat shrinkage during soldering which allows easy termination to XLR type connectors. Available in both overall and individually sheilded types.

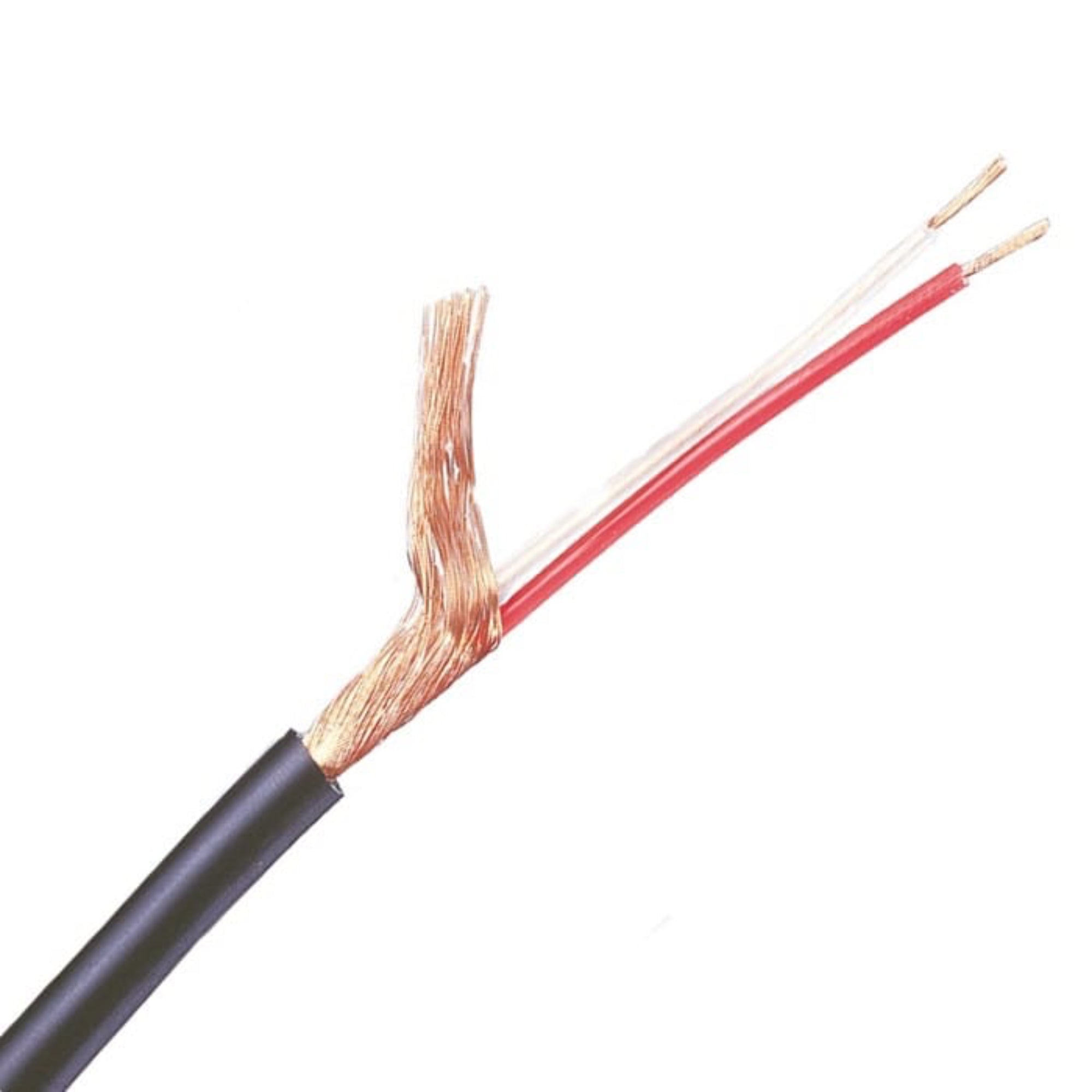

Superflexible Light Weight Mic. Cables With Overall Shield
Here is an extremely limp and flexible cable for all types of audio/visual and industrial audio applications. XLPE insulation and a strong rubber - like outer jacket makes this cable ideal where a durable yet economical cable is needed.
Available Colors: Black
Standard Roll Lengths:
- 164 feet
- 328 feet
- 656 feet
SPECIFICATIONS
- Part No.: W2552
- O.D. (mm): 5.0ø (0.197")
- Flex Life: 11,000 cycles
- Tensile Strength: 421 N
- Colors: Black
- No. of Conductor: 2
- Conductor Details: 12/0.12 A
- Conductor Size(mm²): 0.135mm² (#26 AWG)
- Insulation Ov. Dia.(mm): 1.5Ø (0.059")
- Insulation Material: LNXLPE (Low Noise Cross-Linked Polyethylene)
- Insulation Colors: Red / Clear

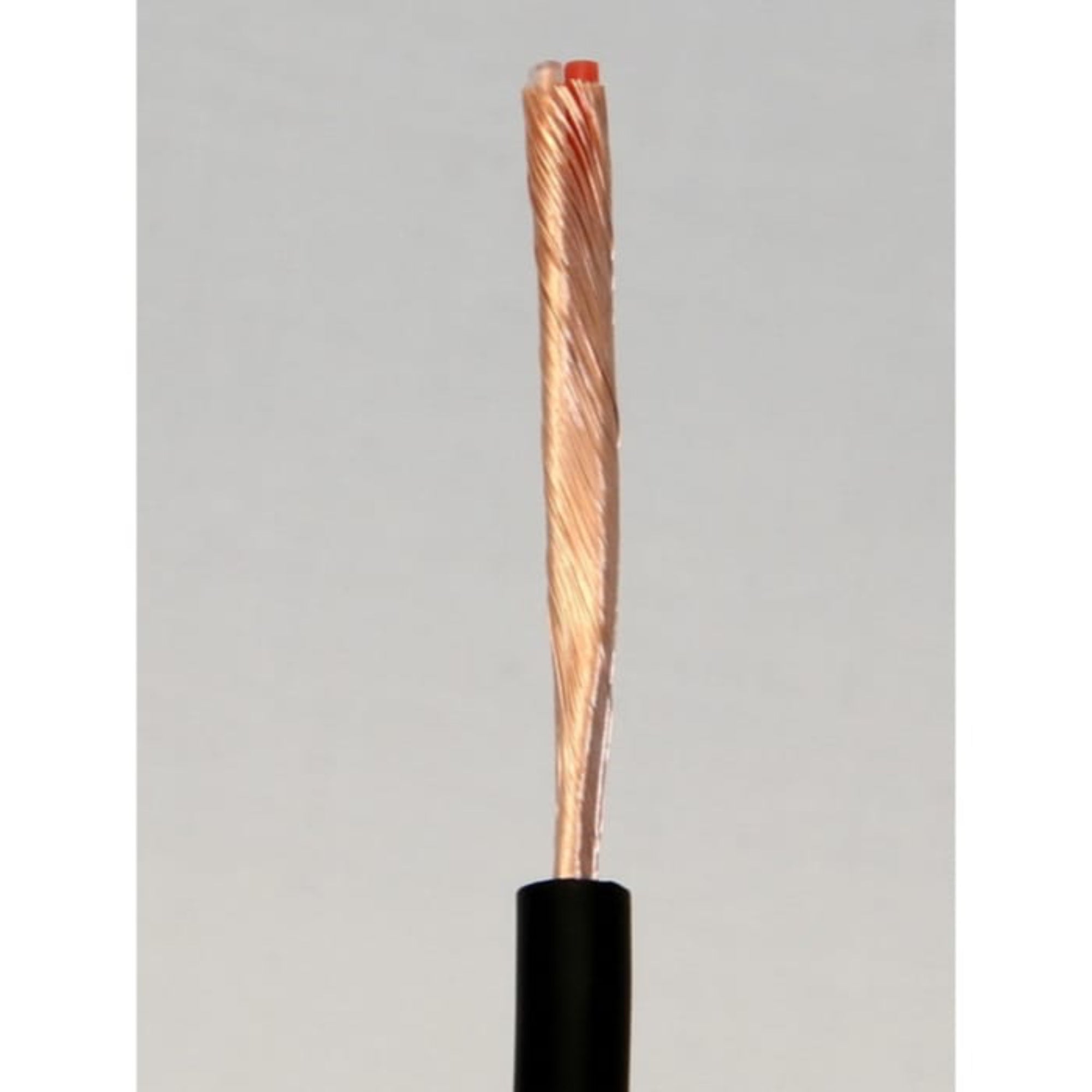

- Served Shield: Approx. 67/0.12A
- Jacket Ov. Dia.(mm): 5.0Ø (0.197")
- Jacket Material: Flexible PVC
- Jacket Colors: Black
- Roll Sizes: 50m (164 Ft), 100m (328Ft), 200m (656Ft)
- Weight per 200m Roll: 7.5kg
ELECTRICAL & MECHANICAL CHARACTERISTICS
- Part No.: W2552
- DC Resistance at 20°C Inner Cond.: 0.14W/m(0.043W/Ft)
- DC Resistance at 20°C Shield: 0.024Ω/m(0.007Ω/Ft)
- Capacitance at 1kHz, 20°C (Partial C. Value) K0: 90pF/m(27pF/Ft)
- Capacitance at 1kHz, 20°C (Partial C. Value) K1: 10pF/m(3pF/Ft)
- Inductance between conductors at 1kHz. 20°C: 0.8µH/m(0.24µH/Ft)
- Electrostatic Noise**: 50mV Max.
- Electromagnetic Noise**: 0.15mV Max.
- Microphonics at 50KW Load**: 30mV Max.
- Voltage Breakdown: Must withstand at DC 500V/15sec.
- Insulation Resistance: 100000 MW x m Min. at DC 125V, 20°C
- Flex Life**: 11,000 cycles
- Tensile Strength: 421N
- Emigration: Non-emigrant to ABS
- Applicable Temperature: -20°C- +70°C(-4°F- +158°F)
- ** Using standard testing methods of Mogami Wire & Cable Corp.
- * Partial Capacitance
