Key Features
- For Mounting Small Equipment
- Vented Bottom & Sides Reduce Heat
- Improves Rack Organization
- Holds up to 85 lb
- 15.4" Usable Depth
- Fits Standard 19" Racks
- Sturdy Steel Construction
Description

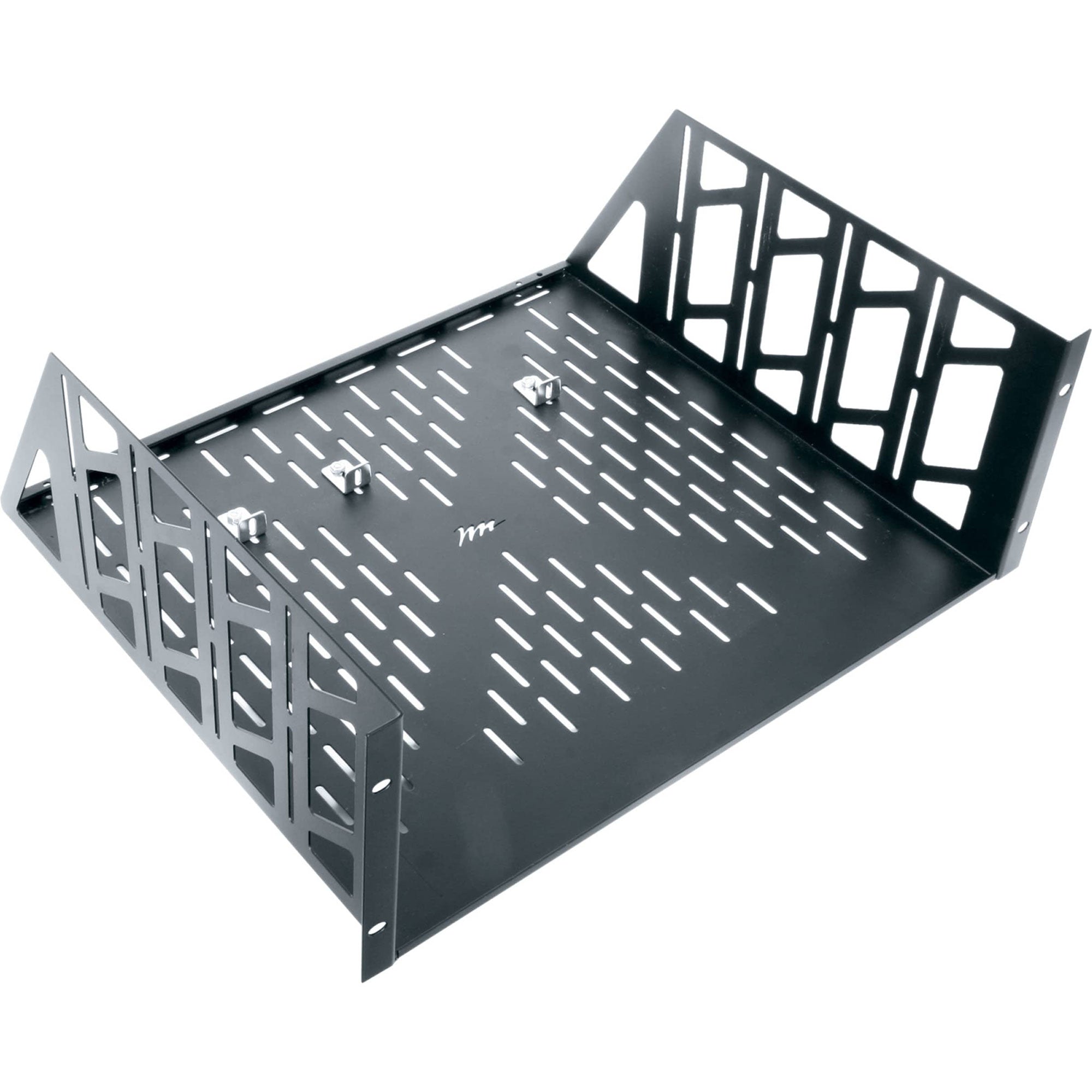

4 Space (7") Vented Rack Shelf
The U4V from Middle Atlantic is a ventilated shelf that was designed to be installed into a standard 19" rack. It creates a storage surface large enough for objects up to 17 3/8" (44.13 cm) in width. Both the base and the sides of the U4V are vented to help keep equipment cool, and 3 rear brackets are included to prevent items placed on the shelf from sliding off the back.
The U4V occupies 4 rack spaces, and has a weight capacity of 85 lbs (39 kg). It also features front and rear flanges for additional strength, and a flat black powder coat finish.
Features:
- Fully vented bottom and sides for heat dissipation
- Accepts optional clamping bars to secure components
- Accepts mounting of PD-815SC-PBSH power strip
- Welded steel construction, with black powder coat finish
Specifications:
- General Info
- finish: Black Powder Coat
- UL Standards Tested: 1678
- Assembly/Installation Information
- Mounting Points: 2
- Listing Agencies/Third Party Information
- RoHS: Yes
- Greenguard: Yes
- Dimensions
- Usable Depth: 15
- Capacity Weight U S: 85
- Depth U S: 15.375
- Height U S: 7
- Width U S: 19
- Primary Package Weight U S: 10.05
- Rack Units: 4
- Technical Information
- U L Load Capacity: 35-85
- Material: Steel
Details
- Manufacturer: Middle Atlantic
- MPN: U4V
- Model Number: U4V
- UPC: 656747110627
