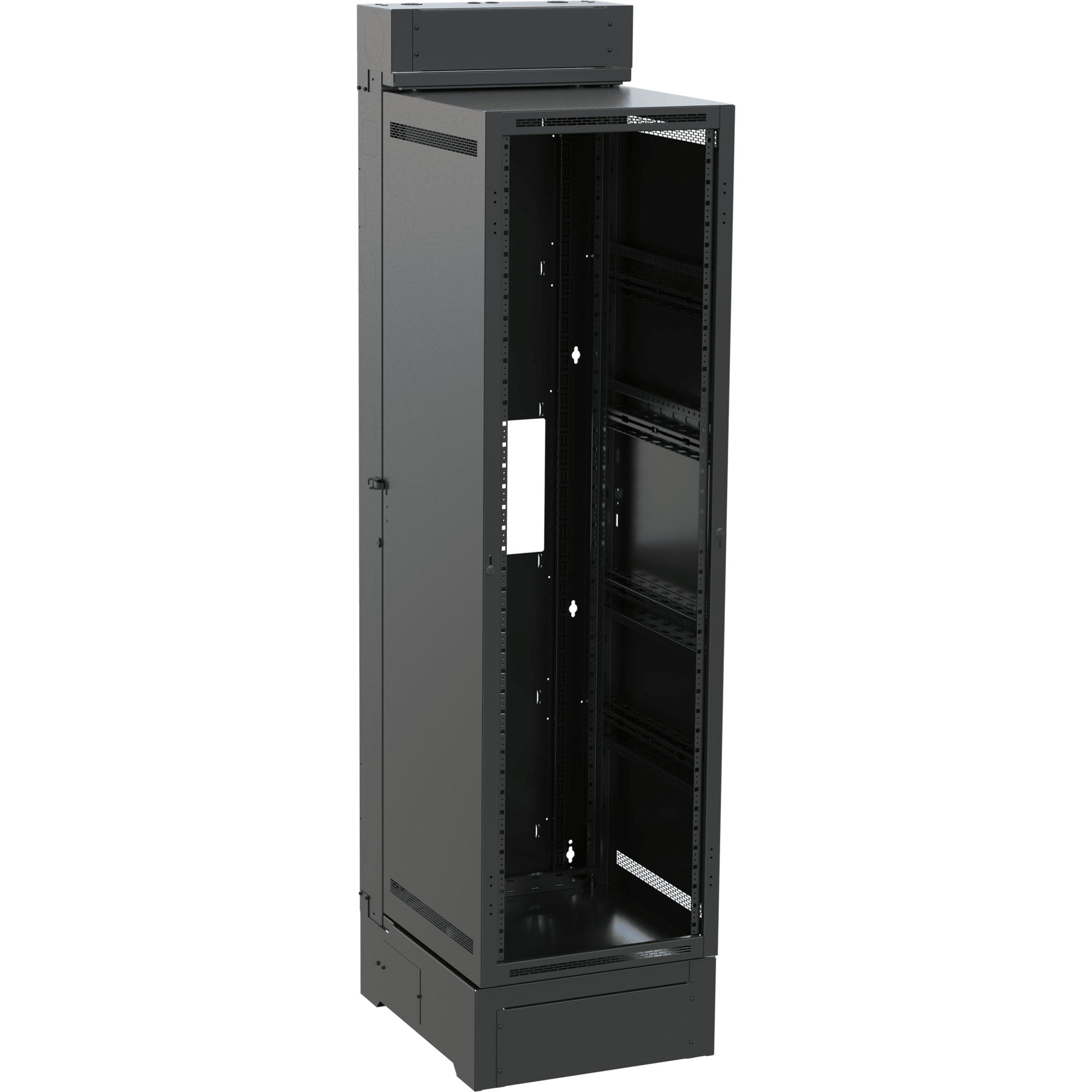

Middle Atlantic SR-40-32 SR Series Pivoting Rack 40U

40 Space (70") Pivoting Wall Rack, 30" Useable Depth

Get the advantages of both floor-standing racks and wall-mounted cabinets in one. This unique tall wall rack pivots open 90 degrees on a floor base to provide access to rear equipment connections. Specify an SR Series enclosure for heavier installations that will connect to on-wall cabling or pull boxes, and when easy access to rear equipment connections is essential.

This Middle Atlantic SR Series Pivoting Rack SR-40-32 is a 40U rack designed for 19" wide equipment that pivots on its floor base for easy access to equipment. It features the trademarked "Tool-Free Quick-Mount" system, which allows for easy mounting of the center section to the backpan on the job site. Its welded-steel construction supports up to 500 lb. and adjustable 1/8", 10-32 threaded front rackrails make positioning your equipment a snap (rear rackrails are optional).

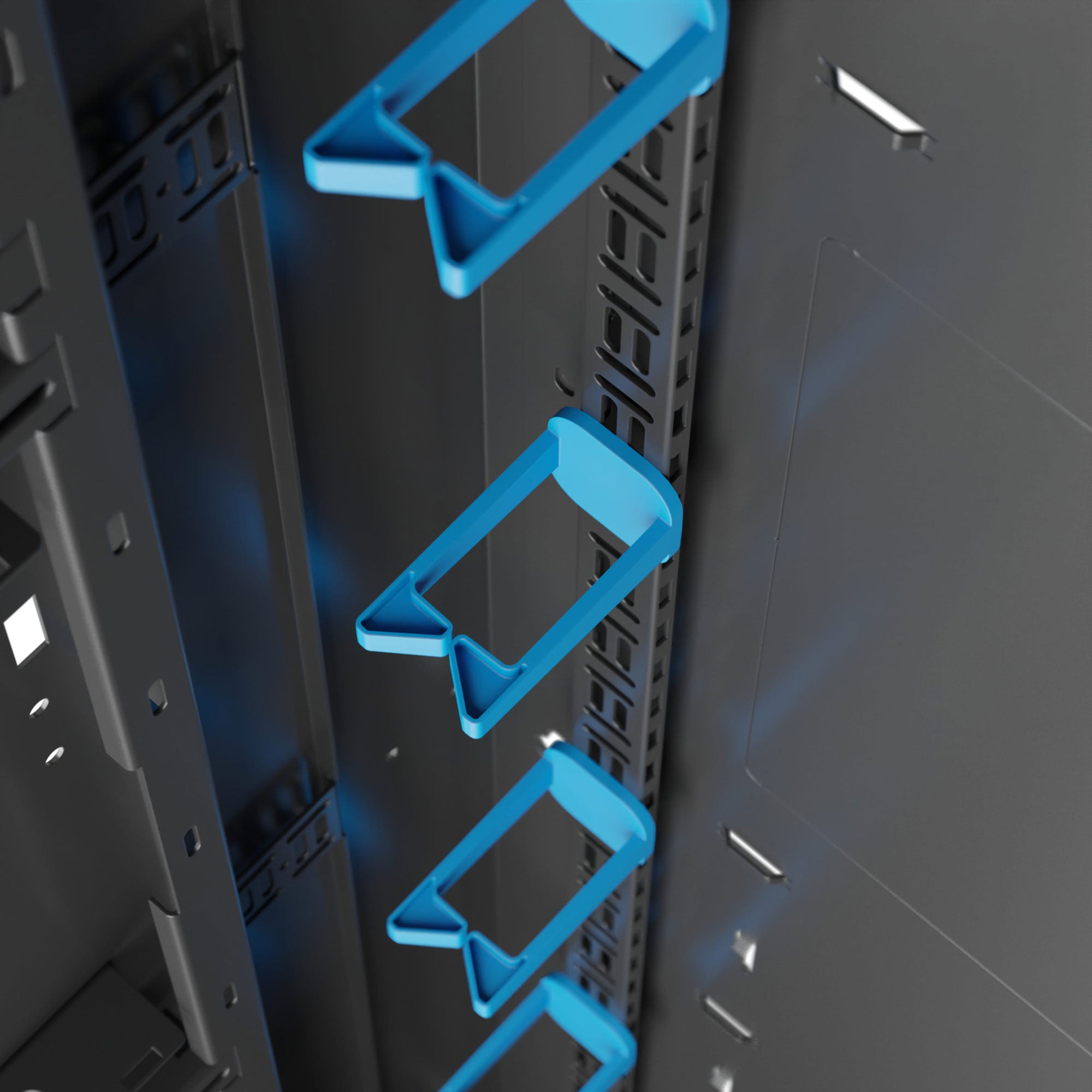

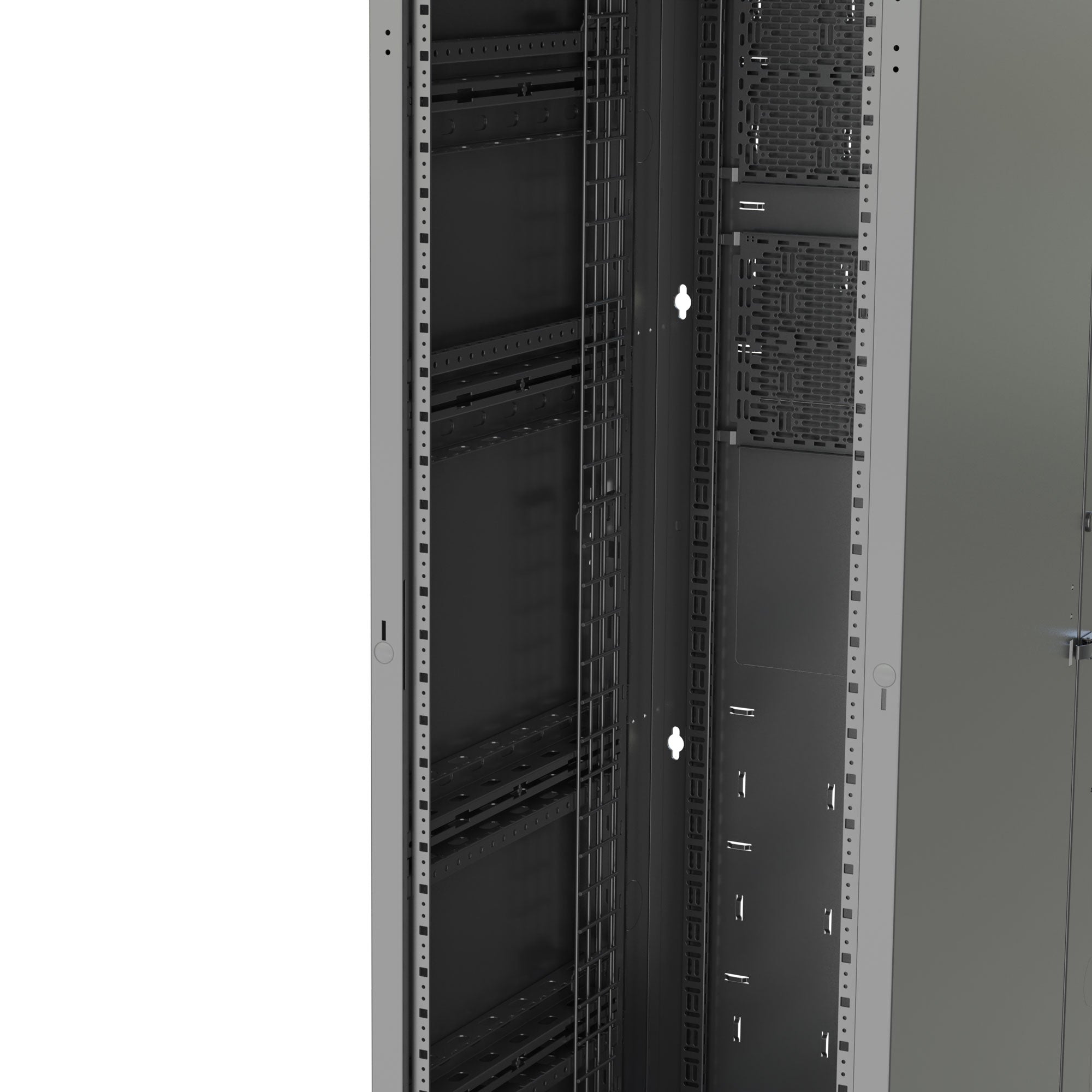

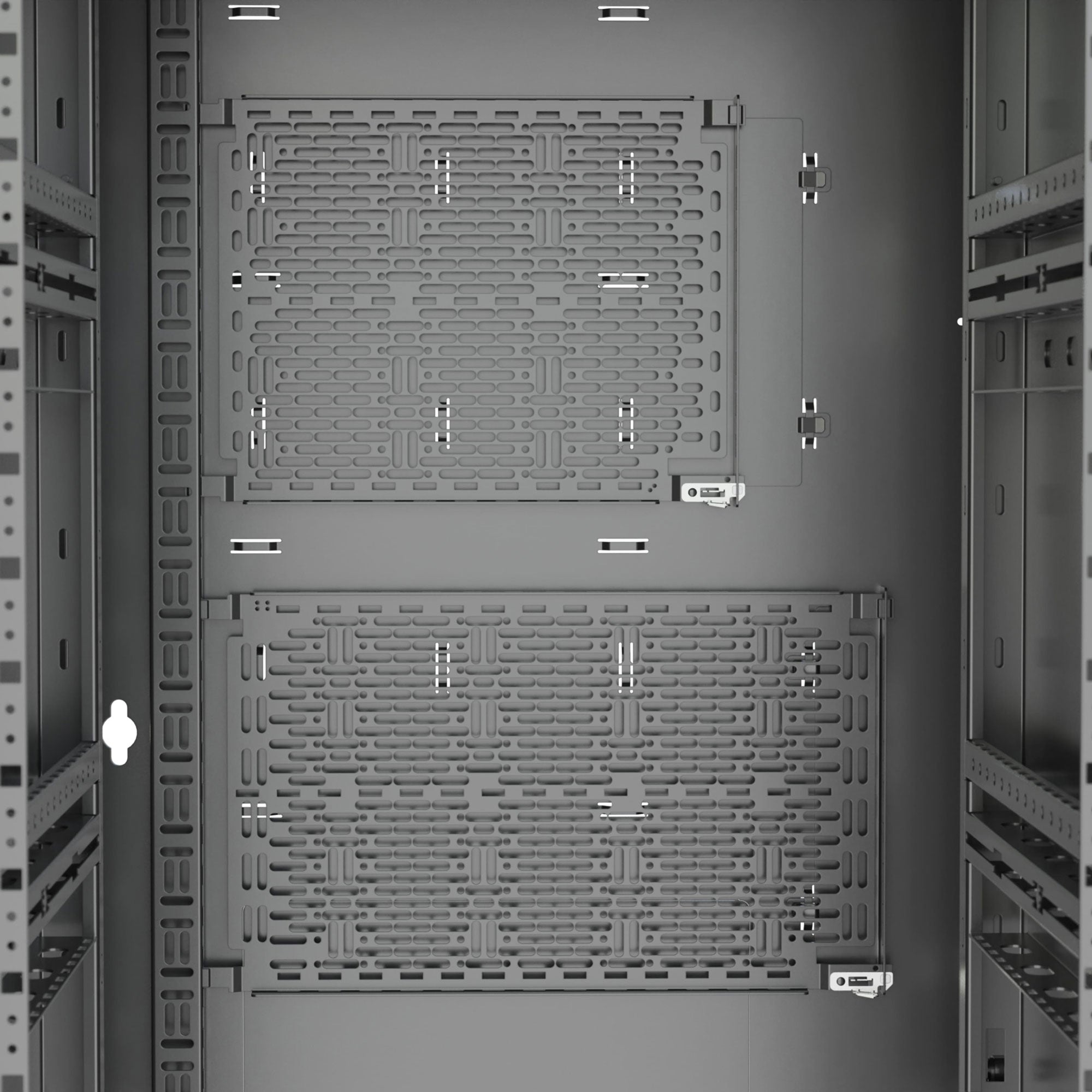

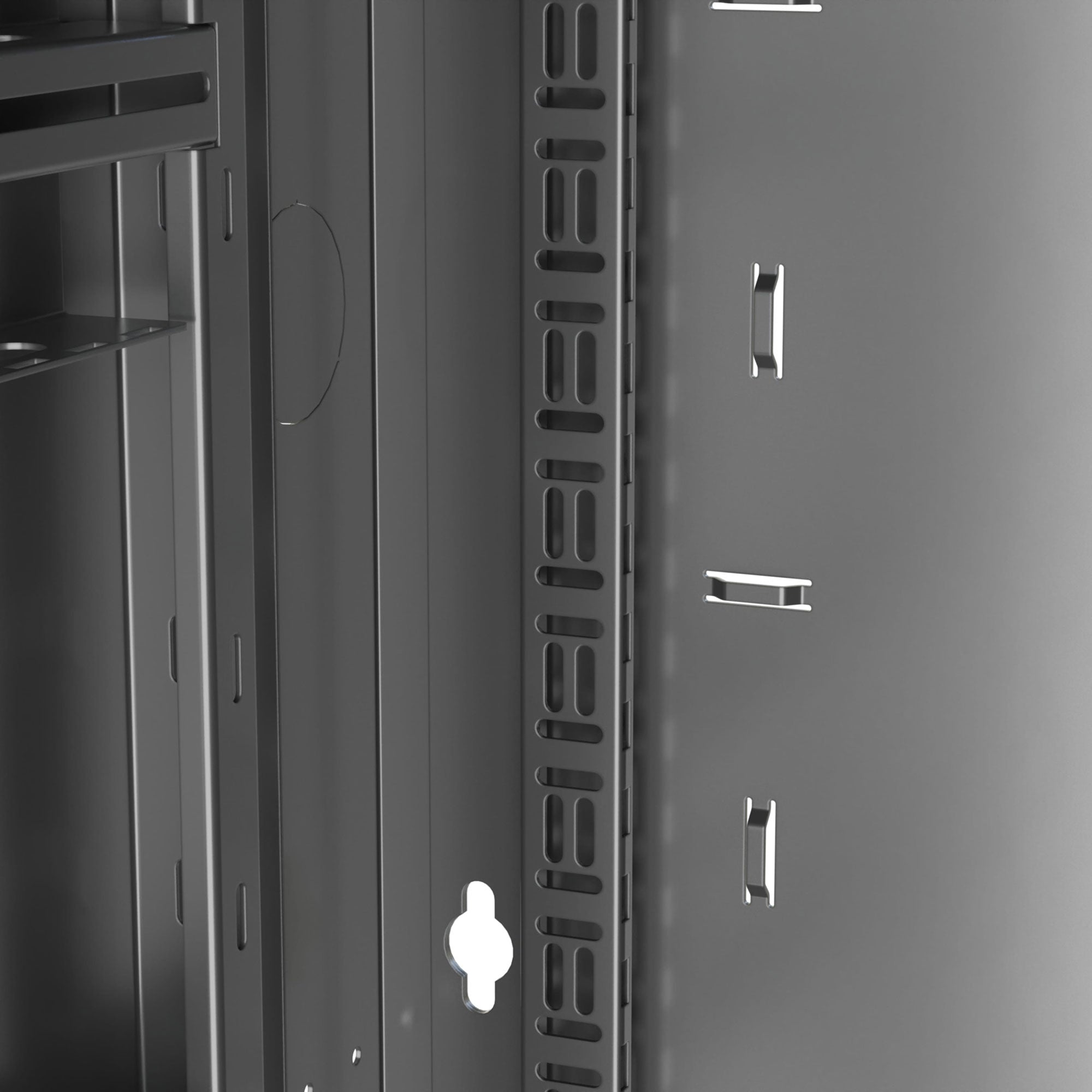

This rack offers unsurpassed cable management features. Abundant, built-in cable lacing points and touch-fastener tie points allow you to organize any quantity of cables. And numerous knockouts on the top, bottom, and back offer numerous pass through points for cabling. The top and bottom of the rack includes 1/2", 3/4", 1", 1-1/2", 2" and 3" electrical knockouts and a 5/8" knockout for UHF/VHF antenna. The backpan features a 12-1/2" x 12-1/2" laser knockout opening for an electrical pull-box. Laser knockouts in the top and bottom of the center section accommodate two (2) 4-1/2" fans and up to (2) low-voltage Decora devices.

The optional front-mounted "Zero Clearance Latch" saves wall space by allowing wall racks to be placed side-by-side or in a corner, eliminating issues with side clearance. A low-friction wear strip on the bottom platform allows the rack to swing open easily. And the bottom cable entry platform supports the weight of the rack on the floor while providing a shroud to conceal conduit stubs. This cabinet is UL Listed in the U.S. and Canada.

Features:

• Patented Tool Free Quick-Mount system for center section mounting
• Pivots 90º on floor base for access to rear equipment connections

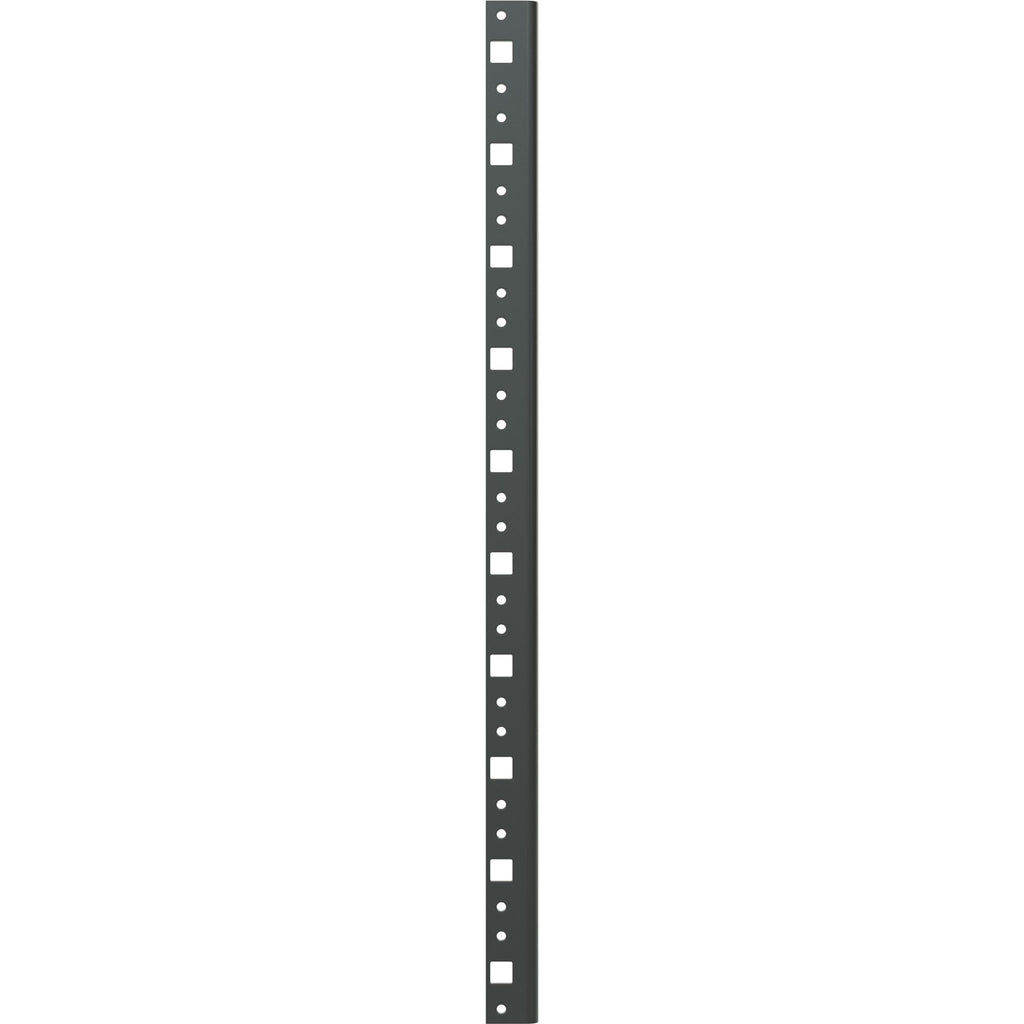

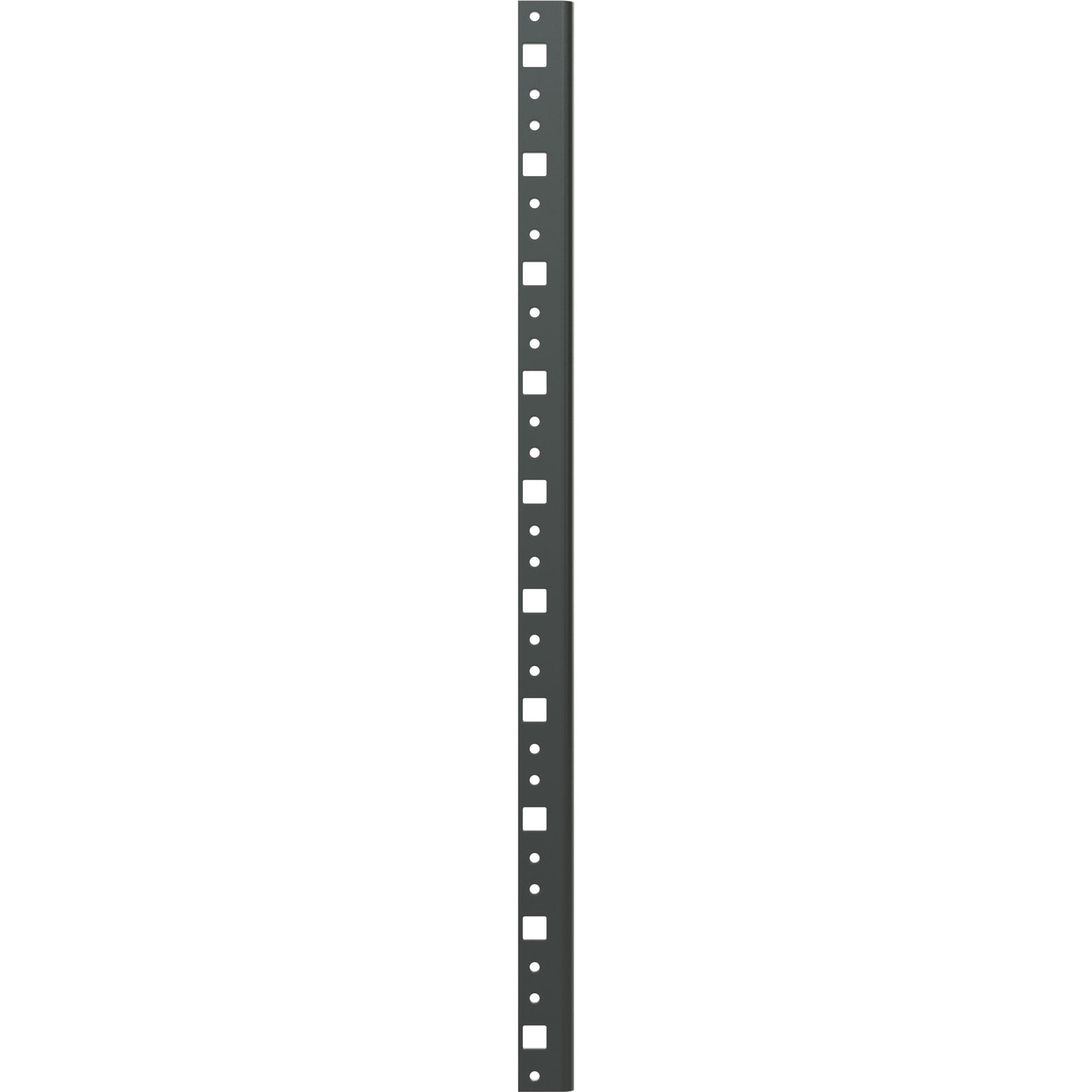

• Standard adjustable front 10-32 threaded rackrail with numbered spaces
• "Bonus" 4 rackspaces in base is ideal for mounting a UPS or other equipment
• Solid Construction
  All-steel construction guarantees exceptional strength and years of use with this unit.
• Weight Capacity
  It will support up to 500 lbs of equipment.
• No-Clog Rack-Rail Threads
  All rack rails are finished in durable "e-coat" to prevent clogged threads.
• Industry-Standard Design
  Rack rails are labeled in EIA standard rack space increments allowing for easy equipment alignment.
• Customization
  Pick and choose from Middle Atlantic's wide range of accessories to customize and expand your rack system.
• Grounding/Bonding Studs
  Grounding/bonding studs have been provided to help you electrically ground and bond equipment, per NEBS and NEC standards.
• UL Listed
  This rack is UL (Underwriters Laboratories) Listed in the U.S. and Canada.
• Free Layout & Specifications Software
  RackTools free layout and specification software is included for effective system design help.
• Knockouts

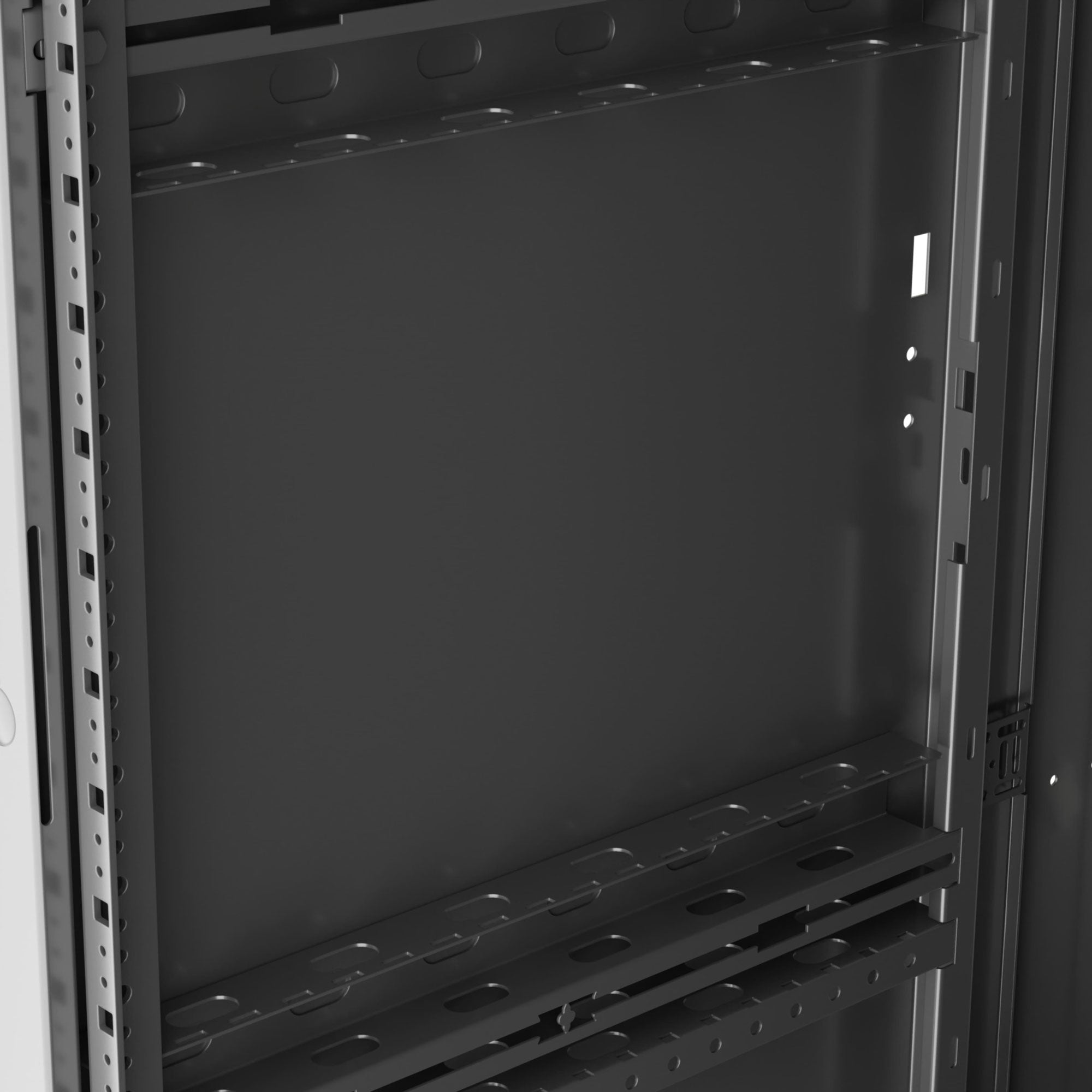

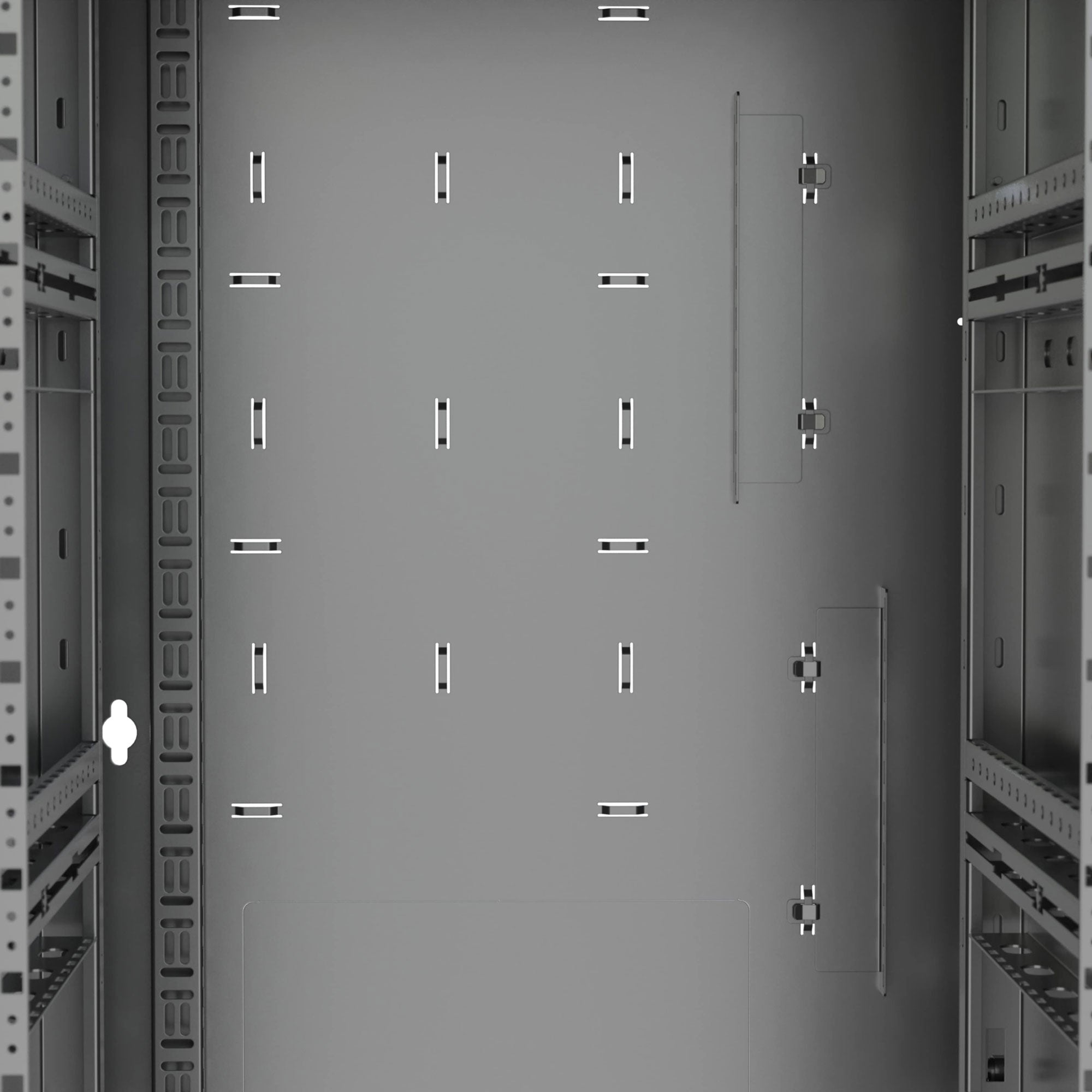

  Electrical knockouts on the back pan can easily be removed to pass cables.

Specifications:

• General Info
• finish: Black Powder Coat
• UL Standards Tested: UL2416
• Listing Agencies/Third Party Information
• ASC E: 7-10
• RoHS: Yes
• Greenguard: Yes
• CSA Standard: Yes
• UL Listing No: E313734
• Seismic Rating: 336
• Dimensions
• Usable Depth: 30
• Usable Height: 70
• Capacity Weight U S: 500
• Depth U S: 32.34
• Height U S: 90.75
• Width U S: 23.56
• Primary Package Weight U S: 269
• Rack Units: 40
• Technical Information
• Rackrail Type: 10-32
• Seismic Load Capacity: 335
• U L Load Capacity: 500
• Material: Steel
• Mounting: Horizontal
