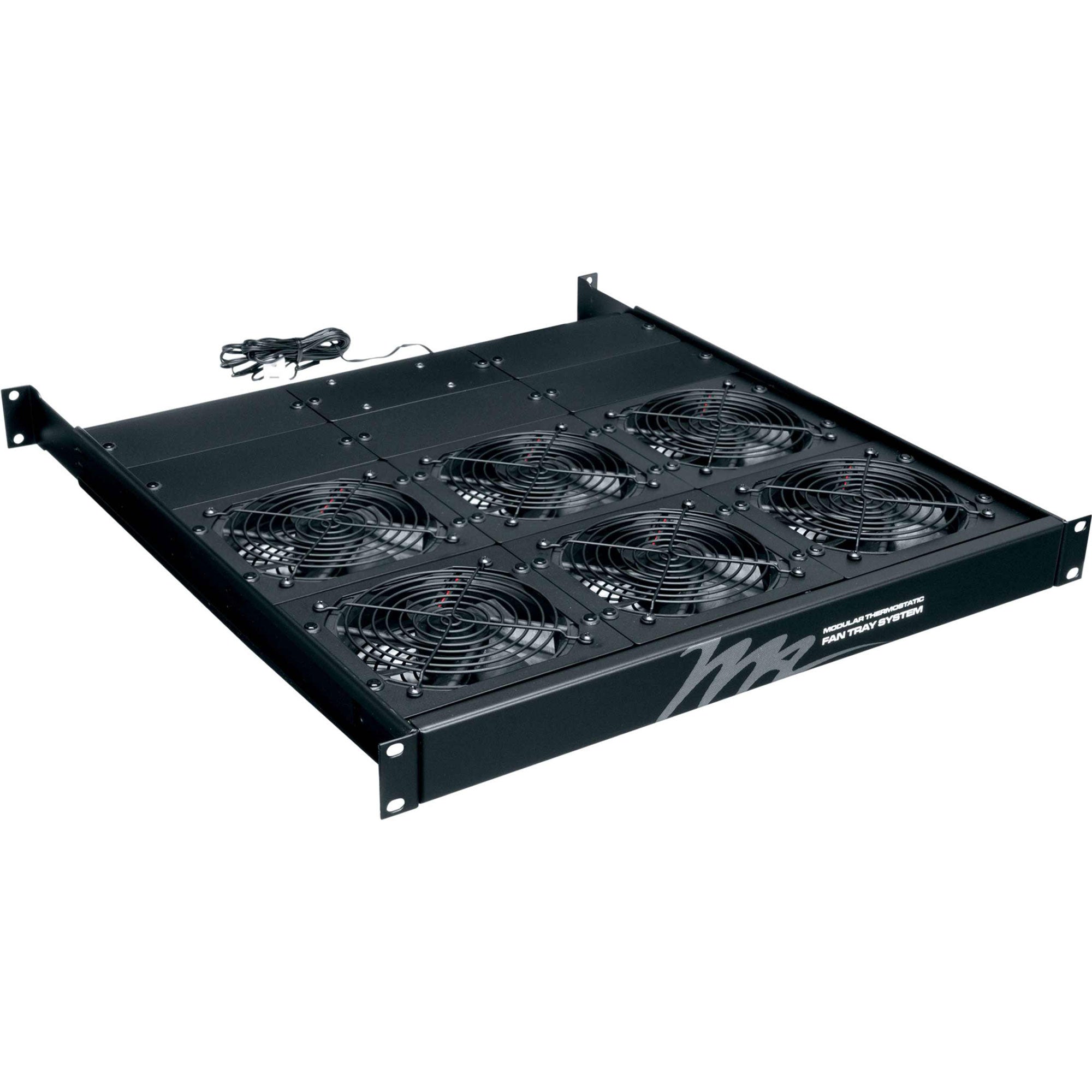

Middle Atlantic FTA-6 Fan System (6 Fans)

Fan Tray System with 6 Fans

The Middle Atlantic FTA-6 Fan Tray System features six 4" (10.16 cm) DC fans (69CFM per fan) in a tray, and places the fans above the equipment vents to drive hot air away helping the unit maintain an optimum temperature. 8 mounting positions allow you to place fans as per requirement.

Positions of the tray can be easily configured via the unique sliding rail system. The tray can be adjusted to be at the front or at the rear, or even front-to-back to match vent positions. With thermostatic control, the fans automatically turn on when the temperature reaches 87F (30C), and turn off at 85F (29C), for higher energy savings. Powered by a single cord, the FTA-6 fan system uses a single rackspace, and has an adjustable mounting range of 18 to 32" (45.72 to 81.28 cm).

Features:

• Features six 4" (10.16 cm) DC fans (69CFM per fan) in a tray
• Places the fans above the equipment vents to drive hot air away helping the unit maintain an optimum temperature
• 8 mounting positions allow you to place fans as per requirement
• Positions of the tray can be easily configured via the unique sliding rail system
• Tray can be adjusted to be at the front or at the rear, or even front-to-back to match vent positions
• Thermostatic control - fans automatically turn on when the temperature reaches 87F (30C), and turn off at 85F (29C), for higher energy savings
• Powered by a single cord
• Uses a single rackspace
• Adjustable mounting range - 18 to 32" (45.72 to 81.28 cm)

Specifications:

• Fans: Six 4" (10.16 cm) DC fans (69CFM per fan)
• Range: 18 to 32" (45.72 to 81.28 cm)
• Compliance: Fan Tray: RoHS EU Directive 2002/95/EC compliant
• Dimensions: 19 x 1.75 x 18" (48.26 x 4.44 x 45.72")
