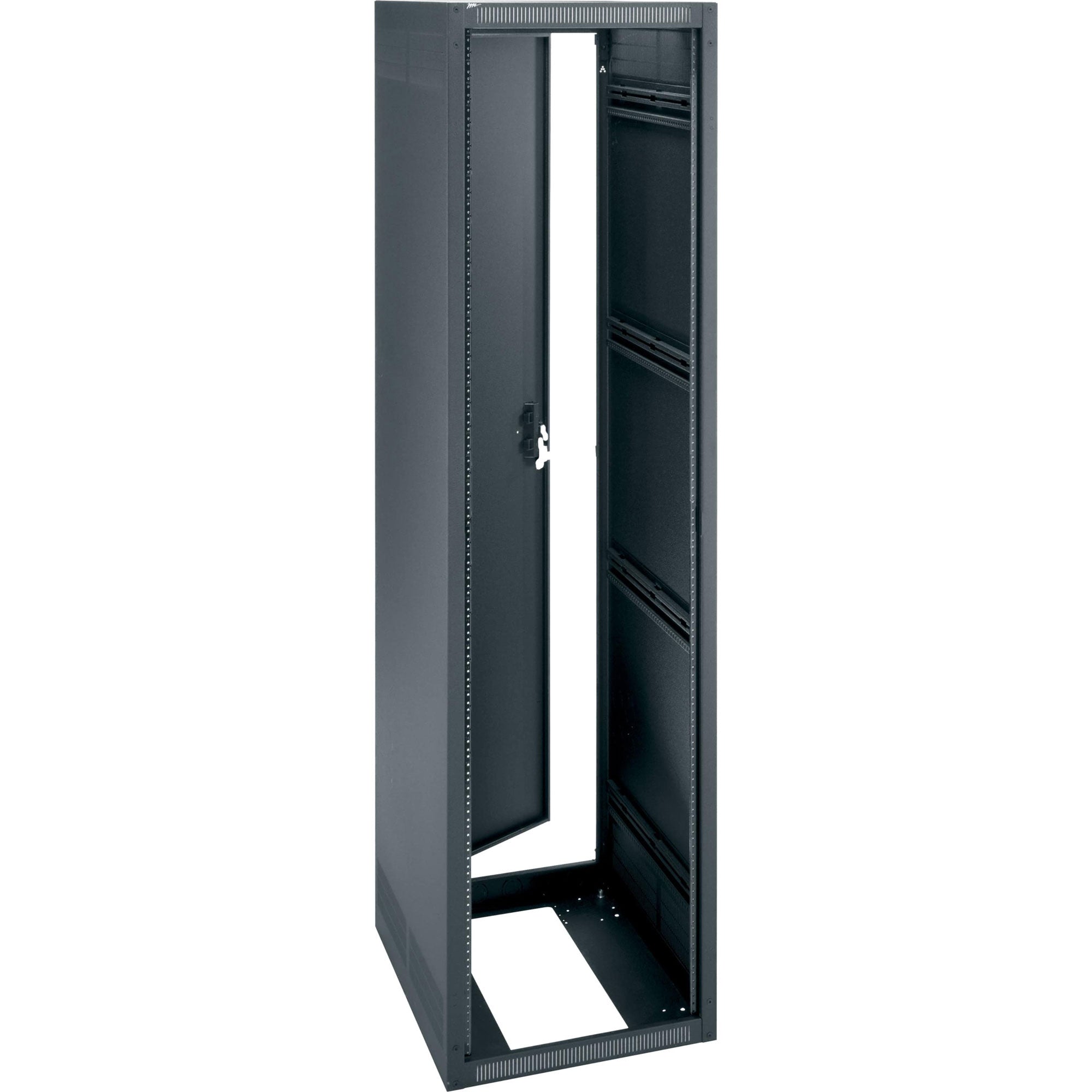

Middle Atlantic ERK-3525KD Ready to Assemble Stand Alone Rack 35U

35 Space (61-1/4"), 25" Deep Ready to Assemble Stand Alone Rack with Rear Door, Black Finish

The Middle Atlantic ERK-3525KD Ready to Assemble Stand-Alone Enclosure supports up to 1000 lb (453kg) of load, and consists of a pair of fully adjustable front rackrails, and 16-gauge steel tops / bottoms / sides. The enclosure system has 35U of rack spacing, and 25" (63.5cm) of depth.

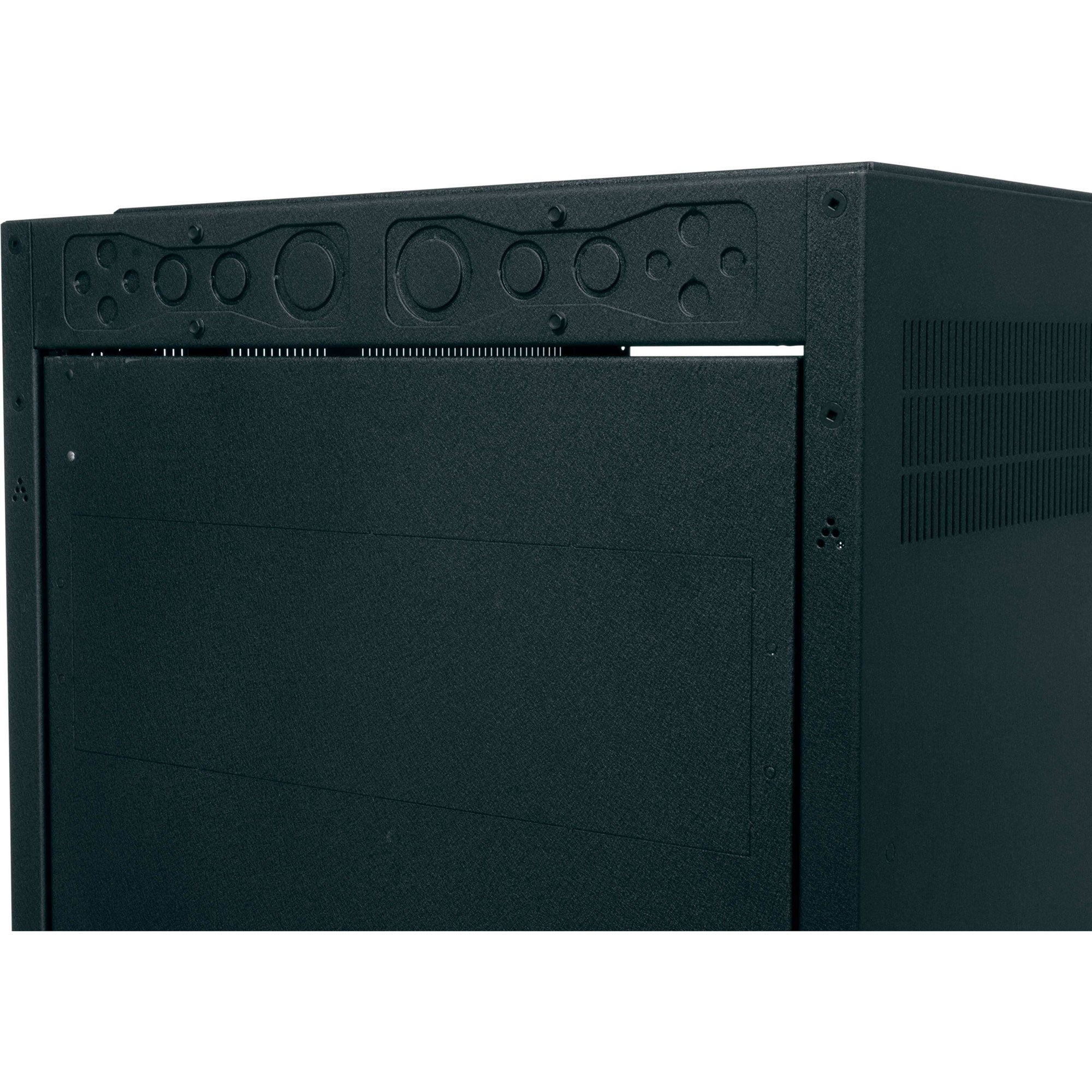

A large cable entry has been provided at the bottom, and 1/2", 3/4", 1", and 1.5" electrical knockouts are available on removable split rear plates. The top knockout plate additionally includes UHF/VHF antenna knockouts. A configurable top is provided along with grounding and bonding stud installed in base.

The ERK-3525KD Ready to Assemble Stand-Alone Enclosure complies with UL Certification. Durability is enhanced by a black textured powder coat finish.

Features:

• Ready-to-assemble design allows for flat shipment
• Electrical knockouts on rear plates
• Laser-cut 1/8" thick internal steel braces for strength

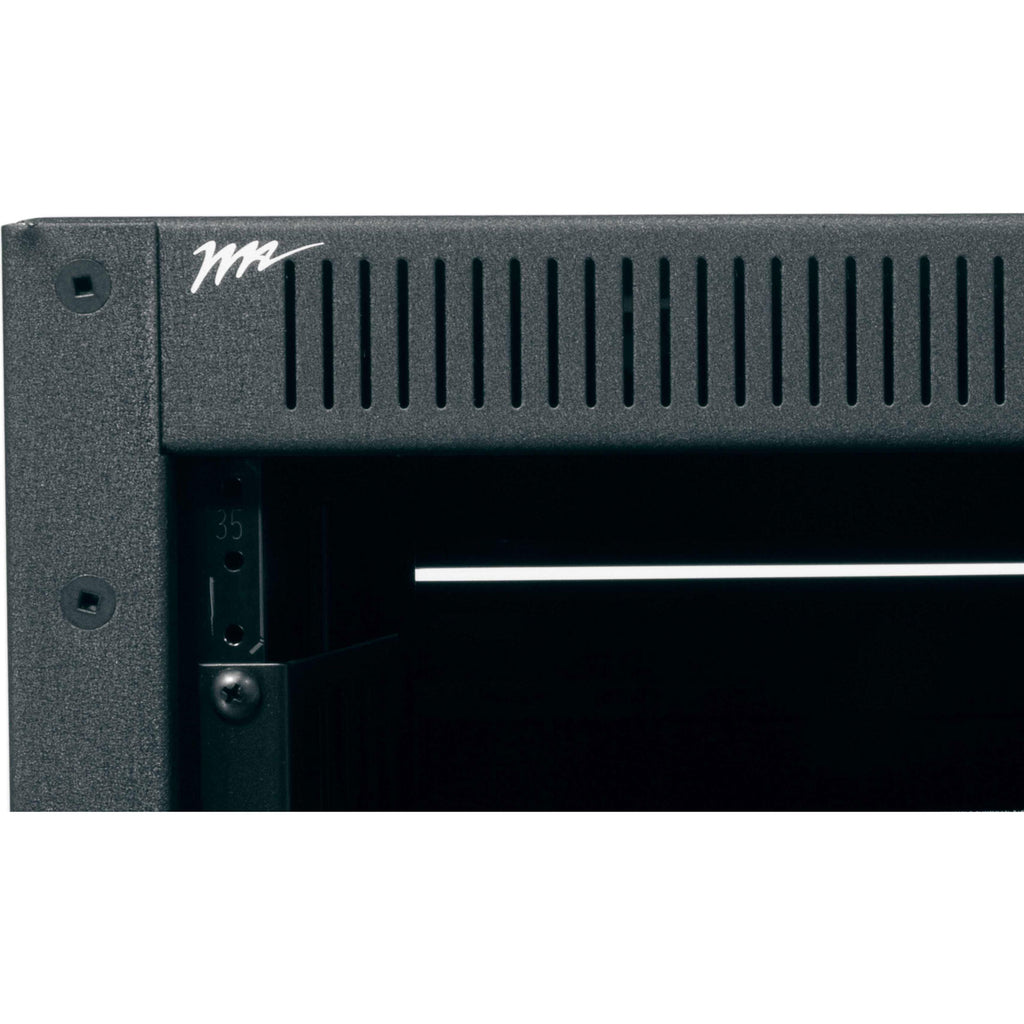

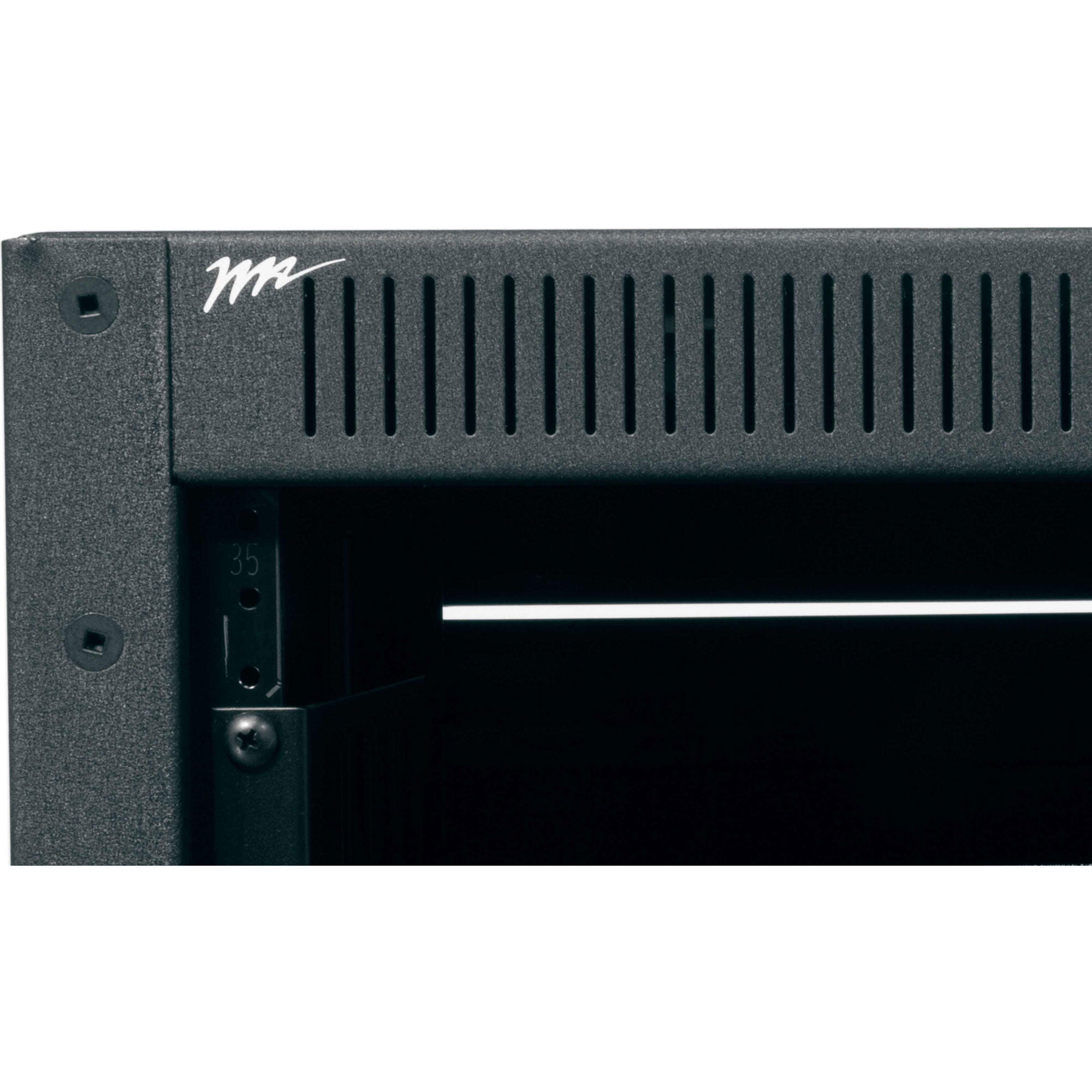

• Standard front adjustable 10-32 threaded rackrail with numbered spaces

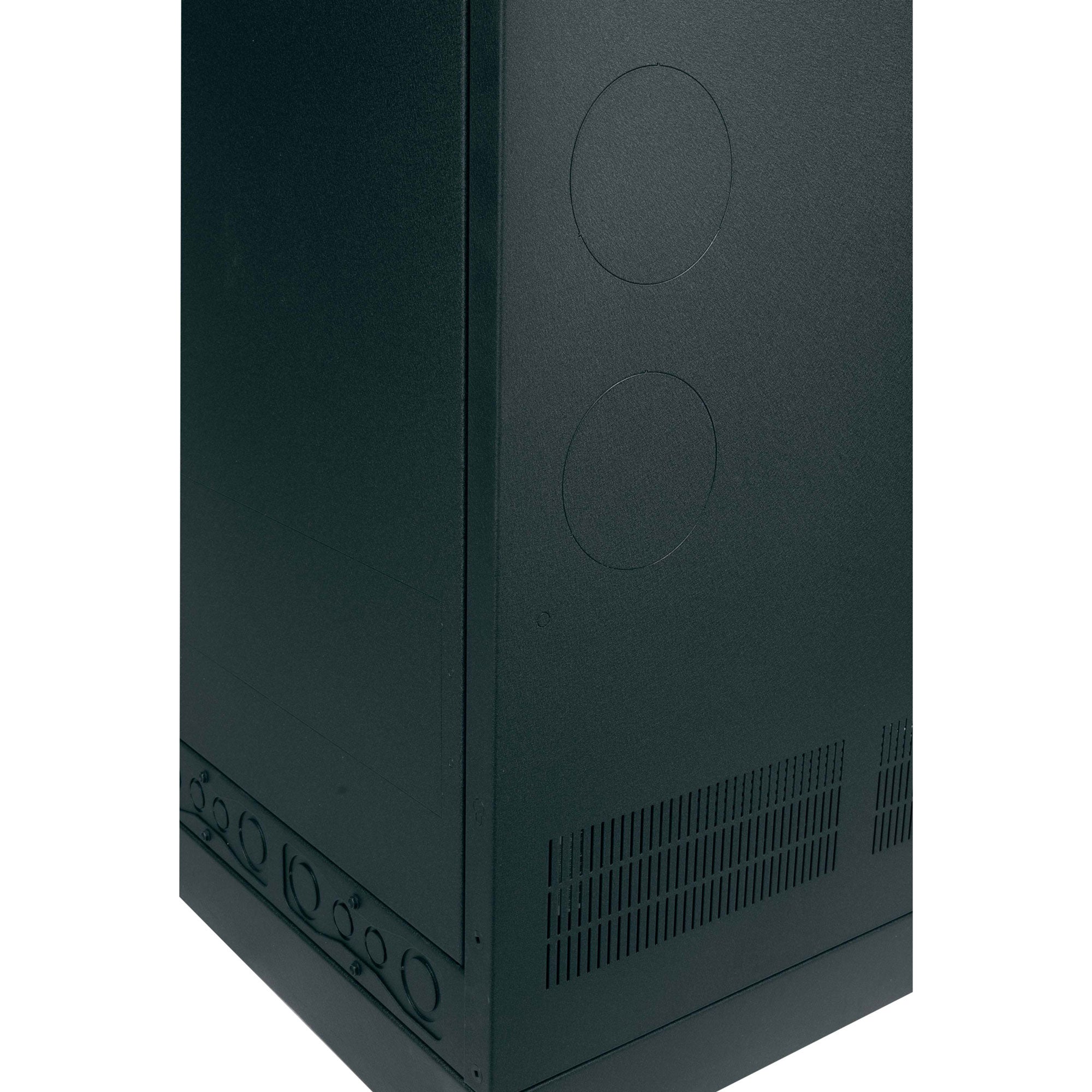

• Laser KO's in side panels for cable pass-through

Specifications:

• General Info
• finish: Textured Black Powder Coat
• UL Standards Tested: UL2416
• Assembly/Installation Information
• Assembly Required: Yes
• Listing Agencies/Third Party Information
• ASC E: 7-10
• RoHS: Yes
• Greenguard: Yes
• UL Listing No: E173107
• Seismic Rating: 591
• Dimensions
• Usable Depth: 23.47
• Usable Height: 61.375
• Capacity Weight U S: 1000
• Depth U S: 25
• Height U S: 65.375
• Width U S: 22
• Primary Package Weight U S: 154
• Rack Units: 35
• Technical Information
• Rackrail Type: 10-32
• U L Load Capacity: 2500
• Material: Steel
• Mounting: Horizontal
