Key Features
- Includes Configurable Rear Door
- Includes LACE-OP Lacer Strip
- Includes 6 Offset Lacer Bars
- Includes 10 Outlet Power Strip
- Includes 5 Vented Shelves
- Includes Heavy-Duty 4 Point Shelf
- Includes 5 2-Space Vent Panels
- Includes Fine Floor Caster Base
Description

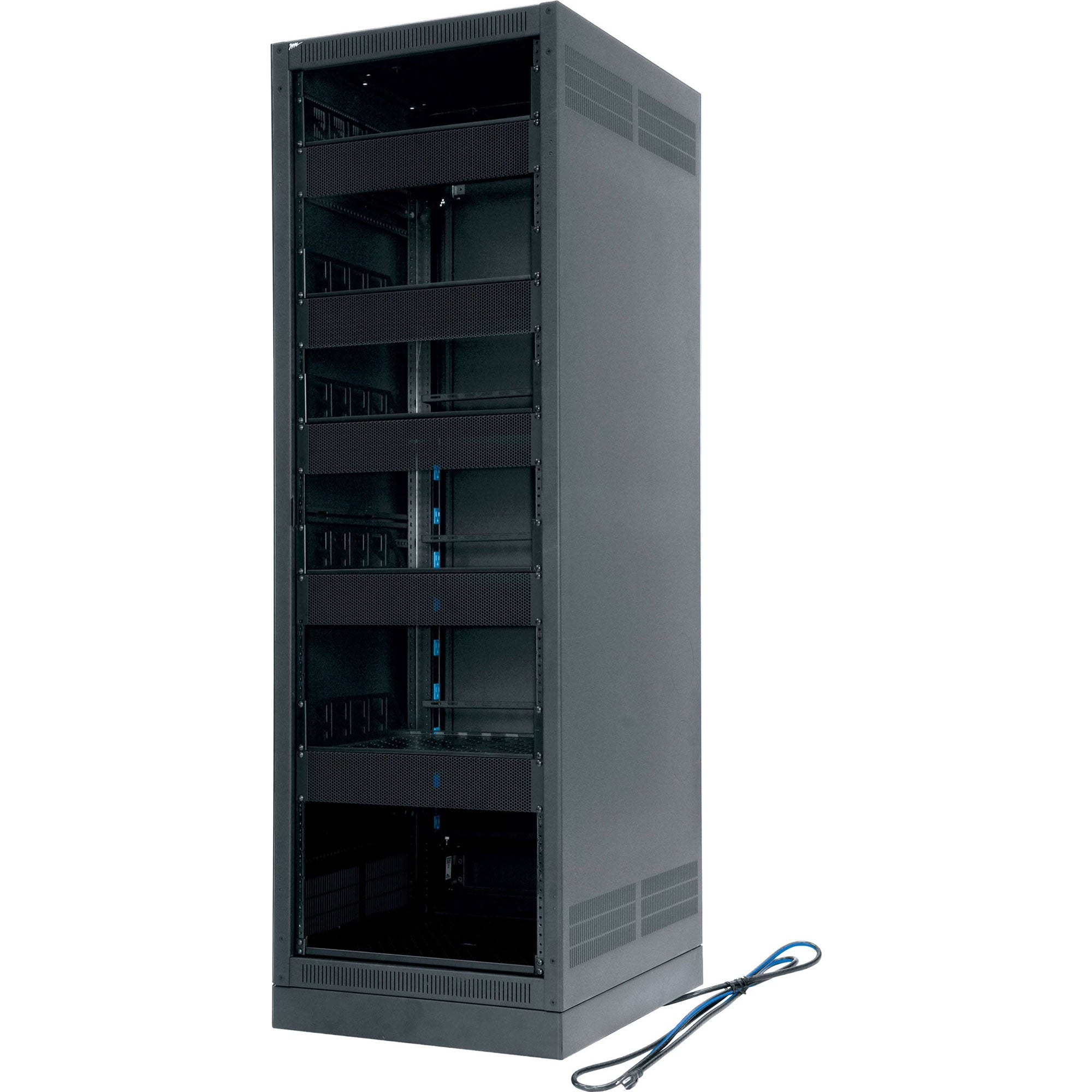

35 Space (61-1/4"), 25" Deep Stand Alone Rack Configured with 5 Shelves, 15 Amp Power, Black Finish
The Middle Atlantic ERK-3525-CONFIG 35U A/V Rack supports up to 2500 lb (1133.98 kg) of load, and consists of 3 vented two-point rackshelves, 4 offset horizontal lacer bars, a pair of fully adjustable front rackrails, and 16-gauge steel tops / bottoms / sides. The enclosure system has 35U of rack spacing, and 25 inches of depth.

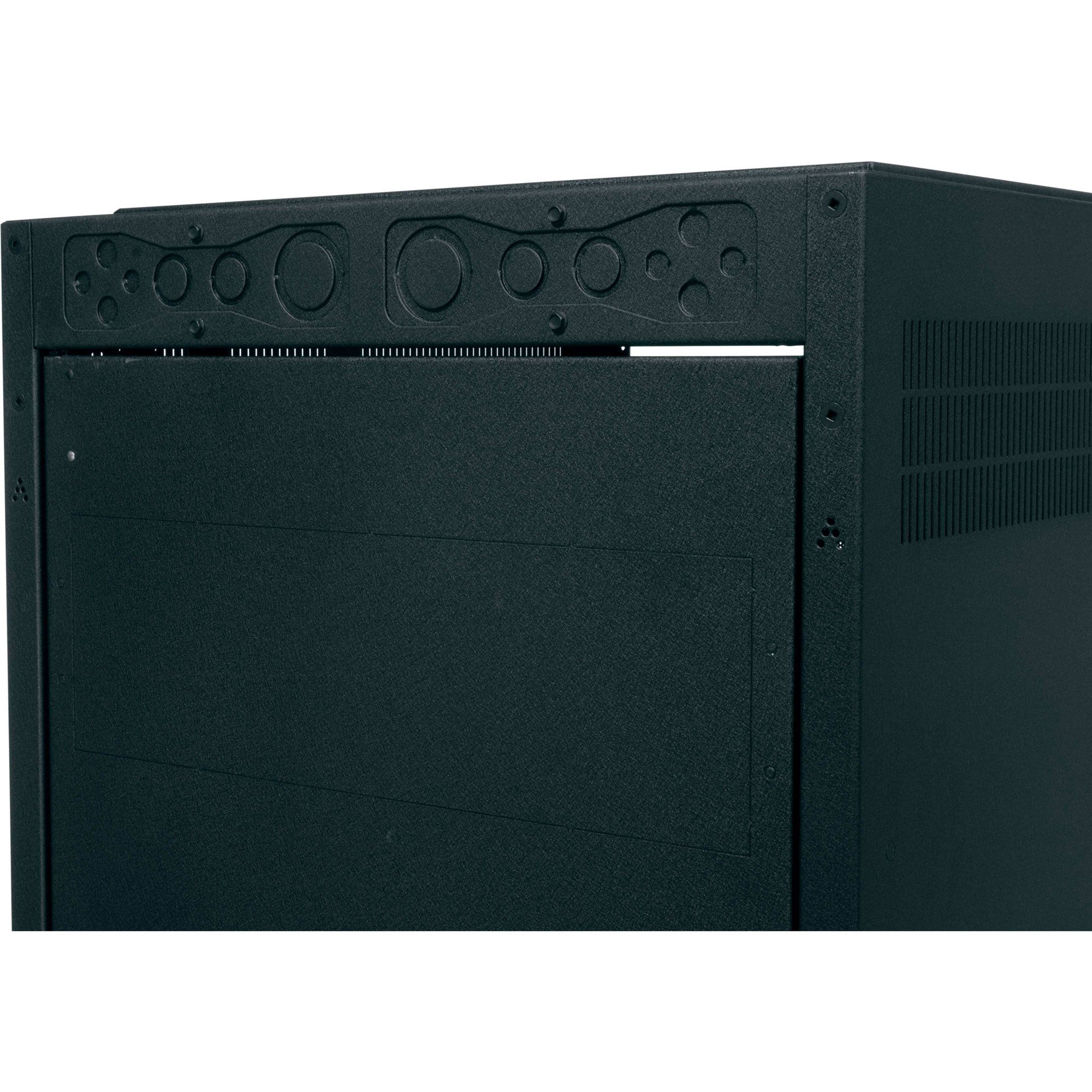

Large cable entry is provided at the bottom, and the rack also includes a thin, filtered, and surge protected 6-outlet 15 Amp power strip. 1/2", 3/4", 1" and 1.5" electrical knockouts are available on removable split rear plates, while the top knockout plate additionally includes UHF/VHF antenna knockouts. Configurable top is provided along with grounding and bonding stud installed in base. Laser knockouts are available in the side panels for cable pass-through.
Along with UL certification, the rack also complies with seismic certification (UBC 1997 & CBC 1998 Zone 4; IBC 2000, IBC 2003, ASCE 7 - 02, NFPA 5000 Seismic Use Group III), which protects 650 lbs. of essential equipment when used in conjunction with ERK-Z4 brackets.
You can easily move the A/V rack using a smooth floor caster base, while durability is enhanced by a black textured powder coat finish.
Features:
- Supports 2500 lb (1133.98 kg) load capacity
- Consists of 3 vented two-point rackshelves, 4 offset horizontal lacer bars, 1 pair of fully adjustable front rackrails, and 16-gauge steel tops/bottoms/sides
- Includes 1/8" laser-cut thick internal braces
- 35U of rack spacing, and 25 inches of depth
- Provides a large cable entry at the bottom
- Includes a thin, filtered, and surge protected 6-outlet 15 Amp power strip
- Offers 1/2", 3/4", 1" and 1.5" electrical knockouts on removable split rear plates
- Includes UHF/VHF antenna knockouts on top knockout plate
- Configurable top
- Includes laser knockouts in the side panels for cable pass-through
- Grounding and bonding stud installed in base
- Safety - UL Certified, and Seismic certified (UBC 1997 & CBC 1998 Zone 4; IBC 2000, IBC 2003, ASCE 7 - 02, NFPA 5000 Seismic Use Group III), which protects 650 lbs. of essential equipment when used in conjunction with ERK-Z4 brackets
- Enhances mobility via a smooth floor caster base
- Improves durability via a black textured powder coat finish
Specifications:
- General Info
- finish: Textured Black Powder Coat
- UL Standards Tested: UL2416
- Listing Agencies/Third Party Information
- ASC E: 7-10
- RoHS: Yes
- Greenguard: Yes
- UL Listing No: E173107
- Seismic Rating: Yes
- Dimensions
- Usable Depth: 23.47
- Usable Height: 61.375
- Capacity Weight U S: 10000
- Depth U S: 25
- Height U S: 69.25
- Width U S: 22
- Primary Package Weight U S: 225
- Rack Units: 35
- Technical Information
- Rackrail Type: 10-32
- Seismic Load Capacity: 600
- U L Load Capacity: 2500
- Material: Steel
- Mounting: Horizontal
Includes:
- 2 x Front Rackrails
- 16-gauge Steel tops/bottoms/sides
- 3 x Vented Two-point Rackshelves
- 3 x Vent Panels
- 4 x Offset Horizontal Lacer Bars
- 6-outlet 15 Amp Power Strip
- Lifetime Warranty
