M-Audio AIR 192|14 Desktop 8x4 USB Type-C Audio/MIDI Interface

8-in/4-out USB Interface with 24-bit/192kHz Resolution, Direct Monitoring, XLR/TRS and TS Inputs, MIDI In/Out, Central Monitor Knob, +48V Phantom Power, and Software Suite - Mac/Windows

Designed for musicians, producers, and small bands questing for studio-quality recordings and fresh sounds, the M-Audio AIR 192|14 desktop 8x4 USB Type-C audio interface provides four channels of transparent preamps, four additional analog inputs, easy operability, MIDI I/O, and an expansive software bundle of DAWs, virtual instruments, plug-ins, and loops.

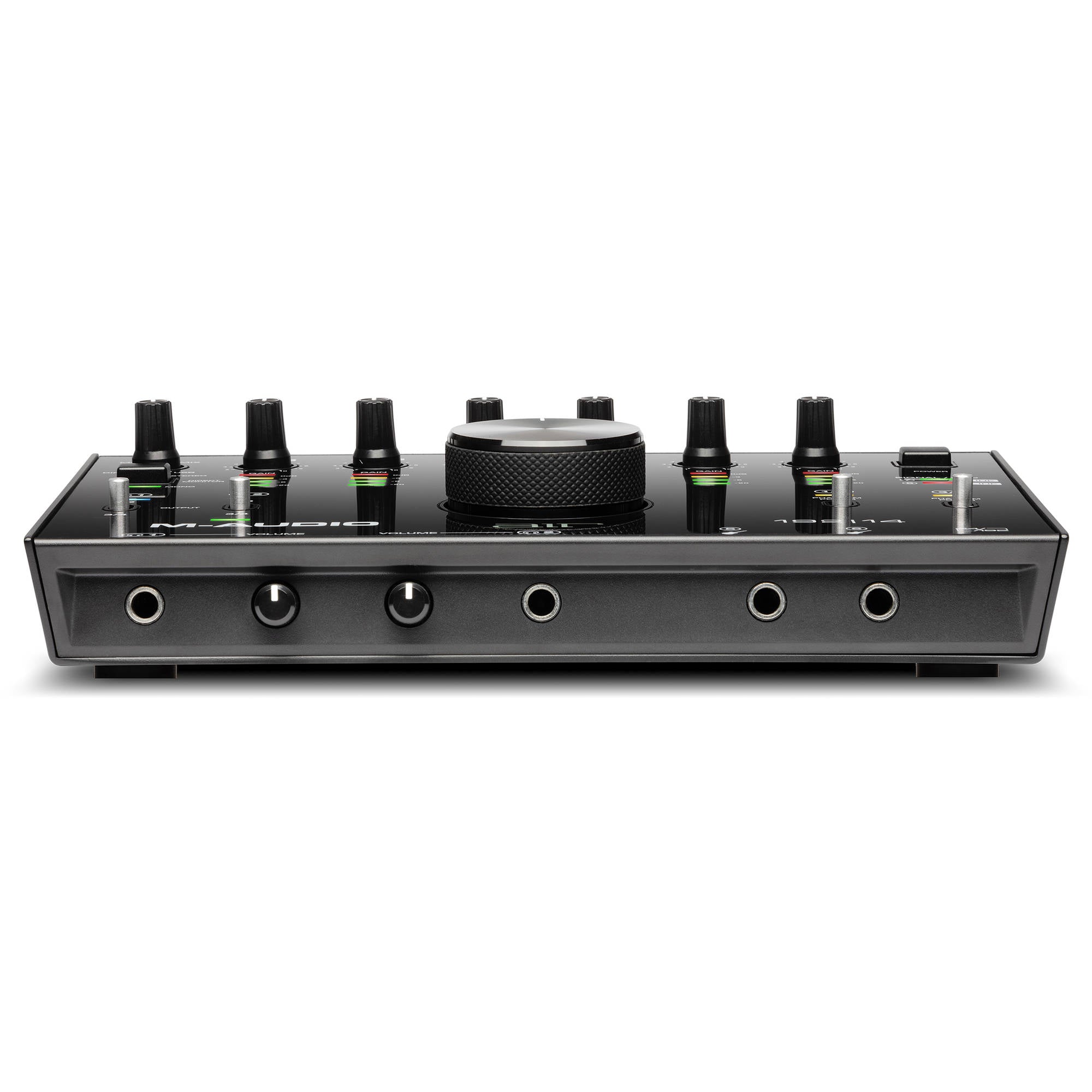

Its eight analog inputs—four XLR-1/4" combo mic/line inputs, two fixed-level line inputs, and two dedicated front-panel 1/4" Hi-Z instrument inputs—allow the AIR 192|14 to simultaneously accommodate four mics (dynamic/condenser), two electric guitars, and two line-level sources while offering separate 4-segment meters and gain controls for the first six inputs. Since the interface has 1/4" TRS monitor outputs, two fixed-level 1/4" outputs, and two independent 1/4" headphone outputs with their own level controls and source selectors, you can connect active speakers, two sets of headphones, and an external headphone amplifier. The built-in monitor mixer lets you listen in mono or stereo and dial in the optimal blend of zero-latency live input signal and low-latency computer playback, so you can smoothly transition from tracking to overdubbing to mixing.

Studio-Quality Recording for Musicians and Small Bands

With the AIR 192|14, you can create 24-bit / 192 kHz studio-quality recordings with an intuitive and easy-to-use audio interface. The AIR 192|14 enables you to record up to eight channels at once with its four dedicated XLR-1/4" balanced combo mic/line inputs (+48V phantom power is switchable for inputs 1-2 and 3-4), two fixed-level 1/4" line inputs, and two front-panel 1/4" instrument inputs that have a specially designed gain and impedance stage to provide accurate representation of a guitar or bass plugged directly into the interface.

Crystal Preamps and High-Resolution Converters

M-Audio's engineers designed their Crystal preamps to provide you with a transparent low-noise preamp that guarantees the best sound from your microphones and captures your performance exactly the way you intended. The AIR 192|14 incorporates pristine A/D converters for 24-bit / 192 kHz resolution digital audio with a dynamic range that lets you capture every nuance and subtlety of the performance.

MIDI I/O

Space-saving 3.5mm MIDI I/O ports and the included 3.5mm to 5-pin MIDI adapters enable you to connect synths, sequencers, and other external MIDI gear, making the interface well suited for integrating MIDI gear with your DAW's virtual instruments and composition functions.

Listen without Latency

When recording, you want to focus on capturing that perfect moment, and getting the best performance out of your artist and talent. You don't want to be bogged down by clicks, pops, or latency. The AIR 192|14 not only features a high-speed USB connection for providing low round-trip latency (2.59 ms) between your machine and your hardware, but it also features monitor mix control for listening directly to the source inputs in mono or stereo, providing you with zero-latency technology.

Dual Headphone Outputs and Line Outs

The AIR 192|14 sports stereo 1/4" main outputs, stereo fixed-level 1/4" line outputs, two independent 1/4" headphone outputs, and separate level controls for the main and headphone outputs. Each headphone out also has a switch to source it from output channels 1-2 or 3-4, ideal for setting up different headphone mixes for multiple artists.

External Power Supply

The AIR 192|14 includes an external power supply and two USB cables (one USB Type-C and one USB Type-C to Type-A) to ensure proper operation with your Mac or Windows computer. The interface is class-compliant for Macs and utilizes a downloadable driver for Windows.

Premium Software Suite

The AIR 192|14 comes complete with an expansive software package—two DAWs, 40 effect plug-ins, virtual instruments, and loops—to kickstart your musical creations.

• Pro Tools | First M-Audio Edition: Audio/MIDI recording software with unlimited buses, Elastic Time, Elastic Pitch, offline bouncing, and 1GB of free cloud storage space
• Ableton Live Lite: Popular audio/MIDI performance and production software
• Eleven Lite: Guitar amp simulator with modern and vintage amps and cabs
• AIR Creative FX Collection: 20 effects including reverbs, equalizers, delays, filters, and more
• AVID Effects Collection: 20 effects including compression, delay, reverb, and more
• AIR Music's Instrument Collection: DB-33 tonewheel organ, Hybrid 3.0 virtual synthesizer, Boom drum machine, Strike drum/arranger instrument, Vacuum monophonic tube synth, Mini Grand acoustic piano, and Xpand!2 multitimbral workstation
• Touch Loops 2GB Loop Library

Includes:

• -Audio AIR 192|14 Desktop 8x4 USB Type-C Audio/MIDI Interface
• Power Adapter
• USB Type-C Cable
• USB Type-C to Type-A Cable
• 2 x 3.5mm to MIDI 5-Pin Adapters
• Avid Pro Tools | First M-Audio Edition (Download)
• Ableton Live Lite (Download)
• 20 x AIR Creative FX Plug-Ins (Download)
• 20 x Avid Effect Plug-Ins (Download)
• Avid Eleven Lite Guitar Amp Simulator (Download)
• AIR Music DB-33 Tonewheel Organ (Download)
• AIR Music Hybrid 3.0 Virtual Synthesizer (Download)
• AIR Music Boom Drum Machine (Download)
• AIR Music Strike Drum/Arranger Instrument (Download)
• AIR Music Vacuum Monophonic Synthesizer (Download)
• AIR Music Mini Grand (Download)
• AIR Music Xpand!2 Virtual Instrument (Download)
• 2GB Sample Collection by Touch Loops (Download)
• Limited 1-Year Warranty
