Description

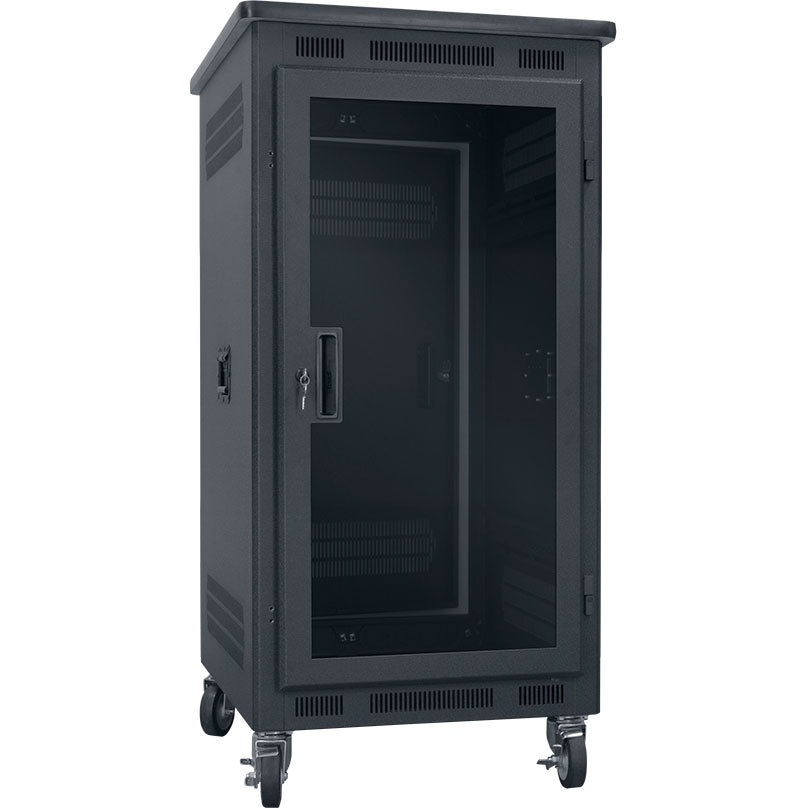

21 Space Portable Rack with Plexi Door & Graphite Top, 22" Deep
The UL Listed (Standard 1678) portable rack is ideal for schools, training facilities, studios, offices and institutions of all kinds that require a mobile equipment rack with locking security. The LPR is 22" deep with 14 or 21U panel space. Includes heavy-duty casters (packed inside rack for shipping), side panels with recessed handles, recessed rear door, surface-mount front door (choice of style), and one-pair of adjustable mounting rails tapped 10-32. Vented sides, vented rear door (top/bottom) and vents above and below front door allow passive heat dissipation. Black wrinkle powder epoxy finish. Made in U.S.A.
Features:
- Welded 16-gauge certified U.S steel with 14-gauge steel bottom, reinforced at all load-bearing junctures.
- Abundant cable lacing holes and removable knockout panels above and below rear door (.5" knockouts for BNC wireless antenna, compound knockouts for conduit size .75"-.5" and 1.5"-1" and a blank project panel). Generous space for managing wire between front mounting rail and front-to-rear supports.
- Surface-mount front door with key-lock (solid steel, fully vented steel, or smoked Plexiglas).
- Recessed, vented (top/bottom) rear door with key-lock.
- Heavy-duty 4" rubber swivel-casters (225 lbs. load rating each or 900 lbs. total) are shipped inside rack to be field installed. Includes 1-pair swivel, 1-pair swivel-locking.
- One-pair, adjustable mounting rails tapped 10-32.
- PilotPointTM screws with captive washers (mounting hardware).
- Rack models with "PGT" suffix include a laminate-covered particle board top with rounded corners and rubber edge molding designed to overhang rack. Graphite Grey finish. 24.69"W x 24.25"D x 1"H. Laminate top is to be field-installed.
