Key Features
- Elegantly Designed
- 27U Racking Height
- Front & Rear Doors
- Removable Side Panels
- Swivel Casters
- 5 Vented Shelves
- 5 Blank Panels
- 2 Whisper Cooling Fans
Description

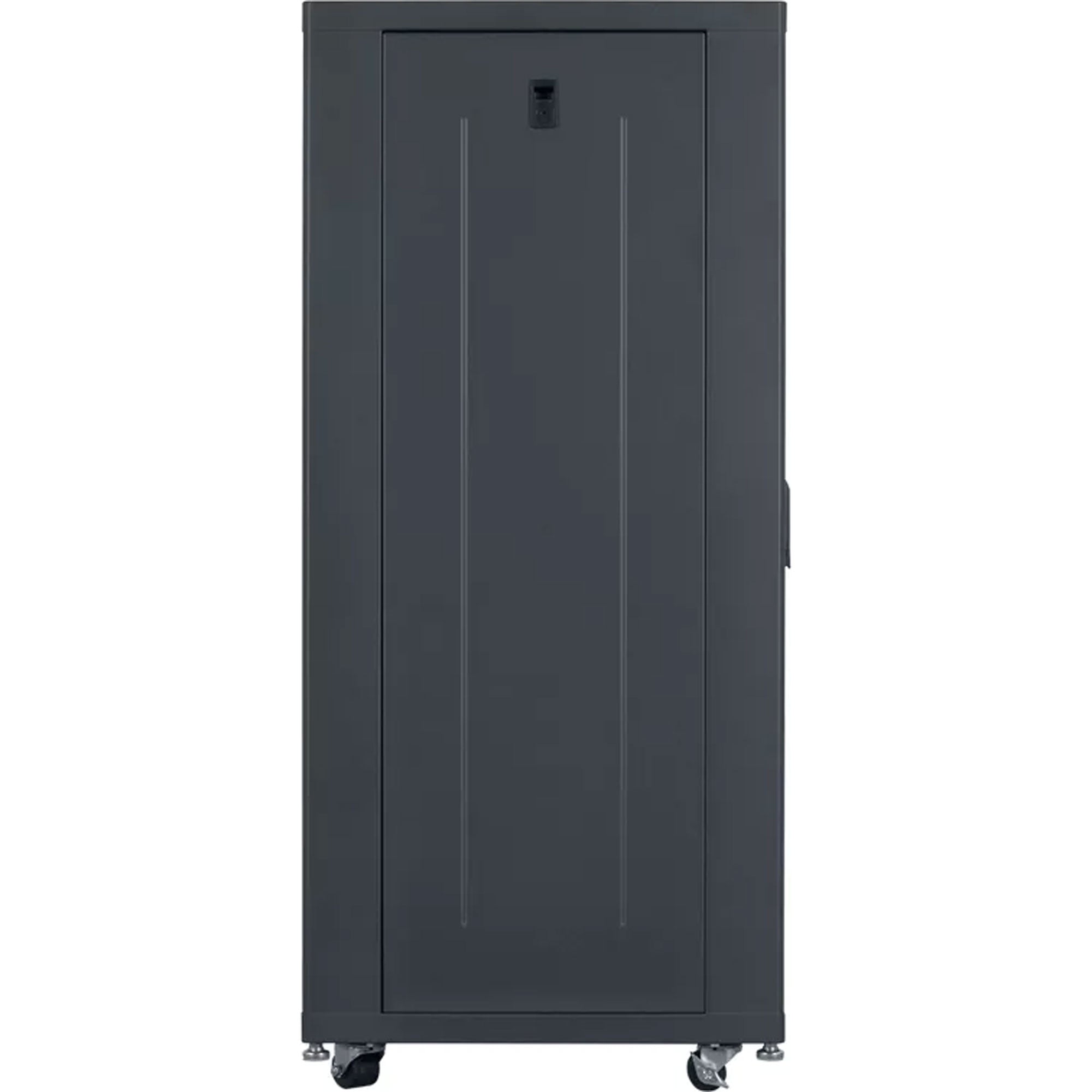

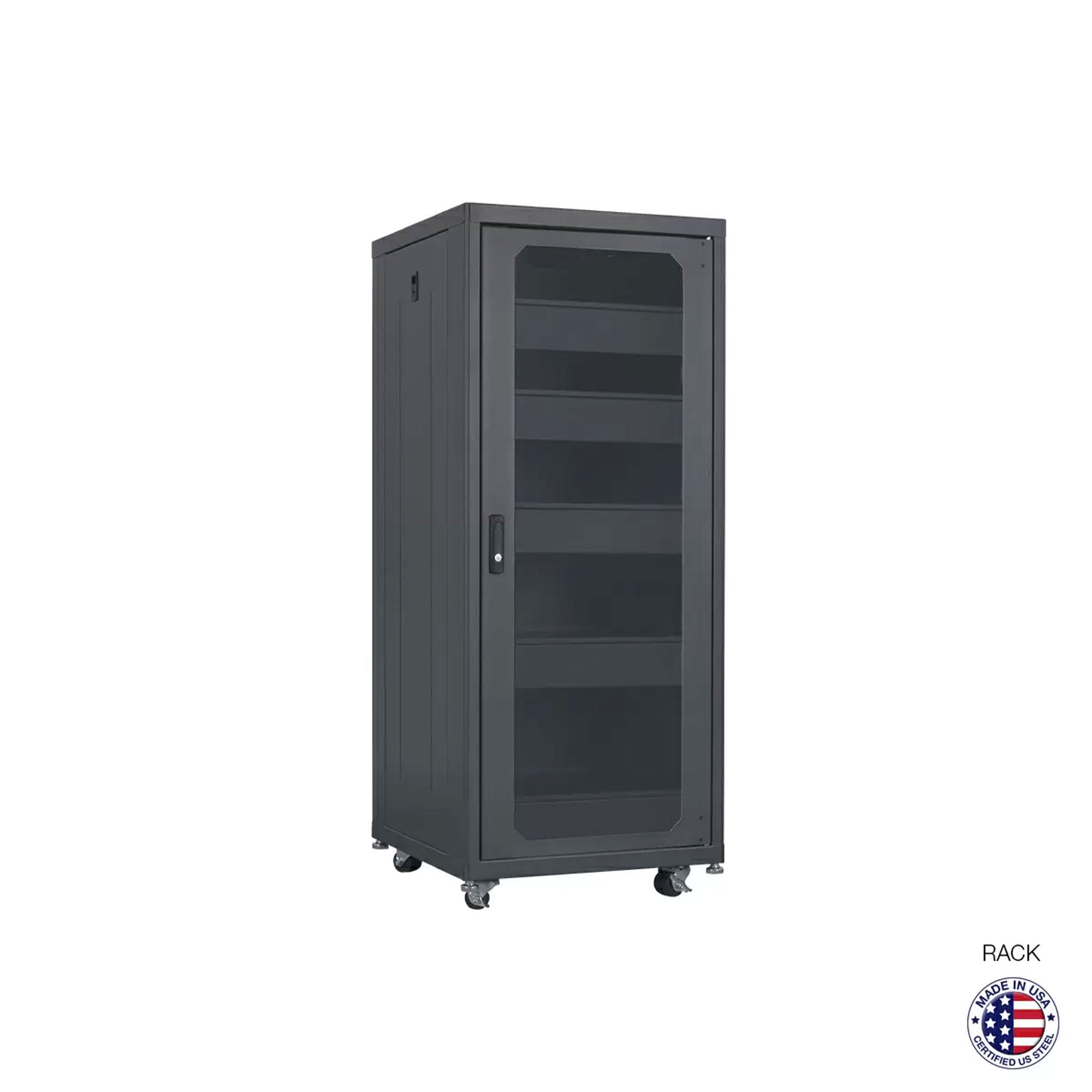

Configured Design Rack, 27 Space, 24" Deep
An elegant design made for the high-end decor of boardrooms and home theaters, this ready-to-use rack includes casters, leg levelers, five shelves, five blank panels, two fans, lockable side panels, a rear access cover, and a tempered glass front door. Charcoal Grey textured finish.
The elegant "LCDR" with smoked grey tempered glass front door is made to fit the high-end decor of executive boardrooms and home theatres. The welded 16-gauge steel frame with charcoal grey textured finish has a solid top with vents and factory-mounted whisper fans already in place. Several 19" panels and vented shelves are installed leaving plenty of room for rackmount equipment. Side panels and a rear access cover can be locked for security or removed for access. Cables can be easily routed through top/bottom holes with inset grommets. The LCDR includes casters for portability plus leg levelers to provide a secure footprint. This ready-to-use, pre-configured EIA/TIA/RoHS compliant rack is available in 18-24 rack units (24 in. depth x 22.3 in. width).
Features:
- Welded Frame: 16-gauge steel with 16-gauge top and bottom, reinforced at loadbearing junctions
- Overall Height: 54.18" with casters (51.42" rack only)
- Top: Steel top features a center hole with grommet for cable access and 2 vents.
- Fans: 2 whisper fans are installed in the top vents.
- Base: Features an open center, 2 holes with grommets for rear cable access, grounding stud, 4 casters (2 locking), and 4 leg levelers.

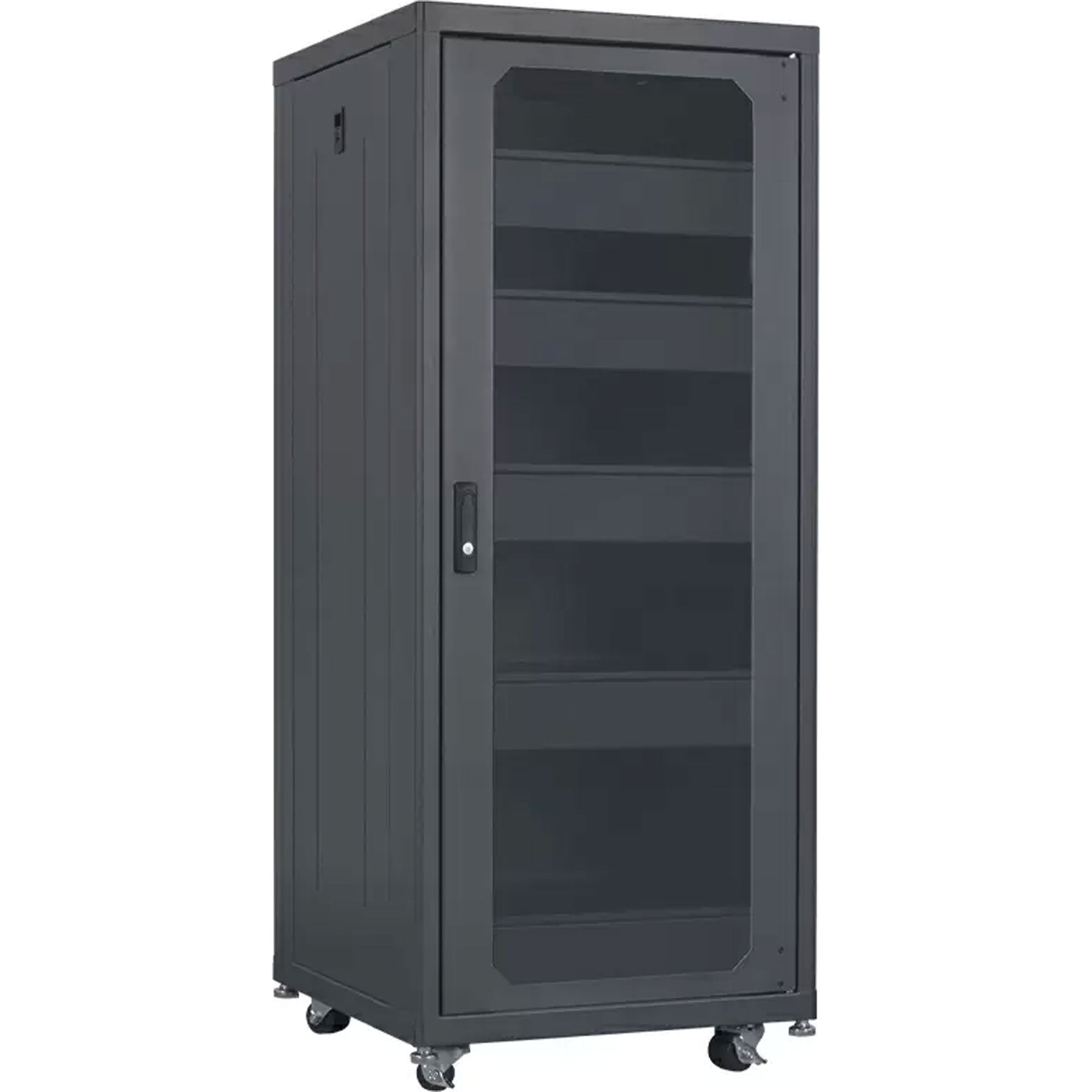

- Front Door: Smoked grey tempered glass with key lock and inset handle can be adjusted to left or right hand swing.

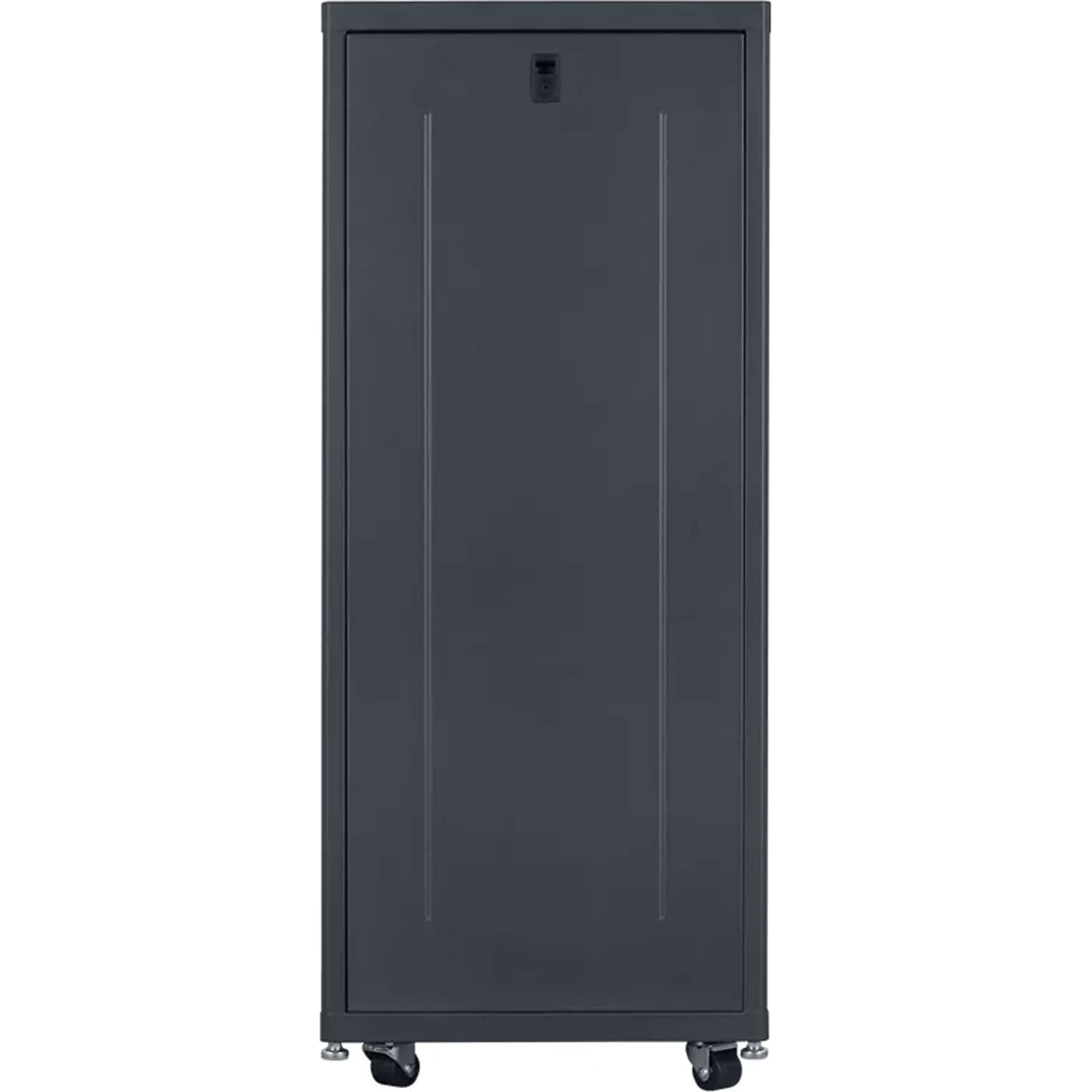

- Rear Access Cover: Opens from top, includes key lock.
- Side Panels: Lift off for easy access. Includes key lock.
- Mounting Rails: 2 pr. adjustable rails with mounting holes tapped 10-32 and rack unit increments printed on EIA spacing.
- Shelves: 5 (2U) steel shelves with bottom vents can be
- repositioned as needed.
- Panels: 5 (2U) blank panels can be repositioned.
- Load Capacity: 750 lbs.
- EIA/TIA/RoHS: Compliant
- Hardware: PilotPoint screws with captive washers
- Finish: Charcoal grey textured finish
- Origin: Made with 100% certified U.S. steel
Specifications:
- Rack Space: 27U
- Overall Height: 51.42 in. (54.18 in. with casters)
- Overall Width: 22.31 in.
- Overall Depth: 24.00 in.
- COMPLIANCE & CERTIFICATION
- EIA/TIA compliant
- RoHS compliant
- Certified U.S. steel
- Made in Missouri, U.S.A.
